KARA - Anti-Shock Combination Air Release Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN300
- Pressure Class
- PN10, PN16, PN25
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- BS EN 1074-4, AWWA C512, BS EN 1092
- Face to face
- BS EN 558
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Seat
- Spring
- Anti Shock Device
- Buffer
- Cover
- Fasteners
- Float
- Guide Barrel
- Nozzle Seat
- Pillar
- Plug
- Screen
- Sealing Arc
- Seals
- Small Nozzle
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN25 (flanged, DN50-DN300) | 25 bar | -10°C | 80°C |
Dimensions per size(11 sizes)

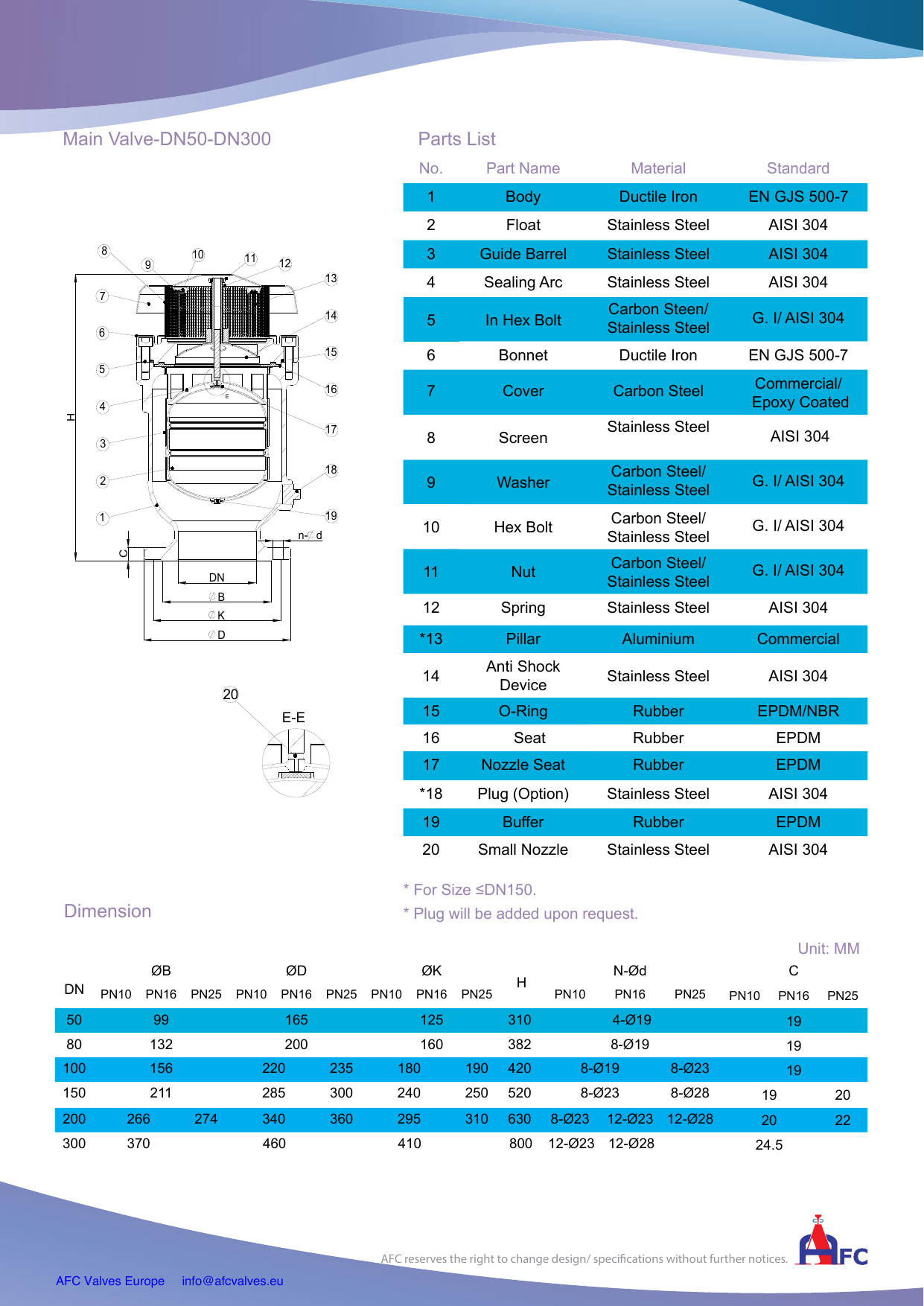

| Size | B (mm) | D (mm) | K (mm) | H (mm) | N-d (mm) | C (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | 99 | 165 | 125 | 310 | 4-Ø19 | 19 | — |
| DN80 | 132 | 200 | 160 | 382 | 8-Ø19 | 19 | — |
| DN100 PN16 | 156 | 220 | 180 | 420 | 8-Ø19 | 19 | — |
| DN100 PN25 | 156 | 235 | 190 | 420 | 8-Ø23 | 19 | — |
| DN150 PN16 | 211 | 285 | 240 | 520 | 8-Ø23 | 19 | — |
| DN150 PN25 | 211 | 300 | 250 | 520 | 8-Ø28 | 20 | — |
| DN200 PN10 | 266 | 340 | 295 | 630 | 8-Ø23 | 20 | — |
| DN200 PN16 | 274 | 360 | 310 | 630 | 12-Ø23 | 22 | — |
| DN200 PN25 | 274 | 360 | 310 | 630 | 12-Ø28 | 22 | — |
| DN300 PN16 | 370 | 460 | 410 | 800 | 12-Ø23 | 24.5 | — |
| DN300 PN25 | 370 | 460 | 410 | 800 | 12-Ø28 | 24.5 | — |

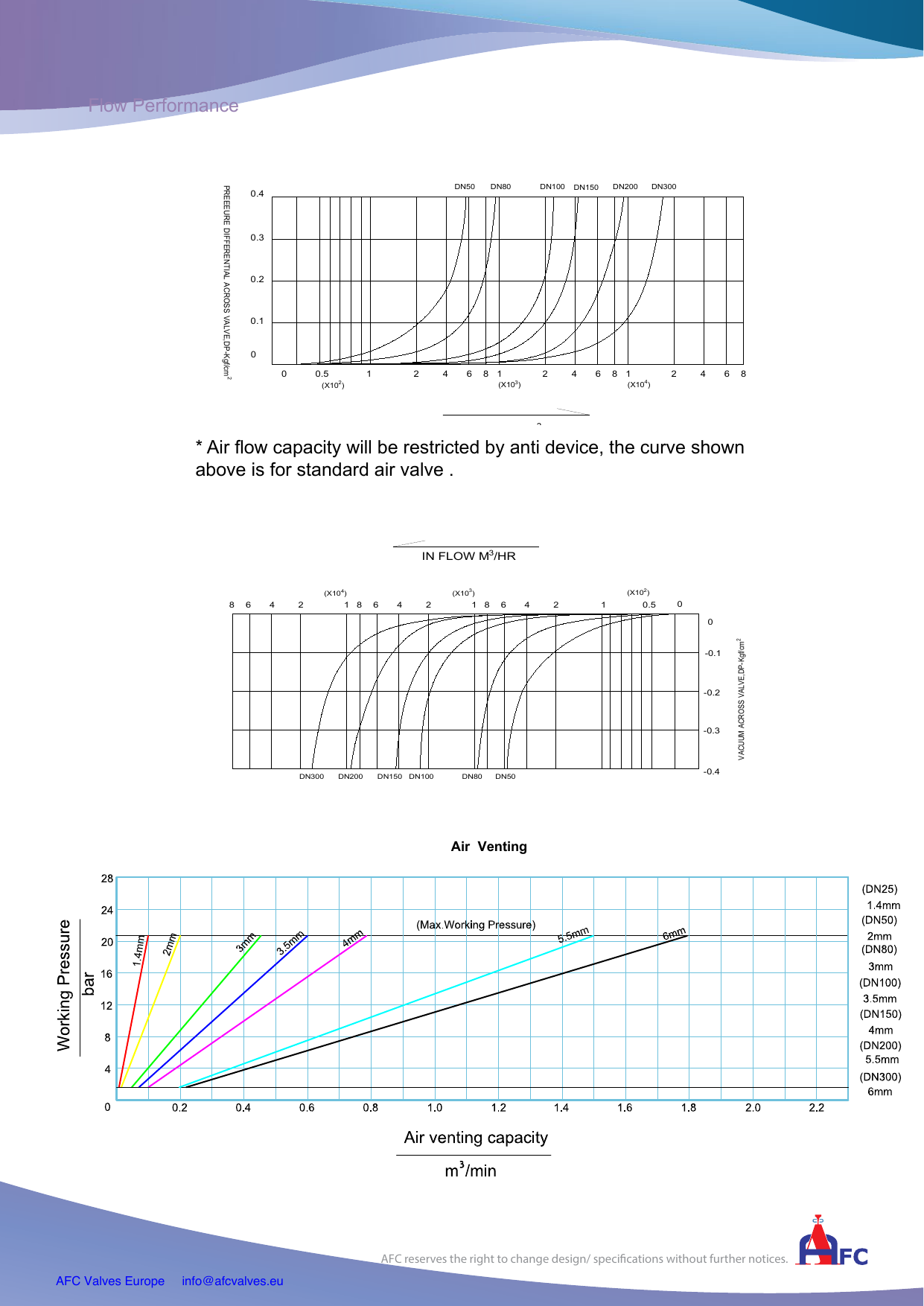

Operating media
Typical applications
- Potable water distribution
- Water treatment
- Pump stations
Coatings
Approvals
Features
- The KARA combination air release valve combines large-orifice kinetic air venting during filling with small-orifice continuous air release under operating pressure
- The anti-shock check mechanism prevents water hammer caused by rapid air column collapse
- Suitable for potable water transmission mains and distribution systems where surge protection is required alongside air management
Description
The KARA combination air release valve combines large-orifice kinetic air venting during filling with small-orifice continuous air release under operating pressure. The anti-shock check mechanism prevents water hammer caused by rapid air column collapse. Suitable for potable water transmission mains and distribution systems where surge protection is required alongside air management.
Selection notes
This air release valve is supplied for flanged installation.
Sizes run DN50 to DN300, in PN10, PN16, PN25.
The body is Ductile Iron EN GJS 500-7.
Seat and trim options are EPDM. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include clean water.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to BS EN 1074-4, AWWA C512, BS EN 1092 and BS EN 558.
