API Forged Steel Gate Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN50
- Pressure Class
- Class 800, Class 900, Class 1500, Class 2500
- End connection
- Threaded · Socket weld
Standards
- Design & manufacture
- API 602
- Inspection & test
- API 598
- Face to face
- ASME B16.11, ASME B1.20.1
- Flange & end dimension
- ASME B16.34
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Stem
- Handwheel
- Gland Flange
- Stem Nut
Dimensions per size(18 sizes)
| Size | NPS | L (mm) | d (mm) | H (mm) | W (mm) | NPT | Weight |
|---|---|---|---|---|---|---|---|
| DN15 | 1/2" | 79 | 13 | 153 | 100 | 1/2" | 2 kg |
| DN20 | 3/4" | 92 | 13 | 153 | 100 | 3/4" | 2.2 kg |
| DN25 | 1" | 111 | 18 | 185 | 125 | 1" | 3.6 kg |
| DN32 | 1 1/4" | 120 | 29 | 222 | 160 | 1 1/4" | 6.2 kg |
| DN40 | 1 1/2" | 120 | 29 | 240 | 160 | 1 1/2" | 6.2 kg |
| DN50 | 2" | 140 | 36.5 | 279 | 180 | 2" | 9.7 kg |
| DN15 | 1/2" | 92 | 13 | 181 | 125 | 1/2" | 3.5 kg |
| DN20 | 3/4" | 111 | 13 | 181 | 125 | 3/4" | 4 kg |
| DN25 | 1" | 120 | 18 | 218 | 160 | 1" | 6 kg |
| DN32 | 1 1/4" | 120 | 24 | 237 | 160 | 1 1/4" | 7 kg |
| DN40 | 1 1/2" | 140 | 29 | 274 | 180 | 1 1/2" | 10.8 kg |
| DN50 | 2" | 160 | 36.8 | 319 | 200 | 2" | 15.5 kg |
| DN15 | 1/2" | 150 | 14 | 284 | 160 | 1/2" | 10 kg |
| DN20 | 3/4" | 150 | 14 | 284 | 160 | 3/4" | 12.8 kg |
| DN25 | 1" | 170 | 19 | 327 | 200 | 1" | 22.5 kg |
| DN32 | 1 1/4" | 200 | 25 | 374 | 250 | 1 1/4" | 31.7 kg |
| DN40 | 1 1/2" | 200 | 28 | 377 | 250 | 1 1/2" | 33 kg |
| DN50 | 2" | 250 | 35 | 434 | 300 | 2" | 38 kg |
Description
Forged steel gate valve designed and manufactured to API 602, available in pressure classes 150 to 2500. Offered in carbon steel and stainless steel (304/316) with NPT threaded or socket-weld end connections in sizes DN15 to DN50.
Selection notes
This api valve is supplied for threaded and socket weld installation.
Sizes run DN15 to DN50, in Class 800, Class 900, Class 1500, Class 2500.
The body is offered in ASTM A105, ASTM A182 F304 and ASTM A182 F316, so the grade can be matched to the service rather than the other way round.
It is catalogued for Oil & Gas and Industrial Process.
Built to API 602, ASME B16.11, ASME B1.20.1, API 598 and ASME B16.34.
Available pressure classes
Pressure classes this product is rated to.
Used in
Related guides
Smart find
Searches our product catalogue using your spec. Drop a spec sheet or parts list (PDF, Excel, CSV, Word or text, several at once), paste a description or a part number and we'll find the closest matches for each. Anything we can't match goes to your RFQ as a custom enquiry for our team to source.Related API Valves

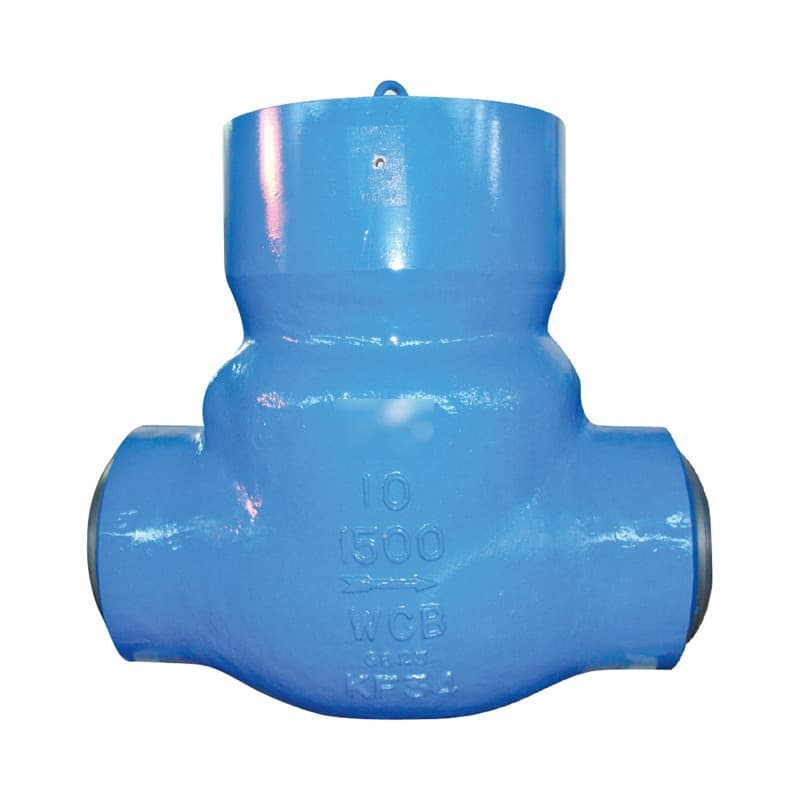

API ValveREF 425API Liftcheck Valve
- Type
- API Valve
- Size
- NPS 1/2 DN15 to NPS 12 DN300
- Pressure
- Class 150, Class 300, Class 600, Class 900
- Body
- A216 WCB
- Standards
- —
Adds to your quote request, not a purchase. Refine size, pressure and material before submitting.
API Forged Steel Check Valve
- Type
- API Valve
- Size
- DN15 to DN50
- Pressure
- Class 800, Class 900, Class 1500, Class 2500
- Body
- ASTM A105 / ASTM A182 F304 / ASTM A182 F316
- Standards
- API 602, API 598
Adds to your quote request, not a purchase. Refine size, pressure and material before submitting.
API Y Pattern Strainer
- Type
- API Valve
- Size
- DN15 to DN500
- Pressure
- Class 150, Class 300, Class 600
- Body
- ASTM A216 WCB / ASTM A351 CF8 / ASTM A351 CF8M
- Standards
- —
Adds to your quote request, not a purchase. Refine size, pressure and material before submitting.

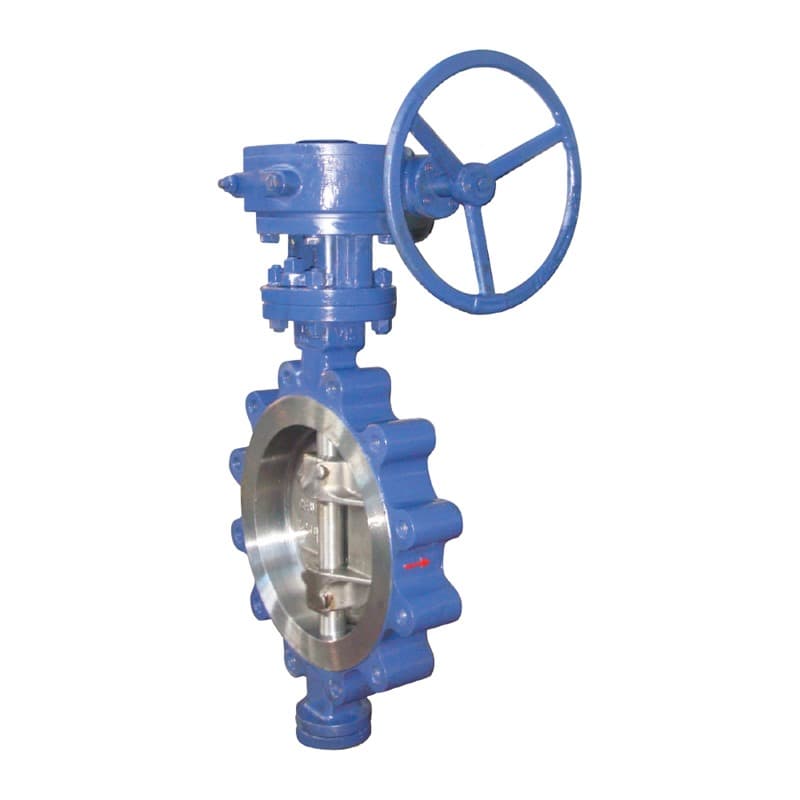

API ValveREF 429API Triple Offset Lug Butterfly Valve
