Stainless Steel Ball Valve

Name: Stainless Steel Ball Valve
Brand: Euro Flow Control
SKU: EFC-306

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN15 to DN200
Pressure Class: PN16, PN25, Class 150, Class 300
End connection: Flanged · Threaded
Operating temperature: -20°C to 425°C, by material

Standards

Inspection & test: API 598
Face to face: DIN 3202, ISO 5752
Mounting: ISO 5211
Materials: ASTM A351

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Ball
Seat
Stem
Wrench

Temperature by material

The temperature limit follows the material grade, so the range above spans every grade offered rather than any one build. Confirmed at quotation.

CF8 / CF8M / CF3 / CF3M: -20°C to 425°C
PTFE / RPTFEseat: -20°C to 260°C (the soft seat limits service below the body rating)

Dimensions per size(12 sizes)

Size	L (mm)	H (mm)	D (mm)	D1 (mm)	n-d (mm)	Weight
DN15	115	59	95	65	4-15	—
DN20	120	63	105	75	4-15	—
DN25	125	75	115	85	4-15	—
DN32	130	86	140	100	4-19	—
DN40	140	105	150	110	4-19	—
DN50	150	115	165	125	4-19	—
DN65	170	135	185	145	4-19	—
DN80	180	155	200	160	8-19	—
DN100	190	170	220	180	8-19	—
DN125	325	195	250	210	8-19	—
DN150	350	240	285	240	8-23	—
DN200	400	295	340	295	12-23	—

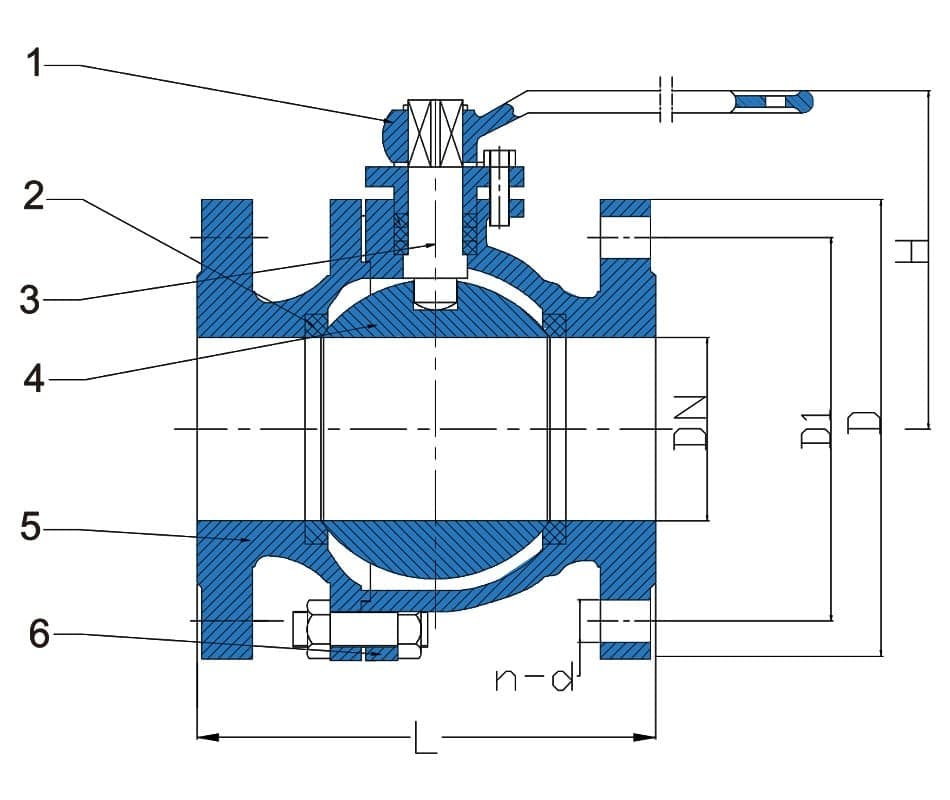

Technical drawings(1 page)

Operating media

WaterOilGasSteam

Typical applications

HVAC
Water Supply & Sewage
Food & Beverage
Chemical/Petrochemical/Processing
Power & Utilities
Paper and Pulp
Ship Building

Actuation options

Manual lever

Approvals

ISOEACCEECM (Ente Certificazione Macchine)

Features

Blow-out proof stem
Investment casting body
Pressure balance hole in ball slot
Full bore
Threaded end types available: NPT, PT, BSP, BSPP, BSPT, DIN, Rc, Rp
Locking device available
Quarter-turn operation
Two-piece and three-piece body styles available
2-piece flanged ball valve construction
Full bore (full port) design
Lever operated with lockable handle
Raised face flanges
Stem with blue packing gland adjustment nut
Body cast material marked CF8 (equivalent to 304 stainless steel casting grade)
Bolted body joint (split body)
Drain/blowdown plug fitted to lower body (item 6)

Description

Flanged stainless steel ball valve with investment-cast body available in CF8, CF8M, CF3, and CF3M grades. Operates via a quarter-turn mechanism with full bore design and PTFE or RPTFE seats. Rated to PN16/PN25 and ANSI Class 150/300. Working temperature -20 to 425 degrees C per source. Media includes water, oil, gas, acid, and steam.

Selection notes

This ball valve is a full bore pattern, supplied for flanged and threaded installation.

Sizes run DN15 to DN200, in PN16, PN25, Class 150, Class 300.

The body is offered in CF8, CF8M, CF3 and CF3M, so the grade can be matched to the service rather than the other way round.

Seat and trim options are PTFE and RPTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include water, oil, gas and steam.

It is catalogued for Water & Wastewater, HVAC and Industrial Process.

Working temperature is -20°C to 425°C, by material.

Built to DIN3202, ISO5752, API 598, ASTM A351 and ISO5211.
