Angle Float Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN600
- Pressure Class
- PN10, PN16
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3356
- Inspection & test
- EN 12266
- Face to face
- EN 558 Serie 8, DIN 3202 F32
- Flange & end dimension
- DIN 2501, DIN EN 1092-2
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Bolt
- Cup Washer
- Float
- Fulcrum
- Lever
- Pin
- Seal
- Seat Ring
Dimensions per size(10 sizes)
| Size | L1 (mm) | A (mm) | B (mm) | H (mm) | J (mm) | Od (mm) | D_PN10 (mm) | k_PN10 (mm) | D_PN16 (mm) | k_PN16 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DN40 | 115 | 1295 | 1555 | 172 | 450 | 280 | 150 | 110 | 150 | 110 | 19 kg |
| DN50 | 125 | 1295 | 1555 | 172 | 450 | 280 | 165 | 125 | 165 | 125 | 20 kg |
| DN65 | 145 | 1460 | 1740 | 305 | 546 | 320 | 185 | 145 | 185 | 145 | 30 kg |
| DN80 | 155 | 1460 | 1740 | 305 | 546 | 320 | 200 | 160 | 200 | 160 | 35 kg |
| DN100 | 175 | 1535 | 1855 | 330 | 700 | 350 | 220 | 180 | 220 | 180 | 55 kg |
| DN125 | 200 | 1850 | 2260 | 330 | 700 | 350 | 250 | 210 | 250 | 210 | 70 kg |
| DN150 | 225 | 2145 | 2675 | 340 | 920 | 400 | 285 | 240 | 285 | 240 | 100 kg |
| DN200 | 275 | 2545 | 3070 | 455 | 1230 | 400 | 340 | 295 | 340 | 295 | 180 kg |
| DN250 | 325 | 3035 | 3620 | 455 | 1580 | 500 | 395 | 350 | 405 | 355 | 270 kg |
| DN300 | 375 | 3035 | 3620 | 455 | 1580 | 500 | 445 | 400 | 460 | 410 | 370 kg |

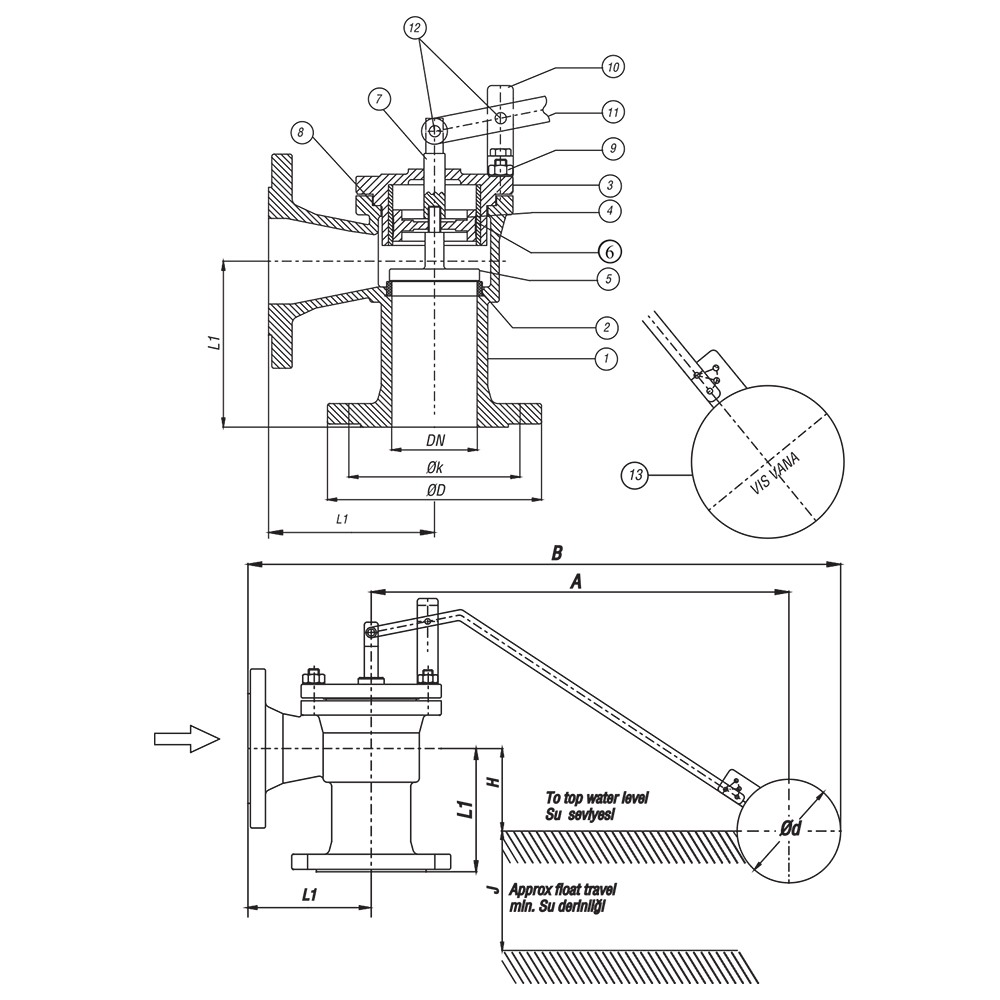

Technical drawings(1 page)
Operating media
Typical applications
- water storage tanks
- water level control
Features
- Angle-pattern body configuration
- Float-actuated closure via lever and fulcrum mechanism
- Closes automatically when water reaches set level
- Float available in multiple materials including bronze, carbon steel, SS420 and SS304
- Seat and disc in brass (Ms 58) or stainless steel (1.4021)
- Body and fulcrum in grey or ductile cast iron
Description
An angle-pattern float valve designed to DIN 3356, available in sizes DN40 to DN600 and rated for PN10/16. The valve uses a bronze or stainless steel float connected via a lever and fulcrum to a disc-and-seat assembly, closing flow when the float reaches the set water level. Body and bonnet are cast from GG25 or GGG-40 iron, with bronze seat ring and disc components.
Selection notes
This float valve is a angle type pattern, supplied for flanged installation.
Sizes run DN40 to DN600, in PN10, PN16.
The body is offered in GG 25 and GGG-40, so the grade can be matched to the service rather than the other way round.
Seat and trim options are Ms 58 and Ms 1,4021. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water.
It is catalogued for Water & Wastewater and HVAC.
Built to DIN 3356, EN 558 Serie 8, DIN 3202 F32, EN 12266 and DIN 2501.
Available pressure classes
Pressure classes this product is rated to.
