KNIFE GATE VALVE
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN800
- Pressure Class
- PN10, PN16
- End connection
- Wafer · Flanged
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
Material grade
Offered in complete material setups. Pick one to set every part to the matched set, or choose parts individually below.
All available material options per part. Click a pill to set it in the configurator.
- Body
- Stem
- Packing
- Sealing
- Seat
Operating media
Typical applications
- coal preparation
- slag discharge
- urban sewage treatment
- food processing
- papermaking
- pharmaceutical
- petroleum
- chemical
- mining power plants
Actuation options
Features
- Low fluid resistance; sealing surface subject to minimal medium erosion
- Gate incorporates shear function to scrape sticky matter from sealing surfaces and remove debris
- Stainless steel gate prevents seal leakage caused by corrosion
- Flow direction not restricted; no pressure disturbance or reduction
- Short structural length
- Simple form

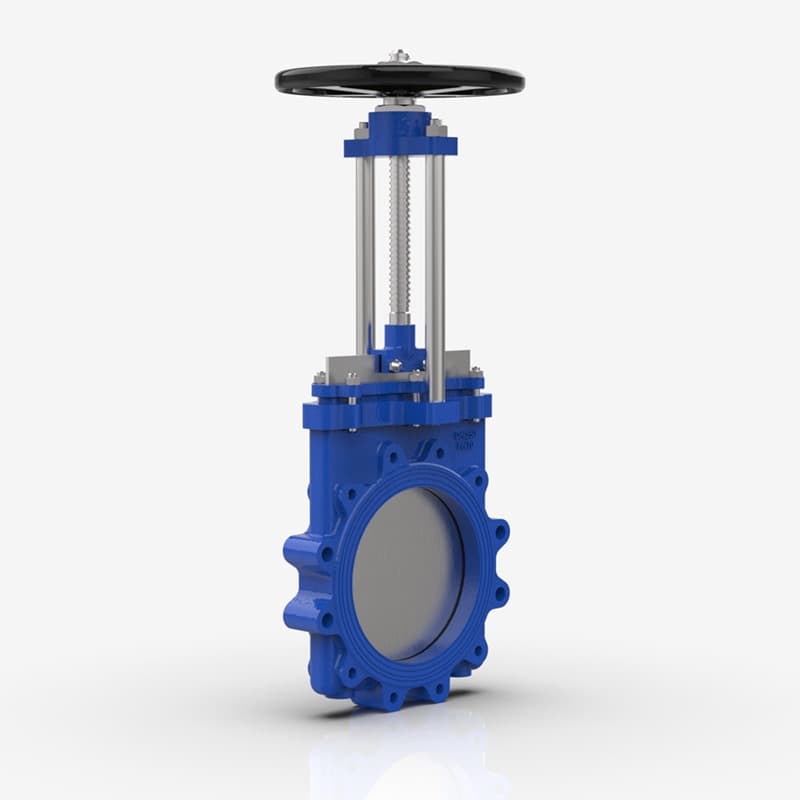

- Rising stem with exposed leadscrew
- Gear handwheel operator
- Twin stainless steel guide columns/tie rods
- Lug-type body (through-bolt holes around flange perimeter)
Description
Knife gate valve for isolation of slurries, pulps, and viscous or particulate-laden media in pipelines. The gate incorporates a shear function to scrape sealing surfaces and remove debris. Stainless steel gate options resist corrosion. Available in wafer or flanged end connections.
Selection notes
This knife gate valve is supplied for wafer and flanged installation.
Sizes run DN50 to DN800, in PN10, PN16.
The body is offered in WCB and SS304, so the grade can be matched to the service rather than the other way round.
Seat and trim options are PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include cement slurry, pulp, wood pulp, slag, cinder and slime.
It is catalogued for Water & Wastewater and Industrial Process.
Available pressure classes
Pressure classes this product is rated to.
Used in
Related guides
Smart find
Searches our product catalogue using your spec. Drop a spec sheet or parts list (PDF, Excel, CSV, Word or text, several at once), paste a description or a part number and we'll find the closest matches for each. Anything we can't match goes to your RFQ as a custom enquiry for our team to source.Related Knife Gate Valves
Knife Gate ValveREF 287Knife Gate Valve
- Type
- Knife Gate Valve
- Size
- DN65 to DN300
- Pressure
- PN10, PN16, PN25, PN40
- Body
- Ductile Iron
- Standards
- —
Adds to your quote request, not a purchase. Refine size, pressure and material before submitting.
Knife Gate ValveREF 335Knife Gate Valve
- Type
- Knife Gate Valve
- Size
- DN50 to DN3000
- Pressure
- 6 bar, 10 bar, 16 bar
- Body
- —
- Standards
- MSS SP-81, API-598
Adds to your quote request, not a purchase. Refine size, pressure and material before submitting.

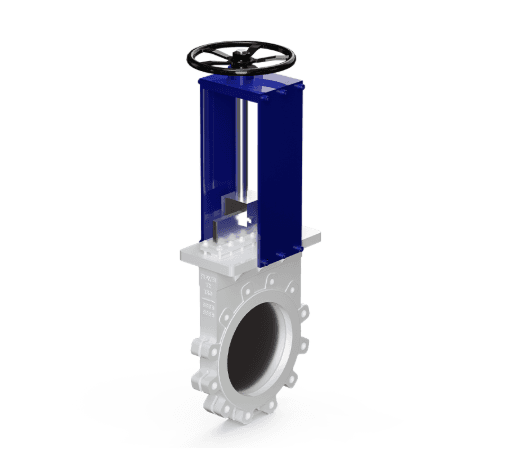

Knife Gate ValveREF 441Short Pattern Knife Gate Valve
