Pinch Valve
Pinch Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN40 to DN300
- Pressure Class
- PN10
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3202/2-F5/F15
- Face to face
- DIN 3202/2-F5/F15
- Flange & end dimension
- DIN EN 1092-1-2 PN10
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Handwheel
- Bolt Nut
- Sleeve
- Top Body
- Upper Body
Dimensions per size(10 sizes)
| Size | L (mm) | H (mm) | D1 (mm) | D (mm) | k (mm) | b (mm) | Ixpcs | Weight |
|---|---|---|---|---|---|---|---|---|
| DN40 | 165 | 100 | 160 | 150 | 110 | 18 | 18x4 | 5 kg |
| DN50 | 178 | 110 | 160 | 165 | 125 | 20 | 18x4 | 8 kg |
| DN65 | 190 | 140 | 160 | 185 | 145 | 20 | 18x4 | 15 kg |
| DN80 | 203 | 160 | 160 | 200 | 160 | 22 | 18x8 | 20 kg |
| DN100 | 300 | 200 | 200 | 220 | 180 | 24 | 18x8 | 25 kg |
| DN125 | 325 | 250 | 200 | 250 | 210 | 24 | 18x8 | 30 kg |
| DN150 | 350 | 300 | 250 | 285 | 240 | 26 | 22x8 | 40 kg |
| DN200 | 400 | 400 | 250 | 340 | 295 | 26 | 22x8 | 50 kg |
| DN250 | 450 | 500 | 315 | 395 | 350 | 28 | 22x12 | 105 kg |
| DN300 | 500 | 600 | 315 | 445 | 400 | 28 | 22x12 | 140 kg |

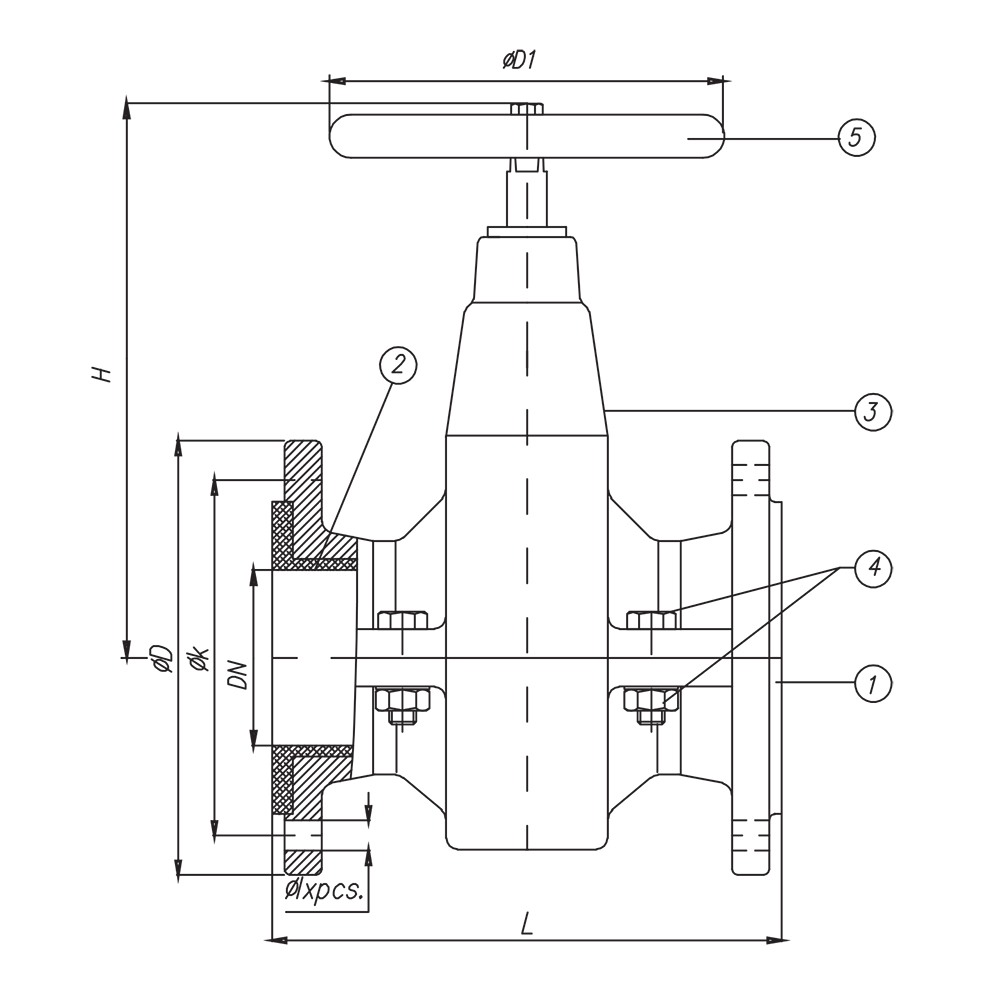

Technical drawings(1 page)
Operating media
SlurriesAbrasive mediaGeneral industrial fluids
Actuation options
Manual handwheelPneumatic single-acting
Features
- Two-part body construction comprising upper and lower body sections
- Replaceable elastomer sleeve as the sole wetted component
- Full bore design with no internal obstructions when fully open
- Available in grey cast iron, ductile cast iron, or cast steel body
- NBR or natural rubber sleeve options
- Manual handwheel or pneumatic actuation options
Description
A flanged pinch valve rated to PN 10, available in nominal diameters DN 40 through DN 300. The valve uses a sleeve (diaphragm) of NBR or NR elastomer to control flow by mechanical compression of the sleeve body. Available with manual handwheel or pneumatic actuation.
Selection notes
This pinch valve is a sleeve valve pattern, supplied for flanged installation.
Sizes run DN40 to DN300, in PN10.
Stated service media include slurries, abrasive media and general industrial fluids.
It is catalogued for Water & Wastewater.
Built to DIN 3202/2-F5/F15 and DIN EN 1092-1-2 PN10.
