ACV Ratio Reducing Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- 50mm to 300mm
- Pressure Class
- PN16, PN25, PN40, PN100
- End connection

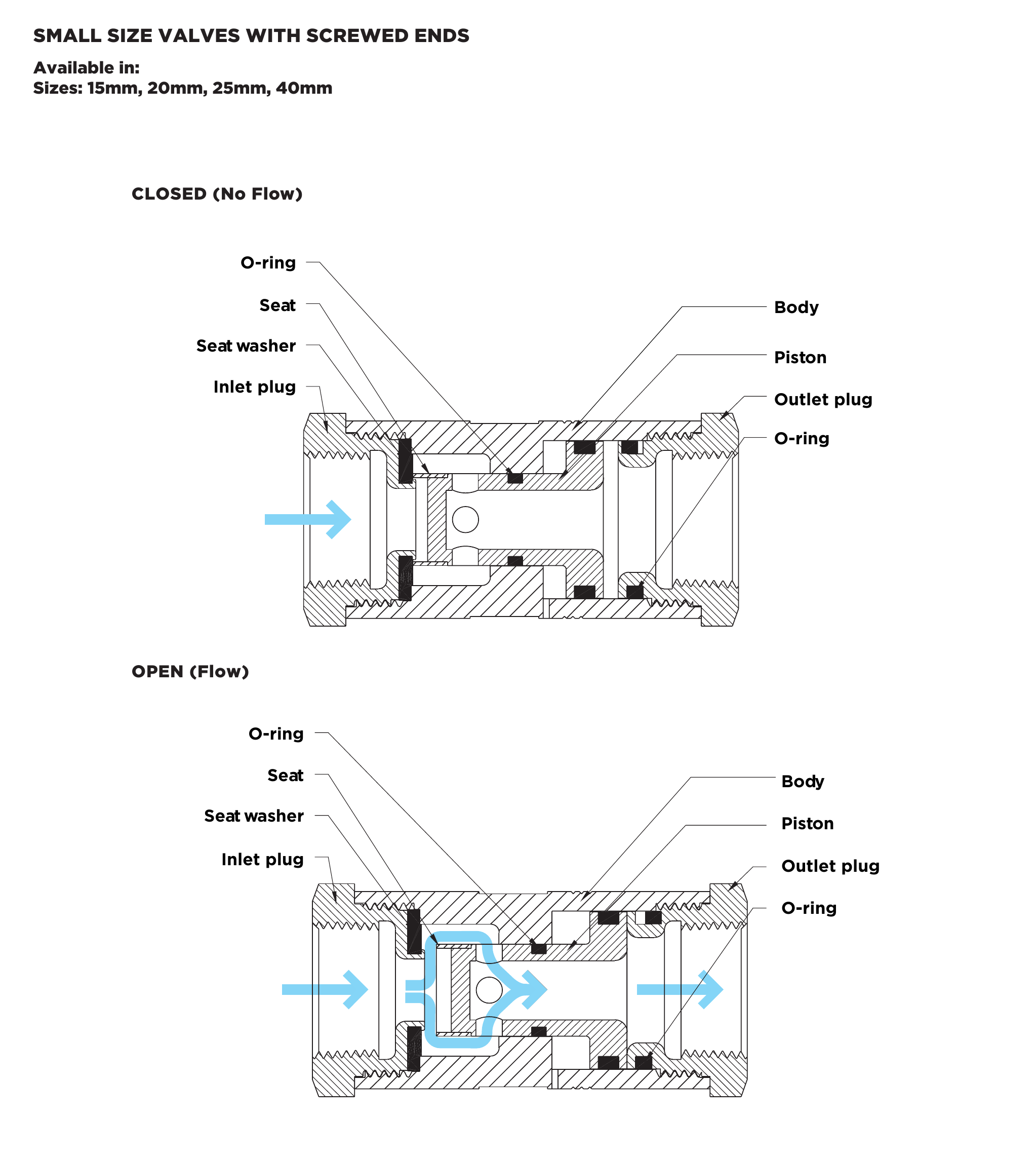

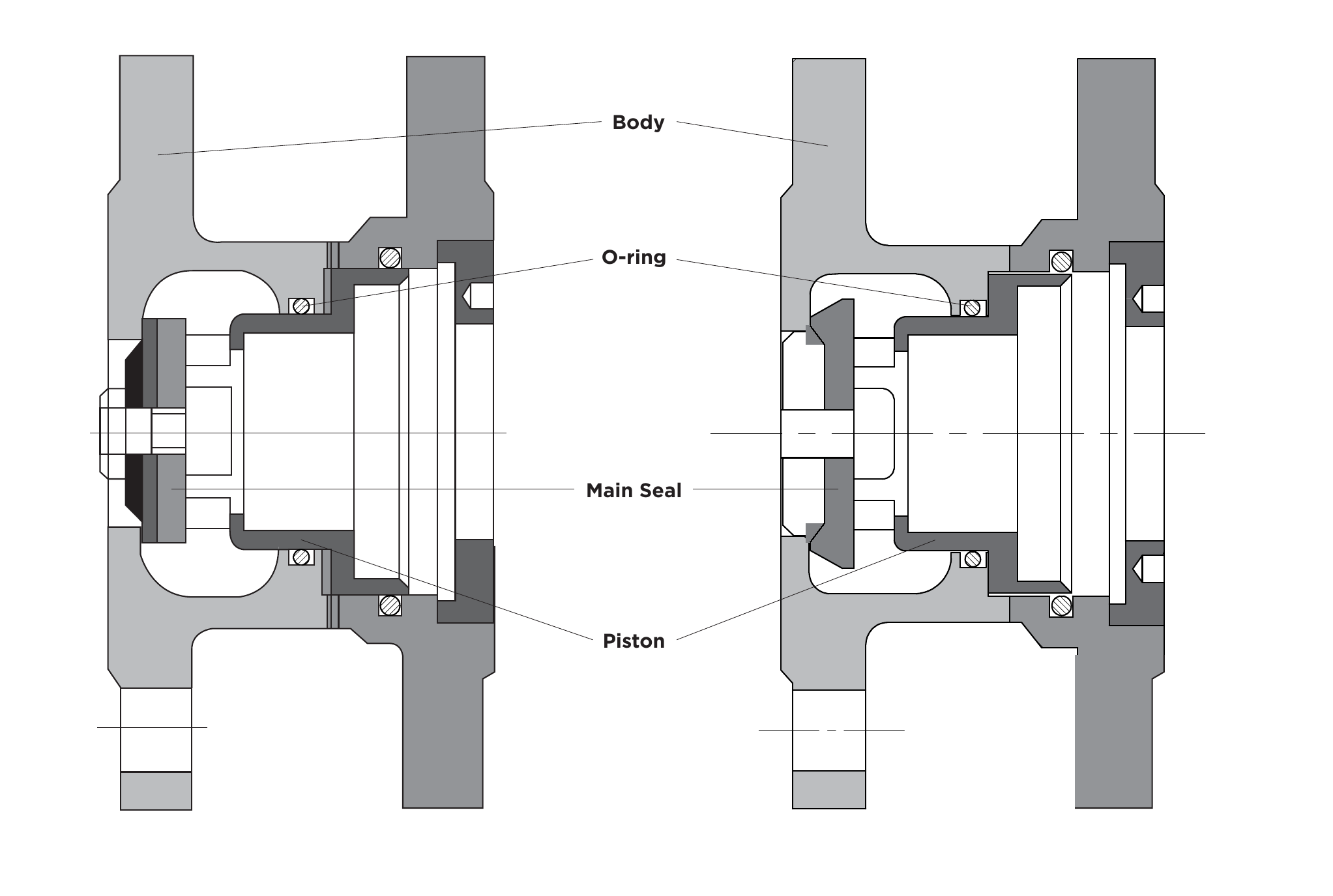

- Threaded · Flanged
- Operating temperature
- 0°C to 20°C
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Diaphragm
Dimensions per size(7 sizes)
| Size | L (mm) | Weight |
|---|---|---|
| 50mm | 80 | — |
| 80mm | 110 | — |
| 100mm | 120 | — |
| 150mm | 160 | — |
| 200mm | 200 | — |
| 250mm | 250 | — |
| 300mm | 300 | — |
Operating media
Typical applications

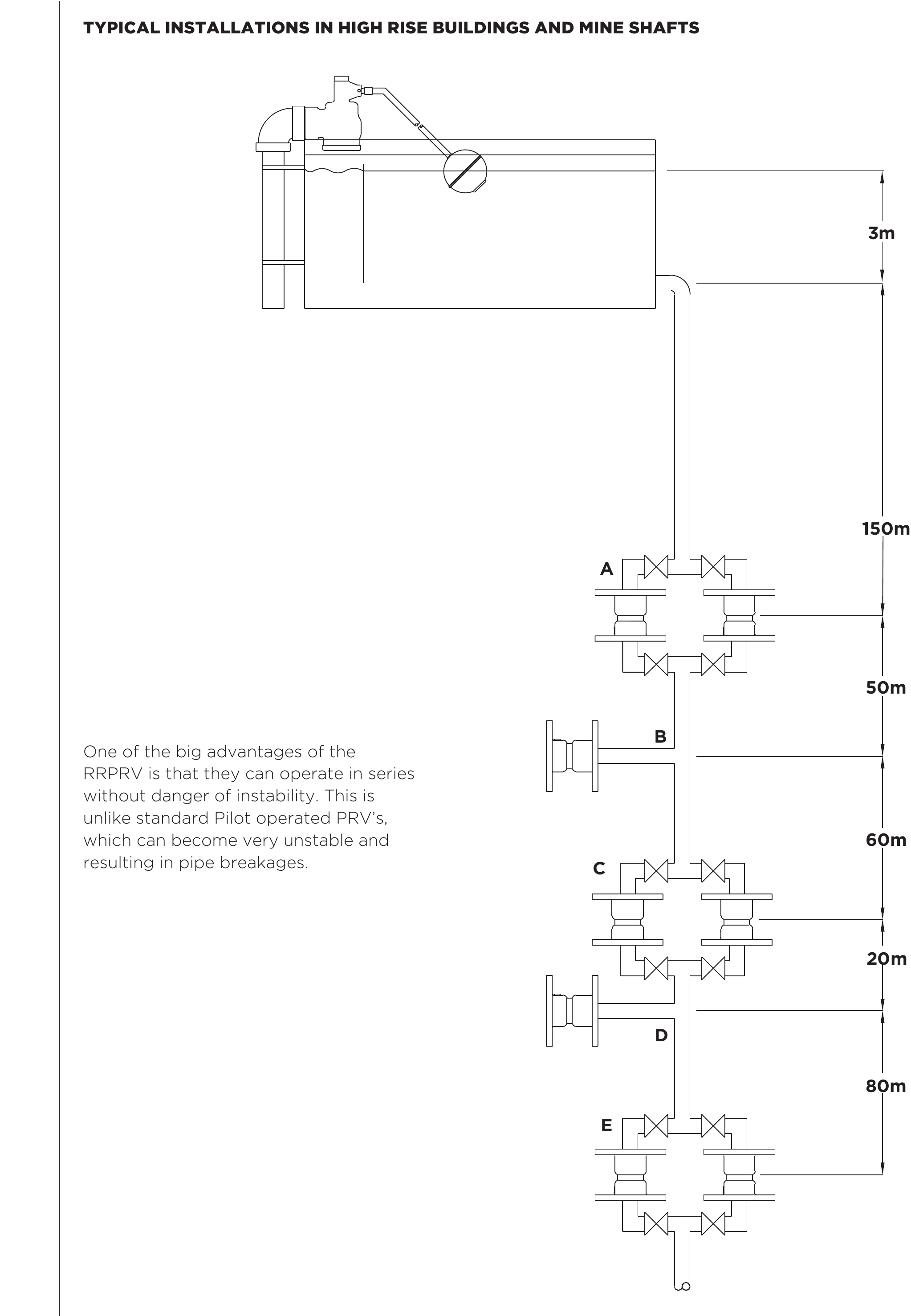

- Trunk main pressure management
- Variable inlet pressure systems
- District metered areas
- Pressure zone management
Approvals
Features
- One-piece direct-acting ratio pressure reducing valve
- Reduces static and dynamic fluid pressure
- High flow rates with accurate pressure control
- Reduces surge and water hammer
- Only one moving part
- Minimum maintenance required
Description
The ACV ratio reducing valve maintains a fixed ratio between upstream and downstream pressure: as inlet pressure varies, the outlet pressure varies proportionally. This is particularly useful on systems where demand patterns cause large upstream pressure fluctuations, as it avoids the very low outlet pressures that a fixed-set-point PRV would deliver at low inlet pressures. Fully hydraulic, no external power required. Patent 2016/04949.
Selection notes
This pressure reducing valve is supplied for threaded and flanged installation.
Sizes run 50mm to 300mm, in PN16, PN25, PN40, PN100.
The body is offered in Cast iron, WCB Steel and Stainless Steel, so the grade can be matched to the service rather than the other way round.
Stated service media include cold water.
It is catalogued for Water & Wastewater.
Working temperature is 0°C to 20°C.
Supplier remarks
- * L dimension given is for 16bar valves. For higher pressures L is longer by the increased flange thickness.
Available pressure classes
Pressure classes this product is rated to.
