Quick Closing Valve Angle Form
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN200
- Pressure Class
- PN16
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3202/2-F32, TSEK DIN 3202/2-F32
- Face to face
- DIN EN 558-1-8
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Gasket
- O-Ring
- Spring
- Handwheel
- Nut
- Piston
- Segment
- Stem Nut
- Stud
- Stud Nut
Dimensions per size(12 sizes)
| Size | L (mm) | B (mm) | ØC (mm) | H_open (mm) | D (mm) | k (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN15 | 90 | 145 | 120 | 185 | 95 | 65 | 4.4 kg |
| DN20 | 95 | 145 | 120 | 185 | 105 | 75 | 5.5 kg |
| DN25 | 100 | 145 | 120 | 195 | 115 | 85 | 6.5 kg |
| DN32 | 105 | 145 | 140 | 205 | 140 | 100 | 8 kg |
| DN40 | 115 | 145 | 140 | 230 | 150 | 110 | 10.5 kg |
| DN50 | 125 | 145 | 160 | 240 | 165 | 125 | 13 kg |
| DN65 | 145 | 145 | 160 | 275 | 185 | 145 | 17 kg |
| DN80 | 155 | 145 | 180 | 290 | 200 | 160 | 24 kg |
| DN100 | 175 | 145 | 200 | 350 | 220 | 180 | 30 kg |
| DN125 | 200 | 150 | 225 | 410 | 250 | 210 | 45 kg |
| DN150 | 225 | 150 | 250 | 430 | 285 | 240 | 65 kg |
| DN200 | 275 | 155 | 400 | 580 | 340 | 295 | 110 kg |

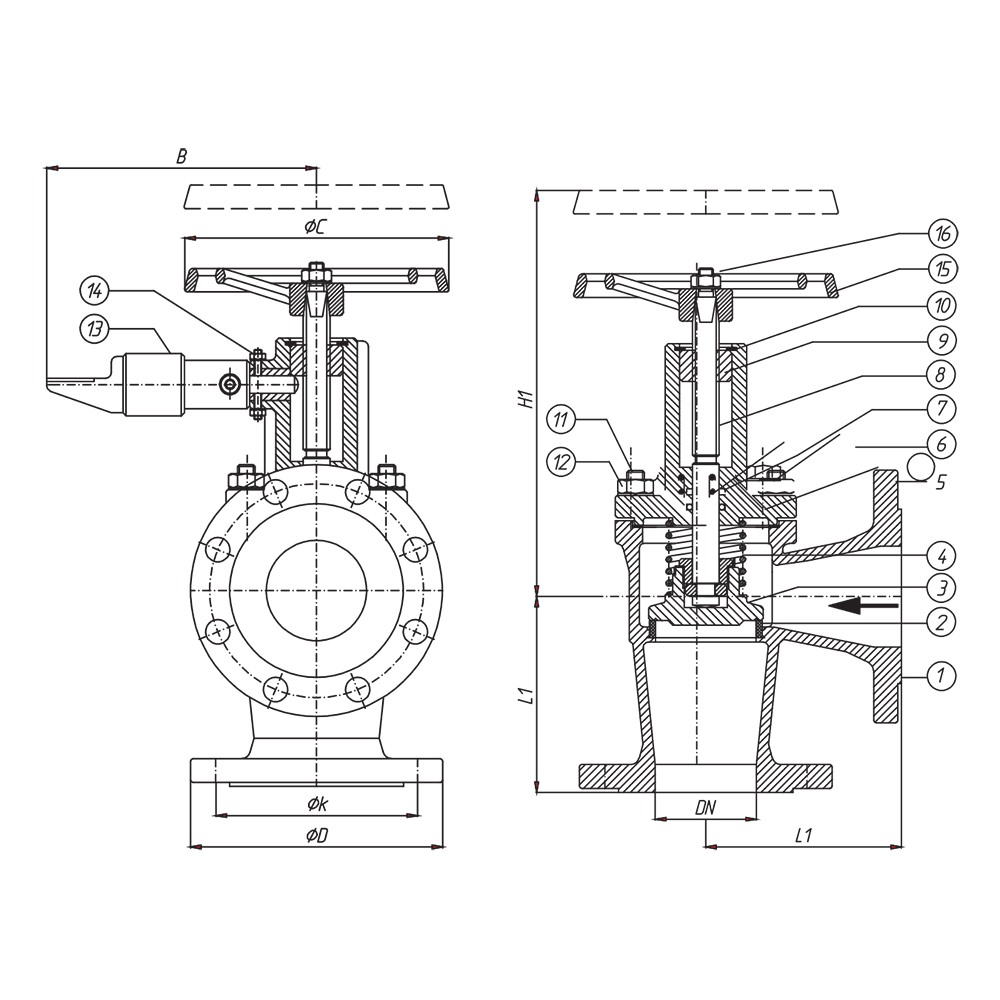

Technical drawings(1 page)
Actuation options
Description
An angle-form quick closing valve rated to PN16, available in sizes DN15 to DN200. The valve features a flanged end connection to DIN EN 1092 PN16, with dimensions per DIN 3202/2-F32 (Angle). Optional ANSI and JIS flanges are available.
Selection notes
This quick closing valve is a angle form pattern, supplied for flanged installation.
Sizes run DN15 to DN200, in PN16.
The body is offered in GG640, GGG40.3, GSC25 and Bronze RG5, so the grade can be matched to the service rather than the other way round.
Seat and trim options are AISI 304, AISI 316, Bronze RG5 and Duplex. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater and Industrial Process.
Built to DIN 3202/2-F32, TSEK DIN 3202/2-F32, DIN EN 558-1-8 and TSEK.
