P100 Float Pilot
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.

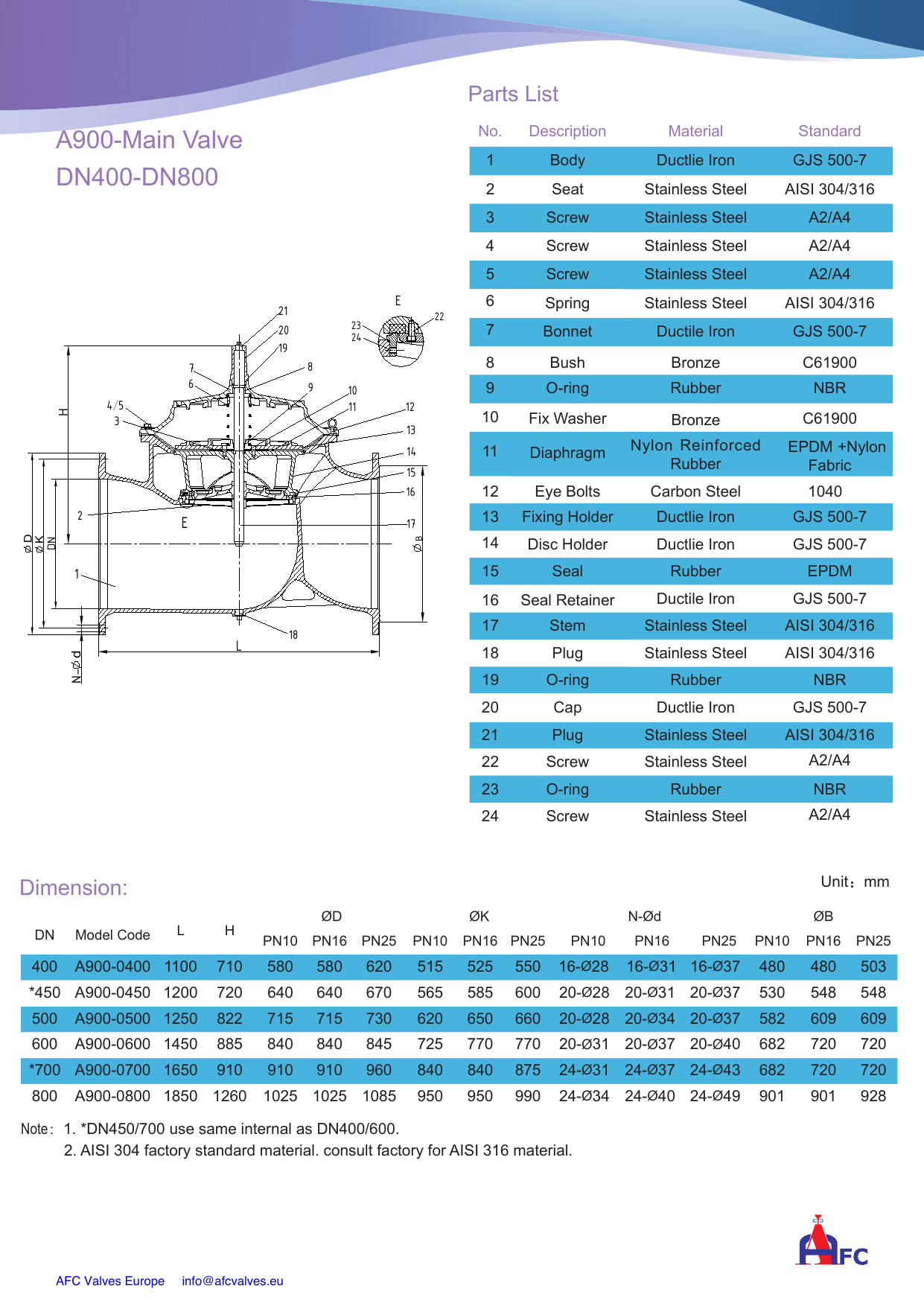

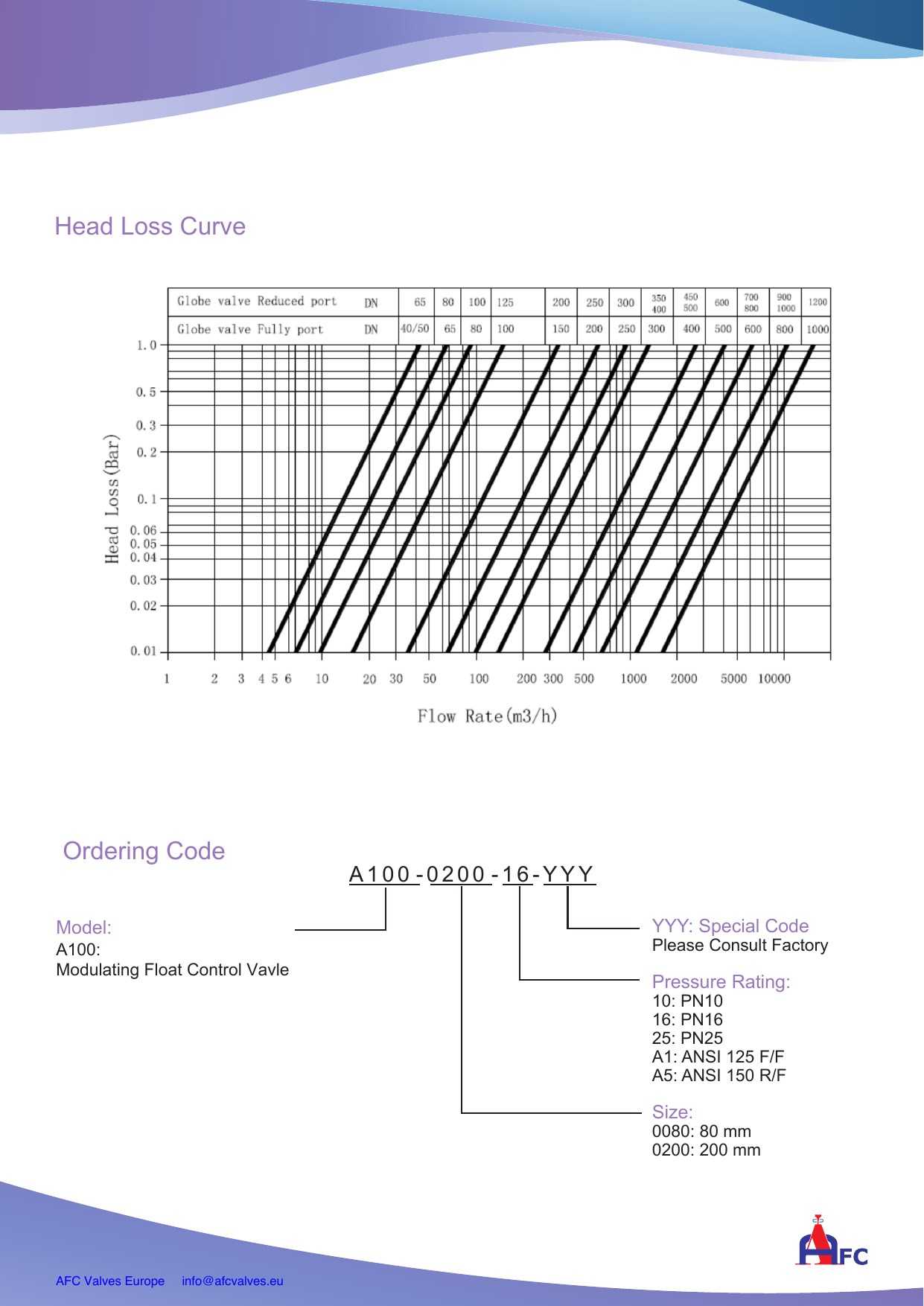

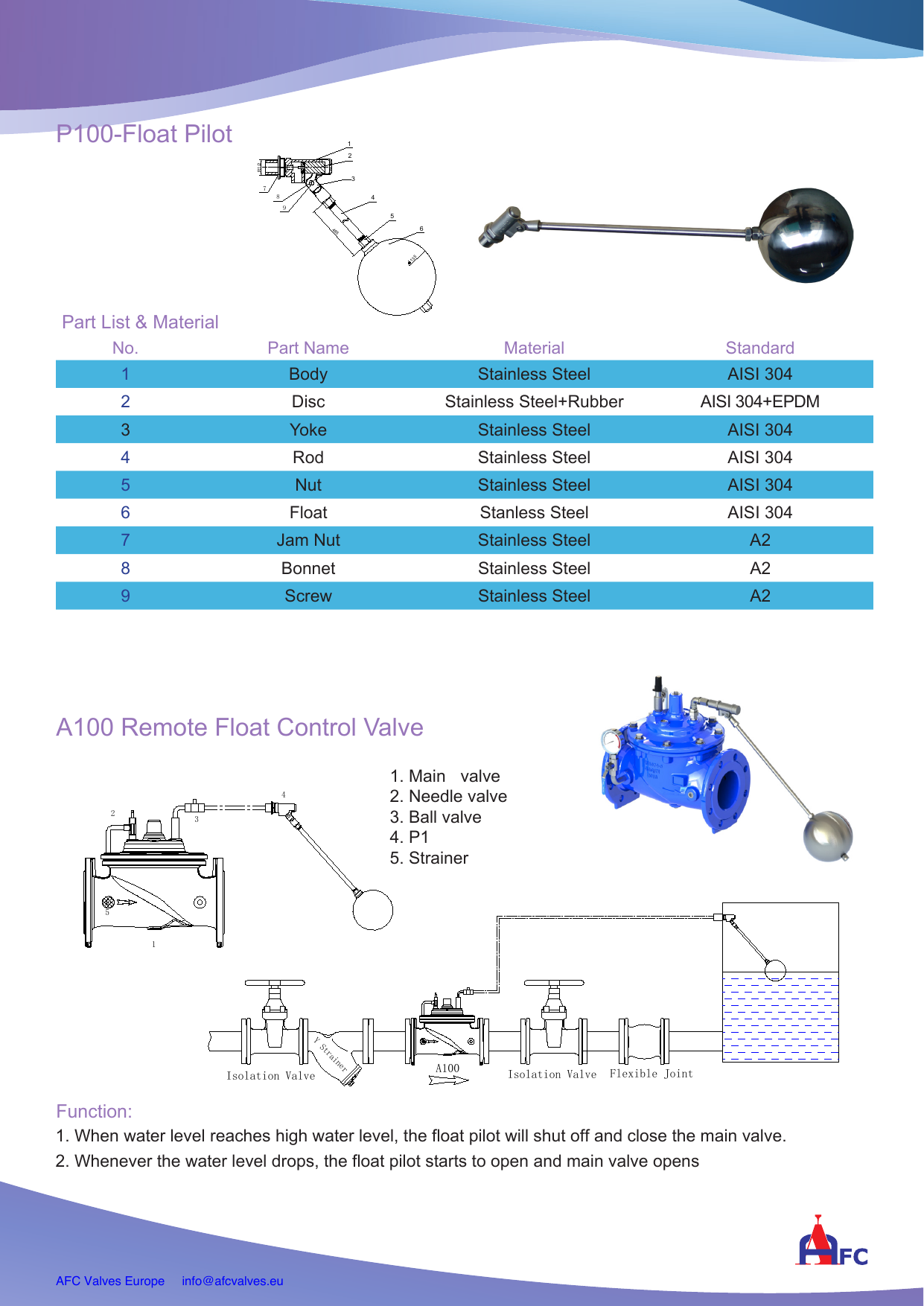

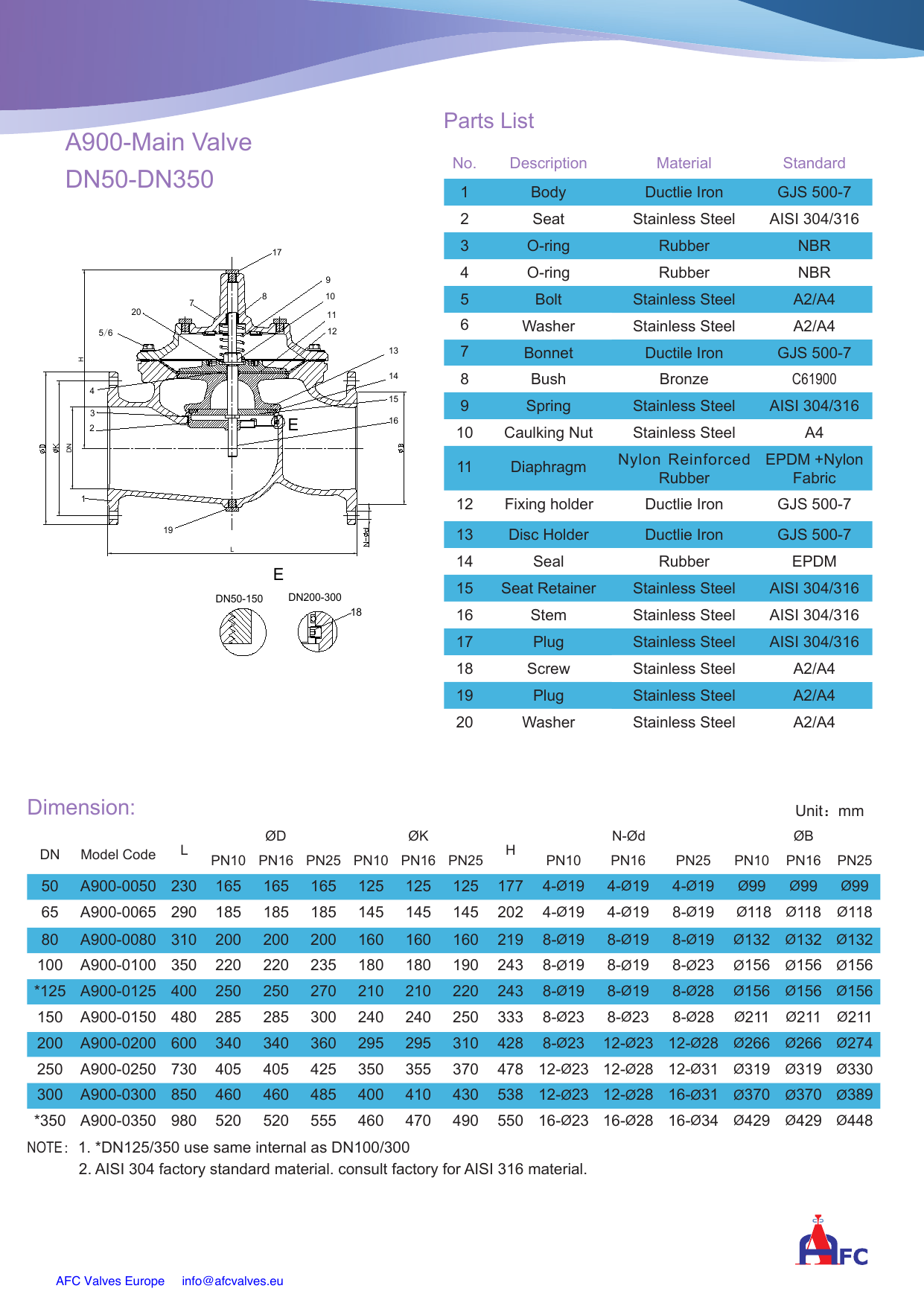

Technical drawings(4 pages)
Typical applications
- Reservoir level control
- Tank fill control
- Service reservoir management
Approvals
ISO 9001
Features
- The P100 float pilot senses water level in a reservoir or tank and sends a hydraulic signal to the main control valve
- As level rises, the pilot progressively closes the main valve; as level falls, it opens
- The fully hydraulic operation requires no electrical power
Description
The P100 float pilot senses water level in a reservoir or tank and sends a hydraulic signal to the main control valve. As level rises, the pilot progressively closes the main valve; as level falls, it opens. The fully hydraulic operation requires no electrical power.
Used in
