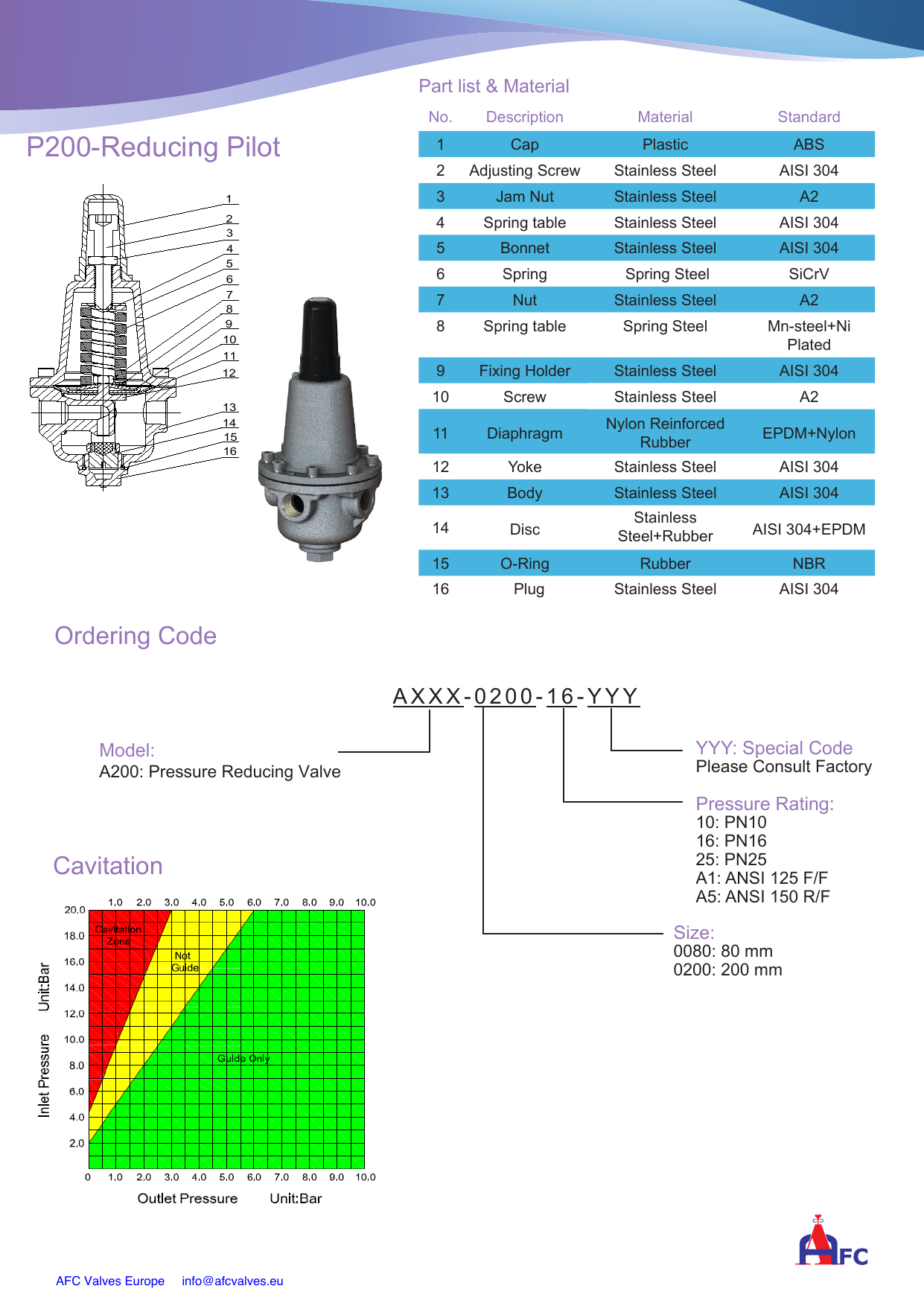

P200 Reducing Pilot
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Typical applications
- Pressure reducing valves
- PRV districts
- Zone pressure control
Approvals
Features
- The P200 reducing pilot is a spring-loaded pressure regulator that senses downstream pressure and modulates the main valve position to maintain the set pressure
- The set point is adjusted via an external spring compression screw
- Used on A200, A203 and A900 main valves configured for PRV duty
Description
The P200 reducing pilot is a spring-loaded pressure regulator that senses downstream pressure and modulates the main valve position to maintain the set pressure. The set point is adjusted via an external spring compression screw. Used on A200, A203 and A900 main valves configured for PRV duty.
