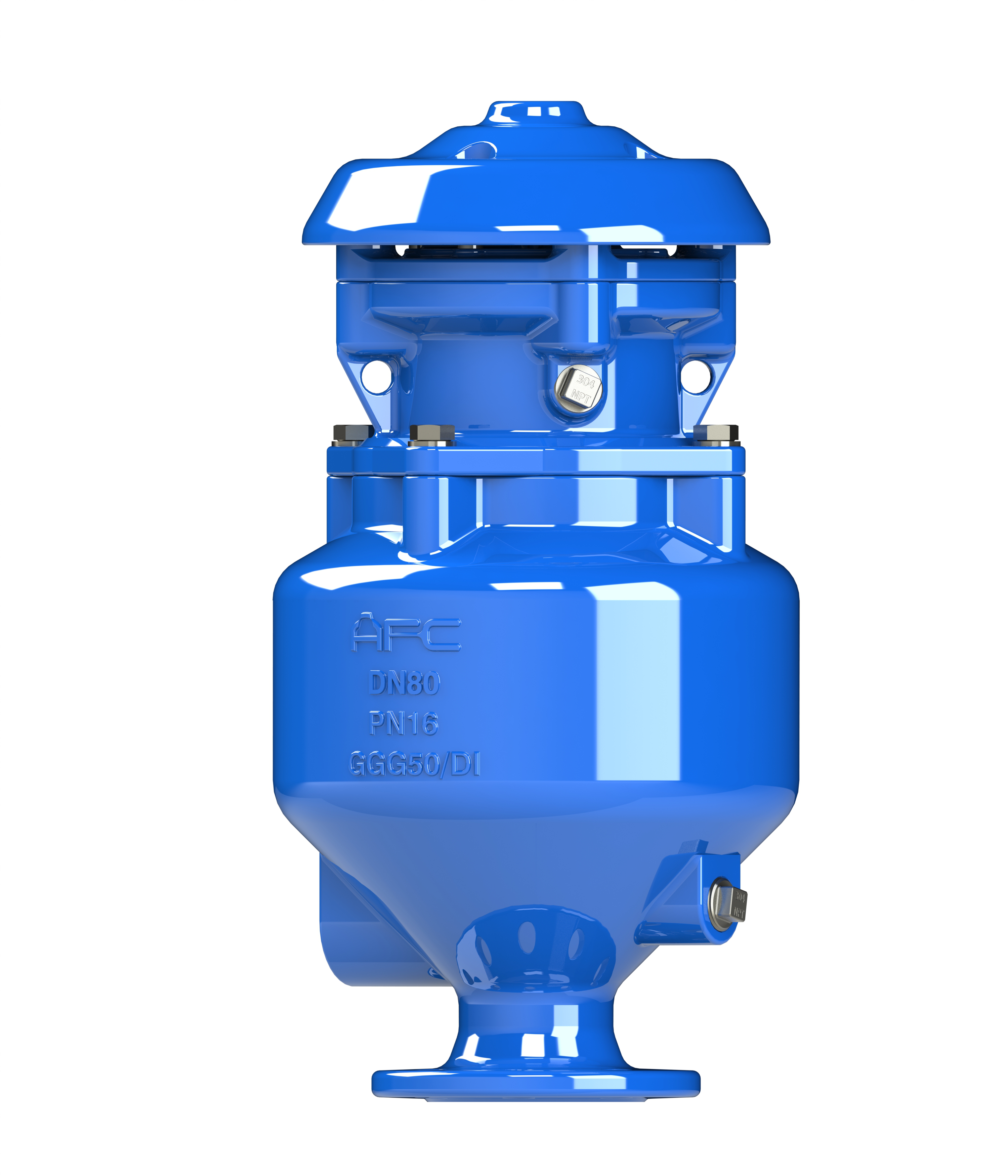

SKAA - Anti-Shock Sewage Combination Air Release Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN300
- Pressure Class
- PN10, PN16, PN25
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- BS EN 1074-4, AWWA C512
- Face to face
- BS EN 558
- Flange & end dimension
- BS EN 1092 (flange drilling and dimensions)
- Other standards
- ANSI flange (flange drilling and dimensions)
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Seat
- Stem
- Spring
- Anti Shock Device
- Cover
- Eye Bolt
- Float
- Hex Bolts
- Middle Part
- Nozzle Seat
- Nut
- O Rings
- Pillar
- Plug
- Sealing Arc
- Small Nozzle
- Washers
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |

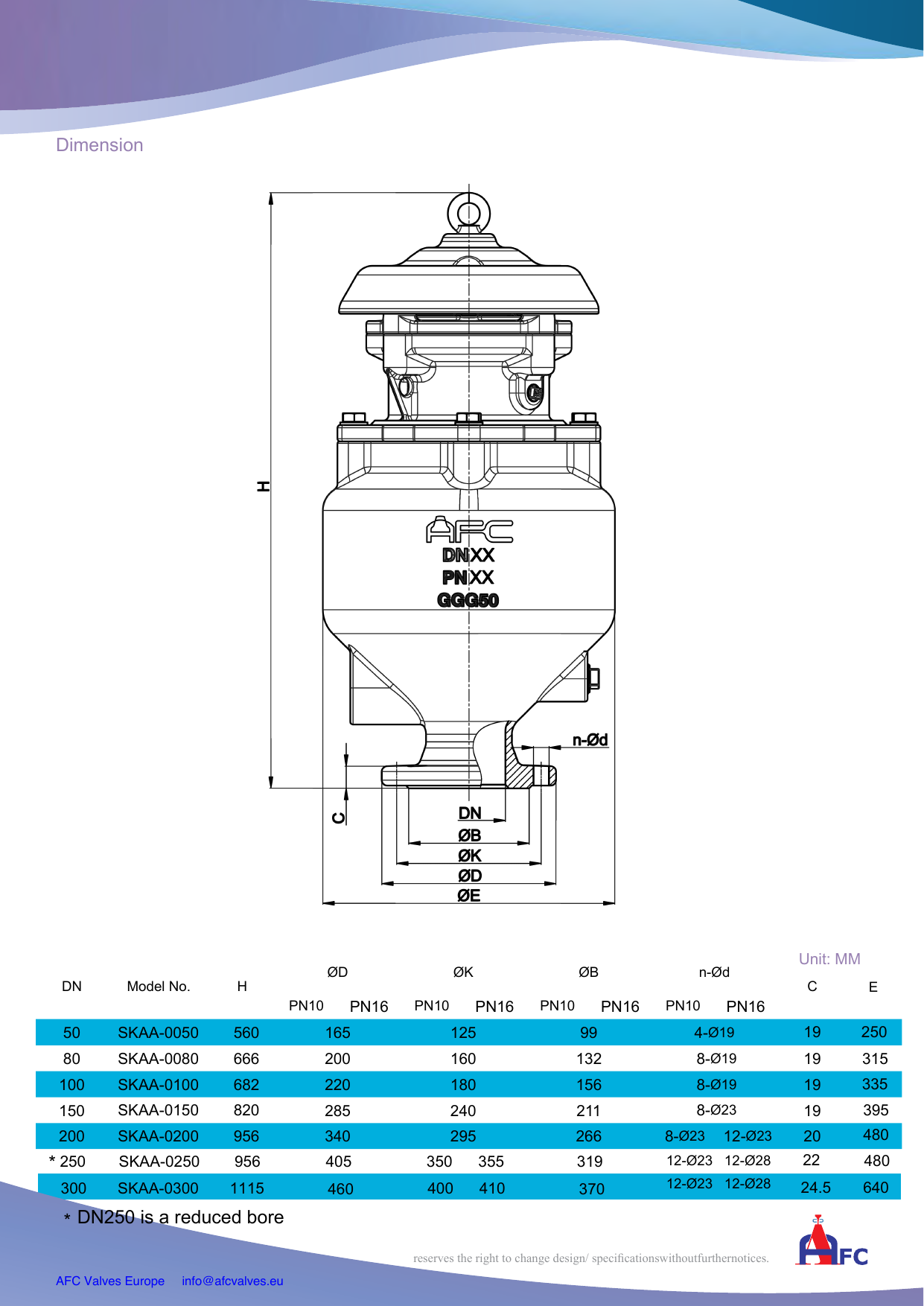

Dimensions per size(7 sizes)
| Size | H (mm) | ØD (mm) | ØK (mm) | ØB (mm) | n-Ød (mm) | C (mm) | E (mm) | n-Ød PN10 (mm) | n-Ød PN16 (mm) | ØK PN10 (mm) | ØK PN16 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 560 | 165 | 125 | 99 | 4-Ø19 | 19 | 250 | - | - | - | - | — |
| DN80 | 666 | 200 | 160 | 132 | 8-Ø19 | 19 | 315 | - | - | - | - | — |
| DN100 | 682 | 220 | 180 | 156 | 8-Ø19 | 19 | 335 | - | - | - | - | — |
| DN150 | 820 | 285 | 240 | 211 | 8-Ø23 | 19 | 395 | - | - | - | - | — |
| DN200 | 956 | 340 | 295 | 266 | - | 20 | 480 | 8-Ø23 | 12-Ø23 | - | - | — |
| DN250 | 956 | 405 | - | 319 | - | 22 | 480 | 12-Ø23 | 12-Ø28 | 350 | 355 | — |
| DN300 | 1115 | 460 | - | 370 | - | 24.5 | 640 | 12-Ø23 | 12-Ø28 | 400 | 410 | — |

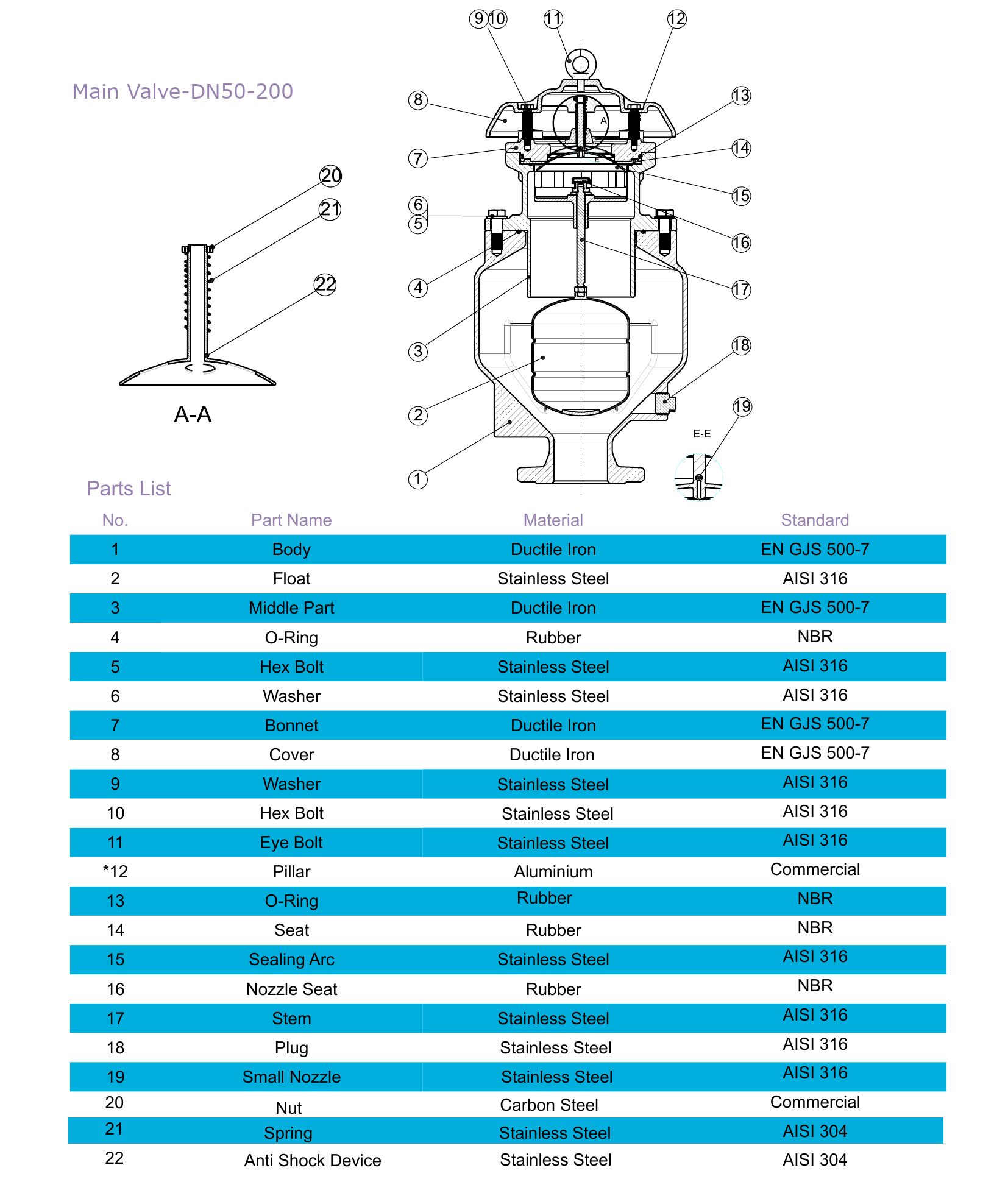

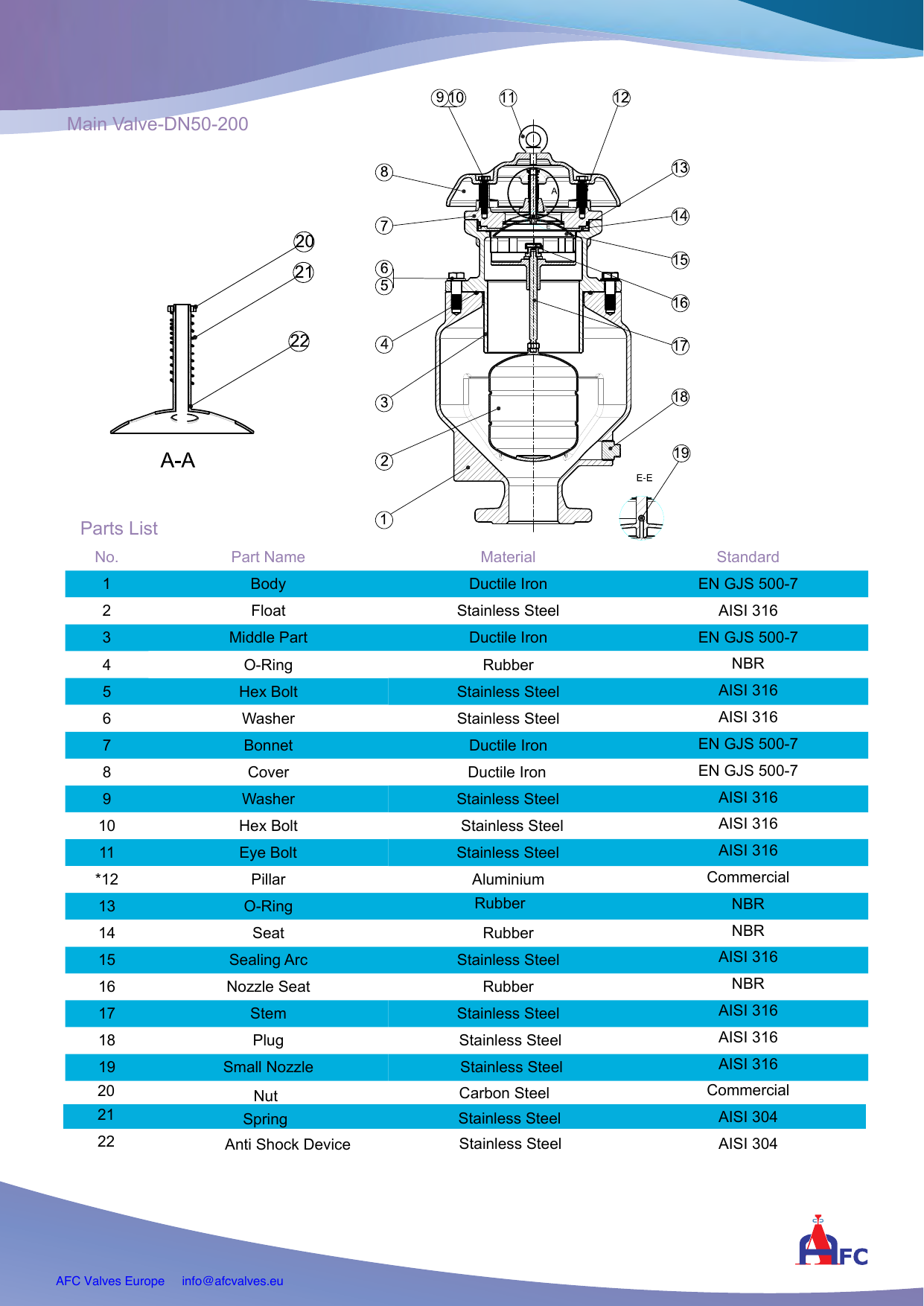

Technical drawings(2 pages)
Typical applications
- Sewage rising mains
- Wastewater transmission
- Industrial effluent
- Pump stations: sewage
Coatings
Approvals
Features
- The SKAA is specifically engineered for sewage and effluent service
- The non-clog ball float resists fouling from fibres, greases and solids present in wastewater
- The anti-shock mechanism prevents pressure surges when air is suddenly expelled
- The smooth internal profile and ball float design eliminate the crevices that harbour blockages in standard air valves
- Suitable for municipal wastewater, pumped sewage rising mains and industrial effluent systems
- Advanced design with simple mechanism, strong float to prevent cracking during sudden water hammer and quick closure
- Aerokinetic mechanism resists blow-shut under high air velocity, even up to sonic velocity of air
- Special expansion middle body lowers sewage water flow speed, letting air out while keeping sewage water underneath
- Keeps dirty or corrosive liquid inside the body for safety during operation, with no harm to people or the surrounding environment
- Internal body guide and upper round wall keep the float moving on its rail and contain liquid turbulence within that area
- Optional outside screen guards against insects or birds entering
- Fully fusion epoxy coated inside and outside for long-term service
- Manufactured to BS EN 1074-4 and AWWA C512; flange drilling and dimensions to BS EN 1092 and BS EN 558/ANSI flange
Description
The SKAA is specifically engineered for sewage and effluent service. The non-clog ball float resists fouling from fibres, greases and solids present in wastewater. The anti-shock mechanism prevents pressure surges when air is suddenly expelled. The smooth internal profile and ball float design eliminate the crevices that harbour blockages in standard air valves. Suitable for municipal wastewater, pumped sewage rising mains and industrial effluent systems.
Selection notes
This air release valve is supplied for flanged installation.
Sizes run DN50 to DN300, in PN10, PN16, PN25.
The body is Ductile Iron EN GJS 500-7.
Seat and trim options are NBR Rubber. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to BS EN 1074-4, AWWA C512, BS EN 558, BS EN 1092 (flange drilling and dimensions) and ANSI flange (flange drilling and dimensions).
