SKAS - Sewage Combination Air Release Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50
- Pressure Class
- 16 bar
- End connection
- Threaded
- Operating temperature
- -10°C to 80°C
Standards
- Flange & end dimension
- BS EN 1092
- Materials
- EN GJS 500-7, AISI 316, NBR
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection

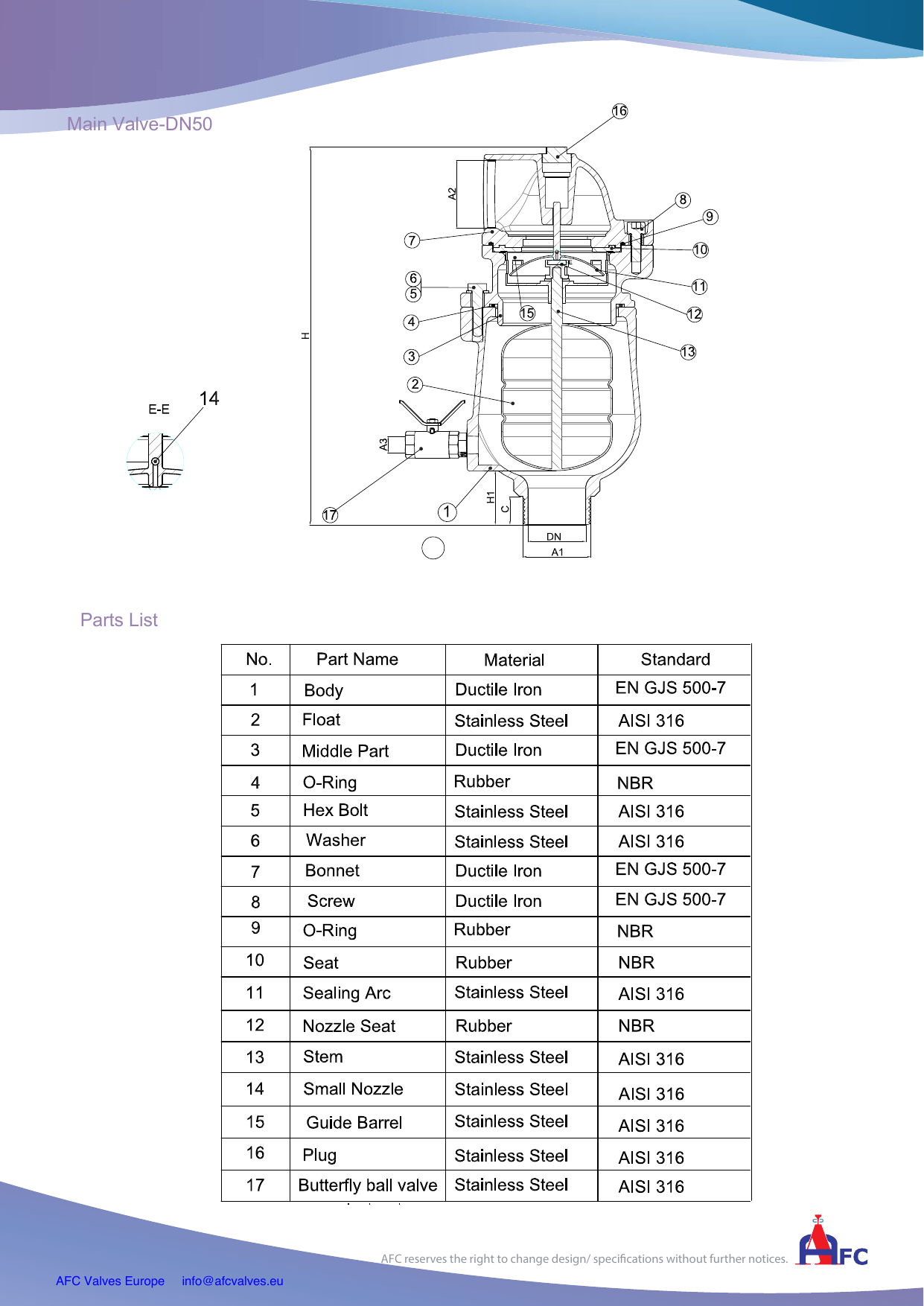

Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Seat
- Stem
- Butterfly Ball Valve
- Float
- Guide Barrel
- Hex Bolt
- Middle Part
- Nozzle Seat
- O Rings
- Plug
- Screw
- Sealing Arc
- Small Nozzle
- Washer

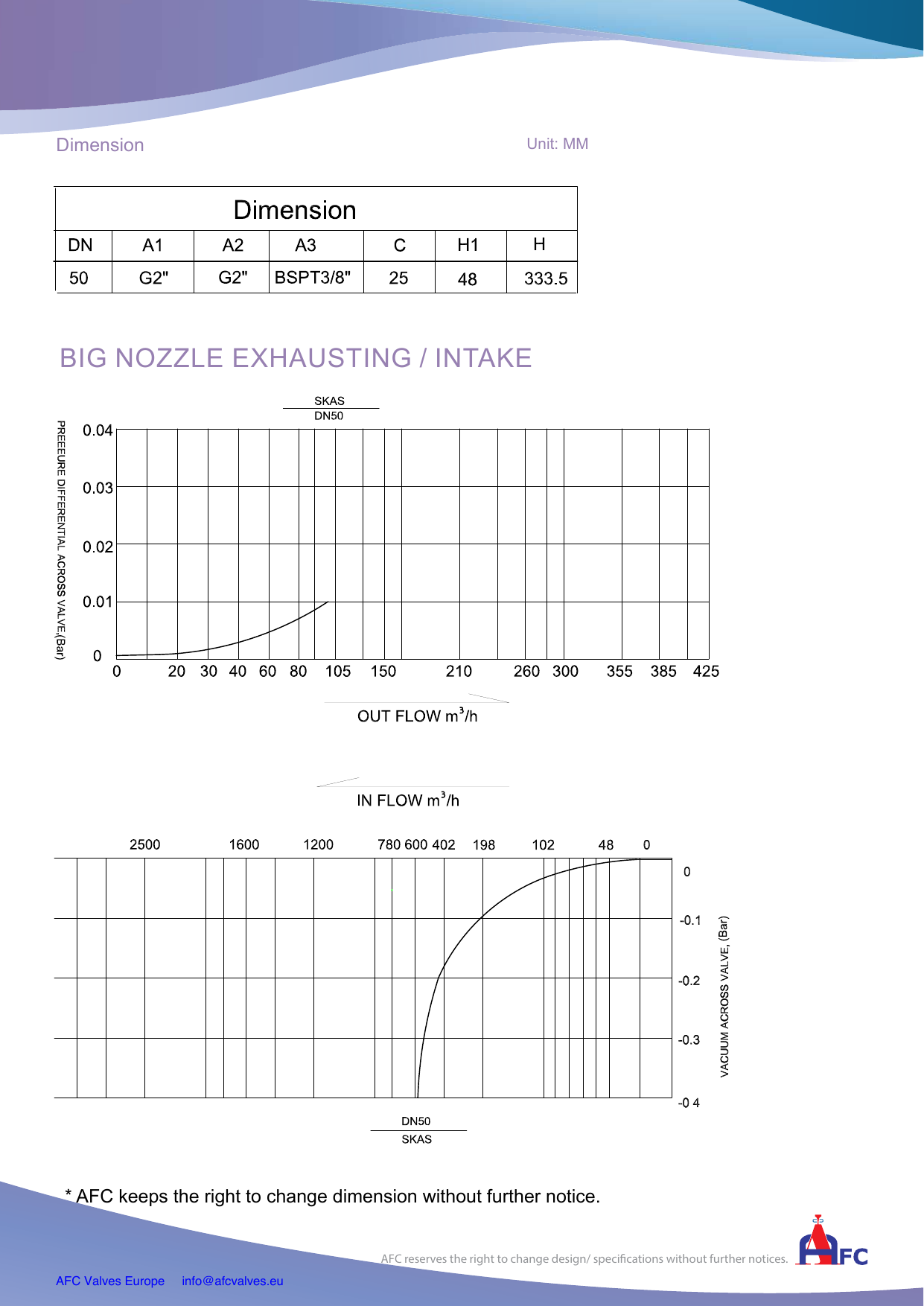

Dimensions per size(1 sizes)
| Size | A1 (BSP thread) | A2 (BSP thread) | A3 (BSPT thread) | C (mm) | H1 (mm) | H (mm) | Weight |
|---|---|---|---|---|---|---|---|
| DN50 | G2" | G2" | BSPT3/8" | 25 | 48 | 333.5 | — |
Operating media
Typical applications
- Gravity sewers
- Sewage rising mains
- Combined sewer systems
- Wastewater networks
Approvals
Features
- The SKAS provides combined air release and vacuum breaking for sewage systems operating under both gravity and pressurised conditions
- Non-clog internals and a ball float resist fouling from wastewater constituents
- Vacuum break function protects pipe walls from collapse during drain-down or sudden pump shutdown
Description
The SKAS provides combined air release and vacuum breaking for sewage systems operating under both gravity and pressurised conditions. Non-clog internals and a ball float resist fouling from wastewater constituents. Vacuum break function protects pipe walls from collapse during drain-down or sudden pump shutdown.
Selection notes
This air release valve is supplied for threaded installation.
Sizes run DN50, in 16 bar.
The body is EN-GJS-500-7.
Seat and trim options are NBR. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include sewage water.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to EN GJS 500-7, AISI 316 and BS EN 1092.
