Pneumatic Actuator Ball Valve

Name: Pneumatic Actuator Ball Valve
Brand: Euro Flow Control
SKU: EFC-292

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN15 to DN200
Pressure Class: PN16, PN25, ANSI 150LB, ANSI 300LB
End connection: Flanged
Operating temperature: -20°C to 260°C, by material

Standards

Inspection & test: API 598
Face to face: DIN 3202, ISO 5752
Mounting: ISO 5211
Materials: ASTM A351

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Ball
Seat
Stem
Wrench

Temperature by material

The temperature limit follows the material grade, so the range above spans every grade offered rather than any one build. Confirmed at quotation.

CF8: -20°C to 425°C (Body casting rating)
CF8M: -20°C to 425°C (Body casting rating)
CF3: -20°C to 425°C (Body casting rating)
CF3M: -20°C to 425°C (Body casting rating)
PTFEseat: -20°C to 260°C (Soft seat governs maximum working temperature)
RPTFEseat: -20°C to 260°C (Soft seat governs maximum working temperature)

Dimensions per size(12 sizes)

Size	L (mm)	H (mm)	D (mm)	D1 (mm)	n-d (mm)	Weight
DN15	115	59	95	65	4-15	—
DN20	120	63	105	75	4-15	—
DN25	125	75	115	85	4-15	—
DN32	130	86	140	100	4-19	—
DN40	140	105	150	110	4-19	—
DN50	150	115	165	125	4-19	—
DN65	170	135	185	145	4-19	—
DN80	180	155	200	160	8-19	—
DN100	190	170	220	180	8-19	—
DN125	325	195	250	210	8-19	—
DN150	350	240	285	240	8-23	—
DN200	400	295	340	295	12-23	—

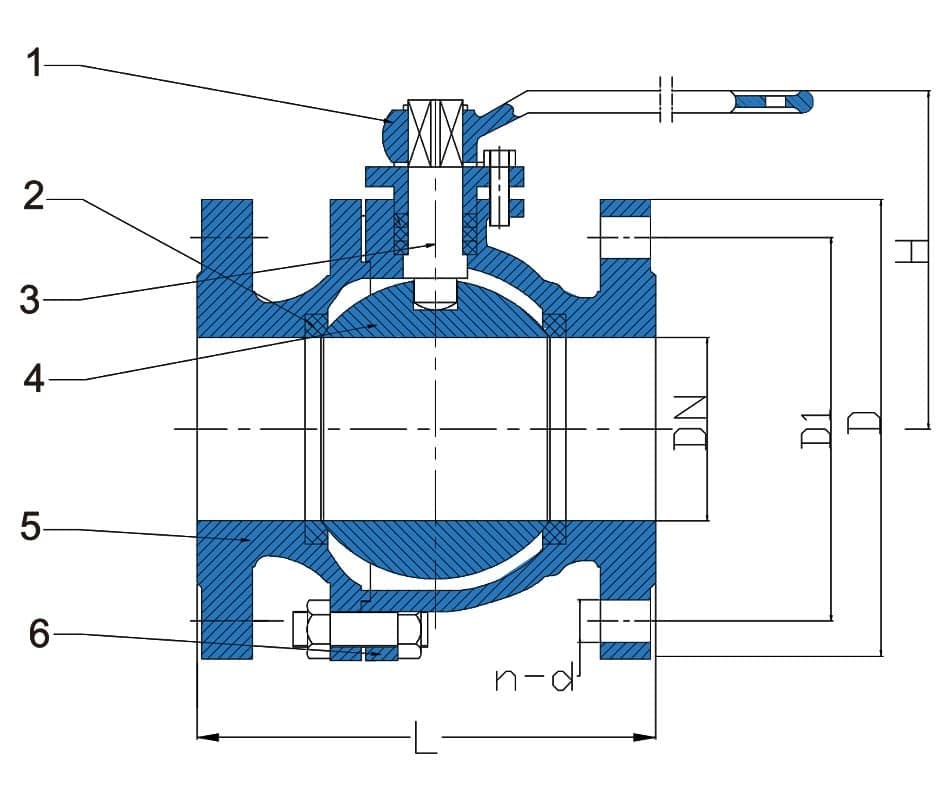

Technical drawings(1 page)

Operating media

WaterOilGasSteam

Typical applications

HVAC
Water Supply & Sewage
Food & Beverage
Chemical/Petrochemical/Processing
Power & Utilities
Paper and Pulp
Ship Building
Industrial Automation
Water Treatment

Actuation options

Pneumatic single-acting

Approvals

ECM (Ente Certificazione Macchine) certifiedISO certifiedEAC (Eurasian Conformity) markedCE marked

Features

Blow-out proof stem
Investment casting body
Full bore
Flanged end connection
Locking device available
Anti-static design
Quarter-turn operation
Flanged end connections
Split body (two-piece) construction
Full bore ball
Pneumatic rack-and-pinion actuator with manual override handwheel
Single-acting (spring-return) actuator configuration, air-to-open
Solenoid valve (5/2-way) mounted on actuator
Limit switch/positioner feedback unit mounted on actuator top
Filter-regulator unit on actuator air supply
Drain/blowdown plug on valve body (item 6)
Flange bolt pattern: n-d (number and diameter of bolt holes indicated on drawing)
ISO 5211 actuator mounting pad (inferred from bracket)

Description

Flanged ball valve with pneumatic actuator for automated flow control. Quarter-turn design with investment casting stainless steel body, full bore, and blow-out proof stem. Available in stainless steel body materials (CF8, CF8M, CF3, CF3M). Suitable for water, oil, gas, acid, and steam service.

Selection notes

This ball valve is a pneumatic actuated and full bore pattern, supplied for flanged installation.

Sizes run DN15 to DN200, in PN16, PN25, ANSI 150LB, ANSI 300LB.

The body is offered in CF8, CF8M, CF3 and CF3M, so the grade can be matched to the service rather than the other way round.

Seat and trim options are PTFE and RPTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include water, oil, gas and steam.

It is catalogued for Water & Wastewater, HVAC and Industrial Process.

Working temperature is -20°C to 260°C, by material.

Built to DIN 3202, ISO 5752, API 598, ASTM A351 and ISO 5211.
