D900 Direct Membrane Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN200
- Pressure Class
- PN10, PN16
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- EN 1074-5
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Bolt
- Membrane
- Plug
- Washer
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |
Dimensions per size(5 sizes)
| Size | L (mm) | ØD (mm) | ØK (mm) | H (mm) | N-Ød (mm) | PN10 ØD (mm) | PN16 ØD (mm) | PN10 ØK (mm) | PN16 ØK (mm) | PN10 N-Ød (mm) | PN16 N-Ød (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 205 | 165 | 125 | 82.5 | 4-Ø19 | - | - | - | - | - | - | — |
| DN80 | 295 | 200 | 160 | 100 | 8-Ø19 | - | - | - | - | - | - | — |
| DN100 | 320 | 220 | 180 | 115 | 8-Ø19 | - | - | - | - | - | - | — |
| DN150 | 425 | 285 | 240 | 170 | 8-Ø19 | - | - | - | - | - | - | — |
| DN200 | 500 | - | - | 223 | - | 340 | 340 | 295 | 295 | 8-Ø23 | 12-Ø23 | — |

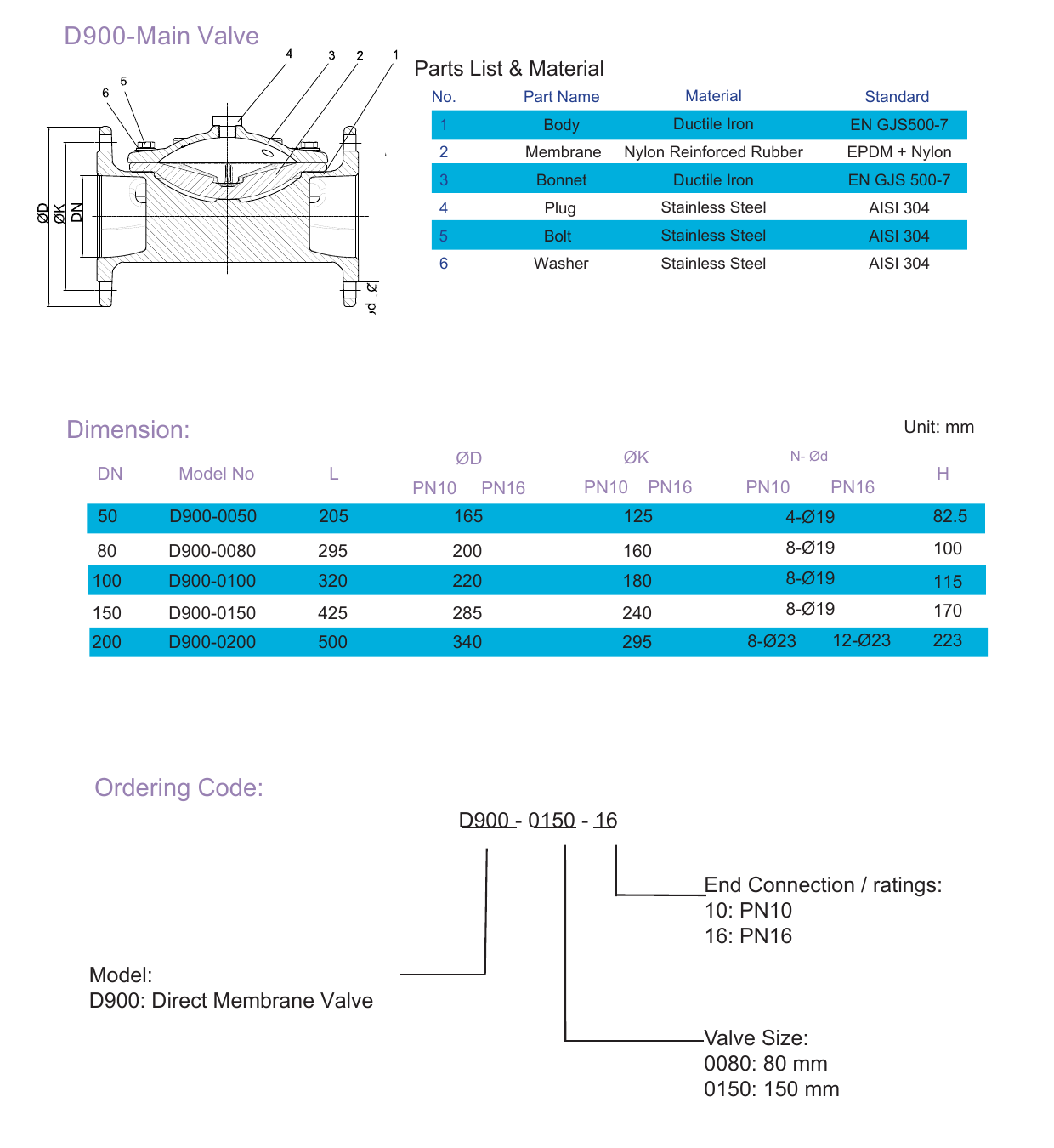

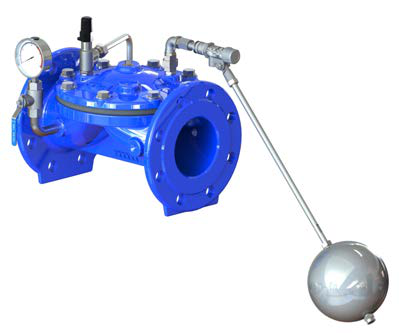

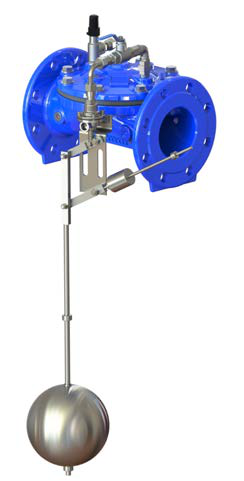

Technical drawings(5 pages)
Typical applications
- High-flow pressure control
- Constant flow applications
- Water treatment works
- Distribution networks
Approvals
Features
- The D900 is a diaphragm-operated main valve body with a flat-face seat geometry, providing a different flow characteristic from the rubber-lined A900 cone seat
- The flat-seat design offers lower headloss at high opening and is preferred for high-flow and constant-flow applications
- Compatible with the full range of P-series pilots for pressure, flow and level control duties
Description
The D900 is a diaphragm-operated main valve body with a flat-face seat geometry, providing a different flow characteristic from the rubber-lined A900 cone seat. The flat-seat design offers lower headloss at high opening and is preferred for high-flow and constant-flow applications. Compatible with the full range of P-series pilots for pressure, flow and level control duties.
