P26M Pressure Management Valve (Time Based)
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN800
- Pressure Class
- PN10, PN16, PN25, ANSI 125, ANSI 150
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
- IP rating
- IP68
- Battery
- 10-year lithium
Standards
- Design & manufacture
- EN 1074-5, BS EN 1074-5
- Inspection & test
- ISO 5208, BS EN 12266-1
- Face to face
- BS EN 558-1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Seat
- Stem
- Spring
- Bolts
- Bush
- Caulking Nut
- Control Box
- Diaphragm
- Disc Holder
- Eye Bolts
- Fix Washer
- Fixing Holder
- O Rings
- Plug
- Screw
- Seal
- Seat Retainer
- Solenoid Valve
- Washer
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |
| PN25 | 25 bar | -10°C | 80°C |
Dimensions per size(16 sizes)
| Size | L (mm) | H (mm) | PN10 ØD (mm) | PN16 ØD (mm) | PN25 ØD (mm) | PN10 ØK (mm) | PN16 ØK (mm) | PN25 ØK (mm) | PN10 N-Ød (mm) | PN16 N-Ød (mm) | PN25 N-Ød (mm) | PN10 ØB (mm) | PN16 ØB (mm) | PN25 ØB (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 230 | 177 | 165 | 165 | 165 | 125 | 125 | 125 | 4-Ø19 | 4-Ø19 | 4-Ø19 | 99 | 99 | 99 | — |
| DN65 | 290 | 202 | 185 | 185 | 185 | 145 | 145 | 145 | 4-Ø19 | 4-Ø19 | 8-Ø19 | 118 | 118 | 118 | — |
| DN80 | 310 | 219 | 200 | 200 | 200 | 160 | 160 | 160 | 8-Ø19 | 8-Ø19 | 8-Ø19 | 132 | 132 | 132 | — |
| DN100 | 350 | 243 | 220 | 220 | 235 | 180 | 180 | 190 | 8-Ø19 | 8-Ø19 | 8-Ø23 | 156 | 156 | 156 | — |
| DN125 | 400 | 243 | 250 | 250 | 270 | 210 | 210 | 220 | 8-Ø19 | 8-Ø19 | 8-Ø28 | 156 | 156 | 156 | — |
| DN150 | 480 | 333 | 285 | 285 | 300 | 240 | 240 | 250 | 8-Ø23 | 8-Ø23 | 8-Ø28 | 211 | 211 | 211 | — |
| DN200 | 600 | 428 | 340 | 340 | 360 | 295 | 295 | 310 | 8-Ø23 | 12-Ø23 | 12-Ø28 | 266 | 266 | 274 | — |
| DN250 | 730 | 478 | 405 | 405 | 425 | 350 | 355 | 370 | 12-Ø23 | 12-Ø28 | 12-Ø31 | 319 | 319 | 330 | — |
| DN300 | 850 | 538 | 460 | 460 | 485 | 400 | 410 | 430 | 12-Ø23 | 12-Ø28 | 16-Ø31 | 370 | 370 | 389 | — |
| DN350 | 980 | 550 | 520 | 520 | 555 | 460 | 470 | 490 | 16-Ø23 | 16-Ø28 | 16-Ø34 | 429 | 429 | 448 | — |
| DN400 | 1100 | 710 | 580 | 580 | 620 | 515 | 525 | 550 | 16-Ø28 | 16-Ø31 | 16-Ø37 | 480 | 480 | 503 | — |
| DN450 | 1200 | 720 | 640 | 640 | 670 | 565 | 585 | 600 | 20-Ø28 | 20-Ø31 | 20-Ø37 | 530 | 548 | 548 | — |
| DN500 | 1250 | 822 | 715 | 715 | 730 | 620 | 650 | 660 | 20-Ø28 | 20-Ø34 | 20-Ø37 | 582 | 609 | 609 | — |
| DN600 | 1450 | 885 | 840 | 840 | 845 | 725 | 770 | 770 | 20-Ø31 | 20-Ø37 | 20-Ø40 | 682 | 720 | 720 | — |
| DN700 | 1650 | 910 | 910 | 910 | 960 | 840 | 840 | 875 | 24-Ø31 | 24-Ø37 | 24-Ø43 | 682 | 720 | 720 | — |
| DN800 | 1850 | 1260 | 1025 | 1025 | 1085 | 950 | 950 | 990 | 24-Ø34 | 24-Ø40 | 24-Ø49 | 901 | 901 | 928 | — |
Technical drawings(3 pages)
Operating media
Typical applications
- Leakage reduction
- Pressure management
- District metered areas
- Smart network management
Approvals
Features
- The P26M provides time-based pressure management, automatically reducing network pressure during low-demand periods (typically overnight) and restoring pressure for daytime demand
- Lower overnight pressures significantly reduce background leakage and burst frequency
- The time-based actuator requires no external power or SCADA connection, making it a fully hydraulic, self-contained solution
- P26M sets 6 different time zones per day with 2 pressure levels each; each day of the week is independently configurable
- A control-box variant is available with a black control box and solenoid valve fitted to the main valve, powered by a 10-year-life lithium battery, rated IP68 for water resistance
- A single remote controller can set multiple valves regardless of the number of valves fitted
- Meets BS EN 1074-5, ISO 5208, BS EN 12266-1 and BS EN 558-1
Description
The P26M provides time-based pressure management, automatically reducing network pressure during low-demand periods (typically overnight) and restoring pressure for daytime demand. Lower overnight pressures significantly reduce background leakage and burst frequency. The time-based actuator requires no external power or SCADA connection, making it a fully hydraulic, self-contained solution.
Selection notes
This control valve is supplied for flanged installation.
Sizes run DN50 to DN800, in PN10, PN16, PN25, ANSI 125, ANSI 150.
The body is EN-GJS-500-7.
Seat and trim options are AISI 304 and AISI 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to EN 1074-5, BS EN 1074-5, BS EN 558-1, ISO 5208 and BS EN 12266-1.
Supplier remarks

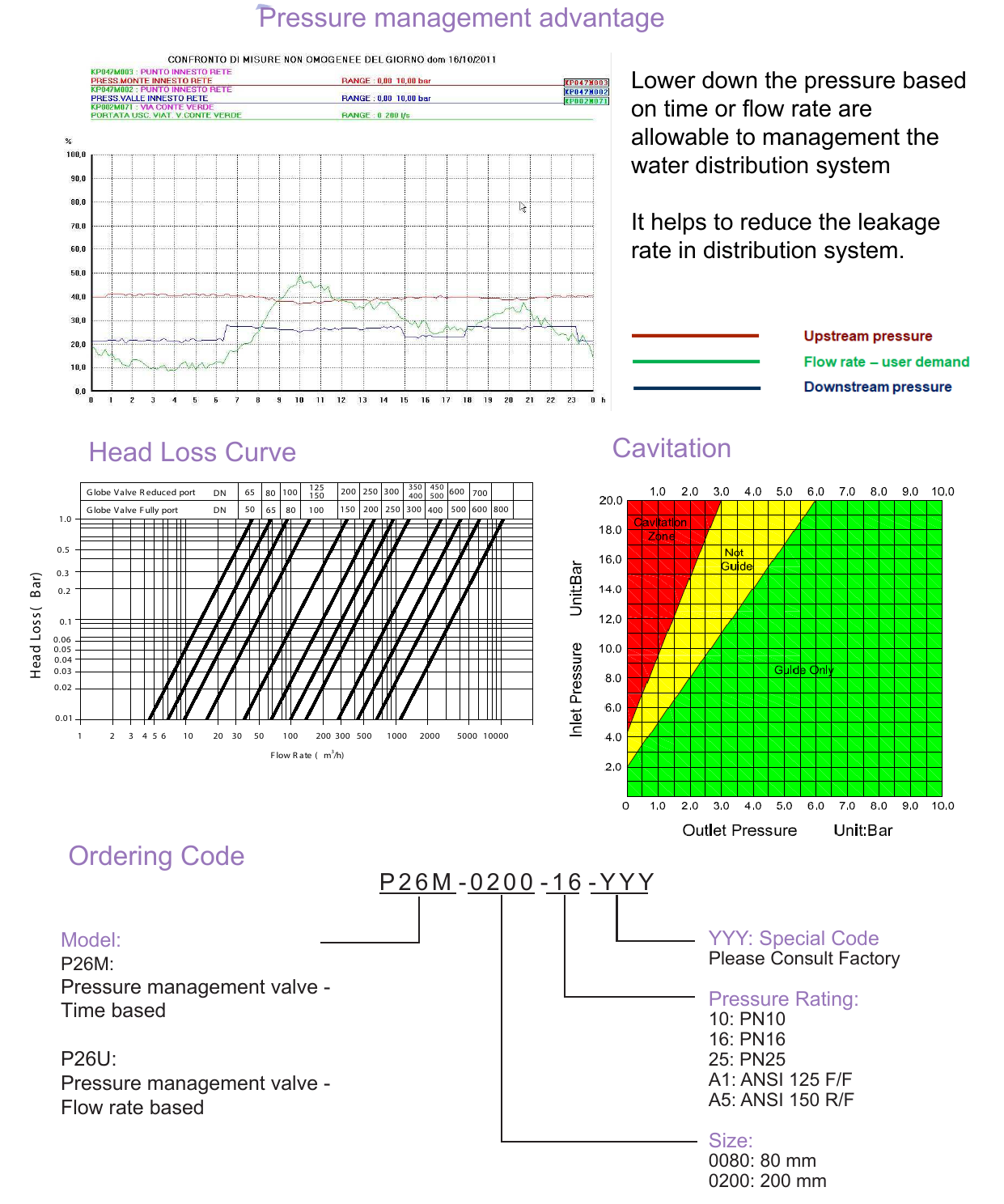

- P26U (sibling, same main valve) switches pressure based on high/low flow rate, read via RS485 from an ultrasonic or magnetic meter connected to the control box, with 2 flow-rate setting values. Real-world pressure management advantage field-monitoring chart, Head Loss Curve and Cavitation chart are stated in the source but are graphs, not tabulated points, so not reproduced here.
