Name: A10A Altitude Control Valve
Brand: Euro Flow Control
SKU: EFC-354

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN50 to DN800
Pressure Class: PN10, PN16, PN25
End connection: Flanged
Operating temperature: -10°C to 80°C

Standards

Design & manufacture: EN 1074-5, BS EN 1074-5
Inspection & test: ISO 5208, BS EN 12266-1
Face to face: BS EN 558-1

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Seat
Stem
Spring
Bush
Cap
Diaphragm
Disc Holder
Eye Bolts
Fix Washer
Fixing Holder
O Rings
Pilot Adjusting Nut
Pilot Body
Pilot Bonnet
Pilot Bush
Pilot Connecting Plate
Pilot Diaphragm
Pilot Diaphragm Retainer
Pilot Disc
Pilot Fixing Holder
Pilot Nut
Pilot O Ring
Pilot Plug
Pilot Pressure Plate
Pilot Screw
Pilot Shaft
Pilot Spring
Pilot Stem Nut
Pilot Stem Upper
Pilot Washer
Plug
Seal Retainer
Seals
Seat Retainer

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Pressure	Min temp	Max temp
PN10	10 bar	-10°C	80°C
PN16	16 bar	-10°C	80°C
PN25	25 bar	-10°C	80°C

Dimensions per size(16 sizes)

Size	L (mm)	PN10 ØD (mm)	PN16 ØD (mm)	PN25 ØD (mm)	PN10 ØK (mm)	PN16 ØK (mm)	PN25 ØK (mm)	H (mm)	PN10 N-Ød (mm)	PN16 N-Ød (mm)	PN25 N-Ød (mm)	PN10 ØB (mm)	PN16 ØB (mm)	PN25 ØB (mm)	Model Code	Weight
DN50	230	165	165	165	125	125	125	177	4-Ø19	4-Ø19	4-Ø19	99	99	99	A900-0050	—
DN65	290	185	185	185	145	145	145	202	4-Ø19	4-Ø19	8-Ø19	118	118	118	A900-0065	—
DN80	310	200	200	200	160	160	160	219	8-Ø19	8-Ø19	8-Ø19	132	132	132	A900-0080	—
DN100	350	220	220	235	180	180	190	243	8-Ø19	8-Ø19	8-Ø23	156	156	156	A900-0100	—
DN125	400	250	250	270	210	210	220	243	8-Ø19	8-Ø19	8-Ø28	156	156	156	A900-0125	—
DN150	480	285	285	300	240	240	250	333	8-Ø23	8-Ø23	8-Ø28	211	211	211	A900-0150	—
DN200	600	340	340	360	295	295	310	428	8-Ø23	12-Ø23	12-Ø28	266	266	274	A900-0200	—
DN250	730	405	405	425	350	355	370	478	12-Ø23	12-Ø28	12-Ø31	319	319	330	A900-0250	—
DN300	850	460	460	485	400	410	430	538	12-Ø23	12-Ø28	16-Ø31	370	370	389	A900-0300	—
DN350	980	520	520	555	460	470	490	550	16-Ø23	16-Ø28	16-Ø34	429	429	448	A900-0350	—
DN400	1100	580	580	620	515	525	550	710	16-Ø28	16-Ø31	16-Ø37	480	480	503	A900-0400	—
DN450	1200	640	640	670	565	585	600	720	20-Ø28	20-Ø31	20-Ø37	530	548	548	A900-0450	—
DN500	1250	715	715	730	620	650	660	822	20-Ø28	20-Ø34	20-Ø37	582	609	609	A900-0500	—
DN600	1450	840	840	845	725	770	770	885	20-Ø31	20-Ø37	20-Ø40	682	720	720	A900-0600	—
DN700	1650	910	910	960	840	840	875	910	24-Ø31	24-Ø37	24-Ø43	682	720	720	A900-0700	—
DN800	1850	1025	1025	1085	950	950	990	1260	24-Ø34	24-Ø40	24-Ø49	901	901	928	A900-0800	—

* DN125 and DN350 use the same internals as DN100 and DN300 respectively.

* DN450 and DN700 use the same internals as DN400 and DN600 respectively.

* AISI 304 is the factory standard stainless steel grade; consult the factory for AISI 316.

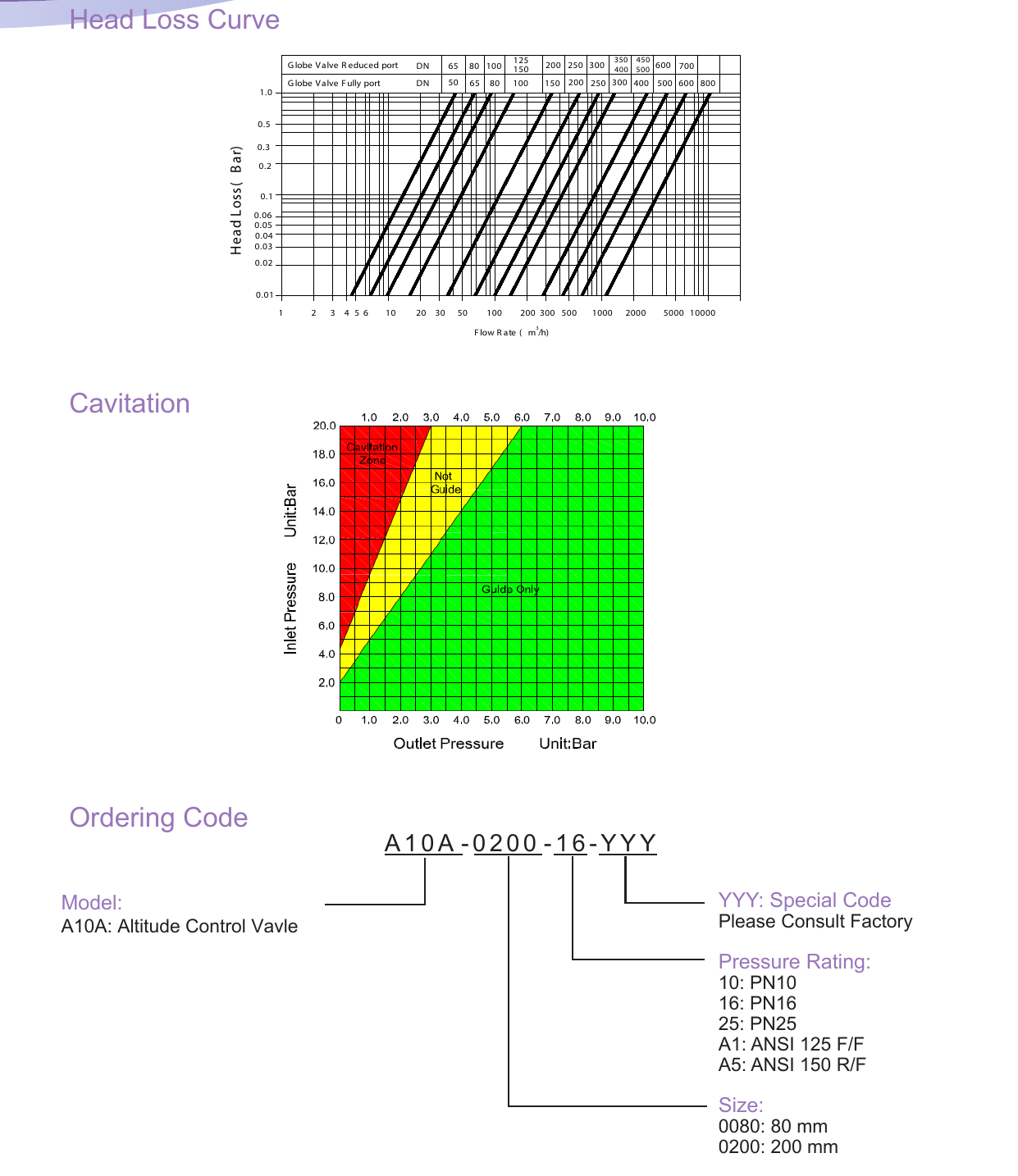

Technical drawings(4 pages)

Operating media

Water

Typical applications

Water towers
Elevated storage tanks
Standpipes
Rooftop tanks

Approvals

WRASISO 9001

Features

The A10A altitude control valve fills elevated storage tanks and water towers by sensing the hydrostatic pressure at the tank connection
When the tank reaches the high-level set point, the pilot closes the main valve; when the level drops to the low set point, it reopens
Fully hydraulic operation - no electrical power or float mechanism inside the tank is required

Description

The A10A is an altitude control configuration of the A900 main valve body, fitted with a P800 altitude pilot. The pilot derives the water level in an elevated tank or tower from the hydrostatic pressure at the base connection: when the tank is full the pilot closes the main valve; when level drops to the low set point it reopens. Fully hydraulic operation requires no electrical power and no float mechanism inside the structure. A float valve switch accessory can be added for high-level alarm or SCADA telemetry.

Selection notes

This control valve is supplied for flanged installation.

Sizes run DN50 to DN800, in PN10, PN16, PN25.

The body is EN-GJS-500-7.

Seat and trim options are AISI 304 and 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include water.

It is catalogued for Water & Wastewater.

Working temperature is -10°C to 80°C.

Built to EN 1074-5, BS EN 1074-5, BS EN 558-1, ISO 5208 and BS EN 12266-1.

Supplier remarks

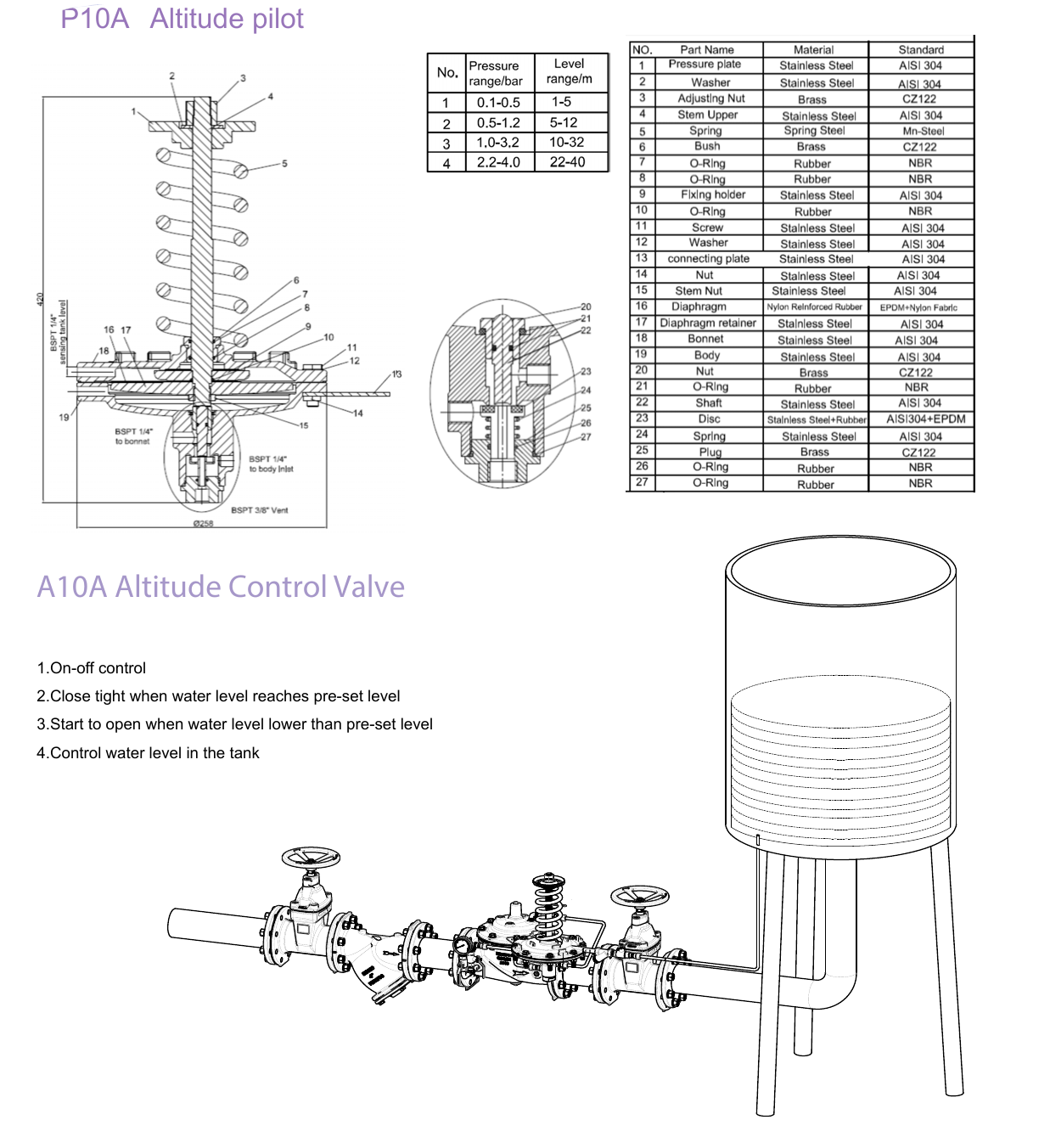

P10A pilot spring is selected per set-point range: 0.1-0.5 bar (1-5m level), 0.5-1.2 bar (5-12m), 1.0-3.2 bar (10-32m), or 2.2-4.0 bar (22-40m) -- specify the required tank level range at order.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25

Used in

Water & Wastewater

Related guides

Request a Quote

Add this product to your RFQ. Need multiple variants? Add one, tweak the fields, add another.

Variant details4 filled

Fill in what applies, it speeds up your quote. Skip and you can configure on the next page.

Size

Available: DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700, DN800

Pressure

Available: PN10, PN16, PN25

End connection

Actuation

Manual and gear operation ships with the valve. Powered actuation is sourced locally by the buyer.

Required approvals

None required

We confirm the certification with the manufacturer before quoting

Body

Available: EN-GJS-500-7

Seat

Available: 2 options

Stem

Available: 2 options

Plug

Available: 2 options

Additional parts (optional)

Bonnet

Available: EN-GJS-500-7

Spring

Available: 2 options

Bush

Available: C61900

Cap

Available: GJS 500-7

Diaphragm

Available: EPDM + Nylon Fabric

Disc Holder

Available: EN-GJS-500-7

Eye Bolts

Available: 1040

Fix Washer

Available: Bronze

Fixing Holder

Available: EN-GJS-500-7

O Rings

Available: NBR

Pilot Adjusting Nut

Available: CZ122

Pilot Body

Available: AISI 304

Pilot Bonnet

Available: AISI 304

Pilot Bush

Available: CZ122

Pilot Connecting Plate

Available: AISI 304

Pilot Diaphragm

Available: EPDM + Nylon

Pilot Diaphragm Retainer

Available: AISI 304

Pilot Disc

Available: AISI 304 + EPDM

Pilot Fixing Holder

Available: AISI 304

Pilot Nut

Available: CZ122

Pilot O Ring

Available: NBR

Pilot Plug

Available: CZ122

Pilot Pressure Plate

Available: AISI 304

Pilot Screw

Available: AISI 304

Pilot Shaft

Available: AISI 304

Pilot Spring

Available: Mn-Steel

Pilot Stem Nut

Available: AISI 304

Pilot Stem Upper

Available: AISI 304

Pilot Washer

Available: AISI 304

Seal Retainer

Available: GJS 500-7

Seals

Available: EPDM

Seat Retainer

Available: 2 options

Notes for the quote

Quantity

Your variant details are attached. Submit any time from My RFQ.

Smart find

A900 configurations

View full A900 system →

This product is part of the A900 modular system. All configurations share the same hydraulically operated body: the control function is set by the pilot valve(s) attached. An existing A900 body in the field can be reconfigured for a different duty simply by swapping the pilot, without replacing the body.
