Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN800
- Pressure Class
- PN10, PN16, PN25
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- EN 1074-5, BS EN 1074-5
- Inspection & test
- ISO 5208, BS EN 12266-1
- Face to face
- BS EN 558-1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Seat
- Stem
- O-Ring
- Spring
- Bolt
- Bush
- Cap
- Caulking Nut
- Diaphragm
- Disc Holder
- Eye Bolts
- Fix Washer
- Fixing Holder
- Pilot Adjusting Screw
- Pilot Body
- Pilot Bonnet
- Pilot Cap
- Pilot Diaphragm
- Pilot Disc
- Pilot Fixing Holder
- Pilot Gasket
- Pilot Jam Nut
- Pilot Nut
- Pilot O Ring
- Pilot Plug
- Pilot Screw
- Pilot Spring
- Pilot Spring Table
- Pilot Stem
- Plug
- Screw
- Seal
- Seal Retainer
- Seat Retainer
- Washer
Dimensions per size(16 sizes)
| Size | L (mm) | H (mm) | OD PN10 (mm) | OD PN16 (mm) | OD PN25 (mm) | OK PN10 (mm) | OK PN16 (mm) | OK PN25 (mm) | N-Od PN10 (mm) | N-Od PN16 (mm) | N-Od PN25 (mm) | OB PN10 (mm) | OB PN16 (mm) | OB PN25 (mm) | Model Code | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 230 | 177 | 165 | 165 | 165 | 125 | 125 | 125 | 4-Ø19 | 4-Ø19 | 4-Ø19 | 99 | 99 | 99 | A900-0050 | — |
| DN65 | 290 | 202 | 185 | 185 | 185 | 145 | 145 | 145 | 4-Ø19 | 4-Ø19 | 8-Ø19 | 118 | 118 | 118 | A900-0065 | — |
| DN80 | 310 | 219 | 200 | 200 | 200 | 160 | 160 | 160 | 8-Ø19 | 8-Ø19 | 8-Ø19 | 132 | 132 | 132 | A900-0080 | — |
| DN100 | 350 | 243 | 220 | 220 | 235 | 180 | 180 | 190 | 8-Ø19 | 8-Ø19 | 8-Ø23 | 156 | 156 | 156 | A900-0100 | — |
| DN125 | 400 | 243 | 250 | 250 | 270 | 210 | 210 | 220 | 8-Ø19 | 8-Ø19 | 8-Ø28 | 156 | 156 | 156 | A900-0125 | — |
| DN150 | 480 | 333 | 285 | 285 | 300 | 240 | 240 | 250 | 8-Ø23 | 8-Ø23 | 8-Ø28 | 211 | 211 | 211 | A900-0150 | — |
| DN200 | 600 | 428 | 340 | 340 | 360 | 295 | 295 | 310 | 8-Ø23 | 12-Ø23 | 12-Ø28 | 266 | 266 | 274 | A900-0200 | — |
| DN250 | 730 | 478 | 405 | 405 | 425 | 350 | 355 | 370 | 12-Ø23 | 12-Ø28 | 12-Ø31 | 319 | 319 | 330 | A900-0250 | — |
| DN300 | 850 | 538 | 460 | 460 | 485 | 400 | 410 | 430 | 12-Ø23 | 12-Ø28 | 16-Ø31 | 370 | 370 | 389 | A900-0300 | — |
| DN350 | 980 | 550 | 520 | 520 | 555 | 460 | 470 | 490 | 16-Ø23 | 16-Ø28 | 16-Ø34 | 429 | 429 | 448 | A900-0350 | — |
| DN400 | 1100 | 710 | 580 | 580 | 620 | 515 | 525 | 550 | 16-Ø28 | 16-Ø31 | 16-Ø37 | 480 | 480 | 503 | A900-0400 | — |
| DN450 | 1200 | 720 | 640 | 640 | 670 | 565 | 585 | 600 | 20-Ø28 | 20-Ø31 | 20-Ø37 | 530 | 548 | 548 | A900-0450 | — |
| DN500 | 1250 | 822 | 715 | 715 | 730 | 620 | 650 | 660 | 20-Ø28 | 20-Ø34 | 20-Ø37 | 582 | 609 | 609 | A900-0500 | — |
| DN600 | 1450 | 885 | 840 | 840 | 845 | 725 | 770 | 770 | 20-Ø31 | 20-Ø37 | 20-Ø40 | 682 | 720 | 720 | A900-0600 | — |
| DN700 | 1650 | 910 | 910 | 910 | 960 | 840 | 840 | 875 | 24-Ø31 | 24-Ø37 | 24-Ø43 | 682 | 720 | 720 | A900-0700 | — |
| DN800 | 1850 | 1260 | 1025 | 1025 | 1085 | 950 | 950 | 990 | 24-Ø34 | 24-Ø40 | 24-Ø49 | 901 | 901 | 928 | A900-0800 | — |
* DN125 and DN350 use the same internals as DN100 and DN300 respectively.
* DN450 and DN700 use the same internals as DN400 and DN600 respectively.
* AISI 304 is the factory standard stainless steel grade; consult the factory for AISI 316.
Bill of materials

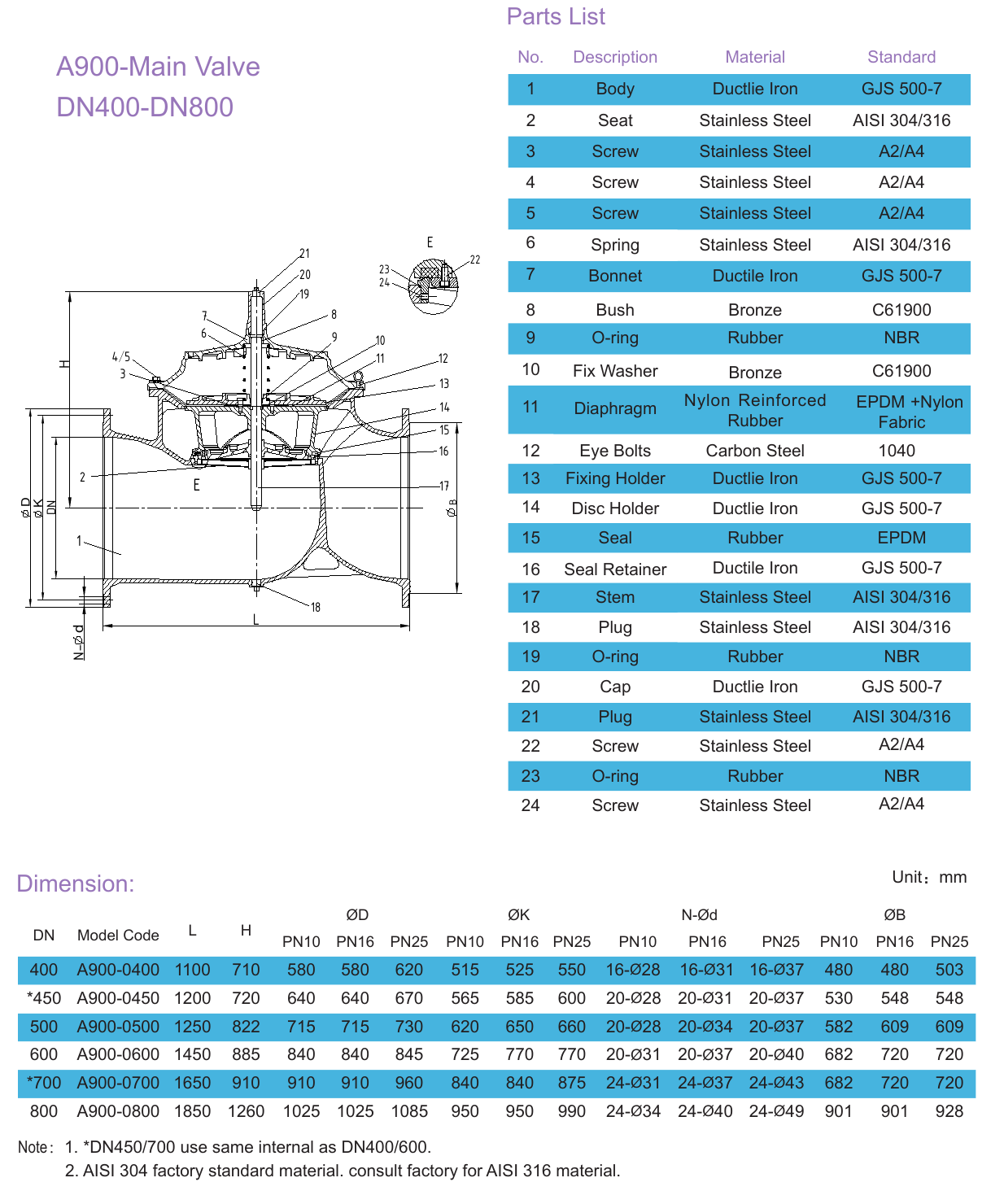

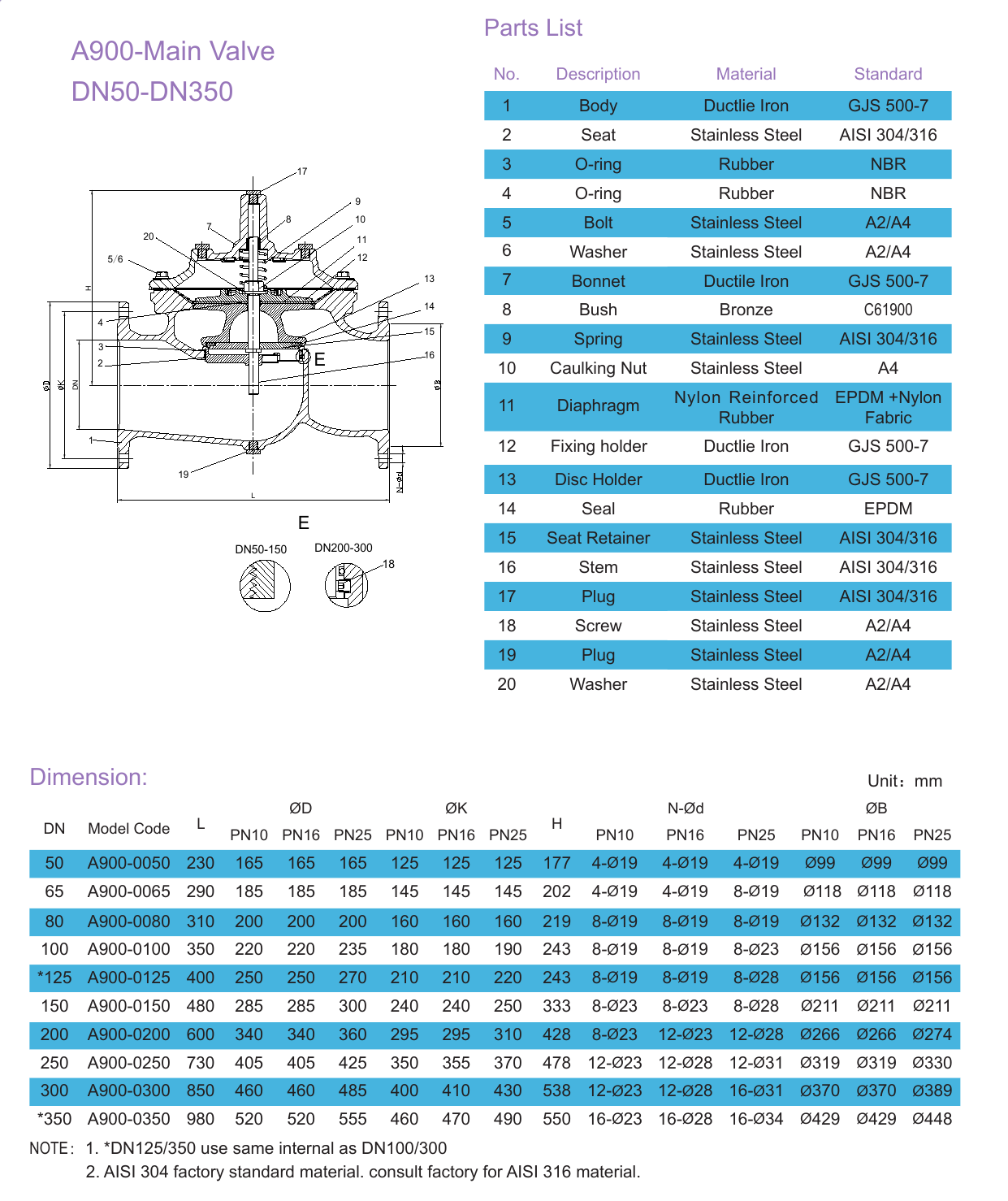

| Ref | Component | Material |
|---|---|---|
| 1 | Main valve | GJS 500-7 |
| 2 | Needle valve | SUS304 |
| 3 | P400 flow rate control pilot | SUS304 |
| 4 | Ball valve | SUS304 |
| 5 | Orifice kit | SUS304 |
| 6 | Strainer | SUS304 |
Technical drawings(4 pages)
Operating media
Typical applications
- Flow limiting
- Bulk supply metering bypass
- Distribution network control
Approvals
Features
- The A400 maintains a pre-set maximum flow rate regardless of upstream pressure variation
- A flow control pilot measures differential pressure across an integral orifice and modulates the main valve to limit flow to the set value
- Used to prevent excess draw from transmission mains, control bulk meter bypass flows and protect distribution networks from demand surges
- Top and seat ring guided stem and diaphragm assembly for long life and reliability
- All iron components are fusion epoxy bonded for corrosion resistance
- Easy maintenance without removal from the main line
- Nylon reinforced diaphragm for long-term service
- Drip-tight shut-off
- Globe design for superior control characteristics
- Ductile iron bodies for higher strength and durability
- Corrosion-resistant stainless steel seat and disc retainer ring
- Various pilots and accessories available for configuration into many different applications
- Special V-Port and double chamber are options, consult factory
Description
The A400 is a flow limiting configuration of the A900 main valve body, fitted with a P400 flow control pilot and Alpine orifice plate. The pilot measures differential pressure across the orifice and modulates the main valve to limit flow to the pre-set value regardless of upstream pressure variation. Used to prevent excess draw from transmission mains, control bulk meter bypass flows and protect distribution networks from demand surges. The A900 body can be repiloted in the field without body replacement.
Selection notes
This control valve is supplied for flanged installation.
Sizes run DN50 to DN800, in PN10, PN16, PN25.
The body is EN-GJS-500-7.
Seat and trim options are AISI 304 and 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to EN 1074-5, BS EN 1074-5, BS EN 558-1, ISO 5208 and BS EN 12266-1.
Supplier remarks

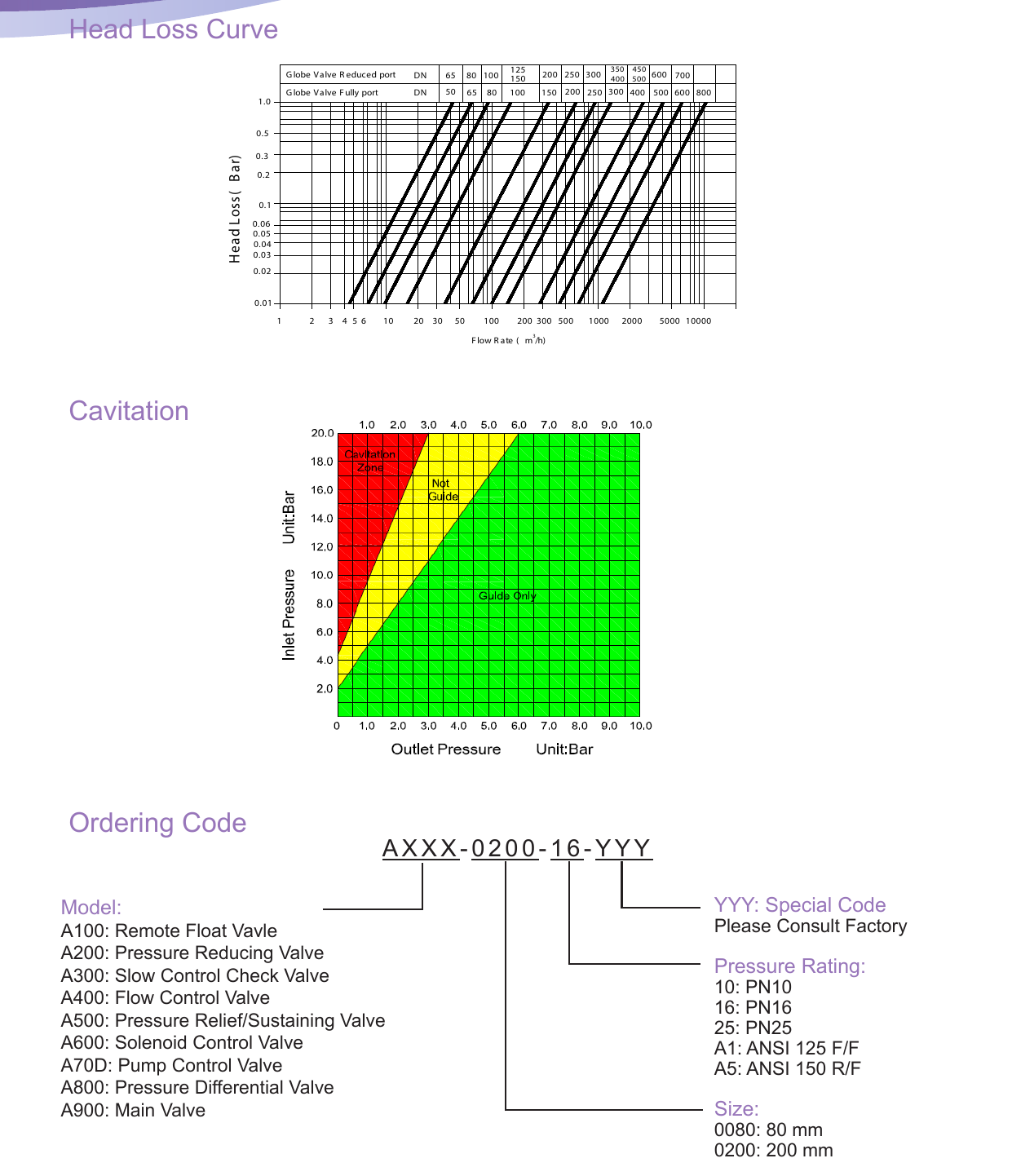

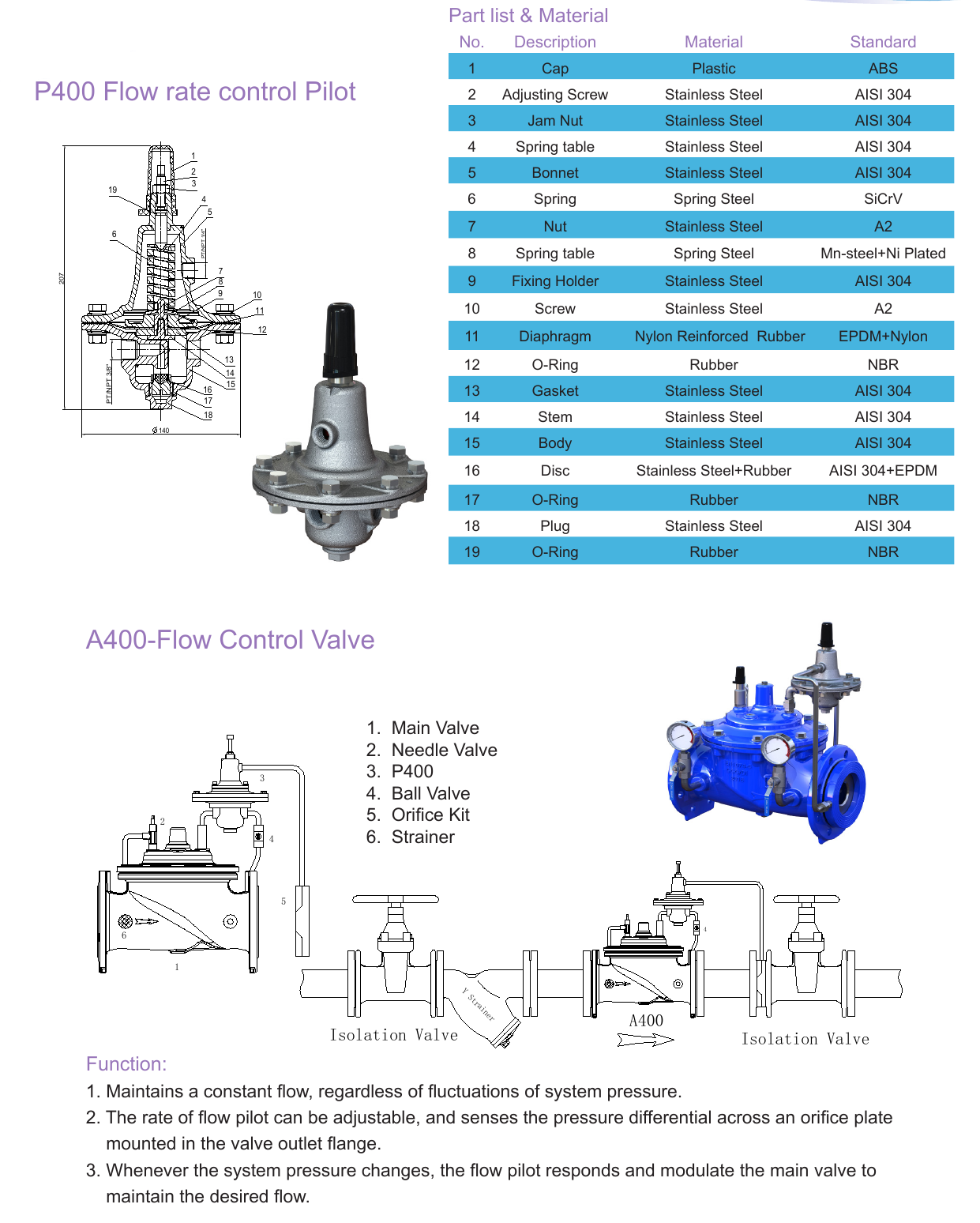

- Function is via an orifice plate with a fixed orifice and a pilot valve set to the required flow rate (source wording, more precise than the general description). Assembly diagram names: Main Valve, Needle Valve, P400, Ball Valve, Orifice Kit, Strainer. Head Loss Curve and Cavitation chart are stated as curves, not tabulated points, so not reproduced here.
- Ordering code structure: AXXX-SSSS-PP-YYY (Model-Size in mm-Pressure rating code-Special code). Pressure rating codes: 10=PN10, 16=PN16, 25=PN25, A1=ANSI 125 F/F, A5=ANSI 150 R/F. Special code (YYY) is assigned per configuration, consult factory.
- P400 pilot standalone dimensions (from the combined A400 datasheet): approx. 207mm overall height, Ø140mm body diameter.
