Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN200
- Pressure Class
- PN10, PN16, PN25
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- BS EN 1074-5
- Inspection & test
- ISO 5208, BS EN 12266-1
- Face to face
- BS EN 558-1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Seat
- Stem
- Spring
- Bolts
- Bush
- Caulking Nut
- Diaphragm
- Disc Holder
- Fixing Holder
- O Rings
- Plug
- Screw
- Seal
- Seat Retainer
- Washer
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |
| PN25 | 25 bar | -10°C | 80°C |
Dimensions per size(7 sizes)

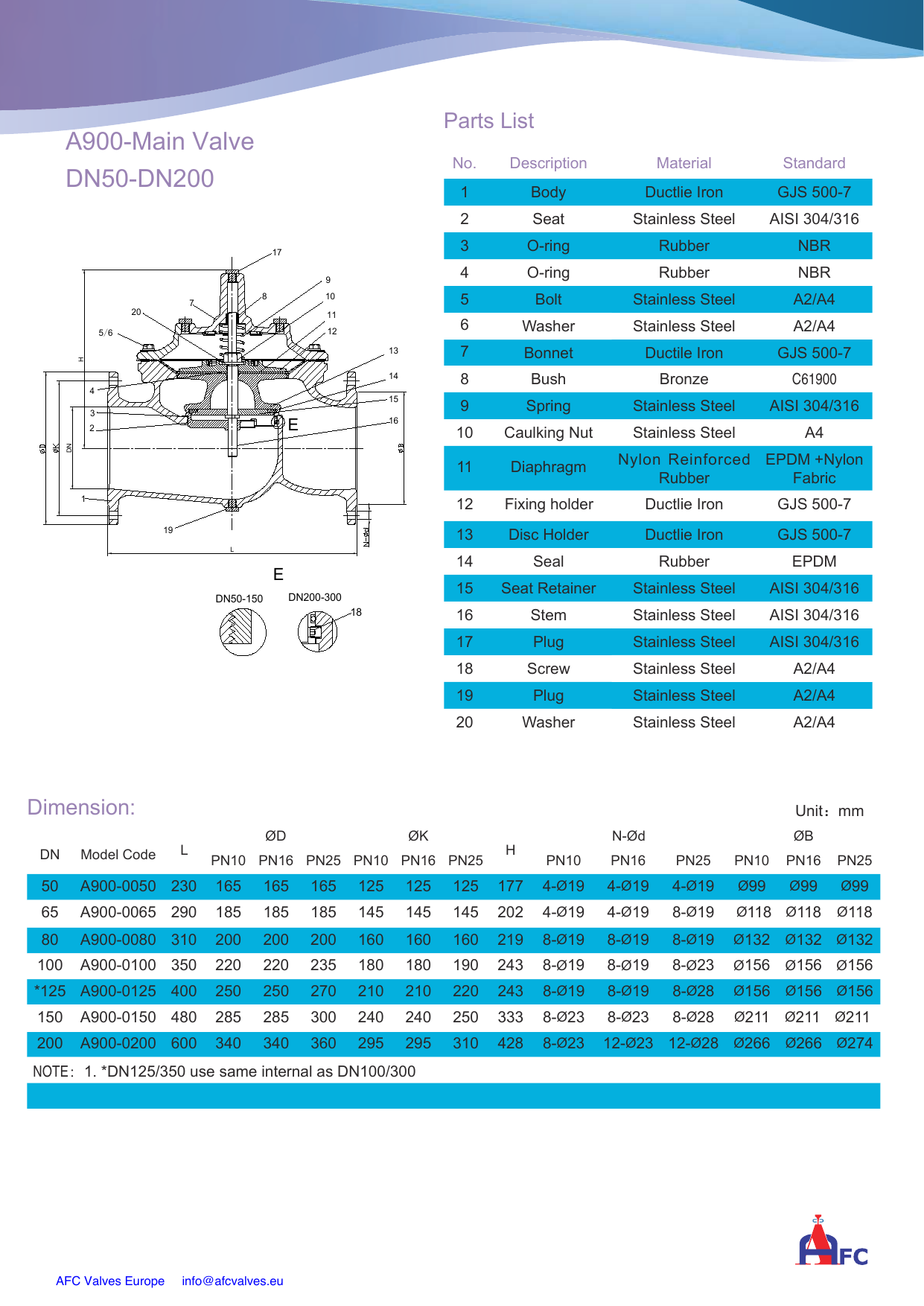

| Size | L (mm) | PN10 ØD (mm) | PN16 ØD (mm) | PN25 ØD (mm) | PN10 ØK (mm) | PN16 ØK (mm) | PN25 ØK (mm) | H (mm) | PN10 N-Ød (mm) | PN16 N-Ød (mm) | PN25 N-Ød (mm) | PN10 ØB (mm) | PN16 ØB (mm) | PN25 ØB (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 230 | 165 | 165 | 165 | 125 | 125 | 125 | 177 | 4-Ø19 | 4-Ø19 | 4-Ø19 | 99 | 99 | 99 | — |
| DN65 | 290 | 185 | 185 | 185 | 145 | 145 | 145 | 202 | 4-Ø19 | 4-Ø19 | 8-Ø19 | 118 | 118 | 118 | — |
| DN80 | 310 | 200 | 200 | 200 | 160 | 160 | 160 | 219 | 8-Ø19 | 8-Ø19 | 8-Ø19 | 132 | 132 | 132 | — |
| DN100 | 350 | 220 | 220 | 235 | 180 | 180 | 190 | 243 | 8-Ø19 | 8-Ø19 | 8-Ø23 | 156 | 156 | 156 | — |
| DN125 | 400 | 250 | 250 | 270 | 210 | 210 | 220 | 243 | 8-Ø19 | 8-Ø19 | 8-Ø28 | 156 | 156 | 156 | — |
| DN150 | 480 | 285 | 285 | 300 | 240 | 240 | 250 | 333 | 8-Ø23 | 8-Ø23 | 8-Ø28 | 211 | 211 | 211 | — |
| DN200 | 600 | 340 | 340 | 360 | 295 | 295 | 310 | 428 | 8-Ø23 | 12-Ø23 | 12-Ø28 | 266 | 266 | 274 | — |

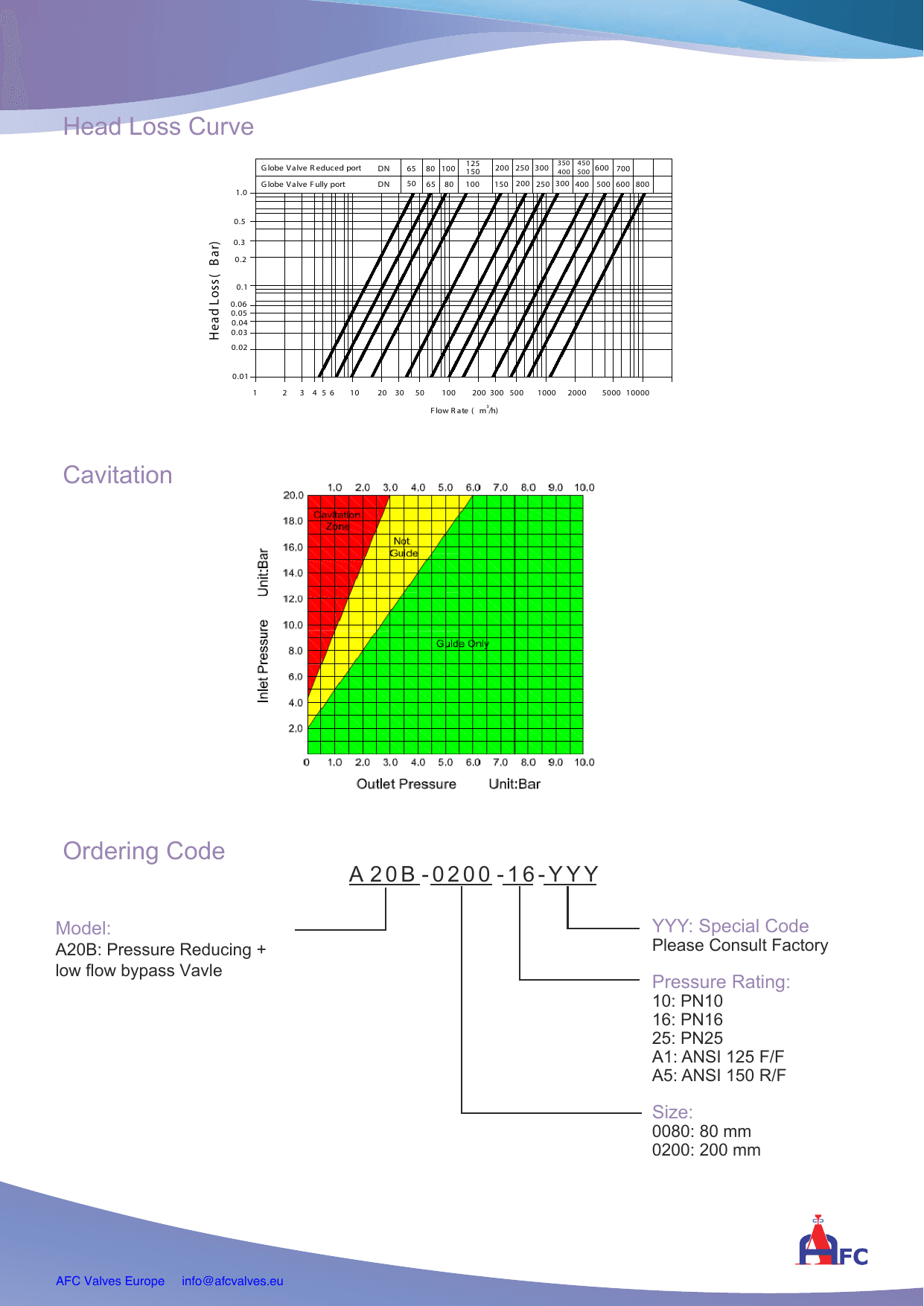

Operating media
Typical applications
- Trunk main pressure management
- Bulk supply stations
- Large distribution zones
Coatings
Approvals
Features
- The A20B is a high-flow pressure reducing valve for trunk main and bulk supply duty where the A200 body is undersized for the required flow capacity
- The enlarged body and flow passages accommodate higher flow rates at low headloss, making it suitable for primary pressure management stations serving large distribution zones
Description

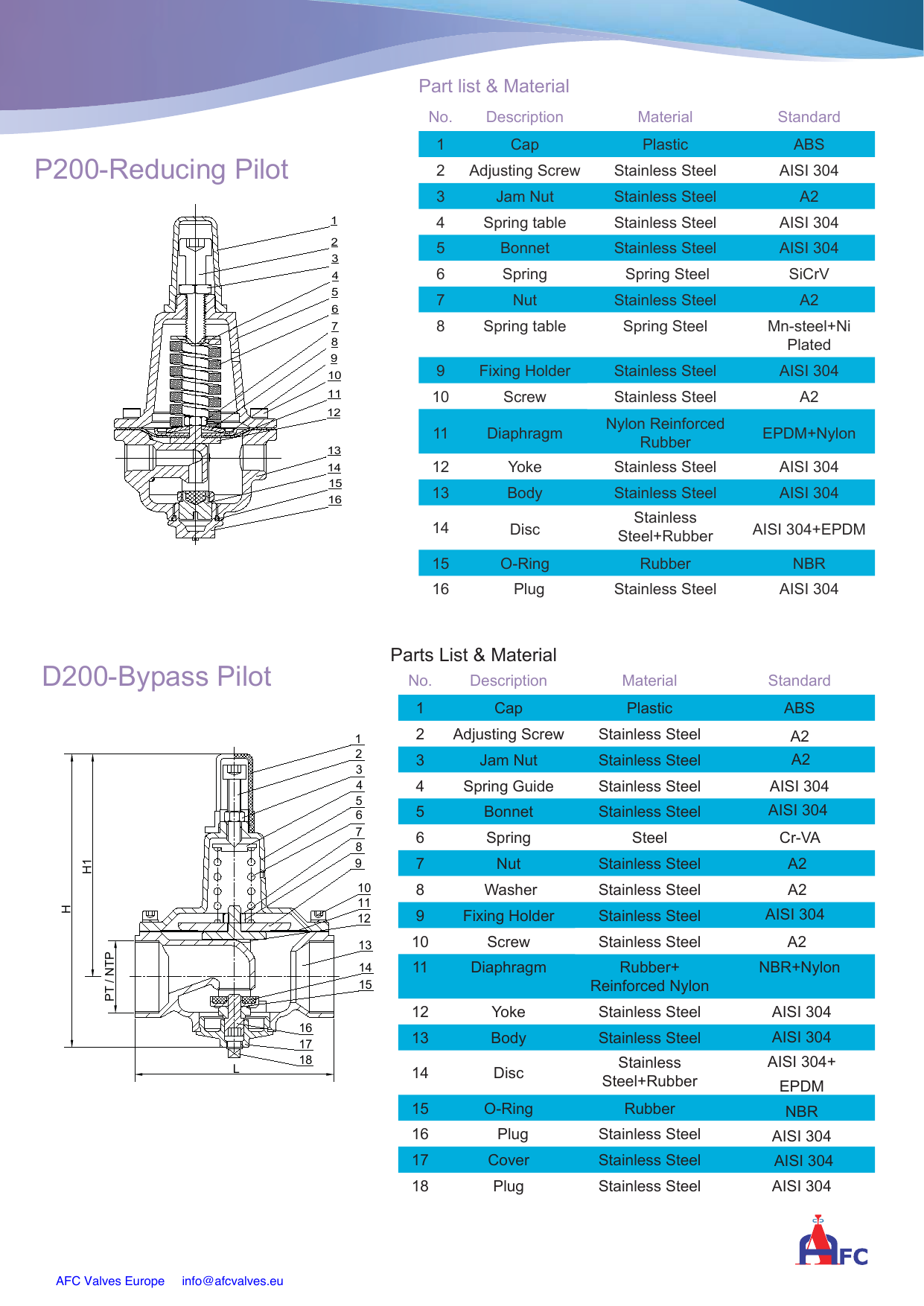

The A20B is a pressure reducing valve with low flow rate bypass pilot. It gives a stable fixed outlet pressure during normal flow rate. When flow rate is very small, the main valve closes and water flows through the bypass pilot to avoid valve vibration. Fitted with a P200 reducing pilot and D200 bypass pilot. Globe design for superior control characteristics; ductile iron body with nylon-reinforced diaphragm.
Selection notes
This control valve is supplied for flanged installation.
Sizes run DN50 to DN200, in PN10, PN16, PN25.
The body is EN-GJS-500-7.
Seat and trim options are Stainless Steel AISI 304 and Stainless Steel AISI 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to BS EN 1074-5, BS EN 558-1, ISO 5208 and BS EN 12266-1.
