Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN80 to DN1000
- Pressure Class
- PN10, PN16, PN25
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Design & manufacture
- EN 1074-5, BS EN 1074-5
- Inspection & test
- ISO 5208, BS EN 12266-1
- Face to face
- BS EN 558-1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Seat
- Stem
- Spring
- Bolts
- Bush
- Cap
- Caulking Nut
- Diaphragm
- Disc Holder
- Eye Bolts
- Fix Washer
- Fixing Holder
- O Rings
- Plug
- Screw
- Seal
- Seal Retainer
- Seat Retainer
- Washer
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |
| PN25 | 25 bar | -10°C | 80°C |
Dimensions per size(14 sizes)
| Size | L (mm) | H (mm) | PN10 OD (mm) | PN16 OD (mm) | PN25 OD (mm) | PN10 OK (mm) | PN16 OK (mm) | PN25 OK (mm) | PN10 N-Od (mm) | PN16 N-Od (mm) | PN25 N-Od (mm) | PN10 OB (mm) | PN16 OB (mm) | PN25 OB (mm) | Model Code | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN80 | 310 | 182 | 200 | 200 | 200 | 160 | 160 | 160 | 8-Ø19 | 8-Ø19 | 8-Ø19 | 132 | 132 | 132 | R900-0080 | — |
| DN100 | 350 | 225 | 220 | 220 | 235 | 180 | 180 | 190 | 8-Ø19 | 8-Ø19 | 8-Ø23 | 156 | 156 | 156 | R900-0100 | — |
| DN125 | 400 | 243 | 250 | 250 | 270 | 210 | 210 | 220 | 8-Ø19 | 8-Ø19 | 8-Ø28 | 156 | 156 | 156 | R900-0125 | — |
| DN150 | 480 | 243 | 285 | 285 | 300 | 240 | 240 | 250 | 8-Ø23 | 8-Ø23 | 8-Ø28 | 211 | 211 | 211 | R900-0150 | — |
| DN200 | 600 | 354 | 340 | 340 | 360 | 295 | 295 | 310 | 8-Ø23 | 12-Ø23 | 12-Ø28 | 266 | 266 | 274 | R900-0200 | — |
| DN250 | 730 | 440 | 405 | 405 | 425 | 350 | 355 | 370 | 12-Ø23 | 12-Ø28 | 12-Ø31 | 319 | 319 | 330 | R900-0250 | — |
| DN300 | 850 | 490 | 460 | 460 | 485 | 400 | 410 | 430 | 12-Ø23 | 12-Ø28 | 16-Ø31 | 370 | 370 | 389 | R900-0300 | — |
| DN350 | 980 | 550 | 520 | 520 | 555 | 460 | 470 | 490 | 16-Ø23 | 16-Ø28 | 16-Ø34 | 429 | 429 | 448 | R900-0350 | — |
| DN400 | 1100 | 550 | 710 | 580 | 580 | 620 | 515 | 525 | 16-Ø28 | 16-Ø31 | 16-Ø37 | 480 | 480 | 503 | R900-0400 | — |
| DN450 | 1200 | 720 | 640 | 640 | 670 | 565 | 585 | 600 | 20-Ø28 | 20-Ø31 | 20-Ø37 | 530 | 548 | 548 | R900-0450 | — |
| DN700 | 1650 | 910 | 910 | 910 | - | 840 | 840 | - | 24-Ø31 | 24-Ø37 | - | 682 | 720 | - | R900-0700 | — |
| DN800 | 1850 | 920 | 1025 | 1025 | - | 950 | 950 | - | 24-Ø34 | 24-Ø40 | - | 901 | 901 | - | R900-0800 | — |
| DN900 | 1850 | 1260 | 1125 | 1125 | - | 1050 | 1050 | - | 28-Ø34 | 28-Ø40 | - | 1001 | 1001 | - | R900-0900 | — |
| DN1000 | 1850 | 1260 | 1125 | 1125 | - | 1050 | 1050 | - | 28-Ø34 | 28-Ø40 | - | 1001 | 1001 | - | R900-1000 | — |
* AISI 304 is the factory standard stainless steel grade; consult the factory for AISI 316.

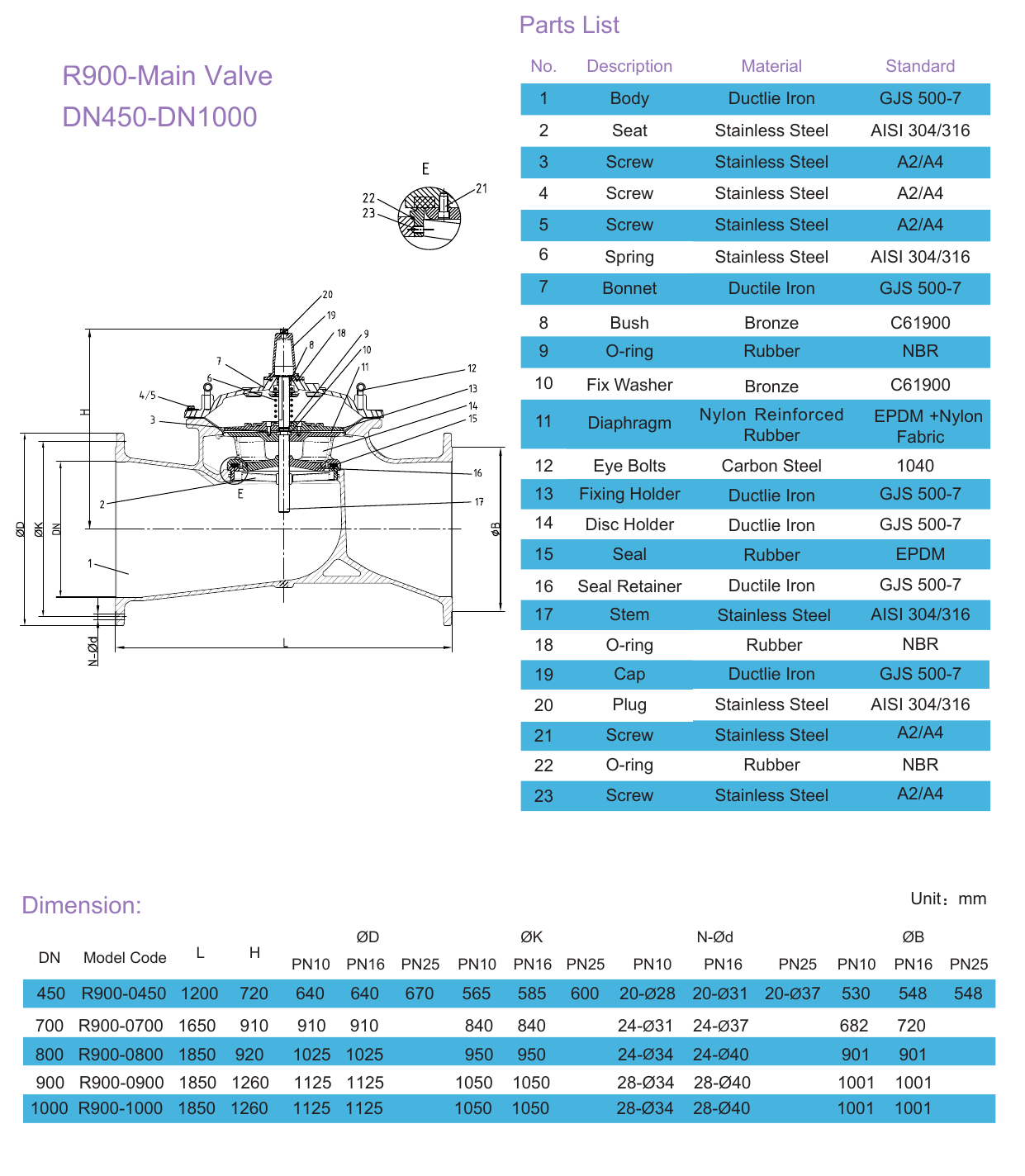

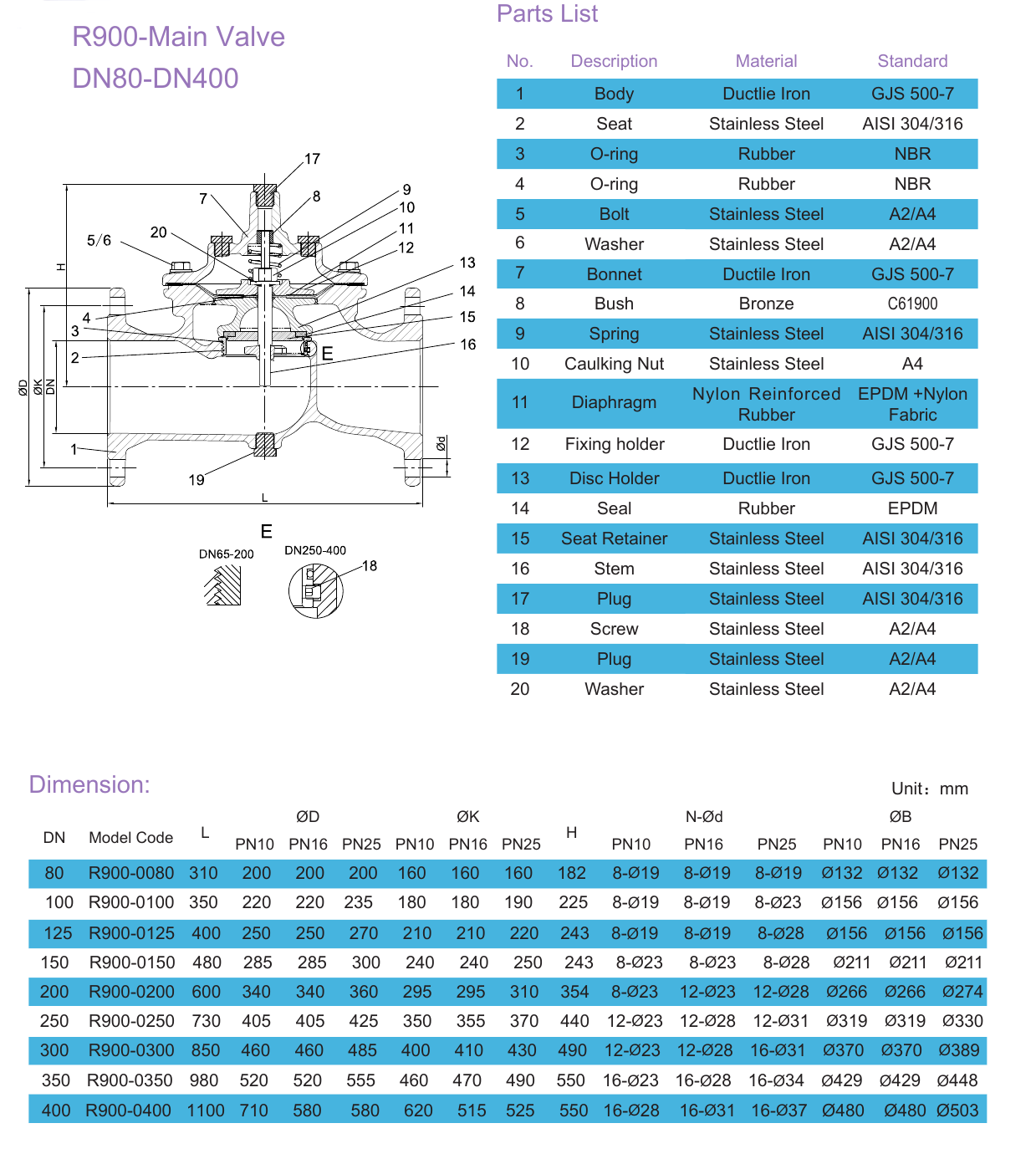

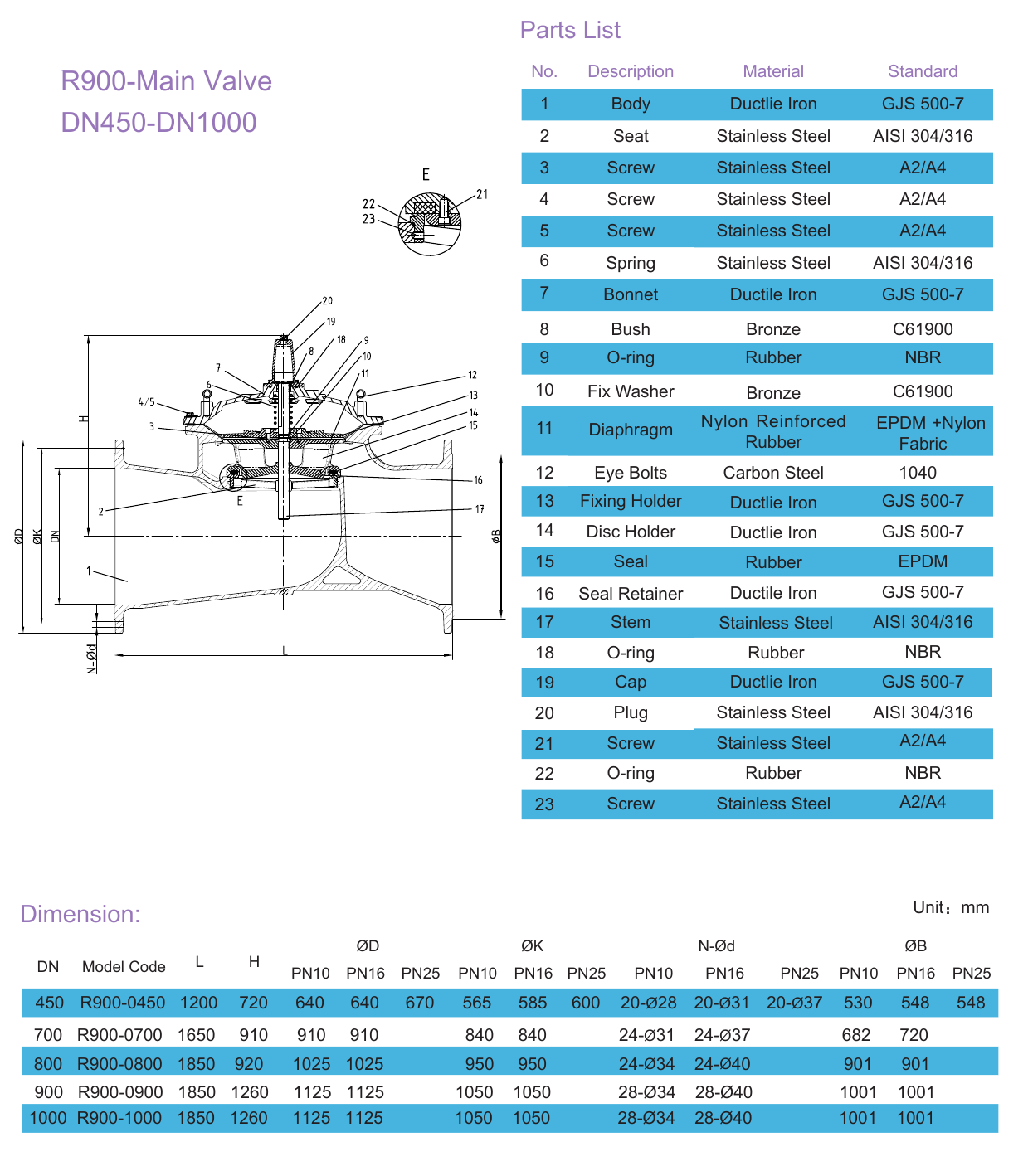

Technical drawings(3 pages)
Operating media
Typical applications
- Surge protection
- Pump station protection
- Pipeline overpressure relief
- Water hammer mitigation
Approvals
Features
- The R900 is a reduced bore version of the A900 automatic control valve main body
- The reduced bore design allows a smaller valve to handle a given line size, reducing weight, face-to-face length and installed cost while maintaining full hydraulic control authority
- Used with the standard P-series pilot range for pressure reducing, sustaining, level and flow control duties where space or weight constraints apply
Description
The R900 is a reduced bore version of the A900 automatic control valve main body. The reduced bore design allows a smaller valve to handle a given line size, reducing weight, face-to-face length and installed cost while maintaining full hydraulic control authority. Used with the standard P-series pilot range for pressure reducing, sustaining, level and flow control duties where space or weight constraints apply.
Selection notes
This control valve is supplied for flanged installation.
Sizes run DN80 to DN1000, in PN10, PN16, PN25.
The body is EN-GJS-500-7.
Seat and trim options are AISI 304 and AISI 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water.
It is catalogued for Water & Wastewater.
Working temperature is -10°C to 80°C.
Built to EN 1074-5, BS EN 1074-5, BS EN 558-1, ISO 5208 and BS EN 12266-1.
Supplier remarks

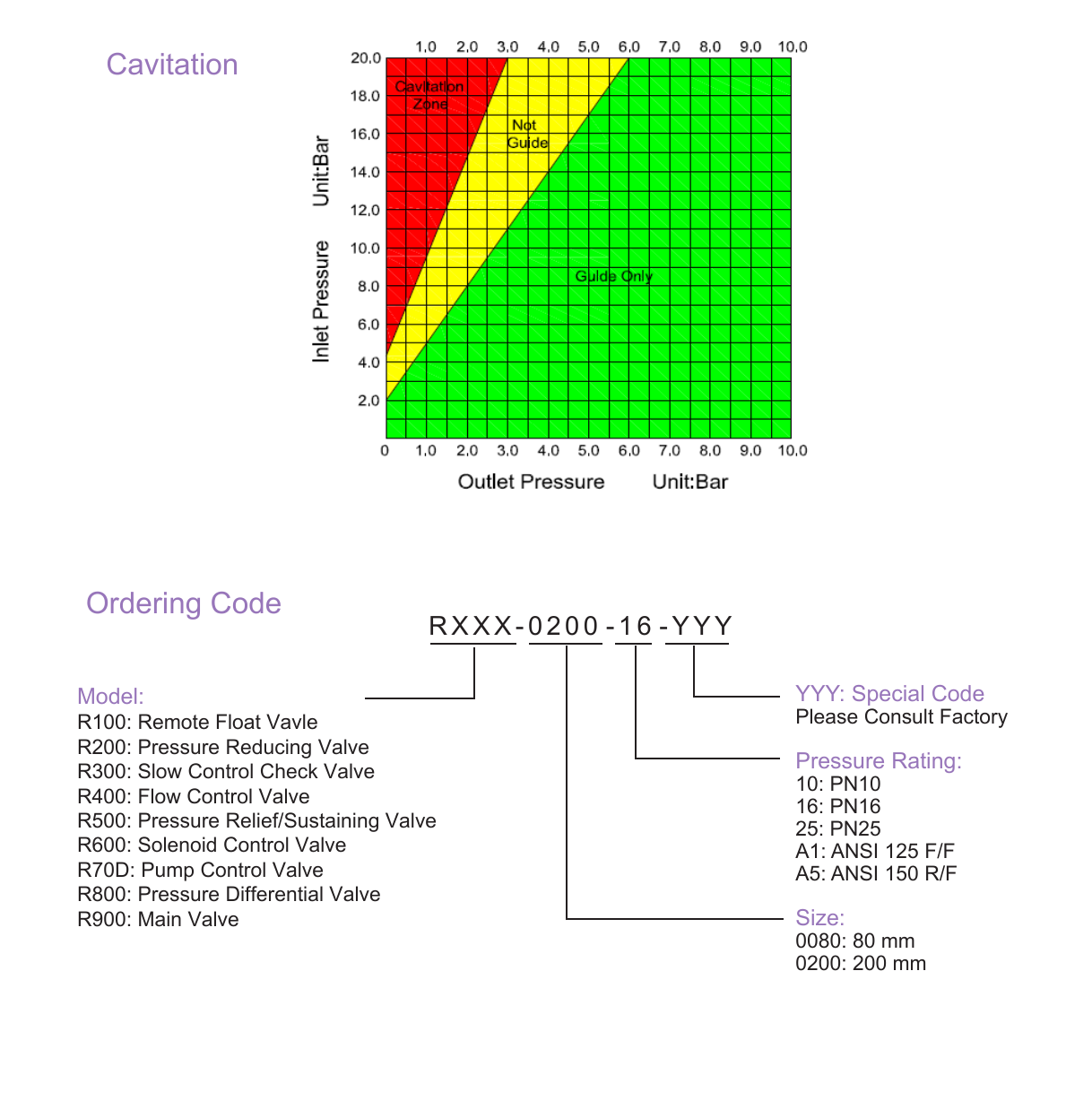

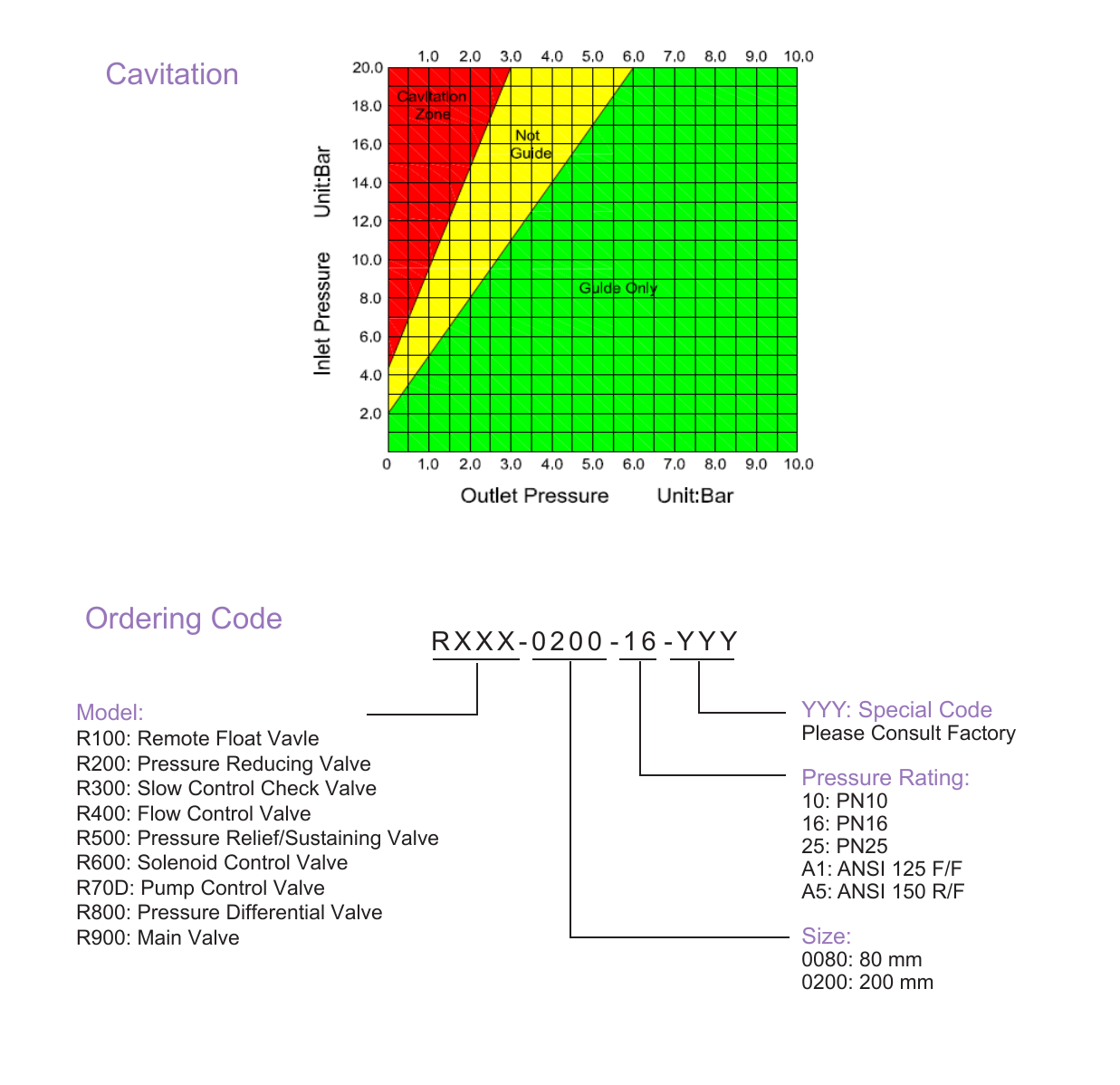

- Ordering code structure: R900-SSSS-PP-YYY (Model-Size-Pressure-Special), same pattern as the standard A900 family but with an R-prefix model code. PP = 10/16/25 for PN10/16/25, A1 for ANSI 125 F/F, A5 for ANSI 150 R/F.
Available pressure classes
Pressure classes this product is rated to.
