Control Valve

Part of the A900 modular system

A204 Pressure Reducing Valve with Flow Limiter

Name: A204 Pressure Reducing Valve with Flow Limiter
Brand: Euro Flow Control
SKU: EFC-357

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN50 to DN1000
Pressure Class: PN10, PN16, PN25
End connection: Flanged
Operating temperature: -10°C to 80°C

Standards

Design & manufacture: EN 1074-5, BS EN 1074-5
Inspection & test: ISO 5208, BS EN 12266-1
Face to face: BS EN 558-1

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Seat
Stem
Spring
Bolts
Bush
Cap
Diaphragm
Disc Holder
Eye Bolts
Fix Washer
Fixing Holder
O Rings
Pilots
Seal
Seal Retainer
Seat Retainer

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Pressure	Min temp	Max temp
PN10	10 bar	-10°C	80°C
PN16	16 bar	-10°C	80°C
PN25	25 bar	-10°C	80°C

Dimensions per size(16 sizes)

Size	L (mm)	H (mm)	PN10 ØD (mm)	PN16 ØD (mm)	PN25 ØD (mm)	PN10 ØK (mm)	PN16 ØK (mm)	PN25 ØK (mm)	PN10 N-Ød (mm)	PN16 N-Ød (mm)	PN25 N-Ød (mm)	PN10 ØB (mm)	PN16 ØB (mm)	PN25 ØB (mm)	Model Code	Weight
DN50	230	177	165	165	165	125	125	125	4-Ø19	4-Ø19	4-Ø19	99	99	99	A900-0050	—
DN65	290	202	185	185	185	145	145	145	4-Ø19	4-Ø19	8-Ø19	118	118	118	A900-0065	—
DN80	310	219	200	200	200	160	160	160	8-Ø19	8-Ø19	8-Ø19	132	132	132	A900-0080	—
DN100	350	243	220	220	235	180	180	190	8-Ø19	8-Ø19	8-Ø23	156	156	156	A900-0100	—
DN125	400	243	250	250	270	210	210	220	8-Ø19	8-Ø19	8-Ø28	156	156	156	A900-0125	—
DN150	480	333	285	285	300	240	240	250	8-Ø23	8-Ø23	8-Ø28	211	211	211	A900-0150	—
DN200	600	428	340	340	360	295	295	310	8-Ø23	12-Ø23	12-Ø28	266	266	274	A900-0200	—
DN250	730	478	405	405	425	350	355	370	12-Ø23	12-Ø28	12-Ø31	319	319	330	A900-0250	—
DN300	850	538	460	460	485	400	410	430	12-Ø23	12-Ø28	16-Ø31	370	370	389	A900-0300	—
DN350	980	550	520	520	555	460	470	490	16-Ø23	16-Ø28	16-Ø34	429	429	448	A900-0350	—
DN400	1100	710	580	580	620	515	525	550	16-Ø28	16-Ø31	16-Ø37	480	480	503	A900-0400	—
DN450	1200	720	640	640	670	565	585	600	20-Ø28	20-Ø31	20-Ø37	530	548	548	A900-0450	—
DN500	1250	822	715	715	730	620	650	660	20-Ø28	20-Ø34	20-Ø37	582	609	609	A900-0500	—
DN600	1450	885	840	840	845	725	770	770	20-Ø31	20-Ø37	20-Ø40	682	720	720	A900-0600	—
DN700	1650	910	910	910	960	840	840	875	24-Ø31	24-Ø37	24-Ø43	682	720	720	A900-0700	—
DN800	1850	1260	1025	1025	1085	950	950	990	24-Ø34	24-Ø40	24-Ø49	901	901	928	A900-0800	—

* DN125 and DN350 use the same internals as DN100 and DN300 respectively.

* DN450 and DN700 use the same internals as DN400 and DN600 respectively.

* AISI 304 is the factory standard stainless steel grade; consult the factory for AISI 316.

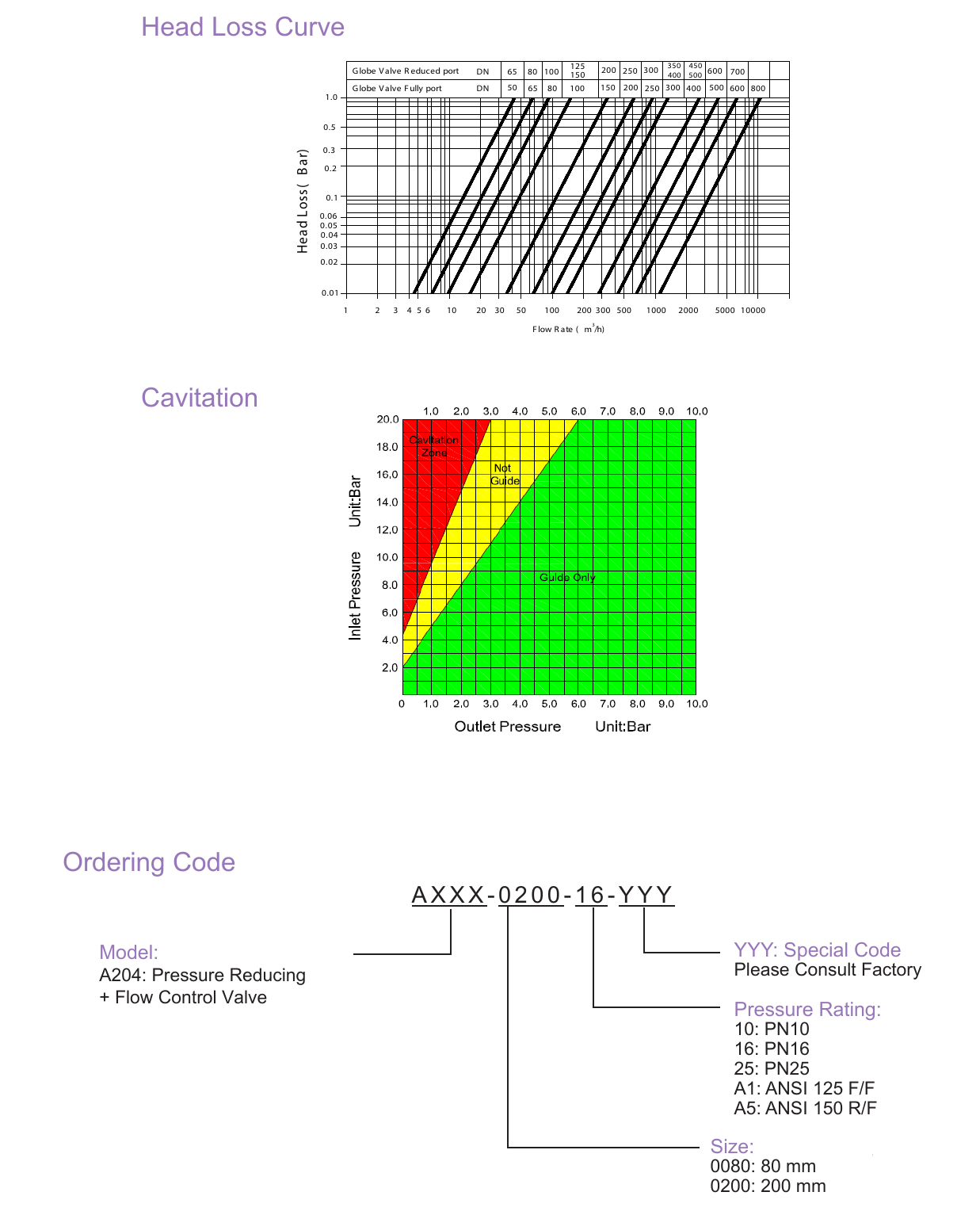

Technical drawings(3 pages)

Operating media

Water

Typical applications

District metered areas
Flow limiting at pressure boundaries
Water distribution networks

Approvals

WRASISO 9001

Features

The A204 combines downstream pressure reduction with a flow limiter in a single valve
The dual pilot arrangement simultaneously limits the maximum flow rate and reduces downstream pressure to the set point
When demand exceeds the flow limit, the flow control pilot takes authority regardless of the PRV set point
Used at district supply points where both pressure and demand must be controlled

Description

The A204 combines downstream pressure reducing and flow limiting in a single A900 valve body, using a P200 reducing pilot and P400 flow control pilot. Under normal demand the P200 pilot controls downstream pressure; when demand exceeds the flow limit the P400 pilot takes authority regardless of the PRV set point. An Alpine orifice plate provides the differential pressure signal for the flow pilot. Used at district supply points where both pressure and maximum demand must be controlled.

Selection notes

This control valve is supplied for flanged installation.

Sizes run DN50 to DN1000, in PN10, PN16, PN25.

The body is EN-GJS-500-7.

Seat and trim options are AISI 304 and 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include water.

It is catalogued for Water & Wastewater.

Working temperature is -10°C to 80°C.

Built to EN 1074-5, BS EN 1074-5, BS EN 558-1, ISO 5208 and BS EN 12266-1.

Supplier remarks

Datasheet technical-data header states "Size Range: DN50~DN1000mm", but this PDF's own main-valve BOM and dimensions tables only go to DN800 (like the rest of the A900 family); no DN900/DN1000 dimensions or pilot confirmation are published for this specific dual-pilot model, so DN900/DN1000 are not added to dimensions_table/size.available -- unconfirmed for this model despite the headline range (per no-sister-product-inheritance: the base A900 body tabulates DN900/1000 as reduced-bore, but that does not confirm the dual flow-limiter pilot arrangement scales to those sizes).

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25

Used in

Water & Wastewater
