A14A Altitude with Rate of Flow Control Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN50 to DN1000
Pressure Class
PN10, PN16, PN25
End connection
Flanged
Operating temperature
-10°C to 80°C

Standards

Design & manufacture
EN 1074-5, BS EN 1074-5
Inspection & test
ISO 5208, BS EN 12266-1
Face to face
BS EN 558-1

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Seat
Stem
Spring
Bolts
Bush
Diaphragm
Disc Holder
Eye Bolts
Fixing Holder
O Rings
Plug
Seal
Seat Retainer
Dimensions per size(16 sizes)
SizeL (mm)PN10 ØD (mm)PN16 ØD (mm)PN25 ØD (mm)PN10 ØK (mm)PN16 ØK (mm)PN25 ØK (mm)H (mm)PN10 N-Ød (mm)PN16 N-Ød (mm)PN25 N-Ød (mm)PN10 ØB (mm)PN16 ØB (mm)PN25 ØB (mm)Weight
DN502301651651651251251251774-Ø194-Ø194-Ø19999999
—
DN652901851851851451451452024-Ø194-Ø198-Ø19118118118
—
DN803102002002001601601602198-Ø198-Ø198-Ø19132132132
—
DN1003502202202351801801902438-Ø198-Ø198-Ø23156156156
—
DN1254002502502702102102202438-Ø198-Ø198-Ø28156156156
—
DN1504802852853002402402503338-Ø238-Ø238-Ø28211211211
—
DN2006003403403602952953104288-Ø2312-Ø2312-Ø28266266274
—
DN25073040540542535035537047812-Ø2312-Ø2812-Ø31319319330
—
DN30085046046048540041043053812-Ø2312-Ø2816-Ø31370370389
—
DN35098052052055546047049055016-Ø2316-Ø2816-Ø34429429448
—
DN400110058058062051552555071016-Ø2816-Ø3116-Ø37480480503
—
DN450120064064067056558560072020-Ø2820-Ø3120-Ø37530548548
—
DN500125071571573062065066082220-Ø2820-Ø3420-Ø37582609609
—
DN600145084084084572577077088520-Ø3120-Ø3720-Ø40682720720
—
DN700165091091096084084087591024-Ø3124-Ø3724-Ø43682720720
—
DN8001850102510251085950950990126024-Ø3424-Ø4024-Ø49901901928
—

Operating media

Water

Typical applications

  • Elevated storage tanks
  • Limited capacity supply mains
  • Water towers
  • Rural water supply

Approvals

WRASISO 9001

Features

  • The A14A combines altitude level control with a rate of flow limiter in a single valve
  • The altitude pilot closes the valve when the tank is full; the flow pilot limits the fill rate to protect the supply main during peak demand
  • This combination prevents over-demand from elevated storage while maintaining full altitude control
  • Used at elevated tank inlets where the supply main has limited spare capacity

Description

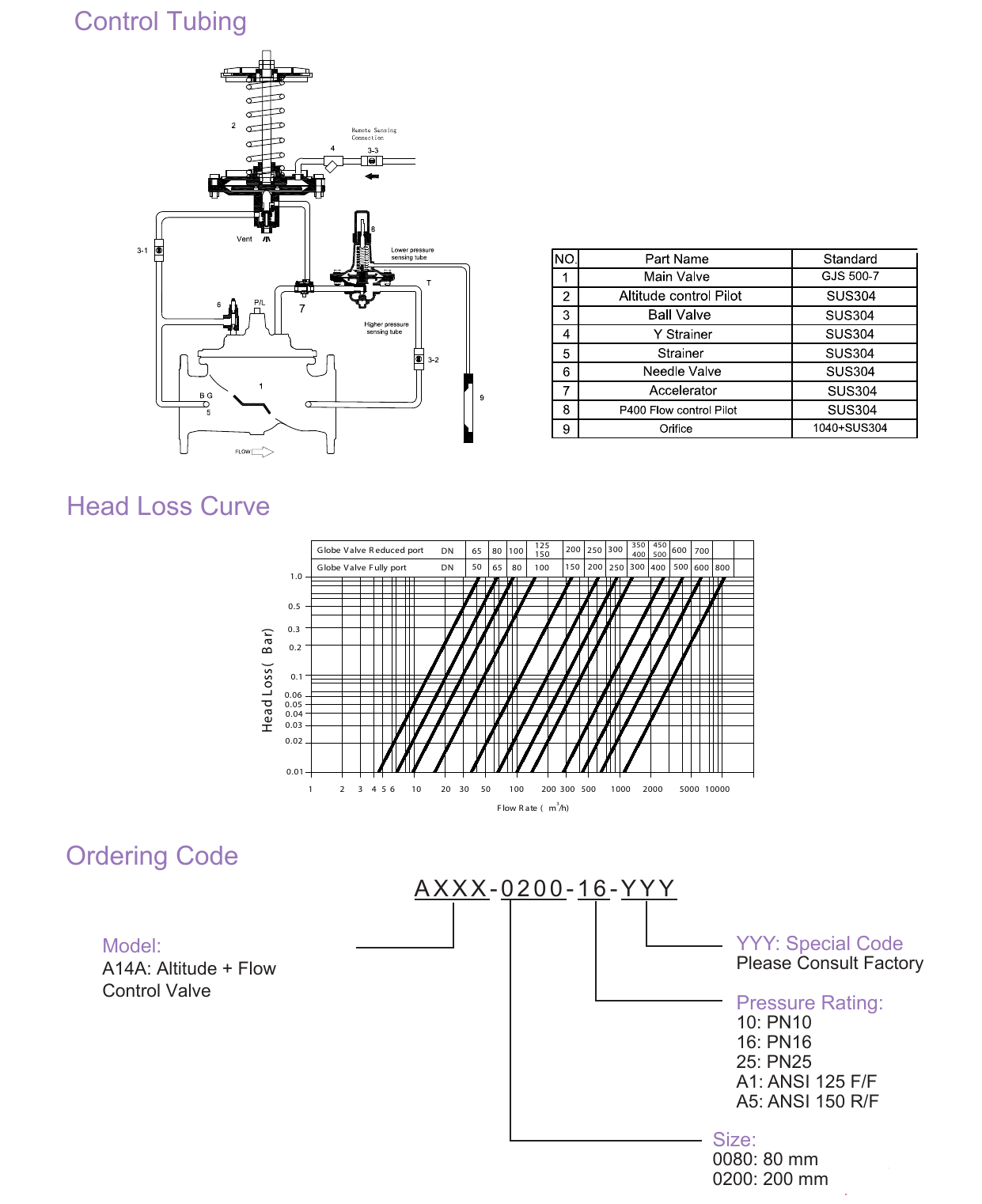

The A14A combines altitude level control with rate of flow limiting in a single A900 valve body, using a P800 altitude pilot and P400 flow pilot in tandem. The altitude pilot closes the valve when the tank is full; the flow pilot limits fill rate to protect the supply main during peak demand periods. This combination prevents both over-demand from elevated storage and tank overflow. An Alpine orifice plate provides the differential pressure signal for the flow pilot. Used at elevated tank inlets where supply main capacity is constrained.

Selection notes

This control valve is supplied for flanged installation.

Sizes run DN50 to DN1000, in PN10, PN16, PN25.

The body is EN-GJS-500-7.

Seat and trim options are Stainless Steel AISI 304 and Stainless Steel AISI 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include water.

It is catalogued for Water & Wastewater.

Working temperature is -10°C to 80°C.

Built to EN 1074-5, BS EN 1074-5, BS EN 558-1, ISO 5208 and BS EN 12266-1.

Available pressure classes

Pressure classes this product is rated to.

PN10PN16PN25

Used in

Water & Wastewater

Related guides

Smart find

Searches our product catalogue using your spec. Drop a spec sheet or parts list (PDF, Excel, CSV, Word or text, several at once), paste a description or a part number and we'll find the closest matches for each. Anything we can't match goes to your RFQ as a custom enquiry for our team to source.

A900 configurations

View full A900 system →
This product is part of the A900 modular system. All configurations share the same hydraulically operated body: the control function is set by the pilot valve(s) attached. An existing A900 body in the field can be reconfigured for a different duty simply by swapping the pilot, without replacing the body.

A100 Modulating Float Control Valve

DN50 to DN800

A200 Pressure Reducing Valve

DN50 to DN800

A203 Pressure Reducing with Check Valve

DN50 to DN800

A300 Slow Control Check Valve

DN50 to DN800

A400 Flow Control Valve

DN50 to DN800

A500 Pressure Relief / Sustaining Valve

DN50 to DN800

A600 Solenoid Control Valve

DN50 to DN800

A76D Pump Control Valve - Double Chamber

DN50 to DN800

A900 Automatic Control Valve (Main Valve)

DN50 to DN1000

A10A Altitude Control Valve

DN50 to DN800

A10B Bi-Level Float Control Valve

DN50 to DN800

A204 Pressure Reducing Valve with Flow Limiter

DN50 to DN1000

A205 Pressure Sustaining and Reducing Valve

DN50 to DN800

A206 Pressure Reducing Solenoid Control Valve

DN50 to DN800

A20B Pressure Reducing Valve + Low Flow Rate Bypass

DN50 to DN200

A2A5 Surge Anticipating Control Valve

DN50 to DN800

A506 Pressure Sustaining Valve with Solenoid Control

DN50 to DN800

A6DV Dual Solenoid Control Valve

DN50 to DN600

A7MD Pump Control Valve - Passive Protection

DN50 to DN800

A800 Pressure Differential Valve

DN50 to DN800

A900 Automatic Control Valve - Threaded

DN50 to DN1000

R900 Main Valve - Reduced Bore

DN80 to DN1000

Pilot assembly & accessories

Pilot assembly

P800 Altitude Pilot

Altitude pilot: closes the valve when the tank reaches the high-level set point

P400 Flow Rate Control Pilot

Flow limiting pilot: restricts fill rate to protect the supply main during peak demand

Compatible accessories

Needle Valve

Adjusts response speed and damps oscillation in the pilot circuit

Alpine Orifice Plate

Creates differential pressure signal for flow measurement

Float Valve Switch

Provides electrical level signal for alarm or SCADA telemetry
