Float Valve Switch
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN80
- Pressure Class
- 10 bar (20 bar upon request)
- End connection
- Threaded · Flanged
- Operating temperature
- 0°C to 80°C
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Seat
- Shaft
- Adjusting Screw
- Float Ball
- Lifting Gear
- Main Body
- Orifice
- Piston Shaft
- Screw U Ring
- U Ring
- Valve Gate
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Temperature | Max pressure |
|---|---|---|
| — | 80°C | 10 bar |

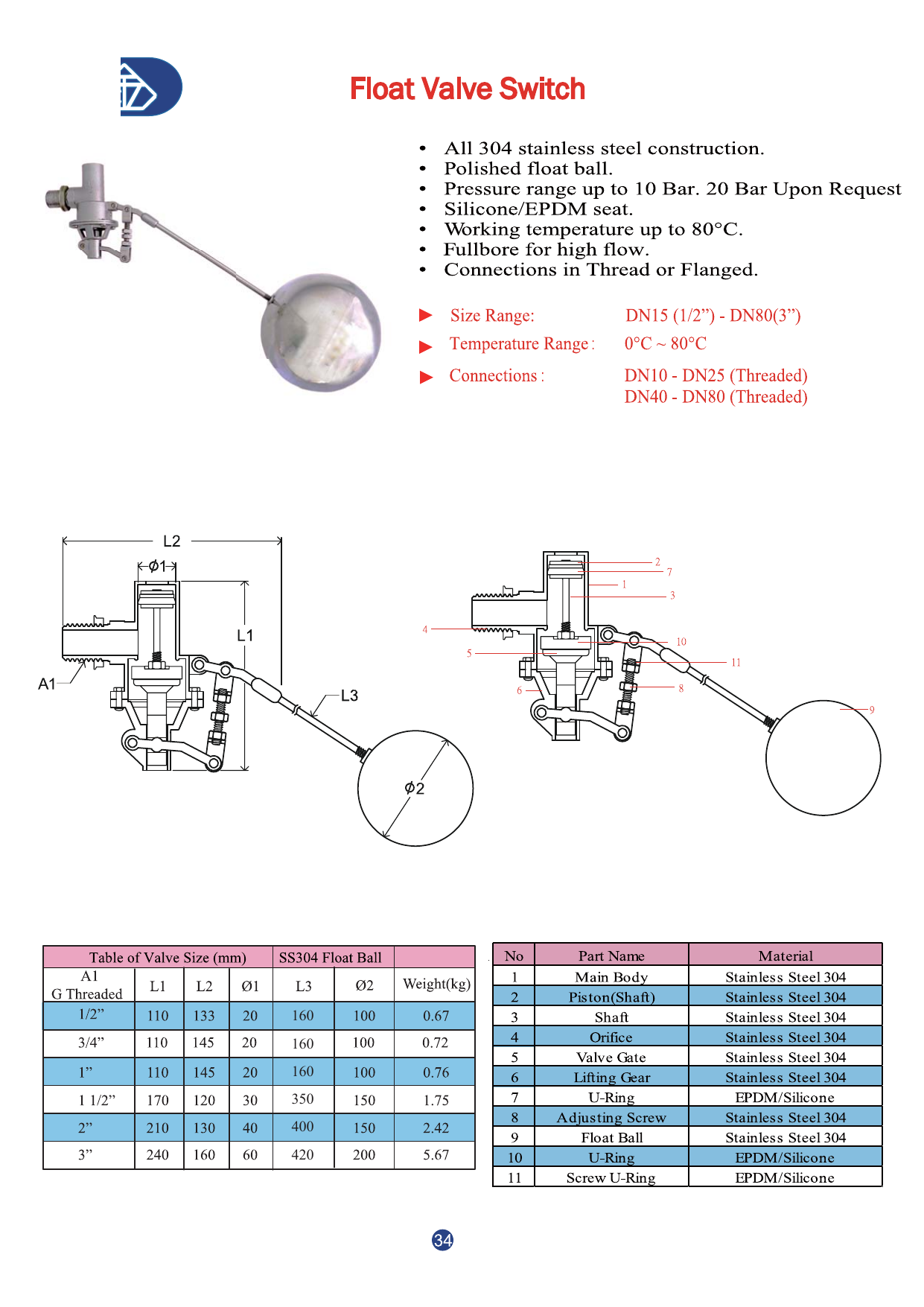

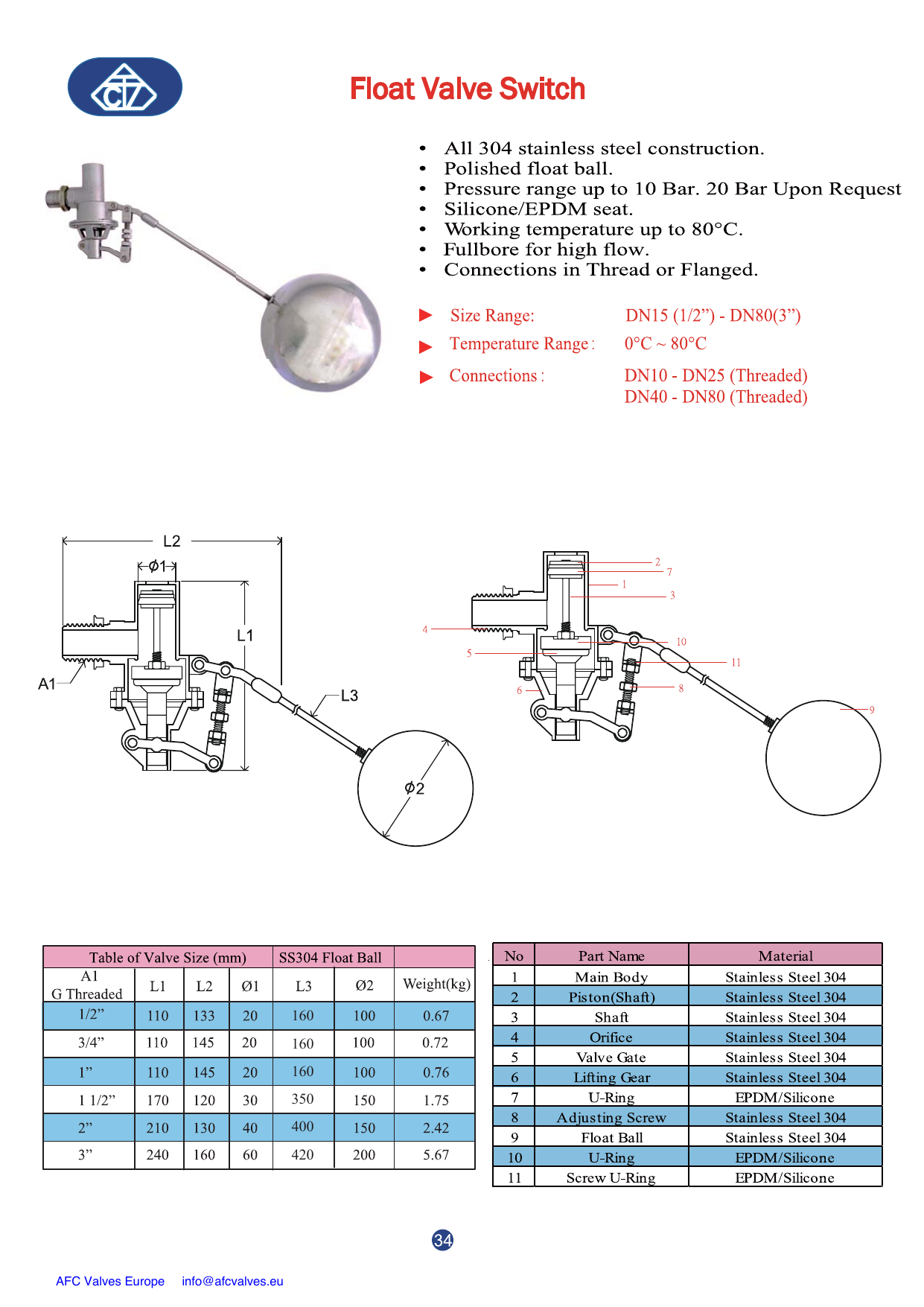

Dimensions per size(6 sizes)
| Size | L1 (mm) | L2 (mm) | Ø1 (mm) | L3 (mm) | Ø2 (mm) | Weight |
|---|---|---|---|---|---|---|
| 1/2" | 110 | 133 | 20 | 160 | 100 | 0.67 kg |
| 3/4" | 110 | 145 | 20 | 160 | 100 | 0.72 kg |
| 1" | 110 | 145 | 20 | 160 | 100 | 0.76 kg |
| 1 1/2" | 170 | 120 | 30 | 350 | 150 | 1.75 kg |
| 2" | 210 | 130 | 40 | 400 | 150 | 2.42 kg |
| 3" | 240 | 160 | 60 | 420 | 200 | 5.67 kg |
Typical applications
- Tank level control
- Reservoir management
- High/low level shutoff
- Float-operated flow control
Approvals
Features
- All 304 stainless steel construction
- Polished float ball
- Pressure range up to 10 bar; 20 bar upon request
- Silicone/EPDM seat
- Working temperature up to 80°C
- Full bore for high flow
- Connections in thread or flanged
Description
Mechanical float-operated valve in all 304 stainless steel construction with polished float ball. Fullbore design for high flow with Silicone/EPDM seat. Available in threaded or flanged connections from DN15 to DN80.
Selection notes
This accessory is supplied for threaded and flanged installation.
Sizes run DN15 to DN80, in 10 bar (20 bar upon request).
Seat and trim options are Silicone/EPDM. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Water & Wastewater and HVAC.
Working temperature is 0°C to 80°C.
