A7MD Pump Control Valve - Passive Protection

Name: A7MD Pump Control Valve - Passive Protection
Brand: Euro Flow Control
SKU: EFC-364

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN50 to DN800
Pressure Class: PN10, PN16, PN25
End connection: Flanged
Operating temperature: 10°C to 80°C

Standards

Design & manufacture: EN 1074-5, BS EN 1074-5
Inspection & test: EN 12266-1
Face to face: EN 558-1

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Seat
Stem
Spring
Ball Valve
Bolt
Bottom Disc Holder
Bottom Seat Retainer
Bush
Cap
Caulking Nut
Diaphragm
Eye Bolt
Fixing Holder
Middle Body
Needle Valve
O Rings
Plug
Screw
Seal
Spring Washer
Strainer
Tube
Upper Disc Holder
Upper Seat Retainer
Washer

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Pressure	Min temp	Max temp
PN10	10 bar	10°C	80°C
PN16	16 bar	10°C	80°C
PN25	25 bar	10°C	80°C

Dimensions per size(16 sizes)

Size	L (mm)	PN10 OD (mm)	PN16 OD (mm)	PN25 OD (mm)	PN10 OK (mm)	PN16 OK (mm)	PN25 OK (mm)	H (mm)	PN10 N-Od (mm)	PN16 N-Od (mm)	PN25 N-Od (mm)	PN10 OB (mm)	PN16 OB (mm)	PN25 OB (mm)	Model Code	Weight
DN50	230	165	165	165	125	125	125	169	4-Ø19	4-Ø19	4-Ø19	99	99	99	A900-0050	—
DN65	290	185	185	185	145	145	145	189	4-Ø19	4-Ø19	8-Ø19	118	118	118	A900-0065	—
DN80	310	200	200	200	160	160	160	209	8-Ø19	8-Ø19	8-Ø19	132	132	132	A900-0080	—
DN100	350	220	220	235	180	180	190	244	8-Ø19	8-Ø19	8-Ø23	156	156	156	A900-0100	—
DN125	400	250	250	270	210	210	220	309	8-Ø19	8-Ø19	8-Ø28	156	156	156	A900-0125	—
DN150	480	285	285	300	240	240	250	368	8-Ø23	8-Ø23	8-Ø28	211	211	211	A900-0150	—
DN200	600	340	340	360	295	295	310	442	8-Ø23	12-Ø23	12-Ø28	266	266	274	A900-0200	—
DN250	730	405	405	425	350	355	370	526	12-Ø23	12-Ø28	12-Ø31	319	319	330	A900-0250	—
DN300	850	460	460	485	400	410	430	586	12-Ø23	12-Ø28	16-Ø31	370	370	389	A900-0300	—
DN350	980	520	520	555	460	470	490	656	16-Ø23	16-Ø28	16-Ø34	429	429	448	A900-0350	—
DN400	1100	580	580	620	515	525	550	770	16-Ø28	16-Ø31	16-Ø37	480	480	503	A900-0400	—
DN450	1200	640	640	670	565	585	600	780	20-Ø28	20-Ø31	20-Ø37	530	548	548	A900-0450	—
DN500	1250	715	715	730	620	650	660	890	20-Ø28	20-Ø34	20-Ø37	582	609	609	A900-0500	—
DN600	1450	840	840	845	725	770	770	1050	20-Ø31	20-Ø37	20-Ø40	682	720	720	A900-0600	—
DN700	1650	910	910	960	840	840	875	1185	24-Ø31	24-Ø37	24-Ø43	682	720	720	A900-0700	—
DN800	1850	1025	1025	1085	950	950	990	1310	24-Ø34	24-Ø40	24-Ø49	901	901	928	A900-0800	—

* DN125 and DN350 use the same internals as DN100 and DN300 respectively.

* DN450 and DN700 use the same internals as DN400 and DN600 respectively.

* AISI 304 is the factory standard stainless steel grade; consult the factory for AISI 316.

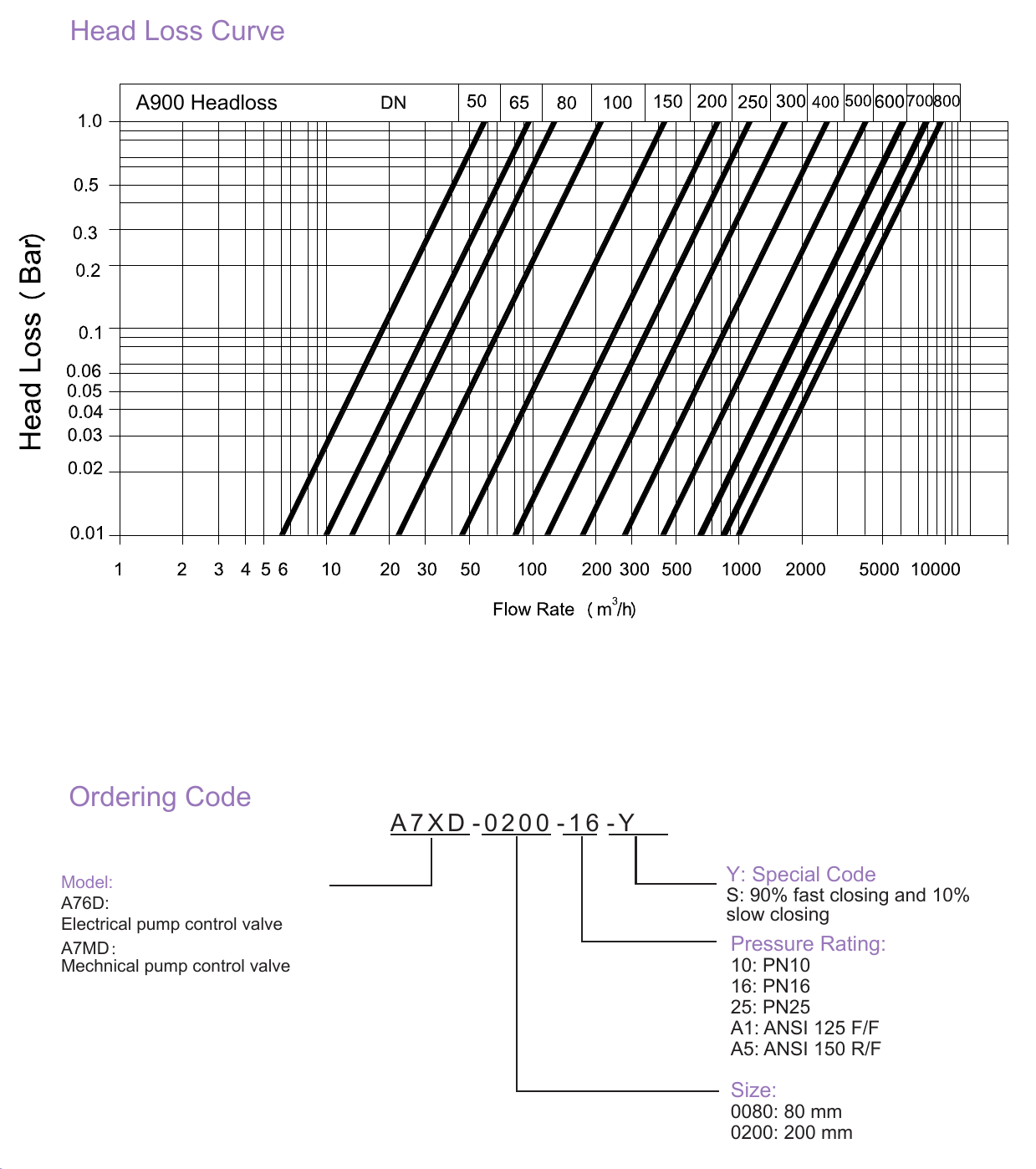

Technical drawings(6 pages)

Operating media

Clean waterTreated water

Typical applications

Pump discharge surge protection
Rising mains with delayed closing
Booster pump stations

Coatings

Fusion bonded epoxy coating

Approvals

ISO 9001

Features

The A7MD is a pump control valve with an integrated manual override facility and delayed closing function
The manual override allows the valve to be held open or closed independently of pump operation for commissioning, testing and maintenance
The delayed closing timer extends the valve closing time on pump trip, allowing the hydraulic transient to decay before the valve seats, minimising water hammer on long rising mains

Description

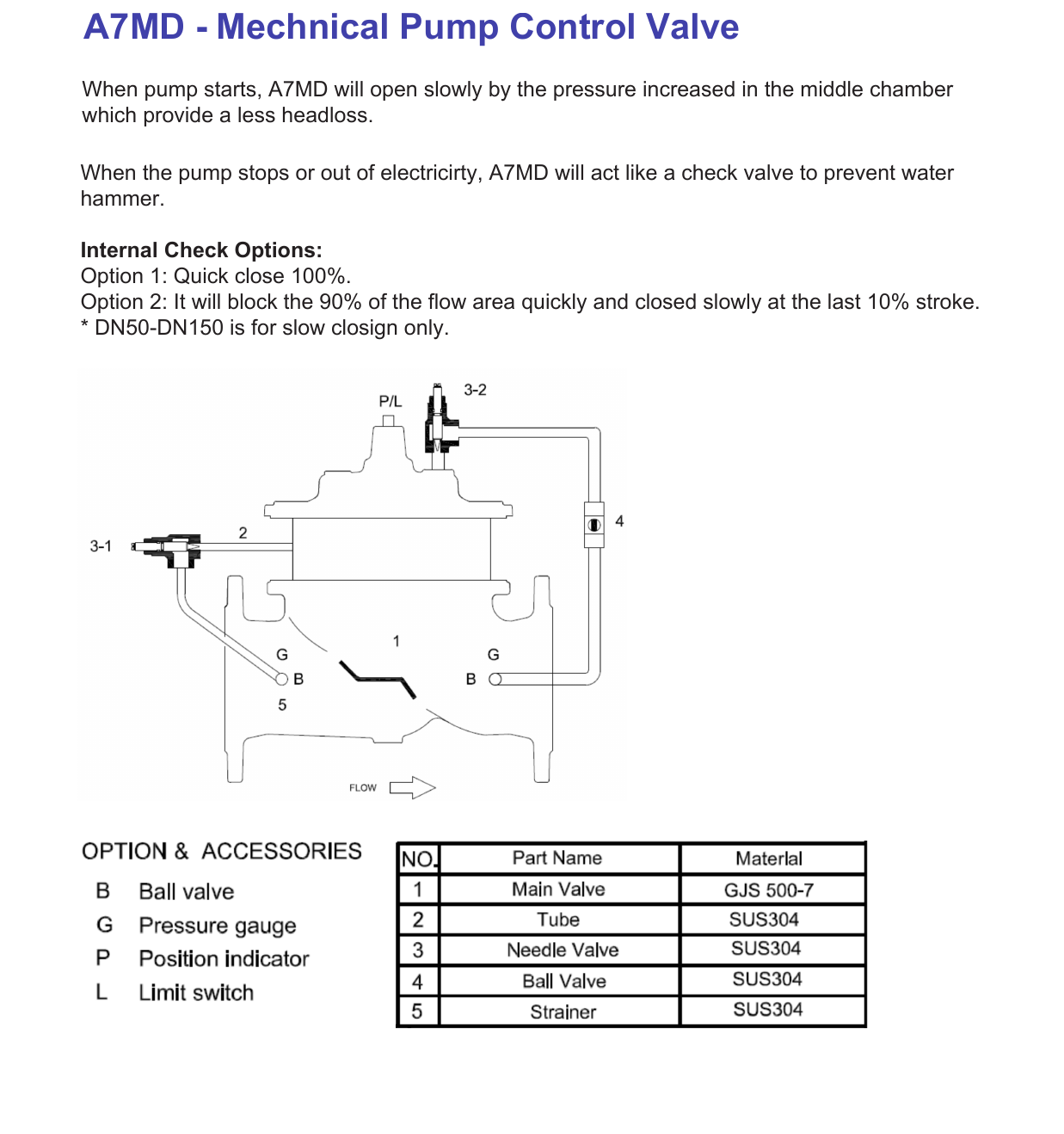

The A7MD is a passive pump protection configuration of the A900 main valve body. The hydraulic control circuit slows the valve closing rate on pump stop, preventing the pressure surge associated with rapid check valve slam without requiring a separate power supply or active control system. Closing rate is tuned via needle valves in the pilot circuit. The passive design is inherently fail-safe and suitable for remote or unmanned pump stations.

Selection notes

This control valve is supplied for flanged installation.

Sizes run DN50 to DN800, in PN10, PN16, PN25.

The body is EN-GJS-500-7.

Seat and trim options are AISI 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include clean water and treated water.

It is catalogued for Water & Wastewater.

Working temperature is 10°C to 80°C.

Built to EN 1074-5, BS EN 1074-5, EN 558-1, EN 12266-1 and EN 1092-2.

Supplier remarks

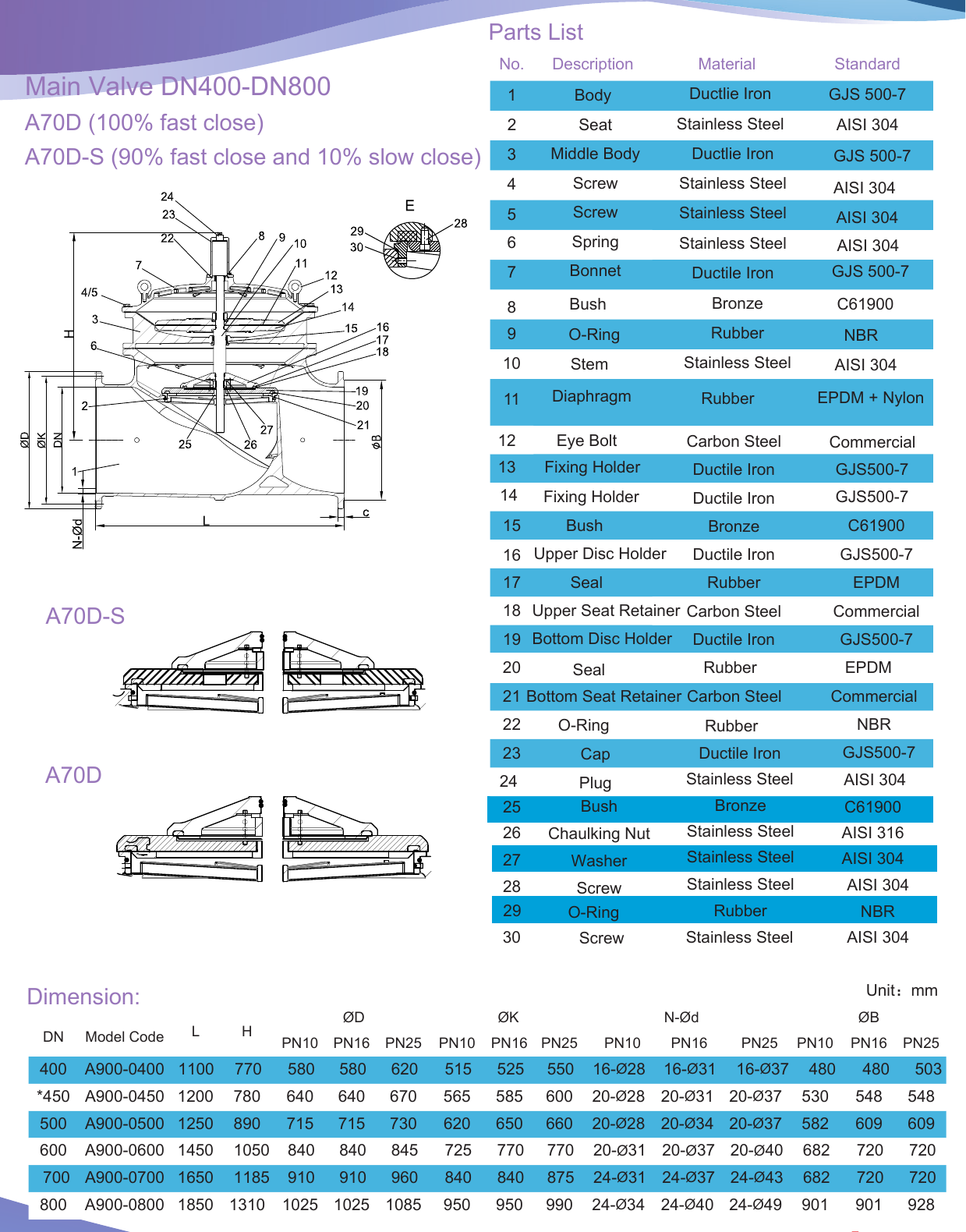

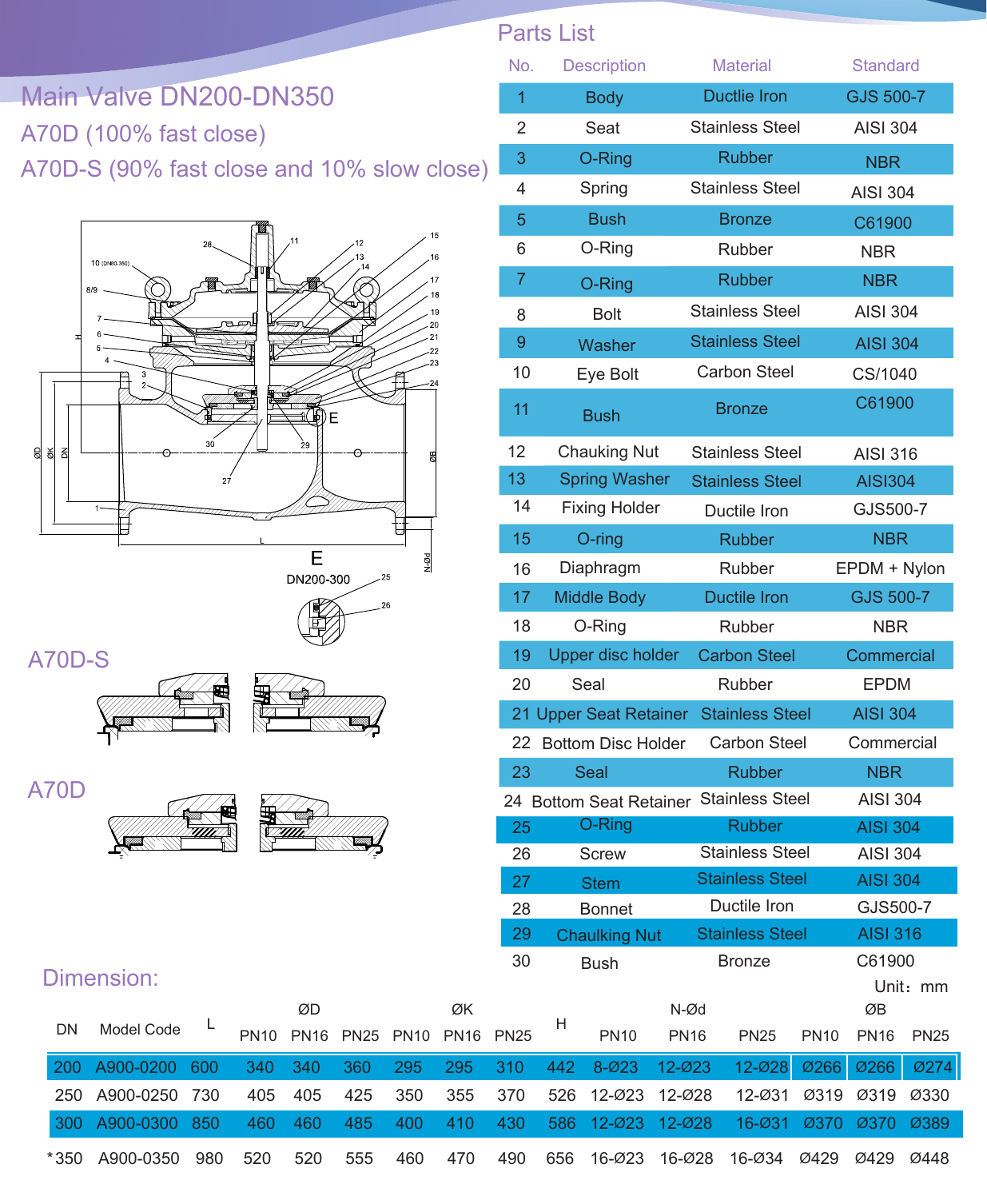

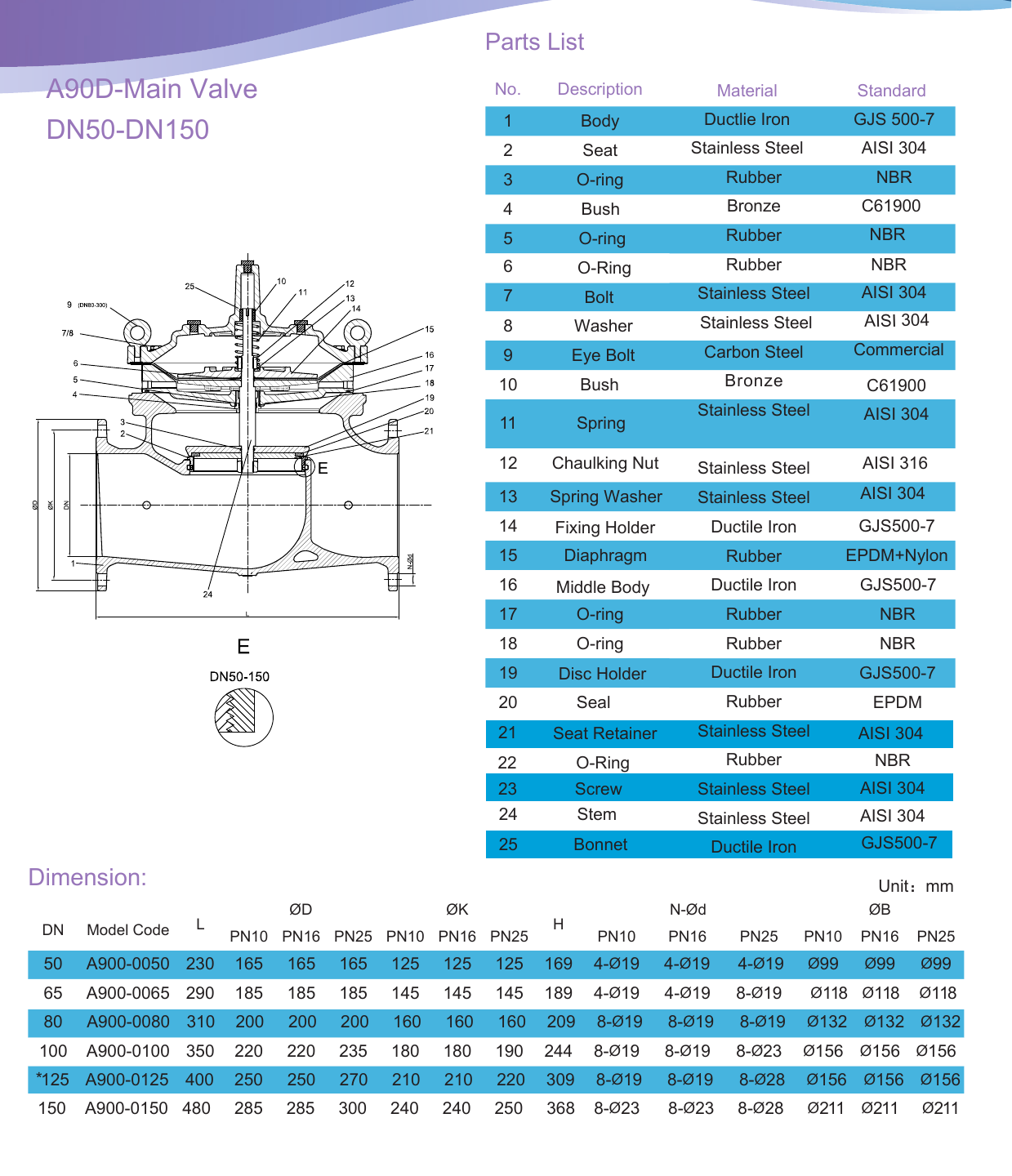

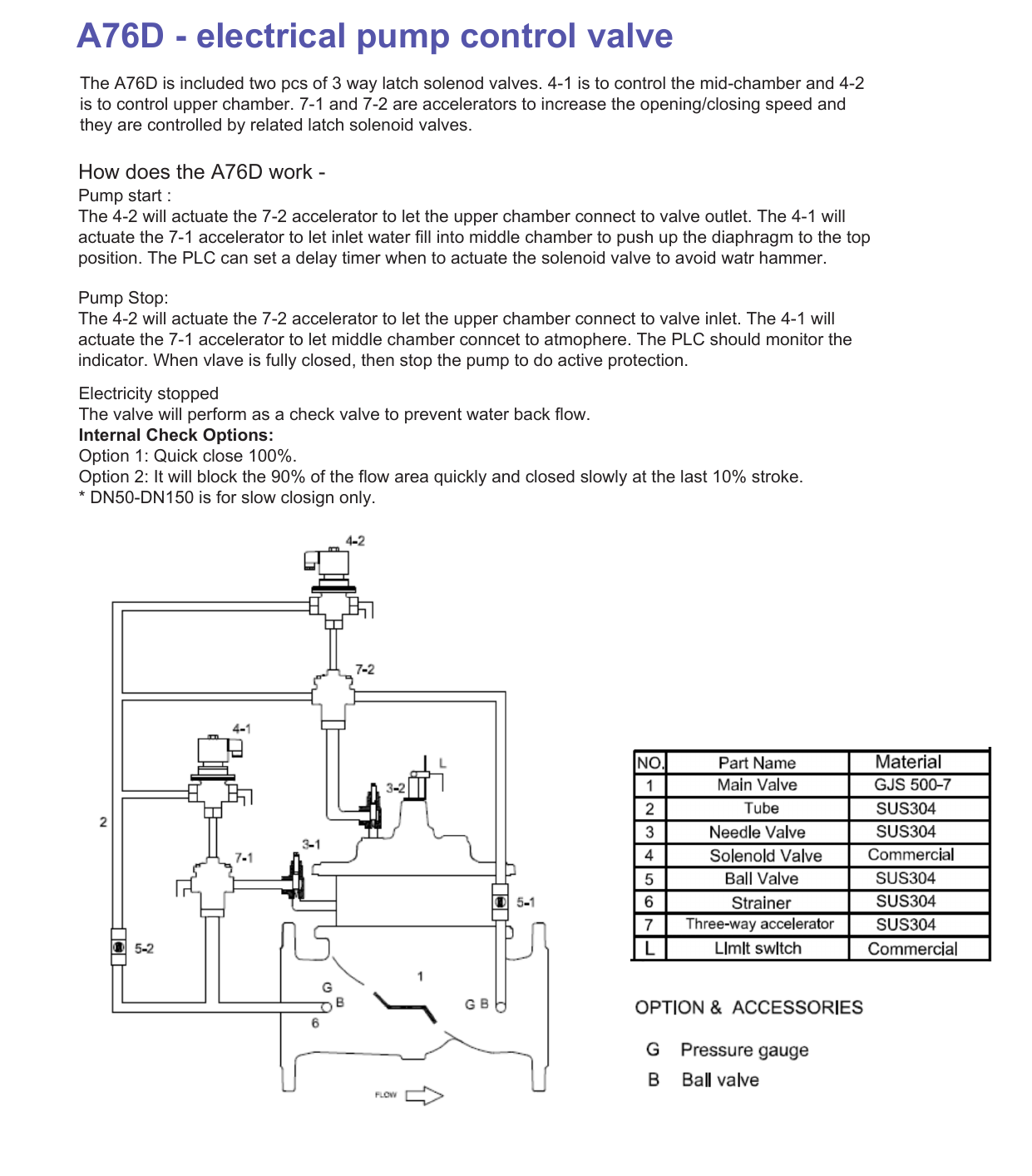

This model uses its own dedicated body (three size-specific parts lists in the source: A90D-Main Valve DN50-150, A70D Main Valve DN200-350, A70D Main Valve DN400-800), the same body as EFC-351 (A76D) -- not the standard A900 body. Accessory set per source: Main Valve, Tube, Needle Valve, Ball Valve, Strainer (no solenoid valve or limit switch -- this is the mechanical/passive variant).

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25

Used in

Water & Wastewater
