A10B Bi-Level Float Control Valve

Name: A10B Bi-Level Float Control Valve
Brand: Euro Flow Control
SKU: EFC-355

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN50 to DN800
Pressure Class: PN10, PN16, PN25
End connection: Flanged
Operating temperature: -10°C to 80°C

Standards

Design & manufacture: EN 1074-5, BS EN 1074-5
Inspection & test: ISO 5208, BS EN 12266-1
Face to face: BS EN 558-1

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Seat
Stem
Spring
Bolt
Bush
Cap
Caulking Nut
Diaphragm
Disc Holder
Eye Bolts
Fix Washer
Fixing Holder
Float
O Rings

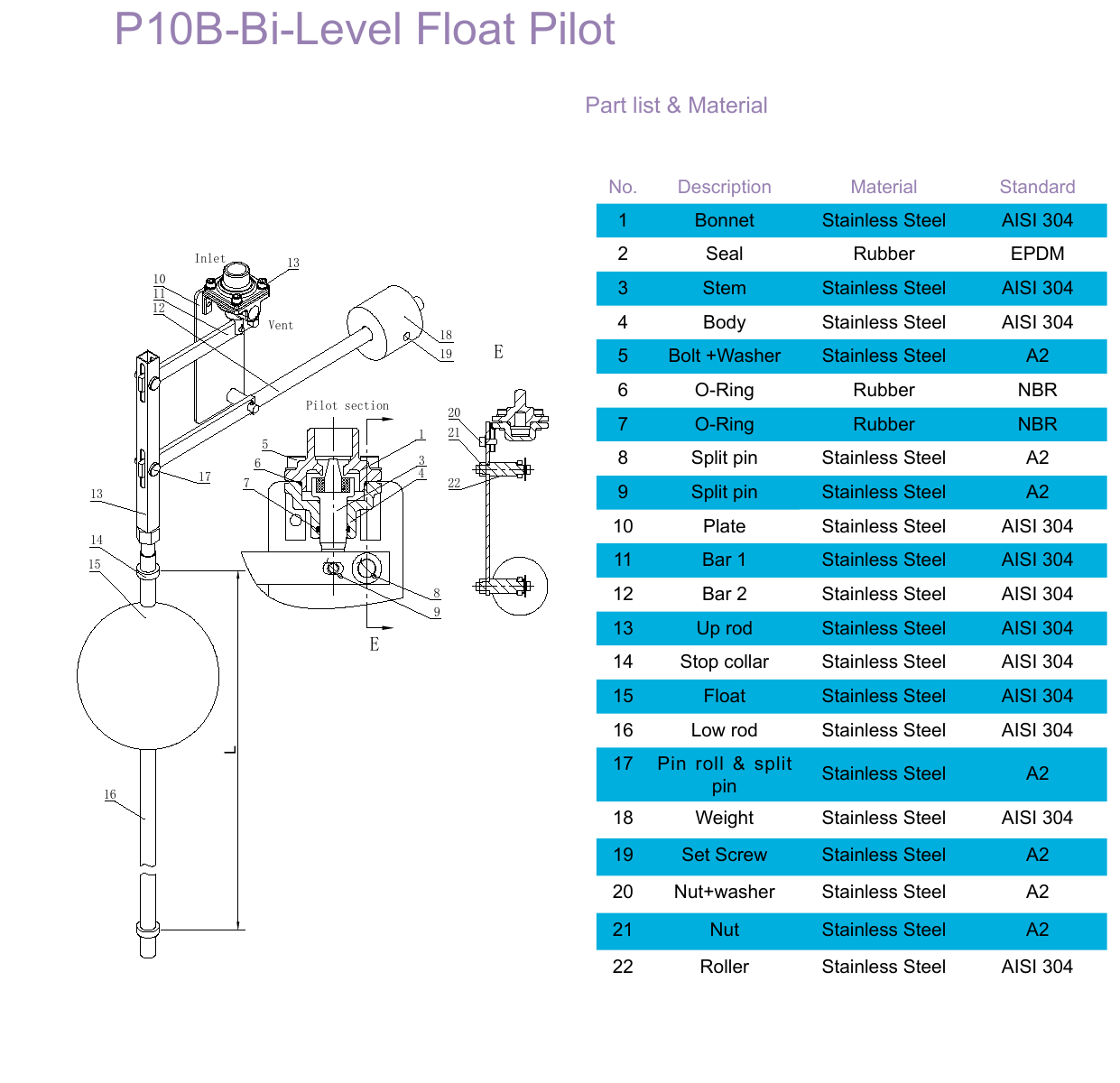

Pilot Bar
Pilot Body
Pilot Bolt Washer
Pilot Bonnet
Pilot Low Rod
Pilot Nut
Pilot O Ring
Pilot Pin Roll
Pilot Plate
Pilot Roller
Pilot Seal
Pilot Set Screw
Pilot Split Pin
Pilot Stem
Pilot Stop Collar
Pilot Up Rod
Pilot Weight
Plug
Screw
Seal
Seal Retainer
Seat Retainer
Washer

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Pressure	Min temp	Max temp
PN10	10 bar	-10°C	80°C
PN16	16 bar	-10°C	80°C
PN25	25 bar	-10°C	80°C

Dimensions per size(16 sizes)

Size	L (mm)	PN10 D (mm)	PN16 D (mm)	PN25 D (mm)	PN10 K (mm)	PN16 K (mm)	PN25 K (mm)	H (mm)	PN10 N-d (mm)	PN16 N-d (mm)	PN25 N-d (mm)	PN10 B (mm)	PN16 B (mm)	PN25 B (mm)	Model Code	Weight
DN50	230	165	165	165	125	125	125	177	4-Ø19	4-Ø19	4-Ø19	99	99	99	A900-0050	—
DN65	290	185	185	185	145	145	145	202	4-Ø19	4-Ø19	8-Ø19	118	118	118	A900-0065	—
DN80	310	200	200	200	160	160	160	219	8-Ø19	8-Ø19	8-Ø19	132	132	132	A900-0080	—
DN100	350	220	220	235	180	180	190	243	8-Ø19	8-Ø19	8-Ø23	156	156	156	A900-0100	—
DN125	400	250	250	270	210	210	220	243	8-Ø19	8-Ø19	8-Ø28	156	156	156	A900-0125	—
DN150	480	285	285	300	240	240	250	333	8-Ø23	8-Ø23	8-Ø28	211	211	211	A900-0150	—
DN200	600	340	340	360	295	295	310	428	8-Ø23	12-Ø23	12-Ø28	266	266	274	A900-0200	—
DN250	730	405	405	425	350	355	370	478	12-Ø23	12-Ø28	12-Ø31	319	319	330	A900-0250	—
DN300	850	460	460	485	400	410	430	538	12-Ø23	12-Ø28	16-Ø31	370	370	389	A900-0300	—
DN350	980	520	520	555	460	470	490	550	16-Ø23	16-Ø28	16-Ø34	429	429	448	A900-0350	—
DN400	1100	580	580	620	515	525	550	670	16-Ø28	16-Ø31	16-Ø37	480	480	503	A900-0400	—
DN450	1200	640	640	670	565	585	600	700	20-Ø28	20-Ø31	20-Ø37	530	548	548	A900-0450	—
DN500	1250	715	715	730	620	650	660	790	20-Ø28	20-Ø34	20-Ø37	582	609	609	A900-0500	—
DN600	1450	840	840	845	725	770	770	930	20-Ø31	20-Ø37	20-Ø40	682	720	720	A900-0600	—
DN700	1650	910	910	960	840	840	875	950	24-Ø31	24-Ø37	24-Ø43	682	720	720	A900-0700	—
DN800	1850	1025	1025	1085	950	950	990	1260	24-Ø34	24-Ø40	24-Ø49	901	901	928	A900-0800	—

* DN125 and DN350 use the same internals as DN100 and DN300 respectively.

* DN450 and DN700 use the same internals as DN400 and DN600 respectively.

* AISI 304 is the factory standard stainless steel grade; consult the factory for AISI 316.

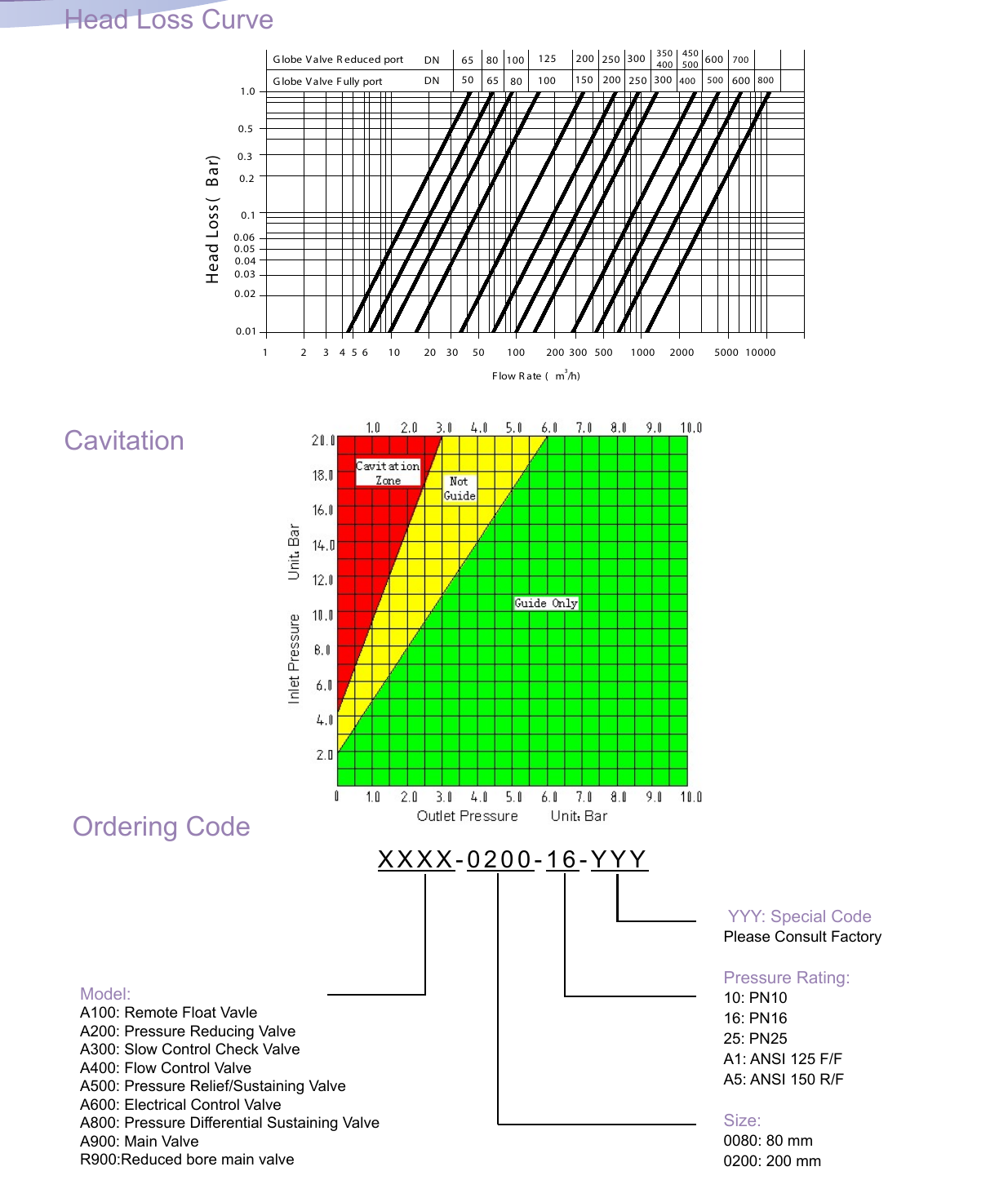

Technical drawings(5 pages)

Operating media

Clean water

Typical applications

Service reservoirs
Water towers
Break-pressure tanks
Municipal water storage

Approvals

WRASISO 9001

Features

Suitable for service reservoirs where demand varies widely and single-stage control causes water hammer
Opens fully at the low-level set point and throttles to a reduced flow rate as the reservoir approaches the high-level set point, preventing overfill surge and pipeline banging at the end of the fill cycle

Description

The A10B is a bi-level float control configuration of the A900 main valve body, using P10A and P10B float pilots to set independent low-level and high-level control points. The low-level pilot triggers refill; the high-level pilot cuts off supply when the tank is full. The two-pilot arrangement provides a dead-band between fill and cut-off, preventing rapid cycling on reservoirs and break pressure tanks. A float valve switch can be added for alarm or SCADA output.

Selection notes

This control valve is supplied for flanged installation.

Sizes run DN50 to DN800, in PN10, PN16, PN25.

The body is EN-GJS-500-7.

Seat and trim options are AISI 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include clean water.

It is catalogued for Water & Wastewater.

Working temperature is -10°C to 80°C.

Built to EN 1074-5, BS EN 1074-5, BS EN 558-1, ISO 5208 and BS EN 12266-1.

Supplier remarks

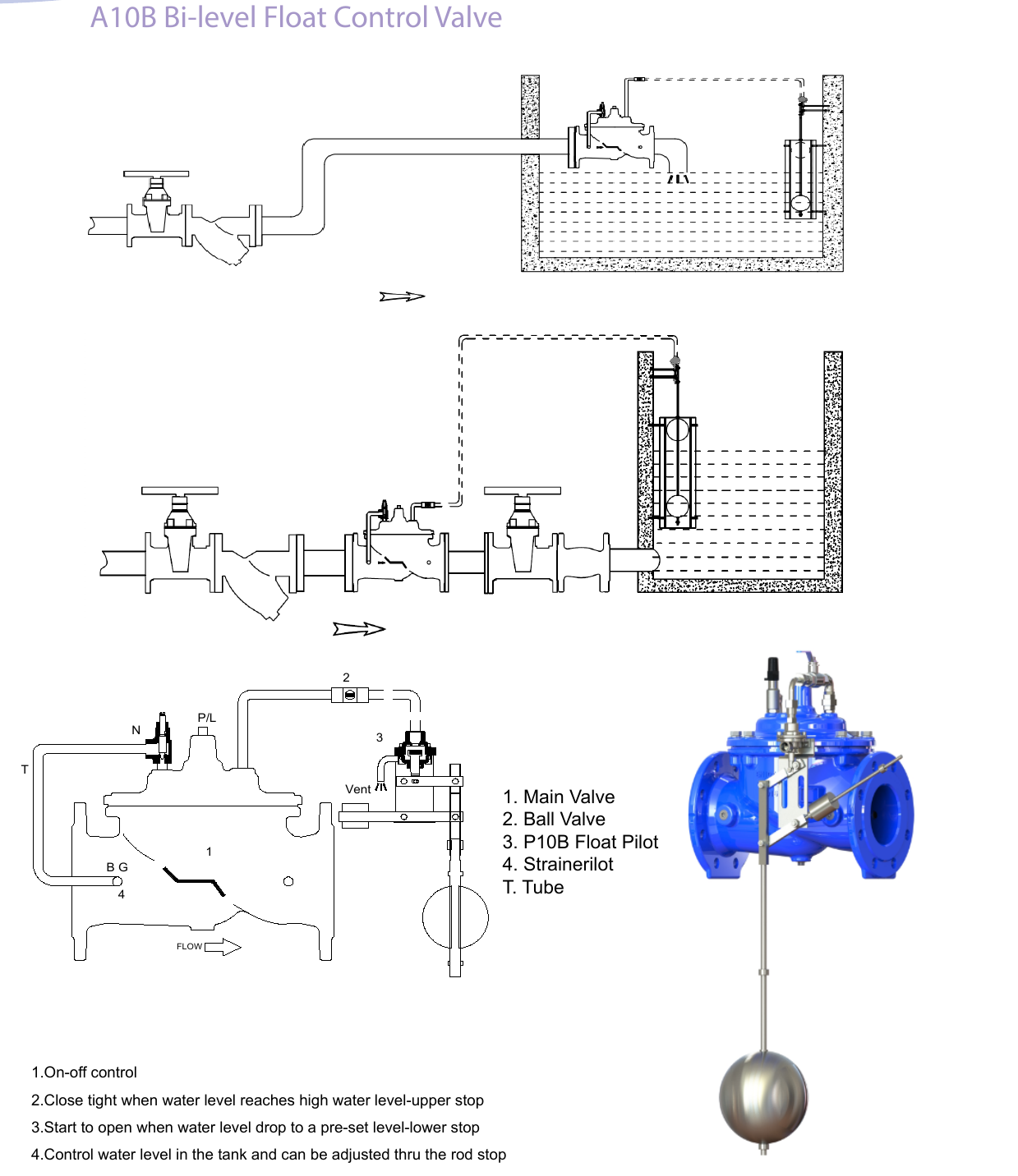

Piping arrangement: main valve, ball valve, P10B bi-level float pilot, strainer, connecting tube. Level range (upper/lower stop) is field-adjustable via the pilot rod stops.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25

Used in

Water & Wastewater

Related guides
