A6DV Dual Solenoid Control Valve

Name: A6DV Dual Solenoid Control Valve
Brand: Euro Flow Control
SKU: EFC-363

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN50 to DN600
Pressure Class: PN10, PN16, TE
End connection: Flanged
Operating temperature: -10°C to 80°C

Standards

Design & manufacture: EN 1074-5, BS EN 1074-5
Inspection & test: BS EN 12266-1, ISO 5208
Face to face: BS EN 558-1

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

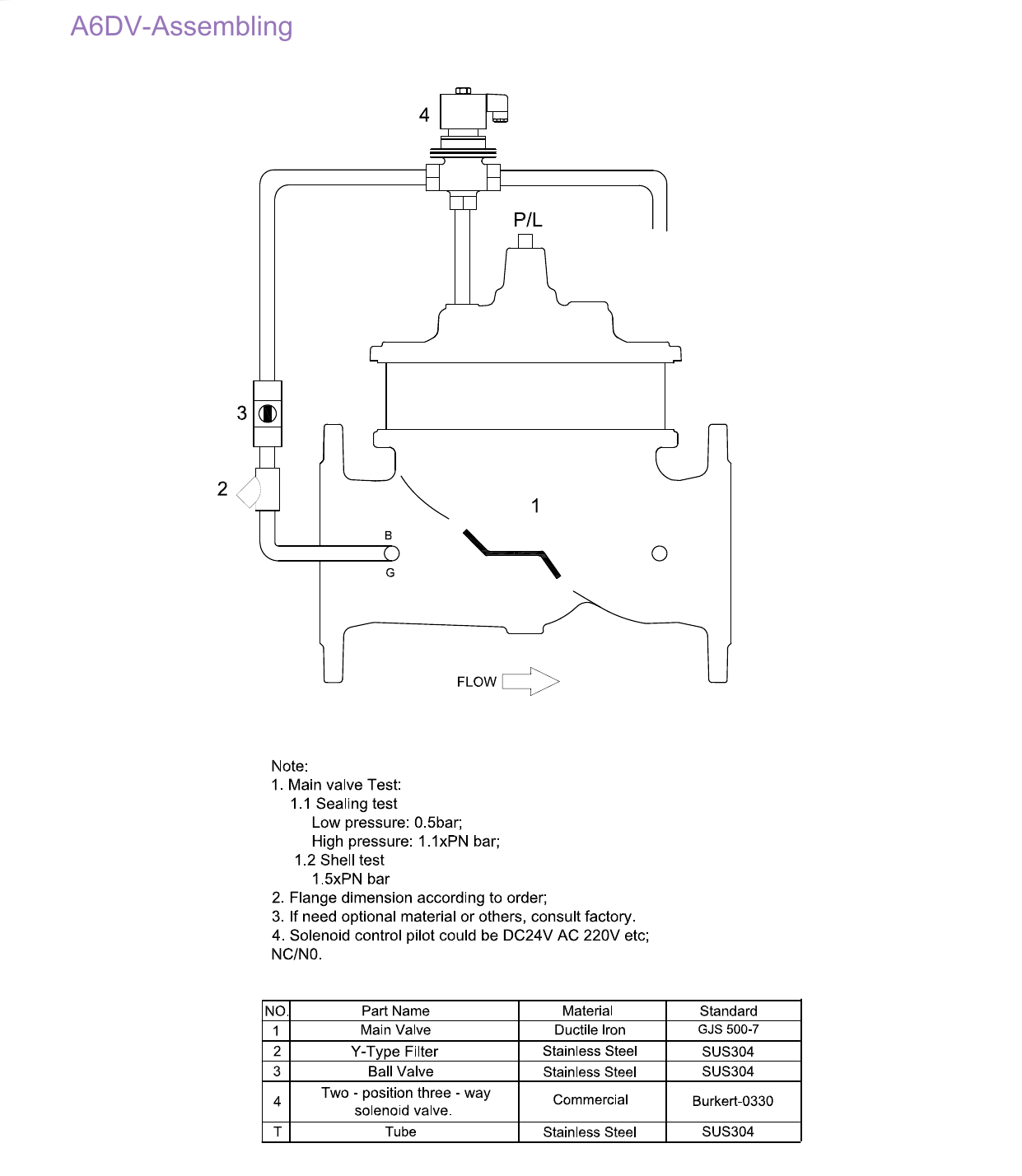

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Seat
Spring
Bolt
Bush 10
Bush 4
Caulking Nut
Diaphragm
Disc Holder
Fix Holder
Middle Body
O Ring 17
O Ring 18
O Ring 22
O Ring 3
O Ring 5
O Ring 6
O Rings 9
Screw
Seal
Seat Retainer
Stem Vport
Washer 13
Washer 8

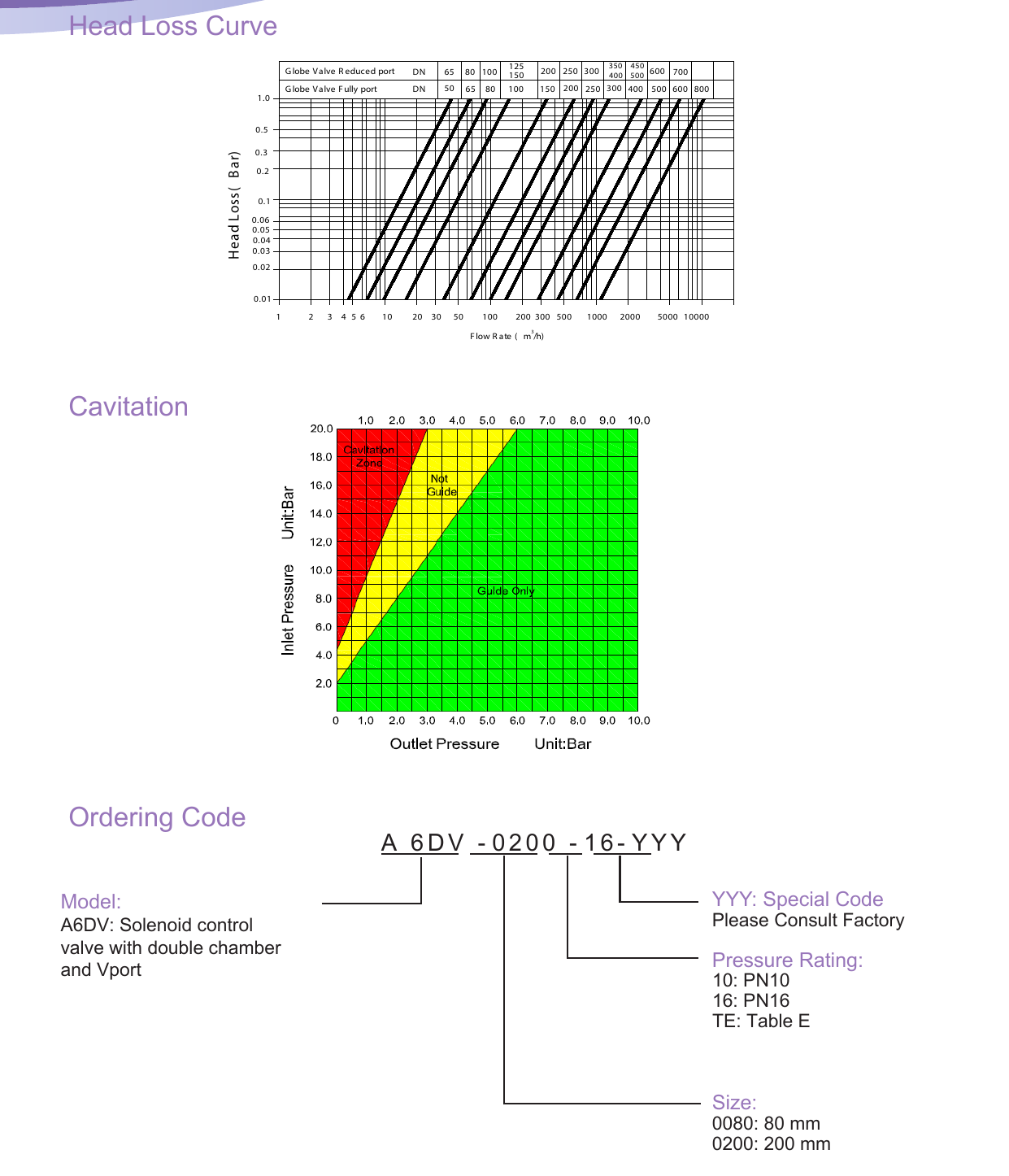

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Pressure	Min temp	Max temp
PN10	10 bar	-10°C	80°C
PN16	16 bar	-10°C	80°C
PN25	25 bar	-10°C	80°C

Dimensions per size(8 sizes)

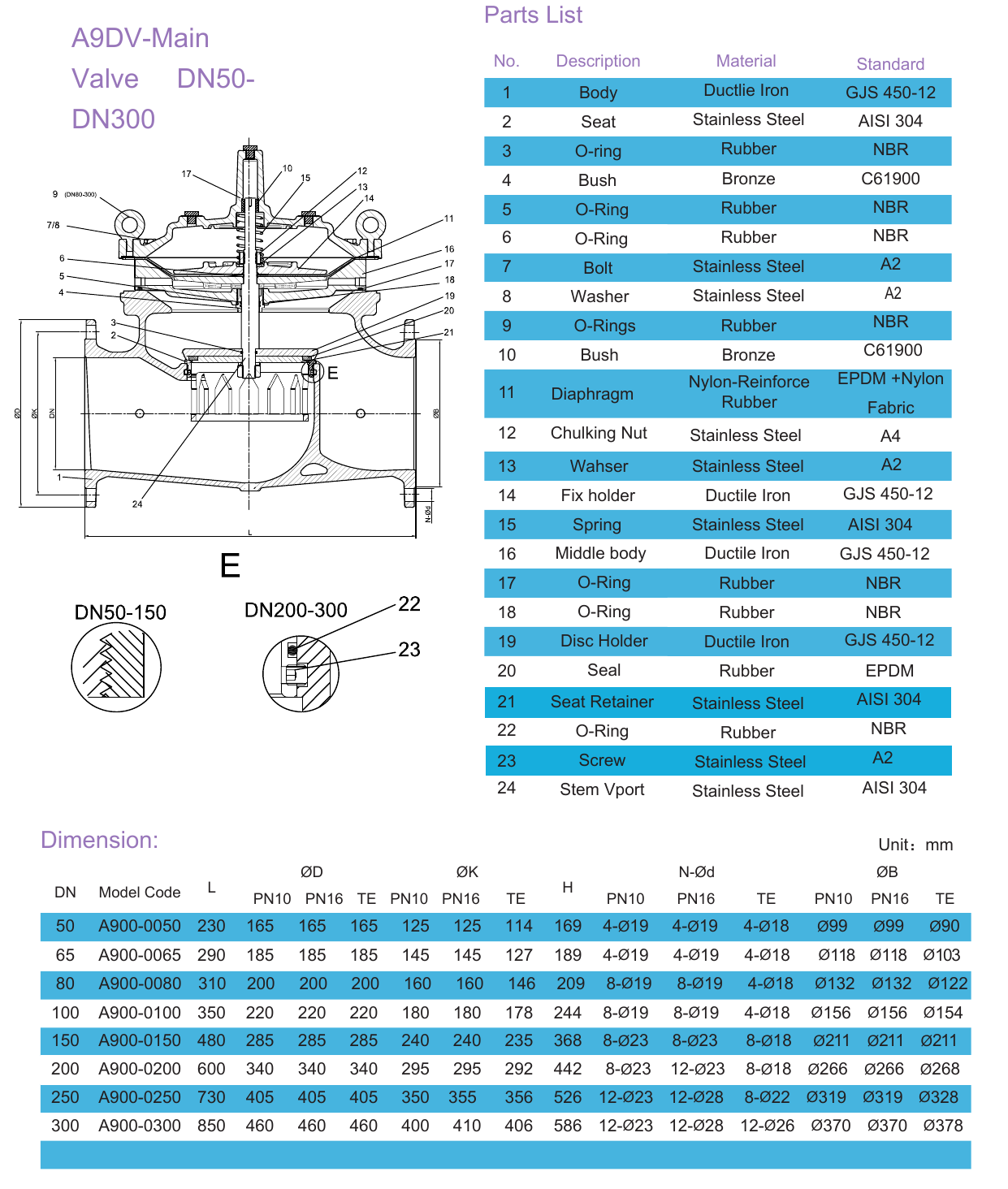

Size	L (mm)	PN10 ØD (mm)	PN16 ØD (mm)	TE ØD (mm)	PN10 ØK (mm)	PN16 ØK (mm)	TE ØK (mm)	H (mm)	PN10 N-Ød (mm)	PN16 N-Ød (mm)	TE N-Ød (mm)	PN10 ØB (mm)	PN16 ØB (mm)	TE ØB (mm)	Weight
DN50	230	165	165	165	125	125	114	169	4-Ø19	4-Ø19	4-Ø18	99	99	90	—
DN65	290	185	185	185	145	145	127	189	4-Ø19	4-Ø19	4-Ø18	118	118	103	—
DN80	310	200	200	200	160	160	146	209	8-Ø19	8-Ø19	4-Ø18	132	132	122	—
DN100	350	220	220	220	180	180	178	244	8-Ø19	8-Ø19	4-Ø18	156	156	154	—
DN150	480	285	285	285	240	240	235	368	8-Ø23	8-Ø23	8-Ø18	211	211	211	—
DN200	600	340	340	340	295	295	292	442	8-Ø23	12-Ø23	8-Ø18	266	266	268	—
DN250	730	405	405	405	350	355	356	526	12-Ø23	12-Ø28	8-Ø22	319	319	328	—
DN300	850	460	460	460	400	410	406	586	12-Ø23	12-Ø28	12-Ø26	370	370	378	—

Operating media

Water

Typical applications

Irrigation scheduling
Timed reservoir fill
SCADA-controlled isolation
Process water supply

Actuation options

Electric 230V AC

Approvals

WRASISO 9001

Features

The A6DV features two independent solenoid pilots controlling the open and close functions separately
This allows opening and closing rates to be adjusted independently via needle valves in each solenoid circuit, providing more precise control of valve stroke rate than a single solenoid design
Used where slow opening but fast closing, or vice versa, is required to match specific system hydraulics

Description

The A6DV is a dual solenoid configuration of the A900 main valve body with independent pilots controlling the open and close functions. Independent needle valves in each solenoid circuit allow opening and closing rates to be set separately, providing precise control of stroke speed in both directions. Used where slow opening but fast closing, or vice versa, is required to match specific system hydraulics - for example, slow open on pump start combined with fast close on pump trip.

Selection notes

This control valve is supplied for flanged installation.

Sizes run DN50 to DN600, in PN10, PN16, TE.

The body is EN-GJS-450-12.

Seat and trim options are AISI 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include water.

It is catalogued for Water & Wastewater.

Working temperature is -10°C to 80°C.

Built to EN 1074-5, BS EN 1074-5, BS EN 558-1, BS EN 12266-1 and ISO 5208.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 TE

Used in

Water & Wastewater
