A600 Solenoid Control Valve

Name: A600 Solenoid Control Valve
Brand: Euro Flow Control
SKU: EFC-350

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN50 to DN800
Pressure Class: PN10, PN16, PN25
End connection: Flanged (FF, RF)
Operating temperature: -10°C to 80°C

Standards

Design & manufacture: EN 1074-5, BS EN 1074-5
Inspection & test: ISO 5208, BS EN 12266-1
Face to face: BS EN 558-1

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Seat
Stem
Spring
Ball Valve
Bolts
Bush
Cap
Caulking Nut
Diaphragm
Disc Holder
Eye Bolts
Fix Washer
Fixing Holder
Needle Valve
O Rings
Plug
Restriction
Screw
Seal
Seal Retainer
Seat Retainer
Solenoid Valve
Strainer
Washers

Dimensions per size(16 sizes)

Size	L (mm)	PN10 ØD (mm)	PN16 ØD (mm)	PN25 ØD (mm)	PN10 ØK (mm)	PN16 ØK (mm)	PN25 ØK (mm)	H (mm)	PN10 N-Ød (mm)	PN16 N-Ød (mm)	PN25 N-Ød (mm)	PN10 ØB (mm)	PN16 ØB (mm)	PN25 ØB (mm)	Model Code	Weight
DN50	230	165	165	165	125	125	125	177	4-Ø19	4-Ø19	4-Ø19	99	99	99	A900-0050	—
DN65	290	185	185	185	145	145	145	202	4-Ø19	4-Ø19	8-Ø19	118	118	118	A900-0065	—
DN80	310	200	200	200	160	160	160	219	8-Ø19	8-Ø19	8-Ø19	132	132	132	A900-0080	—
DN100	350	220	220	235	180	180	190	243	8-Ø19	8-Ø19	8-Ø23	156	156	156	A900-0100	—
DN125	400	250	250	270	210	210	220	243	8-Ø19	8-Ø19	8-Ø28	156	156	156	A900-0125	—
DN150	480	285	285	300	240	240	250	333	8-Ø23	8-Ø23	8-Ø28	211	211	211	A900-0150	—
DN200	600	340	340	360	295	295	310	428	8-Ø23	12-Ø23	12-Ø28	266	266	274	A900-0200	—
DN250	730	405	405	425	350	355	370	478	12-Ø23	12-Ø28	12-Ø31	319	319	330	A900-0250	—
DN300	850	460	460	485	400	410	430	538	12-Ø23	12-Ø28	16-Ø31	370	370	389	A900-0300	—
DN350	980	520	520	555	460	470	490	550	16-Ø23	16-Ø28	16-Ø34	429	429	448	A900-0350	—
DN400	1100	580	580	620	515	525	550	710	16-Ø28	16-Ø31	16-Ø37	480	480	503	A900-0400	—
DN450	1200	640	640	670	565	585	600	720	20-Ø28	20-Ø31	20-Ø37	530	548	548	A900-0450	—
DN500	1250	715	715	730	620	650	660	822	20-Ø28	20-Ø34	20-Ø37	582	609	609	A900-0500	—
DN600	1450	840	840	845	725	770	770	885	20-Ø31	20-Ø37	20-Ø40	682	720	720	A900-0600	—
DN700	1650	910	910	960	840	840	875	910	24-Ø31	24-Ø37	24-Ø43	682	720	720	A900-0700	—
DN800	1850	1025	1025	1085	950	950	990	1260	24-Ø34	24-Ø40	24-Ø49	901	901	928	A900-0800	—

* DN125 and DN350 use the same internals as DN100 and DN300 respectively.

* DN450 and DN700 use the same internals as DN400 and DN600 respectively.

* AISI 304 is the factory standard stainless steel grade; consult the factory for AISI 316.

Technical drawings(4 pages)

Operating media

Water

Typical applications

SCADA-controlled isolation
Irrigation scheduling
Remote reservoir fill
Emergency shutoff

Actuation options

solenoid

Approvals

WRASISO 9001

Features

The A600 is a hydraulically operated control valve actuated by a solenoid pilot
A small solenoid valve switches the hydraulic pilot circuit to open or close the main valve on demand from a remote control system
Suitable for SCADA-controlled isolation, timed irrigation, on/off supply to reservoirs and emergency shutoff applications
Top and seat ring guided stem and diaphragm assembly for long life and reliability
All iron components are fusion epoxy bonded for corrosion resistance
Easy maintenance without removal from the main line
Nylon reinforced diaphragm for long-term service
Drip-tight shut-off
Globe design for superior control characteristics
Ductile iron bodies for higher strength and durability
Corrosion-resistant stainless steel seat and disc retainer ring
Various pilots and accessories available for configuration into many different applications
Special V-Port and double chamber are options, consult factory
When the solenoid valve opens, the main valve opens; when the solenoid valve closes, the main valve closes slowly

Description

The A600 is a solenoid-actuated configuration of the A900 main valve body. A solenoid pilot valve switches the hydraulic pilot circuit to open or close the main valve on demand from a remote control signal. Suitable for SCADA-controlled isolation, timed irrigation, on/off supply to reservoirs and emergency shutoff applications. An on/off accelerator accessory can be added to the pilot circuit to increase stroke speed where faster response is required. The A900 body can be repiloted for modulating duty without body replacement.

Selection notes

This control valve is supplied for flanged installation.

Sizes run DN50 to DN800, in PN10, PN16, PN25.

The body is EN-GJS-500-7.

Seat and trim options are AISI 304 and 316. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

Stated service media include water.

It is catalogued for Water & Wastewater.

Working temperature is -10°C to 80°C.

Built to EN 1074-5, BS EN 1074-5, BS EN 558-1, ISO 5208 and BS EN 12266-1.

Supplier remarks

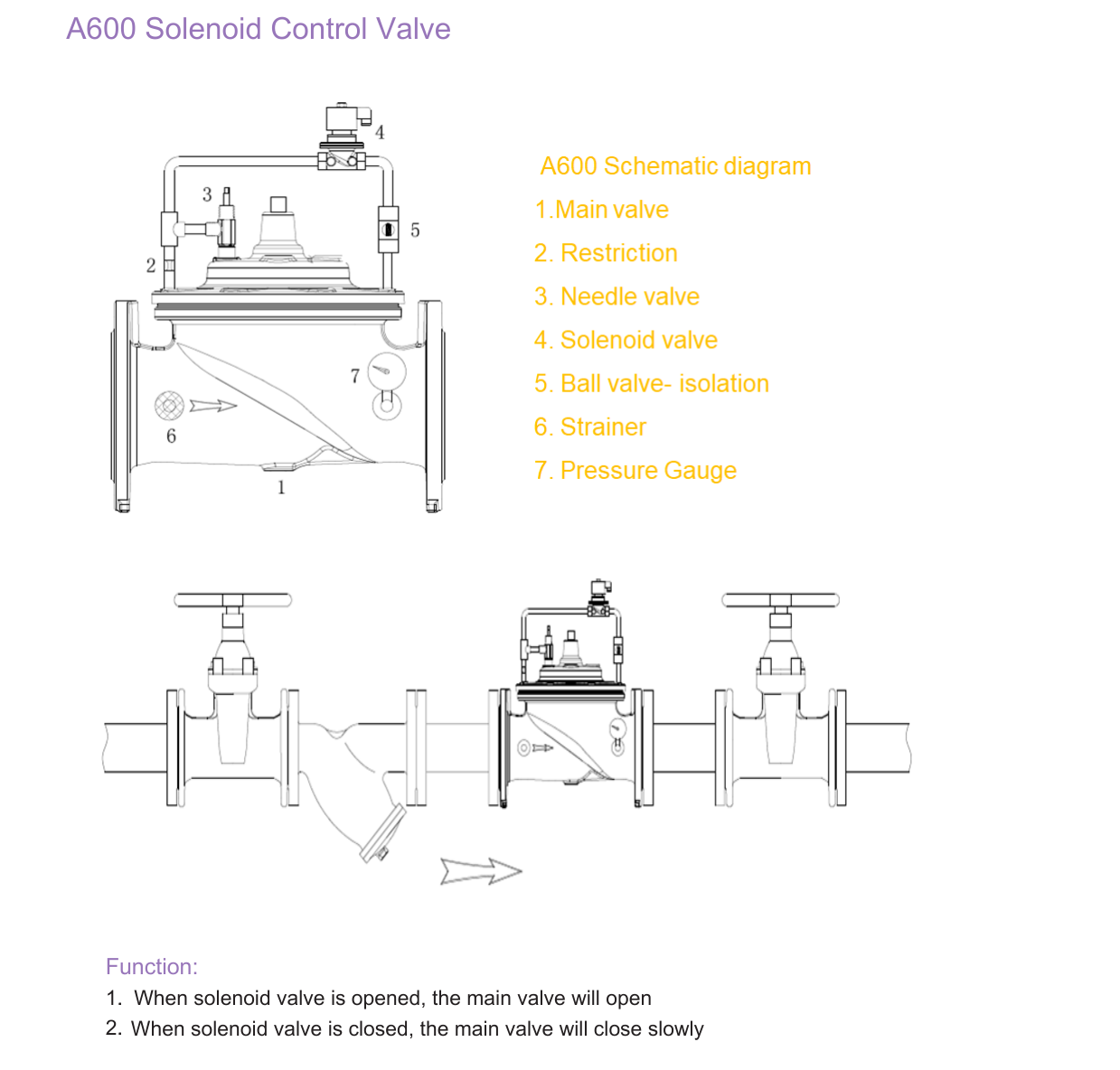

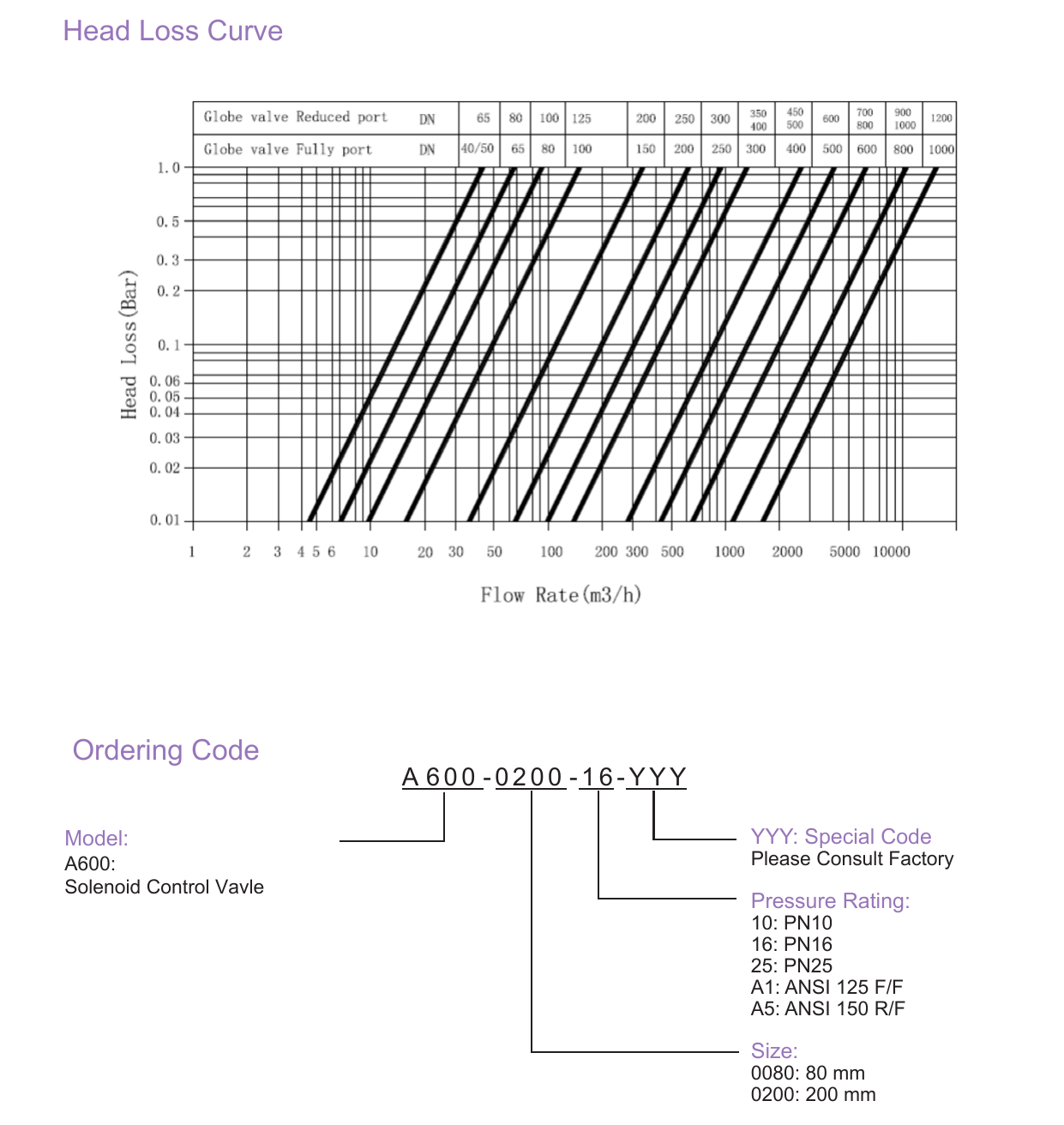

A600 Schematic diagram names the accessory circuit: Main valve, Restriction, Needle valve, Solenoid valve, Ball valve (isolation), Strainer, Pressure gauge. Head Loss Curve is stated as a curve, not tabulated points, so not reproduced here.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25

Used in

Water & Wastewater
