Dismantling Joint - Rigid Type
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN100 to DN1500
- Pressure Class
- PN10, PN16
- End connection
- Flanged
Standards
- Inspection & test
- EN 12266
- Flange & end dimension
- BS 4504, DIN EN 1092-1/2
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Flange Pipe Long
- Flange Pipe Short
- Nut
- Retaining Flange
- Sealing Ring
- Stud Bolt
Dimensions per size(20 sizes)
| Size | L1_PN10 (mm) | L2_PN10 (mm) | L1_PN16 (mm) | L2_PN16 (mm) | OD_PN10 (mm) | Ok_PN10 (mm) | OD_PN16 (mm) | Ok_PN16 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|
| DN100 | 200 | 310 | 200 | 340 | 220 | 180 | 220 | 180 | 20 kg |
| DN125 | - | 320 | 200 | 370 | 250 | 210 | 250 | 210 | 23 kg |
| DN150 | - | 340 | 220 | 370 | 285 | 240 | 285 | 240 | 32 kg |
| DN200 | 220 | 360 | 230 | 410 | 340 | 295 | 340 | 295 | 46 kg |
| DN250 | - | - | 250 | - | 400 | 350 | 400 | 355 | 57 kg |
| DN300 | - | - | 260 | - | 455 | 400 | 455 | 410 | 78 kg |
| DN350 | 230 | - | 270 | 480 | 505 | 460 | 520 | 470 | 102 kg |
| DN400 | 250 | - | - | - | 565 | 515 | 580 | 525 | 128 kg |
| DN450 | - | - | - | - | 615 | 565 | 640 | 585 | 135 kg |
| DN500 | 260 | 370 | - | 500 | 670 | 620 | 715 | 650 | 200 kg |
| DN600 | 390 | 400 | - | 540 | 780 | 725 | 840 | 770 | 305 kg |
| DN700 | 410 | - | 280 | 560 | 895 | 840 | 910 | 840 | 365 kg |
| DN800 | 460 | - | 300 | 600 | 1015 | 950 | 1025 | 950 | 410 kg |
| DN900 | - | 480 | 320 | 630 | 1115 | 1050 | 1125 | 1050 | 540 kg |
| DN1000 | 290 | - | 340 | 660 | 1230 | 1160 | 1255 | 1170 | 700 kg |
| DN1100 | - | - | 360 | 600 | 1430 | 1270 | 1355 | 1280 | 820 kg |
| DN1200 | 300 | - | 380 | 630 | 1455 | 1380 | 1485 | 1390 | 1120 kg |
| DN1300 | 320 | - | - | - | 1575 | 1490 | 1590 | 1490 | 1210 kg |
| DN1400 | 340 | - | 380 | - | 1675 | 1590 | 1685 | 1590 | 1310 kg |
| DN1500 | 360 | - | 400 | - | 1785 | 1700 | 1820 | 1710 | 1480 kg |

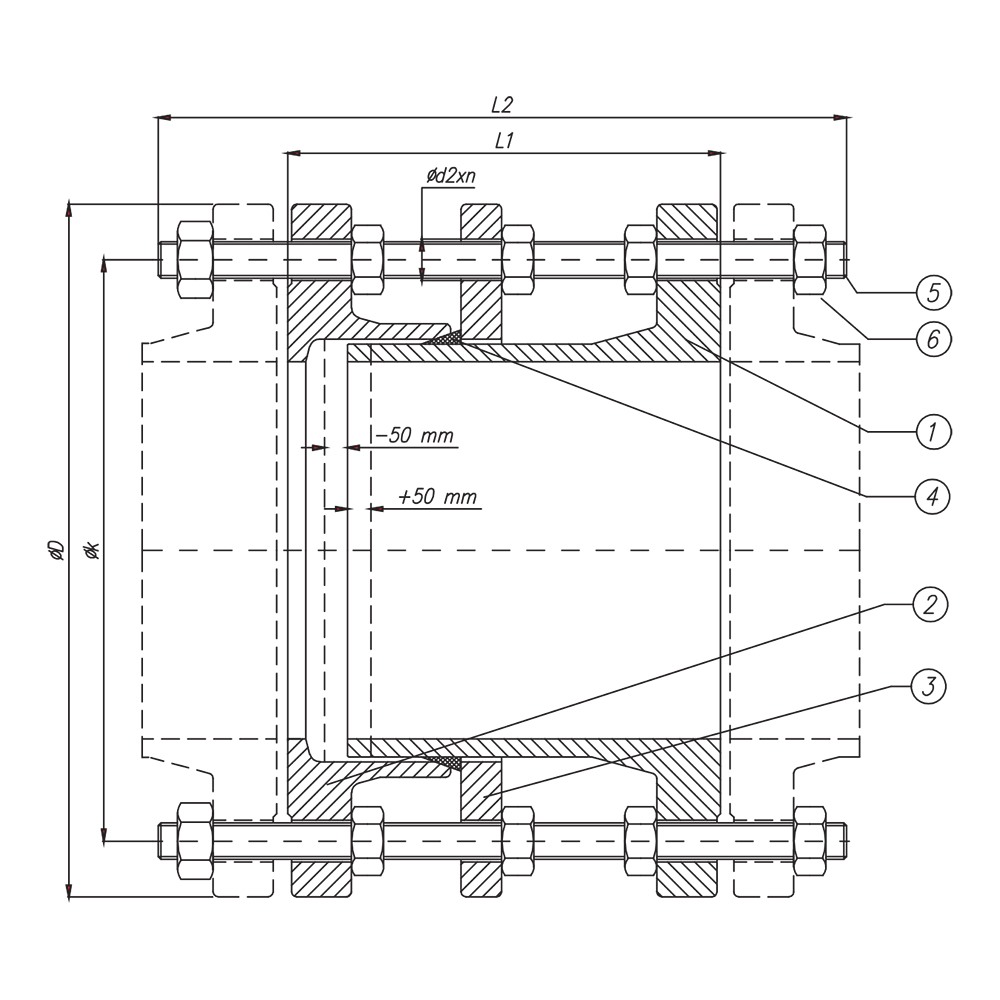

Technical drawings(1 page)
Features
- Axial adjustment range of ±50 mm
- Rigid type construction
- Compatible with DIN, ANSI and JIS flange standards
- Ductile iron body components (GGG-40)
- Galvanised stud bolts and nuts
Description
Rigid type dismantling joint for pipeline installation and maintenance, allowing axial adjustment of ±50 mm. Designed with flanged ends compatible with DIN, ANSI, and JIS standards. Constructed primarily from ductile iron (GGG-40) with EPDM/NBR sealing rings.
Available pressure classes
Pressure classes this product is rated to.
