Over Ground Fire Hydrant
Specifications
Confirmed at quote- Size Range
- DN80 to DN100
- Pressure Class
- PN10, PN16
- End connection
- Flanged
Standards
- Design & manufacture
- TS 2821-1a
- Other standards
- DIN 3222
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Stem
- Shaft
- Bushing
- Gasket
- O-Ring
- 90 Elbow
- Bolt
- Cap
- Cone Lower Part
- Cone Upper Part
- Coupling
- Coupling Cover
- Drainage Plug
- Lower Body
- Lower Pipe
- Nut
- Nut Lower
- Stem Nut
- Upper Pipe
- Valve Cone

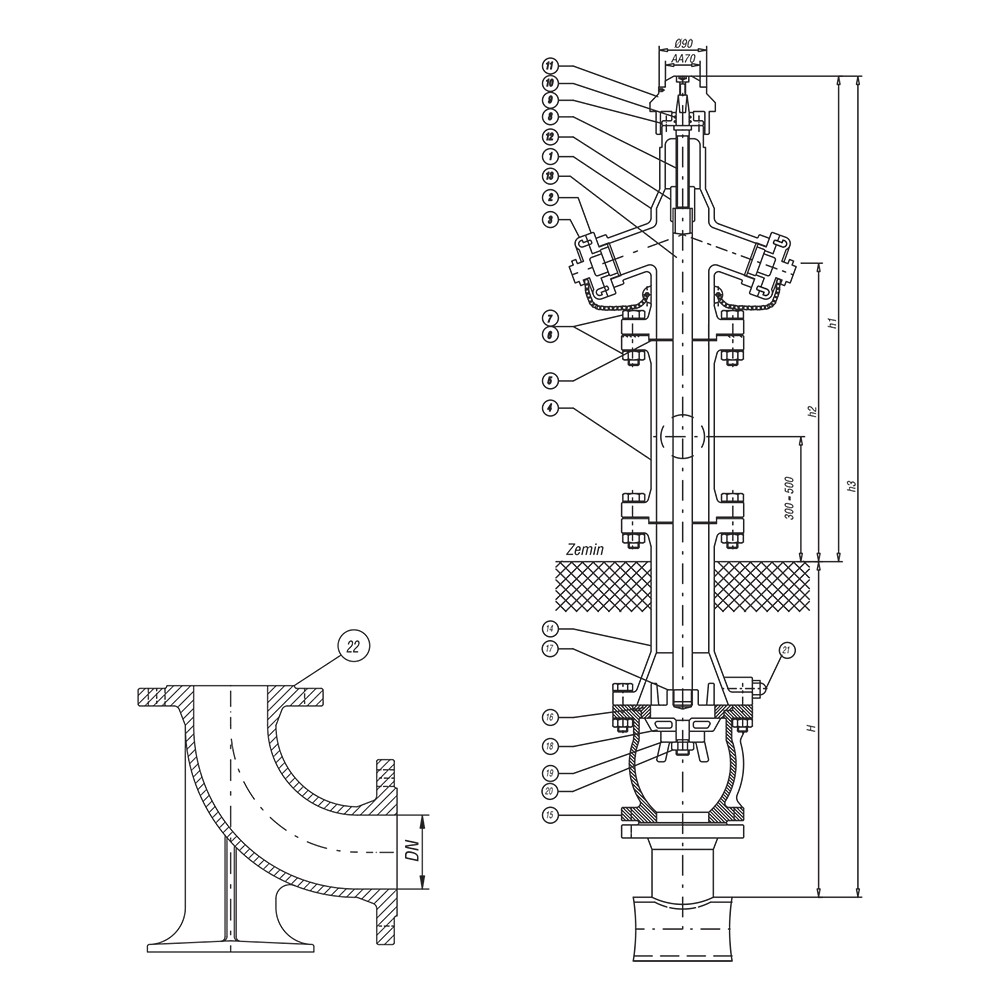

Dimensions per size(4 sizes)
| Size | h1_min (mm) | h2_min (mm) | h3 (mm) | H (mm) | Weight |
|---|---|---|---|---|---|
| DN80 | 1030 | 630 | 1435 | 550 | — |
| DN80 | 1030 | 630 | 1750 | 900 | — |
| DN100 | 1030 | 630 | 2150 | 1250 | — |
| DN100 | 1030 | 630 | 2400 | 1500 | — |
Discharge flow rate
| Size | Outlet | Standard | Single outlet | Double outlet |
|---|---|---|---|---|
| DN80 | 2" | DIN 3222 | 110 m³/h | 140 m³/h |
| DN100 | 2 1/2" | DIN 3222 | 120 m³/h | 210 m³/h |
Operating media
Typical applications
- Above-ground firefighting water supply
- Municipal fire protection networks
- Industrial fire protection
Features
- Available in DN80 and DN100 nominal bore sizes
- Pressure rated PN10/16
- Flanged end connections per DIN 3222 and TS 2821-1a
- EPDM sealing gaskets and O-rings
- Bronze disc and stem nut components
- Stainless steel bolts and nuts
- Integrated 90° elbow at base
- Drainage plug for frost protection
- Adjustable burial depth via variable h3 dimension
- Single and double outlet configurations available
- Outlet dimensions per DIN 3222: 2" (DN80) and 2 1/2" (DN100)
Description
An above-ground fire hydrant designed for firefighting water supply applications. Available in DN80 and DN100 sizes with flanged end connections conforming to DIN 3222 and TS 2821-1a. Rated for PN10/16 pressure with grey cast iron body construction and EPDM sealing elements.
Selection notes
This fire hydrant is an over ground and above ground pattern, supplied for flanged installation.
Sizes run DN80 to DN100, in PN10, PN16.
The body is offered in GG 25 and GGG-40-50, so the grade can be matched to the service rather than the other way round.
Stated service media include water.
It is catalogued for Water & Wastewater and Fire Protection.
Built to TS 2821-1a and DIN 3222.
Available pressure classes
Pressure classes this product is rated to.
