Flange Adaptor Large - Mild Steel (M2202)

Name: Flange Adaptor Large - Mild Steel (M2202)
Brand: Euro Flow Control
SKU: EFC-390

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: OD 457 mm / DN450 to OD 3020 mm / DN3000
Pressure Class: PN6, PN10, PN16, PN25
End connection: Plain end
Operating temperature: 0°C to 50°C

Standards

Design & manufacture: EN 1092-1
Inspection & test: 1.5 x PN
Other standards: BS EN 10025-2:2004, BS EN ISO 898-1:2009, BS 4190:2001

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Gasket
Adaptor Flange
Coating
End Flange
Nut
Stud Bolt
Tie Lug Option
Tie Rod Option
Washer

Pressure-temperature rating

Maximum working pressure at each temperature, per pressure class.

Class	Temperature	Max pressure
PN6	50°C	6 bar
PN10	50°C	10 bar
PN16	50°C	16 bar
PN25	50°C	25 bar

Dimensions per size(131 sizes)

Size	pipe_material	drilling	OD1 (mm)	PCD_k (mm)	t (mm)	holes_N	holes_dia (mm)	stud_qty	stud_dia	notching_qty	notching_dia (mm)	L (mm)	X (mm)	gasket_type	Weight
OD 457 mm / DN450	MS-BS	PN10	615	565	28	20	26	10	M16 x 150	4	26	160	50	E1	—
OD 457 mm / DN450	uPVC	PN10	615	565	28	20	26	10	M16 x 150	4	26	160	50	E1	—
OD 457 mm / DN450	MS-BS	PN16	640	585	28	20	30	10	M16 x 150	4	30	160	50	E1	—
OD 457 mm / DN450	uPVC	PN16	640	585	28	20	30	10	M16 x 150	4	30	160	50	E1	—
OD 457 mm / DN450	MS-BS	PN25	670	600	28	20	36	10	M16 x 150	4	36	160	50	E1	—
OD 480 mm / DN450	DI	PN10	615	565	28	20	26	10	M16 x 150	4	26	160	50	E1	—
OD 480 mm / DN450	DI	PN16	640	585	28	20	30	10	M16 x 150	4	30	160	50	E1	—
OD 480 mm / DN450	DI	PN25	670	600	28	20	36	10	M16 x 150	4	36	160	50	E1	—
OD 507 mm / DN450	MS-JKR	PN10	615	565	28	20	26	10	M16 x 150	4	26	160	50	E1	—
OD 507 mm / DN450	MS-JKR	PN16	640	585	28	20	30	10	M16 x 150	4	30	160	50	E1	—
OD 507 mm / DN450	MS-JKR	PN25	670	600	28	20	36	10	M16 x 150	4	36	160	50	E1	—
OD 508 mm / DN500	MS-BS	PN10	670	620	28	20	26	10	M16 x 150	4	26	160	50	E1	—
OD 508 mm / DN500	uPVC	PN10	670	620	28	20	26	10	M16 x 150	4	26	160	50	E1	—
OD 508 mm / DN500	MS-BS	PN16	715	650	28	20	33	10	M16 x 150	4	33	160	50	E1	—
OD 508 mm / DN500	uPVC	PN16	715	650	28	20	39	10	M16 x 150	4	39	160	50	E1	—
OD 508 mm / DN500	MS-BS	PN25	730	660	28	20	36	10	M16 x 150	4	36	160	50	E1	—
OD 532 mm / DN500	DI	PN10	670	620	28	20	26	10	M16 x 150	4	26	160	50	E1	—
OD 532 mm / DN500	DI	PN16	715	650	28	20	33	10	M16 x 150	4	33	160	50	E1	—
OD 532 mm / DN500	DI	PN25	730	660	28	20	36	10	M16 x 150	4	36	160	50	E1	—
OD 560.3 mm / DN500	MS-JKR	PN10	670	620	28	20	26	10	M16 x 150	4	26	160	50	E1	—
OD 560.3 mm / DN500	MS-JKR	PN16	715	650	28	20	33	10	M16 x 150	4	33	160	50	E1	—
OD 560.3 mm / DN500	MS-JKR	PN25	730	660	28	20	36	10	M16 x 150	4	36	160	50	E1	—
OD 610 mm / DN600	MS-BS	PN10	780	725	28	20	30	10	M16 x 150	4	30	160	50	E1	—
OD 610 mm / DN600	uPVC	PN10	780	725	28	20	30	10	M16 x 150	4	30	160	50	E1	—
OD 610 mm / DN600	MS-BS	PN16	840	770	28	20	36	10	M16 x 150	4	36	160	50	E1	—
OD 610 mm / DN600	uPVC	PN16	840	770	28	20	36	10	M16 x 150	4	36	160	50	E1	—
OD 610 mm / DN600	MS-BS	PN25	845	770	28	20	39	10	M16 x 150	4	39	160	50	E1	—
OD 635 mm / DN600	DI	PN10	780	725	28	20	30	10	M16 x 150	4	30	160	50	E1	—
OD 635 mm / DN600	DI	PN16	840	770	28	20	36	10	M16 x 150	4	36	160	50	E1	—
OD 635 mm / DN600	DI	PN25	845	770	28	20	39	10	M16 x 150	4	39	160	50	E1	—
OD 667 mm / DN600	MS-JKR	PN10	780	725	28	20	30	10	M16 x 150	4	30	160	50	E1	—
OD 667 mm / DN600	MS-JKR	PN16	840	770	28	20	36	10	M16 x 150	4	36	160	50	E1	—
OD 667 mm / DN600	MS-JKR	PN25	845	770	28	20	39	10	M16 x 150	4	39	160	50	E1	—
OD 711 mm / DN700	MS-BS	PN10	895	840	31	24	30	12	M16 x 150	6	30	163	50	E1	—
OD 711 mm / DN700	MS-BS	PN16	910	840	31	24	36	12	M16 x 150	6	36	163	50	E1	—
OD 711 mm / DN700	MS-BS	PN25	960	875	31	24	42	12	M16 x 150	6	42	163	50	E1	—
OD 738 mm / DN700	DI	PN10	895	840	31	24	30	12	M16 x 150	6	30	163	50	E1	—
OD 738 mm / DN700	DI	PN16	910	840	31	24	36	12	M16 x 150	6	36	163	50	E1	—
OD 738 mm / DN700	DI	PN25	960	875	31	24	42	12	M16 x 150	6	42	163	50	E1	—
OD 754 mm / DN700	MS-JKR	PN10	895	840	31	24	30	12	M16 x 150	6	30	163	50	E1	—
OD 754 mm / DN700	MS-JKR	PN16	910	840	31	24	36	12	M16 x 150	6	36	163	50	E1	—
OD 754 mm / DN700	MS-JKR	PN25	960	875	31	24	42	12	M16 x 150	6	42	163	50	E1	—
OD 804 mm / DN750	MS-JKR	PN10	965	900	31	24	33	12	M16 x 150	6	33	163	50	E1	—
OD 804 mm / DN750	MS-JKR	PN16	970	900	31	24	36	12	M16 x 150	6	36	163	50	E1	—
OD 813 mm / DN800	MS-BS	PN10	1015	950	31	24	33	12	M16 x 150	6	33	163	50	E1	—
OD 813 mm / DN800	MS-BS	PN16	1025	950	31	24	39	12	M16 x 150	6	39	163	50	E1	—
OD 813 mm / DN800	MS-BS	PN25	1085	990	31	24	48	12	M16 x 150	6	48	163	50	E1	—
OD 842 mm / DN800	DI	PN10	1015	950	31	28	33	14	M16 x 150	7	33	163	50	E1	—
OD 842 mm / DN800	DI	PN16	1025	950	31	28	39	14	M16 x 150	7	39	163	50	E1	—
OD 842 mm / DN800	DI	PN25	1085	990	31	28	48	14	M16 x 150	7	48	163	50	E1	—
OD 854 mm / DN800	MS-JKR	PN10	1015	950	31	28	33	14	M16 x 150	7	33	163	50	E1	—
OD 854 mm / DN800	MS-JKR	PN16	1025	950	31	28	39	14	M16 x 150	7	39	163	50	E1	—
OD 854 mm / DN800	MS-JKR	PN25	1085	990	31	28	48	14	M16 x 150	7	48	163	50	E1	—
OD 904 mm / DN850	MS-JKR	PN10	1015	950	31	28	33	14	M16 x 165	7	33	178	50	E1	—
OD 904 mm / DN850	MS-JKR	PN16	1025	950	31	28	39	14	M16 x 165	7	39	178	50	E1	—
OD 914 mm / DN900	MS-BS	PN10	1115	1050	31	28	33	14	M16 x 165	7	33	178	50	E1	—
OD 914 mm / DN900	MS-BS	PN16	1125	1050	38	28	39	14	M16 x 165	7	39	185	50	E1	—
OD 914 mm / DN900	MS-BS	PN25	1185	1090	38	28	48	14	M16 x 165	7	48	185	50	E1	—
OD 945 mm / DN900	DI	PN10	1115	1050	31	28	34	14	M16 x 165	7	34	178	50	E1	—
OD 945 mm / DN900	DI	PN16	1125	1050	31	28	40	14	M16 x 165	7	40	178	50	E1	—
OD 945 mm / DN900	DI	PN25	1185	1090	38	28	49	14	M16 x 165	7	49	185	50	E1	—
OD 954 mm / DN900	MS-JKR	PN10	1115	1050	31	28	34	14	M16 x 165	7	34	178	50	E1	—
OD 954 mm / DN900	MS-JKR	PN16	1125	1050	31	28	40	14	M16 x 165	7	40	178	50	E1	—
OD 954 mm / DN900	MS-JKR	PN25	1185	1090	38	28	49	14	M16 x 165	7	49	185	50	E1	—
OD 1016 mm / DN1000	MS-BS	PN10	1230	1160	31	28	37	14	M16 x 165	7	37	178	50	E1	—
OD 1016 mm / DN1000	MS-BS	PN16	1255	1170	31	28	43	14	M16 x 165	7	43	178	50	E1	—
OD 1016 mm / DN1000	MS-BS	PN25	1320	1210	38	28	56	14	M16 x 165	7	56	185	50	E1	—
OD 1048 mm / DN1000	DI	PN10	1230	1160	31	28	37	14	M16 x 165	7	37	178	50	E1	—
OD 1048 mm / DN1000	DI	PN16	1255	1170	31	28	43	14	M16 x 165	7	43	178	50	E1	—
OD 1048 mm / DN1000	DI	PN25	1320	1210	38	28	56	14	M16 x 165	7	56	185	50	E1	—
OD 1054 mm / DN1000	MS-JKR	PN10	1230	1160	31	28	37	14	M16 x 165	7	37	178	50	E1	—
OD 1054 mm / DN1000	MS-JKR	PN16	1255	1170	31	28	43	14	M16 x 165	7	43	178	50	E1	—
OD 1054 mm / DN1000	MS-JKR	PN25	1320	1210	38	28	56	14	M16 x 165	7	56	185	50	E1	—
OD 1118 mm / DN1100	MS-BS	PN10	1340	1270	38	32	37	16	M16 x 180	8	37	198	50	E2	—
OD 1118 mm / DN1100	MS-BS	PN16	1355	1270	38	32	43	16	M16 x 180	8	43	198	50	E2	—
OD 1118 mm / DN1100	MS-BS	PN25	1420	-	38	32	56	16	M16 x 180	8	56	198	50	E2	—
OD 1152 mm / DN1100	DI	PN10	1340	1270	38	32	37	16	M16 x 180	8	37	198	50	E2	—
OD 1152 mm / DN1100	DI	PN16	1355	1270	38	32	43	16	M16 x 180	8	43	198	50	E2	—
OD 1152 mm / DN1100	DI	PN25	1420	-	38	32	56	16	M16 x 180	8	56	198	50	E2	—
OD 1157 mm / DN1100	MS-JKR	PN10	1340	1270	38	32	37	16	M16 x 180	8	37	198	50	E2	—
OD 1157 mm / DN1100	MS-JKR	PN16	1355	1270	38	32	43	16	M16 x 180	8	43	198	50	E2	—
OD 1157 mm / DN1100	MS-JKR	PN25	1420	-	38	32	56	16	M16 x 180	8	56	198	50	E2	—
OD 1219 mm / DN1200	MS-BS	PN10	1455	1380	38	32	39	16	M16 x 180	8	39	198	50	E2	—
OD 1219 mm / DN1200	MS-BS	PN16	1485	1390	38	32	48	16	M16 x 180	8	48	198	50	E2	—
OD 1219 mm / DN1200	MS-BS	PN25	1530	1420	38	32	56	16	M16 x 180	8	56	198	50	E2	—
OD 1255 mm / DN1200	DI	PN10	1455	1380	38	32	39	16	M16 x 180	8	39	198	50	E2	—
OD 1255 mm / DN1200	DI	PN16	1485	1390	38	32	48	16	M16 x 180	8	48	198	50	E2	—
OD 1255 mm / DN1200	DI	PN25	1530	1420	38	32	56	16	M16 x 180	8	56	198	50	E2	—
OD 1270 mm / DN1200	MS-JKR	PN10	1455	1380	38	32	39	16	M16 x 180	8	39	198	50	E2	—
OD 1270 mm / DN1200	MS-JKR	PN16	1485	1390	38	32	48	16	M16 x 180	8	48	198	50	E2	—
OD 1270 mm / DN1200	MS-JKR	PN25	1530	1420	38	32	56	16	M16 x 180	8	56	198	50	E2	—
OD 1422 mm / DN1400	MS-BS	PN10	1675	1590	38	36	42	18	M16 x 180	9	42	198	50	E2	—
OD 1422 mm / DN1400	MS-BS	PN16	1685	1590	38	36	48	18	M16 x 180	9	48	198	50	E2	—
OD 1462 mm / DN1400	DI	PN10	1675	1590	38	36	42	18	M16 x 180	9	42	198	50	E2	—
OD 1462 mm / DN1400	DI	PN16	1685	1590	38	36	48	18	M16 x 180	9	48	198	50	E2	—
OD 1472 mm / DN1400	MS-JKR	PN10	1675	1590	38	36	42	18	M16 x 180	9	42	198	50	E2	—
OD 1472 mm / DN1400	MS-JKR	PN16	1685	1590	38	36	48	18	M16 x 180	9	48	198	50	E2	—
OD 1620 mm / DN1600	MS-BS	PN10	1915	1820	60	40	48	40	M16 x 230	10	48	270	50	E2	—
OD 1620 mm / DN1600	MS-BS	PN16	1930	1820	60	40	56	40	M16 x 230	10	56	270	50	E2	—
OD 1668 mm / DN1600	DI	PN10	1915	1820	60	40	48	40	M16 x 230	10	48	270	50	E2	—
OD 1668 mm / DN1600	DI	PN16	1930	1820	60	40	56	40	M16 x 230	10	56	270	50	E2	—
OD 1829 mm / DN1800	MS-BS	PN10	2115	2020	60	44	48	44	M16 x 230	11	48	270	50	E2	—
OD 1829 mm / DN1800	MS-BS	PN16	2130	2020	60	44	56	44	M16 x 230	11	56	270	50	E2	—
OD 1875 mm / DN1800	DI	PN10	2115	2020	60	44	48	44	M16 x 230	11	48	270	50	E2	—
OD 1875 mm / DN1800	DI	PN16	2130	2020	60	44	56	44	M16 x 230	11	56	270	50	E2	—
OD 2032 mm / DN2000	MS-BS	PN06	2265	2180	48	42	42	48	M16 x 230	12	42	270	50	E3	—
OD 2032 mm / DN2000	MS-BS	PN10	2325	2230	60	48	48	48	M16 x 230	12	48	270	50	E3	—
OD 2032 mm / DN2000	MS-BS	PN16	2345	2230	60	48	62	48	M16 x 230	12	62	270	50	E3	—
OD 2082 mm / DN2000	DI	PN10	2325	2230	60	48	48	48	M16 x 230	12	48	270	50	E3	—
OD 2082 mm / DN2000	DI	PN16	2345	2230	60	48	62	48	M16 x 230	12	62	270	50	E3	—
OD 2120 mm / DN2100	MS-BS	PN06	-	-	60	-	-	-	M16 x 230	-	-	270	50	E3	—
OD 2120 mm / DN2100	MS-BS	PN10	-	-	60	-	-	-	M16 x 230	-	-	270	50	E3	—
OD 2120 mm / DN2100	MS-BS	PN16	-	-	60	-	-	-	M16 x 230	-	-	270	50	E3	—
OD 2235 mm / DN2200	MS-BS	PN06	2475	2390	60	52	42	52	M16 x 230	13	42	270	50	E3	—
OD 2235 mm / DN2200	MS-BS	PN10	2550	2440	60	52	55	52	M16 x 230	13	55	270	50	E3	—
OD 2235 mm / DN2200	MS-BS	PN16	2555	2440	60	52	62	52	M16 x 230	13	62	270	50	E3	—
OD 2337 mm / DN2300	MS-BS	PN06	-	-	60	-	-	-	M16 x 230	-	-	270	50	E3	—
OD 2337 mm / DN2300	MS-BS	PN10	-	-	60	-	-	-	M16 x 230	-	-	270	50	E3	—
OD 2438 mm / DN2400	MS-BS	PN06	2685	2600	60	56	42	56	M16 x 230	14	42	270	50	E3	—
OD 2438 mm / DN2400	MS-BS	PN10	2760	2650	60	56	55	56	M16 x 230	14	55	270	50	E3	—
OD 2540 mm / DN2500	MS-BS	PN06	-	-	60	-	-	-	M16 x 300	-	-	340	50	E3	—
OD 2540 mm / DN2500	MS-BS	PN10	-	-	60	-	-	-	M16 x 300	-	-	340	50	E3	—
OD 2642 mm / DN2600	MS-BS	PN06	2905	2810	60	60	48	60	M16 x 300	15	48	340	50	E3	—
OD 2642 mm / DN2600	MS-BS	PN10	2960	2850	60	60	55	60	M16 x 300	15	55	340	50	E3	—
OD 2743 mm / DN2700	MS-BS	PN06	-	-	60	-	-	-	M16 x 300	-	-	340	50	E3	—
OD 2743 mm / DN2700	MS-BS	PN10	-	-	60	-	-	-	M16 x 300	-	-	340	50	E3	—
OD 2820 mm / DN2800	MS-BS	PN06	3115	3020	60	64	48	64	M16 x 300	16	48	340	50	E3	—
OD 2820 mm / DN2800	MS-BS	PN10	3180	3070	70	64	55	64	M16 x 300	16	55	350	50	E3	—
OD 2920 mm / DN2900	MS-BS	PN06	-	-	70	-	-	-	M16 x 300	-	-	350	50	E3	—
OD 2920 mm / DN2900	MS-BS	PN10	-	-	70	-	-	-	M16 x 300	-	-	350	50	E3	—
OD 3020 mm / DN3000	MS-BS	PN06	3315	3220	70	68	48	68	M16 x 300	17	48	350	50	E3	—

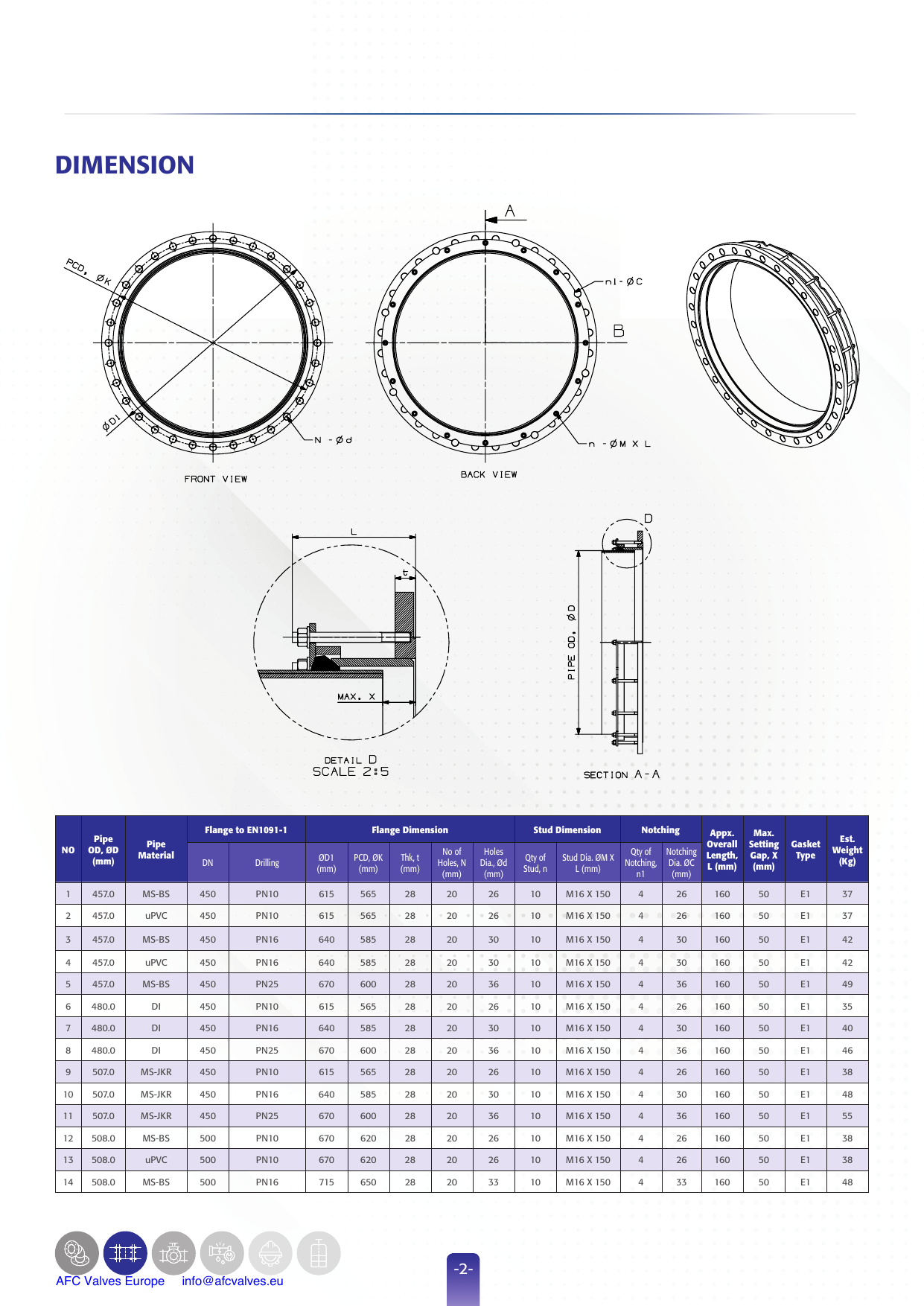

Technical drawings(1 page)

Operating media

WaterWaste water

Typical applications

Pipe transitions
Ductile iron to steel
Pipe repair
Network upgrades

Coatings

Min 250 micron epoxy coating RAL 5017 blueOption: hot dipped galvanized internally and externally

Approvals

WRASISO 9001

Features

The M2202 large flange adaptor connects plain-ended pipes of different outside diameters to a flanged fitting or valve
Wide-tolerance design accommodates the OD variation found across ductile iron, steel, asbestos cement and PVC pipes of the same nominal diameter, eliminating the need for multiple adaptor sizes on mixed-material networks

Description

The M2202 large flange adaptor connects plain-ended pipes of different outside diameters to a flanged fitting or valve. The wide-tolerance design accommodates the OD variation found across ductile iron, steel, asbestos cement and PVC pipes of the same nominal diameter, eliminating the need for multiple adaptor sizes on mixed-material networks.

Selection notes

This flange adaptor is supplied for plain end installation.

Sizes run OD 457 mm / DN450 to OD 3020 mm / DN3000, in PN6, PN10, PN16, PN25.

Stated service media include water and waste water.

It is catalogued for Water & Wastewater and Industrial Process.

Working temperature is 0°C to 50°C.

Built to EN 1092-1, 1.5 x PN, BS EN 10025-2:2004, BS EN ISO 898-1:2009 and BS 4190:2001.

Available pressure classes

Pressure classes this product is rated to.

PN6 PN10 PN16 PN25

Used in

Water & Wastewater Industrial Process

Related guides

Request a Quote

Add this product to your RFQ. Need multiple variants? Add one, tweak the fields, add another.

Variant details2 filled

Fill in what applies, it speeds up your quote. Skip and you can configure on the next page.

Size

Available: OD 457 mm / DN450, OD 480 mm / DN450, OD 507 mm / DN450, OD 508 mm / DN500, OD 532 mm / DN500, OD 560.3 mm / DN500, OD 610 mm / DN600, OD 635 mm / DN600, OD 667 mm / DN600, OD 711 mm / DN700, OD 738 mm / DN700, OD 754 mm / DN700, OD 804 mm / DN750, OD 813 mm / DN800, OD 842 mm / DN800, OD 854 mm / DN800, OD 904 mm / DN850, OD 914 mm / DN900, OD 945 mm / DN900, OD 954 mm / DN900, OD 1016 mm / DN1000, OD 1048 mm / DN1000, OD 1054 mm / DN1000, OD 1118 mm / DN1100, OD 1152 mm / DN1100, OD 1157 mm / DN1100, OD 1219 mm / DN1200, OD 1255 mm / DN1200, OD 1270 mm / DN1200, OD 1422 mm / DN1400, OD 1462 mm / DN1400, OD 1472 mm / DN1400, OD 1620 mm / DN1600, OD 1668 mm / DN1600, OD 1829 mm / DN1800, OD 1875 mm / DN1800, OD 2032 mm / DN2000, OD 2082 mm / DN2000, OD 2120 mm / DN2100, OD 2235 mm / DN2200, OD 2337 mm / DN2300, OD 2438 mm / DN2400, OD 2540 mm / DN2500, OD 2642 mm / DN2600, OD 2743 mm / DN2700, OD 2820 mm / DN2800, OD 2920 mm / DN2900, OD 3020 mm / DN3000

Pressure

Available: PN6, PN10, PN16, PN25

End connection

Required approvals

None required

We confirm the certification with the manufacturer before quoting

Additional parts (optional)

Gasket

Available: EPDM

Adaptor Flange

Available: Mild steel to BS EN10025-2:2004 Grade S235JR

Coating
