Foot Valve Without Spring
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN50 to DN600
- Pressure Class
- PN10, PN16
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3259
- Inspection & test
- EN 12266
- Flange & end dimension
- EN 1092-2/B
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Disc
- Gasket
- O-Ring
- Basket
- Flange
Dimensions per size(13 sizes)
| Size | Od3 (mm) | Od (mm) | h1 (mm) | D_PN10 (mm) | k_PN10 (mm) | Oxn_PN10 (mm) | D_PN16 (mm) | k_PN16 (mm) | Oxn_PN16 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN50 | 180 | 77 | 175 | 165 | 125 | Ø18x8 | 165 | 125 | Ø18x4 | 7 kg |
| DN65 | 190 | 92 | 215 | 185 | 145 | Ø18x8 | 185 | 145 | Ø18x4 | 9 kg |
| DN80 | 210 | 127 | 265 | 200 | 160 | Ø18x8 | 200 | 160 | Ø18x8 | 12 kg |
| DN100 | 240 | 142 | 315 | 220 | 180 | Ø18x8 | 220 | 180 | Ø18x8 | 19 kg |
| DN125 | 280 | 188 | 335 | 250 | 210 | Ø18x8 | 250 | 210 | Ø18x8 | 23 kg |
| DN150 | 335 | 217 | 410 | 285 | 240 | Ø22x8 | 285 | 240 | Ø22x8 | 40 kg |
| DN200 | 365 | 282 | 470 | 340 | 295 | Ø22x8 | 340 | 295 | Ø22x12 | 65 kg |
| DN250 | 405 | 325 | 500 | 395 | 350 | Ø22x12 | 395 | 350 | Ø26x12 | 95 kg |
| DN300 | 505 | 420 | 600 | 445 | 400 | Ø22x16 | 445 | 400 | Ø26x16 | 170 kg |
| DN350 | 555 | 470 | 750 | 505 | 460 | Ø26x16 | 505 | 460 | Ø30x16 | 230 kg |
| DN400 | 675 | 520 | 800 | 565 | 515 | Ø26x16 | 565 | 515 | Ø30x16 | 300 kg |
| DN500 | 775 | 620 | 950 | 670 | 620 | Ø26x20 | 715 | 650 | Ø33x20 | 450 kg |
| DN600 | 875 | 520 | 1250 | 780 | 725 | Ø30x20 | 840 | 770 | Ø36x20 | 655 kg |

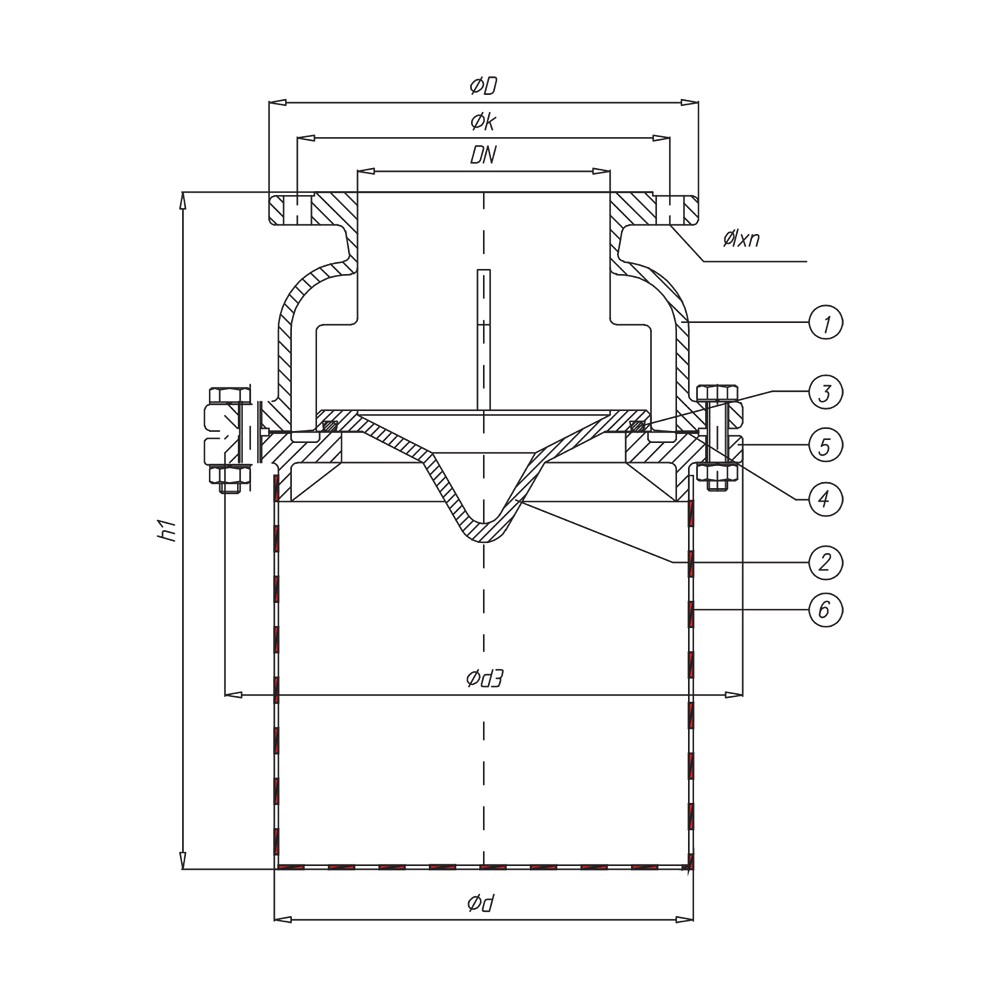

Technical drawings(1 page)
Operating media
Description
Springless foot valve (Type-2) designed to DIN 3259, available in DN50 to DN600 with PN10-16 pressure rating. Features a flanged end connection per EN 1092-2/B and includes an integral strainer basket. Body and disc are cast iron or bronze/stainless steel options; sealing provided by NBR or EPDM O-ring and gasket.
Selection notes
This foot valve is a without spring, type-2 and with strainer basket pattern, supplied for flanged installation.
Sizes run DN50 to DN600, in PN10, PN16.
The body is offered in GG 25, GGG-40.3 and GS-C 25, so the grade can be matched to the service rather than the other way round.
Stated service media include water.
It is catalogued for Water & Wastewater.
Built to DIN 3259, EN 12266 and EN 1092-2/B.
