Safety Valve (Spring Loaded) Full Lift VEYT-10-16-25-40 Proportional Lift VEYO-10-16-25-40
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN25 to DN100
- Pressure Class
- PN10, PN16, PN25, PN40
- End connection
- Flanged
- Operating temperature
- max 80°C
Standards
- Face to face
- DIN 3202-F32
- Flange & end dimension
- DIN 2532, DIN 2533, DIN 2544, DIN 2545
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Disc
- Seat
- Stem
- Spring
- Disc Nut
- Plate
Dimensions per size(7 sizes)
| Size | L1 (mm) | L2 (mm) | H (mm) | Od1 (mm) | OD1_inlet (mm) | Ok1_inlet (mm) | Od2 (mm) | OD2_outlet (mm) | Ok2_outlet (mm) | PN25-40 kg (kg) | PN25-40 OD2_outlet (mm) | PN25-40 Ok2_outlet (mm) | PN25-40 OD1_inlet (mm) | PN25-40 Ok1_inlet (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN25 | 100 | 115 | 410 | 25 | 115 | 85 | 40 | 150 | 110 | 11 | - | - | - | - | 10 kg |
| DN32 | 110 | 125 | 426 | 32 | 140 | 100 | 50 | 165 | 125 | 15 | - | - | - | - | 13 kg |
| DN40 | 120 | 135 | 446 | 40 | 150 | 110 | 65 | 185 | 145 | 18 | - | - | - | - | 16 kg |
| DN50 | 135 | 150 | 484 | 50 | 165 | 125 | 80 | 200 | 160 | 24 | - | - | - | - | 21 kg |
| DN65 | 140 | 155 | 549 | 65 | 185 | 145 | 100 | 220 | 180 | 34 | 235 | 190 | - | - | 30 kg |
| DN80 | 150 | 175 | 631 | 80 | 200 | 160 | 125 | 250 | 210 | 45 | 270 | 220 | - | - | 40 kg |
| DN100 | 170 | 195 | 686 | 100 | 220 | 180 | 150 | 285 | 240 | 64 | 300 | 250 | 235 | 190 | 57 kg |

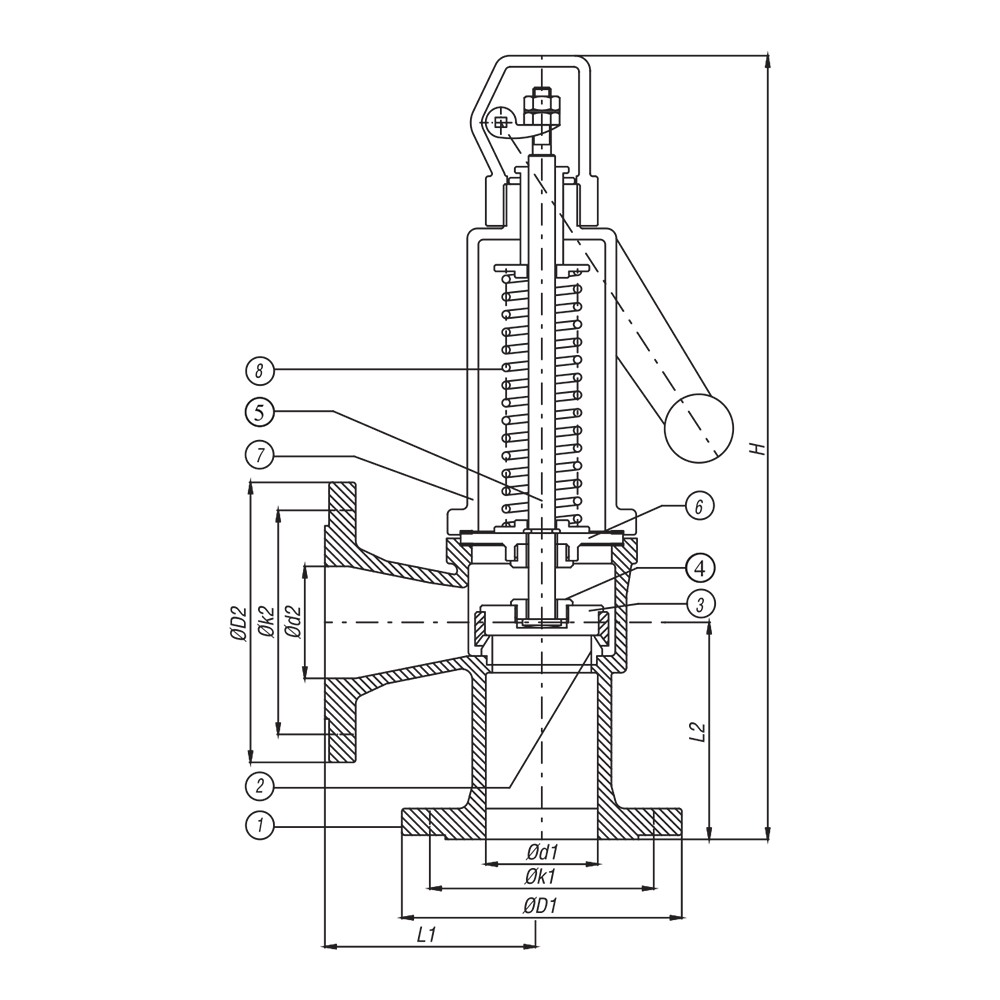

Technical drawings(1 page)
Features
- Spring-loaded actuation mechanism
- Full lift variant (VEYT) for rapid full opening
- Proportional lift variant (VEYO) for gradual opening proportional to overpressure
- Separate inlet and outlet flange connections with differing bore sizes
- Available in two pressure rating groups: PN10-16 (DIN 2532/2533) and PN25-40 (DIN 2544/2545)
- Dimensions per DIN 3202-F32 (open bonnet)
Description
Spring-loaded safety valves available in full lift (VEYT) and proportional lift (VEYO) configurations. Designed for flanged end connections per DIN 2533/DIN 2544/DIN 2545, covering pressure ratings PN10 to PN40. Nominal diameters range from DN25 to DN100 with a maximum temperature of +80°C.
Selection notes
This safety valve is a spring loaded, full lift and proportional lift pattern, supplied for flanged installation.
Sizes run DN25 to DN100, in PN10, PN16, PN25, PN40.
The body is offered in GG 25, GGG-40 and GS-C 25, so the grade can be matched to the service rather than the other way round.
Seat and trim options are AISI 304. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Working temperature is max 80°C.
Built to DIN 3202-F32, DIN 2532, DIN 2533, DIN 2544 and DIN 2545.
Available pressure classes
Pressure classes this product is rated to.
