Spring Load Nozzle Type Pressure Relief Safety Valve

Name: Spring Load Nozzle Type Pressure Relief Safety Valve
Brand: Euro Flow Control
SKU: EFC-147

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Pressure Class: PN40, PN63, PN100, Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500
End connection: Flanged

Configure your variant(manually adjust box on the right if you require a different spec)

Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Disc
Seat
Stem
Spring
Guide

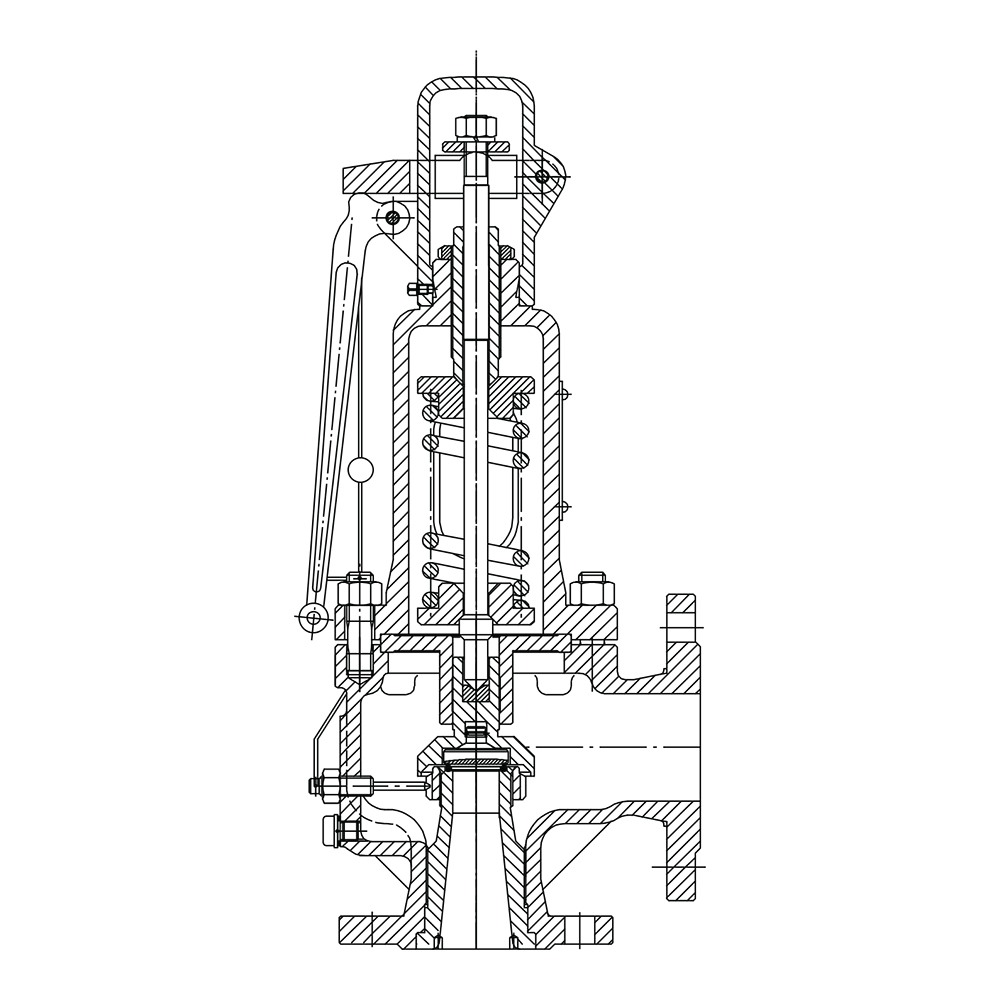

Technical drawings(1 page)

Description

Spring-loaded, full-lift, nozzle-type pressure relief safety valve with flanged end connections. Available in multiple pressure classes from PN40 through Class 2500. Body material options include carbon steel and stainless steel grades.

Selection notes

This safety valve is a pressure relief valve, spring-loaded, full-lift and nozzle type pattern, supplied for flanged installation.

The body is offered in WCB, WC6, WC7 and CF8, so the grade can be matched to the service rather than the other way round.

Seat and trim options are 304, 316, 316Ti and Stellite. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Industrial Process.
