SS Y-Type Strainer - BSP
Specifications
Confirmed at quote- Size Range
- DN8 to DN100
- Pressure Class
- 55 bar
- End connection
- Threaded
- Operating temperature
- -20°C to 180°C
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Gasket
- Cap
- Filter

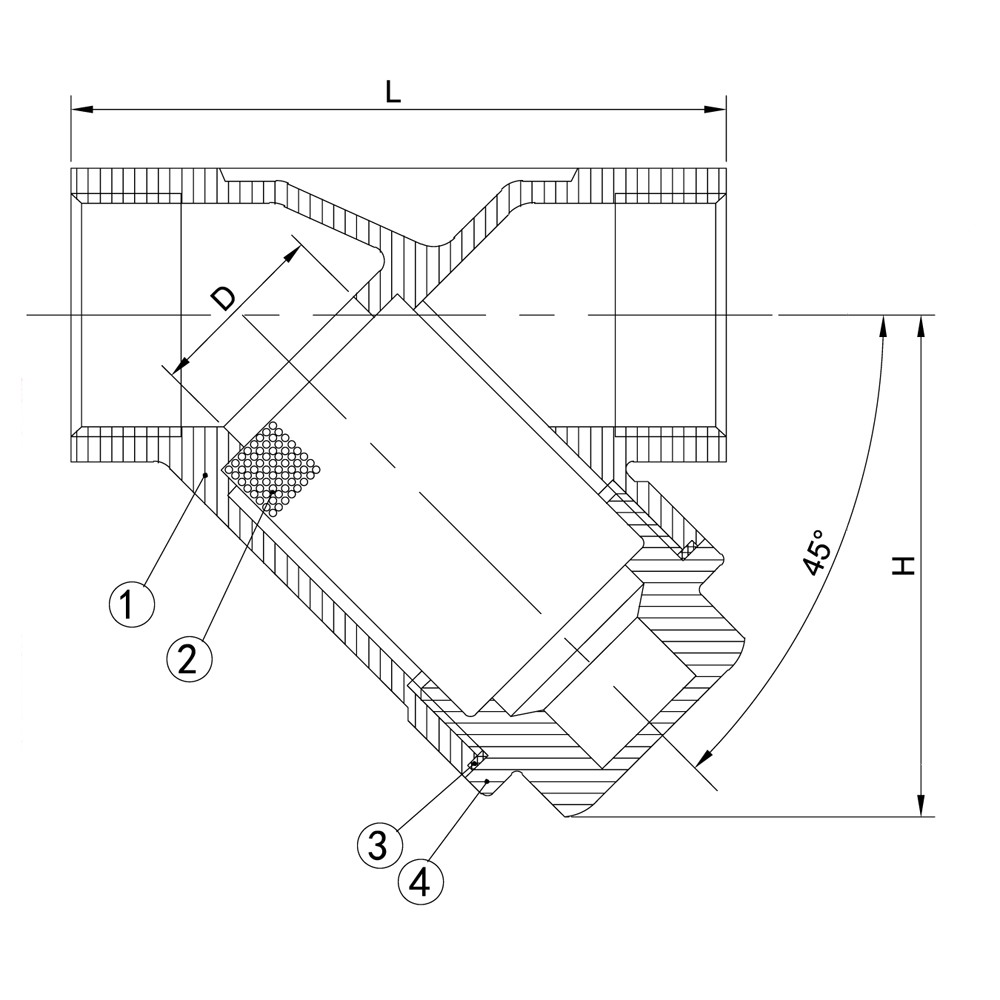

Dimensions per size(11 sizes)
| Size | L (mm) | D (mm) | H (mm) | Rc (inch) | Weight |
|---|---|---|---|---|---|
| DN8 | 54 | 8 | 35 | 1/4" | — |
| DN10 | 54 | 10 | 35 | 3/8" | — |
| DN15 | 59 | 15 | 45 | 1/2" | — |
| DN20 | 73 | 20 | 60 | 3/4" | — |
| DN25 | 84 | 25 | 63 | 1" | — |
| DN32 | 97 | 32 | 80 | 1-1/4" | — |
| DN40 | 106 | 40 | 88 | 1-1/2" | — |
| DN50 | 127 | 50 | 109 | 2" | — |
| DN65 | 165 | 65 | 138 | 2-1/2" | — |
| DN80 | 188 | 80 | 153 | 3" | — |
| DN100 | 232 | 100 | 193 | 4" | — |
Operating media
Features
- Y-type body configuration with 45° screen angle
- Removable cap for screen cleaning and maintenance
- BSP threaded end connections
Description
A Y-type strainer with BSP threaded ends, constructed from stainless steel casting (CF8/CF8M) with a stainless steel filter element. Rated to 55 bar across a size range of DN8 to DN100, suitable for water, oil, and gas service in the temperature range of -20 to 180°C.
Selection notes
This strainer is a y-type pattern, supplied for threaded installation.
Sizes run DN8 to DN100, in 55 bar.
The body is offered in CF8 and CF8M, so the grade can be matched to the service rather than the other way round.
Stated service media include water, oil and gas.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -20°C to 180°C.
