Stainless Steel Strainer
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN50
- Pressure Class
- PN40
- End connection
- Threaded
- Operating temperature
- -10°C to 120°C
Standards
- Inspection & test
- EN 12266, API 598
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Gasket
- Filter
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN16 | 16 bar | -10°C | 120°C |
Dimensions per size(6 sizes)
| Size | G (inch) | L (mm) | k (mm) | Weight |
|---|---|---|---|---|
| DN15 | 1/2" | 65 | 51 | 0.23 kg |
| DN20 | 3/4" | 80 | 60 | 0.36 kg |
| DN25 | 1" | 90 | 72 | 0.69 kg |
| DN32 | 1-1/4" | 105 | 77 | 0.78 kg |
| DN40 | 1-1/2" | 120 | 87 | 1.22 kg |
| DN50 | 2" | 140 | 103 | 1.79 kg |

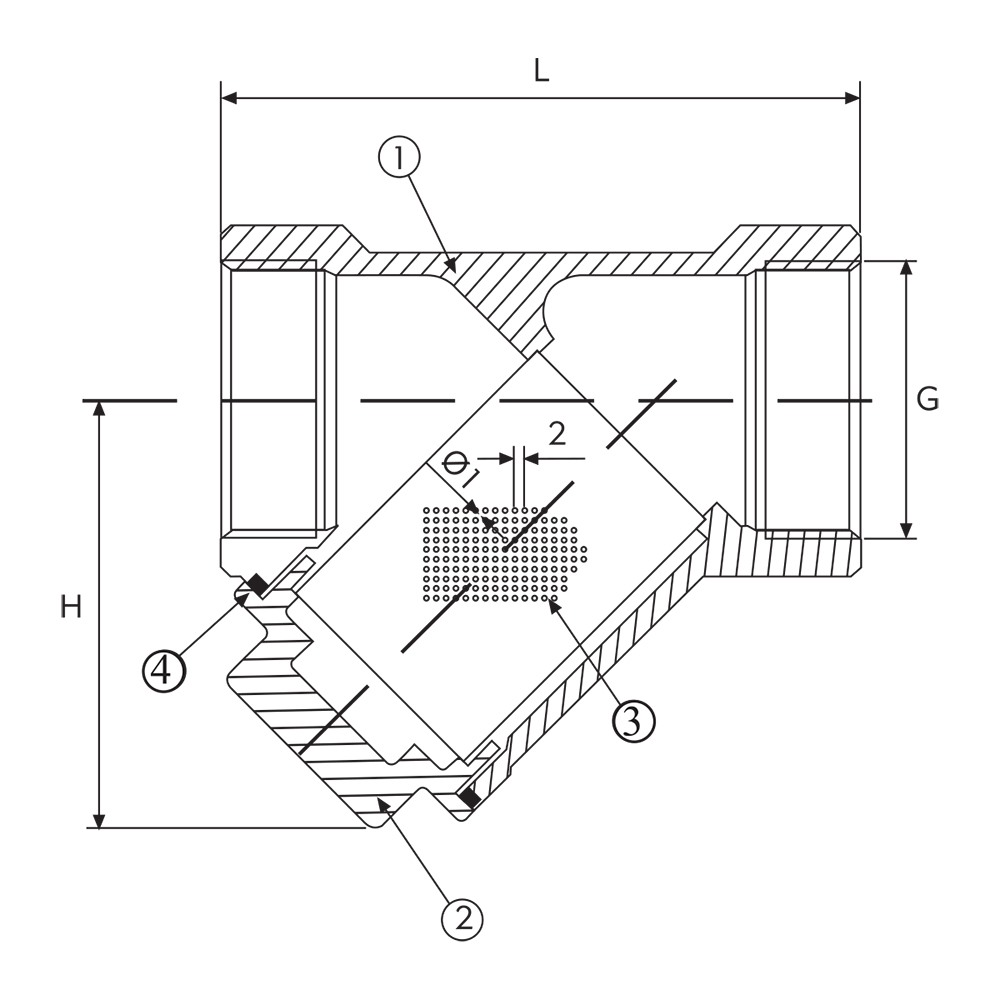

Technical drawings(1 page)
Description
A Y-type stainless steel strainer rated to PN40, available in sizes DN15 to DN50 (1/2" to 2"). Body, bonnet, and filter are constructed from Stainless Steel AISI 304 or 316, with a PTFE gasket. Tested in accordance with EN 12266 and API 598.
Selection notes
This strainer is a y-type pattern, supplied for threaded installation.
Sizes run DN15 to DN50, in PN40.
The body is offered in Stainless Steel AISI 304 and Stainless Steel AISI 316, so the grade can be matched to the service rather than the other way round.
It is catalogued for Industrial Process.
Working temperature is -10°C to 120°C.
Built to EN 12266 and API 598.
