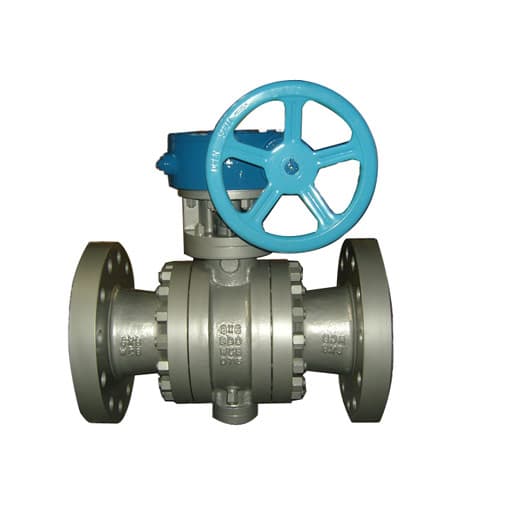

2-PC Trunnion Ball Valve
Specifications
Confirmed at quote- Size Range
- NPS 1" to NPS 60"
- Pressure Class
- Class 150, Class 300, Class 400, Class 600, Class 900
- End connection
- Flanged · Butt weld
Standards
- Design & manufacture
- API 6D
- Inspection & test
- API 6D, API 607, API 6FA
- Face to face
- API 6D
- Flange & end dimension
- ASME B16.5, ASME B16.47, ASME B16.25
- Materials
- ASME B16.34
- Other standards
- ASME B31.8
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Seat
Actuation options
Features
- Two-piece body construction
- Trunnion-mounted ball design
- Soft seat and metal hard seat options
- Fire-safe design tested to API 607 and API 6FA
- Wall thickness per ASME B16.34
- Pressure and temperature rating per ASME B16.34
- Products beyond standard scope manufactured to BTL standard or user requirements
Description
Two-piece trunnion-mounted ball valve with soft or metal hard seat options, designed to API 6D. Available in a wide range of body materials including carbon steel, low-temperature carbon steel, and stainless steel grades. Suitable for flanged or butt-weld end connections per ASME standards.
Selection notes
This trunnion mounted ball valve is a 2-piece and soft seal pattern, supplied for flanged and butt weld installation.
Sizes run NPS 1" to NPS 60", in Class 150, Class 300, Class 400, Class 600, Class 900.
The body is offered in WCB, LCB, WCC and CF8, so the grade can be matched to the service rather than the other way round.
Seat and trim options are PTFE, RPTFE, NYLON and Acetal. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Built to API 6D, API 607, API 6FA, ASME B16.34 and ASME B16.5.
Available pressure classes
Pressure classes this product is rated to.
