2 Pcs Design Ball Valve Full Bore

Name: 2 Pcs Design Ball Valve Full Bore
Brand: Euro Flow Control
SKU: EFC-113

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN32 to DN200
Pressure Class: PN16
End connection: Flanged

Standards

Design & manufacture: DIN 3357, DIN EN 1092-1, API 598, DIN EN 12266, DIN EN 558-1-14
Face to face: DIN EN 558-1-14

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Ball
Stem
Body Seat
Lever
Nut
Stud

Dimensions per size(9 sizes)

Size	L (mm)	H (mm)	OD (mm)	Ok (mm)	Og (mm)	b (mm)	OLxn (mm)	Weight
DN32	130	110	140	100	78	18	Ø18x4	9 kg
DN40	140	160	150	110	88	18	Ø18x4	13 kg
DN50	150	160	165	125	102	18	Ø18x4	19 kg
DN65	170	170	185	145	122	18	Ø18x4	29 kg
DN80	180	210	200	160	138	20	Ø18x8	40 kg
DN100	190	240	220	180	158	20	Ø18x8	55 kg
DN125	200	280	250	210	188	22	Ø18x8	80 kg
DN150	210	330	285	240	212	22	Ø22x8	120 kg
DN200	230	400	340	295	268	24	Ø23x12	175 kg

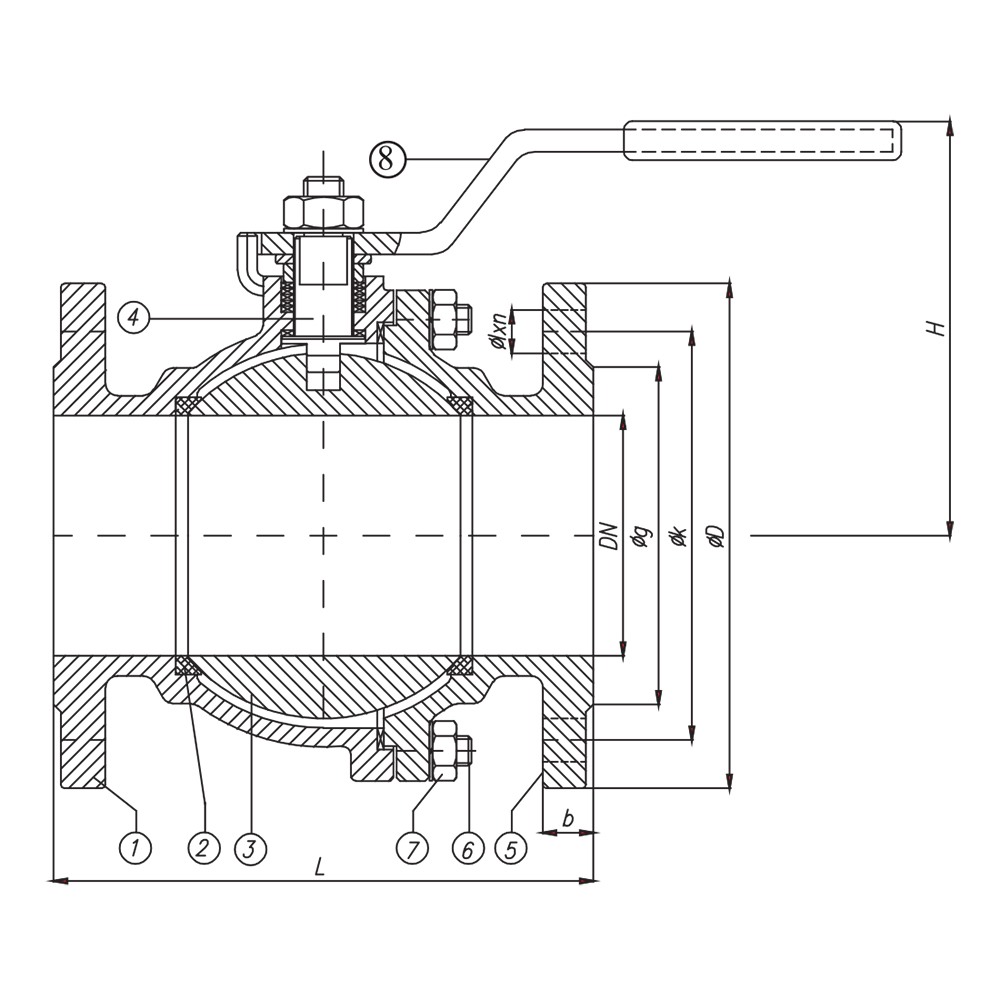

Technical drawings(1 page)

Actuation options

Manual lever

Features

Two-piece body construction
Full bore design providing unrestricted flow
PTFE body seats
Stainless steel ball and stem
Manual lever operation
Flanged end connections to DIN EN 1092-1

Description

A two-piece design full bore flanged ball valve rated to PN16. The valve body and bonnet are constructed from GG25 cast iron, with an SS420/SS304 stainless steel ball and PTFE body seats. Available in sizes DN32 to DN200 with flanged end connections to DIN EN 1092-1.
