SS 3PC Ball Valve M3 - ISO 5211 - BSP
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN8 to DN100
- Pressure Class
- 63 bar
- End connection
- Threaded
- Operating temperature
- -20°C to 180°C
Standards
- Mounting
- ISO 5211
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Ball
- Seat
- Stem
- Packing
- Bolt
- Cap
- Gland
- Lever
- Lever Cover
- Lock
- Nut Body
- Nut Stem
- Washer
Dimensions per size(11 sizes)
| Size | L (mm) | D (mm) | H (mm) | T (mm) | Re (BSP) | Top flange | Weight |
|---|---|---|---|---|---|---|---|
| DN8 | 65 | 8 | 65 | 131 | 1/4" | F03/F04 | — |
| DN10 | 65 | 10 | 65 | 131 | 3/8" | F03/F04 | — |
| DN15 | 75 | 15 | 63 | 131 | 1/2" | F03/F04 | — |
| DN20 | 80 | 20 | 74 | 131 | 3/4" | F03/F04 | — |
| DN25 | 90 | 25 | 86 | 167 | 1" | F04/F05 | — |
| DN32 | 110 | 32 | 95 | 167 | 1-1/4" | F04/F05 | — |
| DN40 | 120 | 40 | 116 | 193 | 1-1/2" | F05/F07 | — |
| DN50 | 140 | 50 | 122 | 193 | 2" | F05/F07 | — |
| DN65 | 185 | 65 | 147 | 242 | 2-1/2" | F07/F10 | — |
| DN80 | 205 | 80 | 153 | 272 | 3" | F07/F10 | — |
| DN100 | 235 | 100 | 167 | 295 | 4" | F07/F10 | — |

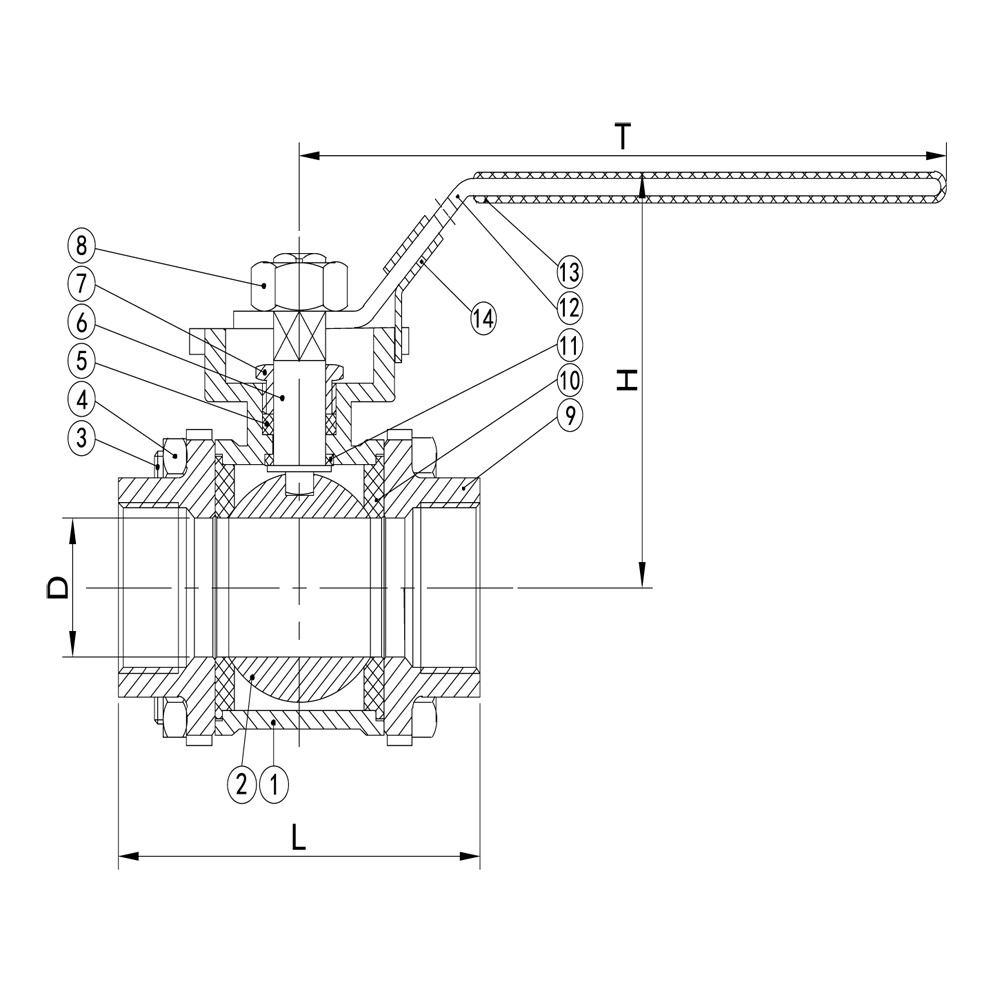

Technical drawings(1 page)
Operating media
Typical applications
- water
- oil and gas
Actuation options
Features
- 3-piece body construction
- BSP threaded end connections
- ISO 5211 direct mounting pad
- PTFE seats and packing
- Lever handle with PVC cover and lock device
- Available in SS304 and SS316 trim options
Description
A 3-piece stainless steel ball valve with BSP threaded ends, rated to 63 bar across a size range of DN8 to DN100. Features ISO 5211 direct mounting pad for actuator fitment. Suitable for water, oil, and gas applications in the temperature range of -20 to 180°C.
Selection notes
This ball valve is a 3-piece and full bore pattern, supplied for threaded installation.
Sizes run DN8 to DN100, in 63 bar.
The body is offered in CF8 and CF8M, so the grade can be matched to the service rather than the other way round.
Seat and trim options are PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, oil and gas.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -20°C to 180°C.
Built to ISO 5211.
