SS 3PC Ball Valve M3 - BSP
Specifications
Confirmed at quote- Size Range
- DN15 to DN100
- Pressure Class
- 63 bar
- End connection
- Threaded
- Operating temperature
- -20°C to 180°C
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Ball
- Seat
- Stem
- Packing
- Bolt
- Cap
- Gland
- Lever
- Lever Cover
- Lock
- Nut
- Washer

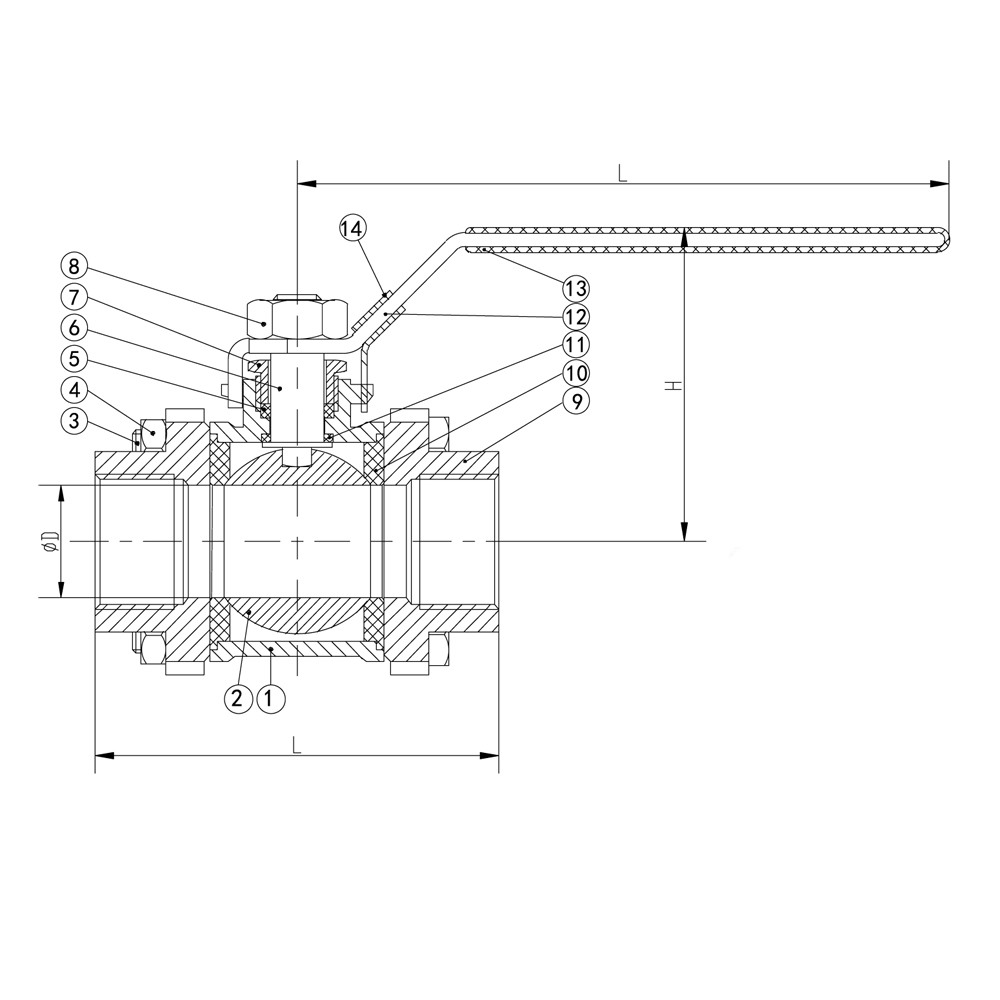

Dimensions per size(9 sizes)
| Size | L (mm) | D (mm) | H (mm) | T (mm) | Rc (BSP) | Weight |
|---|---|---|---|---|---|---|
| DN15 | 75 | 15 | 62 | 107 | 1/2" | — |
| DN20 | 80 | 20 | 65 | 120 | 3/4" | — |
| DN25 | 90 | 25 | 71 | 126 | 1" | — |
| DN32 | 110 | 32 | 85 | 143 | 1-1/4" | — |
| DN40 | 120 | 40 | 90 | 160 | 1-1/2" | — |
| DN50 | 140 | 50 | 100 | 171 | 2" | — |
| DN65 | 185 | 65 | 121 | 205 | 2-1/2" | — |
| DN80 | 205 | 80 | 141 | 235 | 3" | — |
| DN100 | 235 | 100 | 169 | 296 | 4" | — |
Operating media
Typical applications
- water
- oil and gas
Actuation options
Features
- 3-piece body construction
- BSP threaded end connections
- PTFE seat and packing
- Lever operator with locking device
- Stainless steel body options CF8 and CF8M
- Ball available in SS304 or SS316
Description
A 3-piece stainless steel ball valve with BSP threaded ends, rated to 63 bar. Available in sizes DN15 to DN100 for use with water, oil and gas media. Features a manual lever operator with PVC lever cover and a PTFE seat and packing.
Selection notes
This ball valve is a 3-piece pattern, supplied for threaded installation.
Sizes run DN15 to DN100, in 63 bar.
The body is offered in CF8 and CF8M, so the grade can be matched to the service rather than the other way round.
Seat and trim options are PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, oil and gas.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -20°C to 180°C.
