SS 2PC Ball Valve M3 - BSP
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN8 to DN100
- Pressure Class
- 63 bar
- End connection
- Threaded
- Operating temperature
- -20°C to 180°C
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Ball
- Seat
- Stem
- Packing
- Gasket
- Cap
- Gland
- Lever
- Lever Cover
- Lock
- Nut
- Washer
Dimensions per size(11 sizes)
| Size | L (mm) | D (mm) | H (mm) | T (mm) | SxS | Weight |
|---|---|---|---|---|---|---|
| DN8 | 55 | 8 | 50 | 89 | 1/4 in (Rc BSP) | — |
| DN10 | 60 | 10 | 50 | 89 | 3/8 in (Rc BSP) | — |
| DN15 | 75 | 15 | 56 | 107 | 1/2 in (Rc BSP) | — |
| DN20 | 80 | 20 | 61 | 120 | 3/4 in (Rc BSP) | — |
| DN25 | 90 | 25 | 67 | 126 | 1 in (Rc BSP) | — |
| DN32 | 110 | 32 | 78 | 143 | 1-1/4 in (Rc BSP) | — |
| DN40 | 120 | 40 | 83 | 160 | 1-1/2 in (Rc BSP) | — |
| DN50 | 140 | 50 | 96 | 171 | 2 in (Rc BSP) | — |
| DN65 | 185 | 65 | 124 | 205 | 2-1/2 in (Rc BSP) | — |
| DN80 | 205 | 80 | 145 | 235 | 3 in (Rc BSP) | — |
| DN100 | 235 | 100 | 162 | 296 | 4 in (Rc BSP) | — |

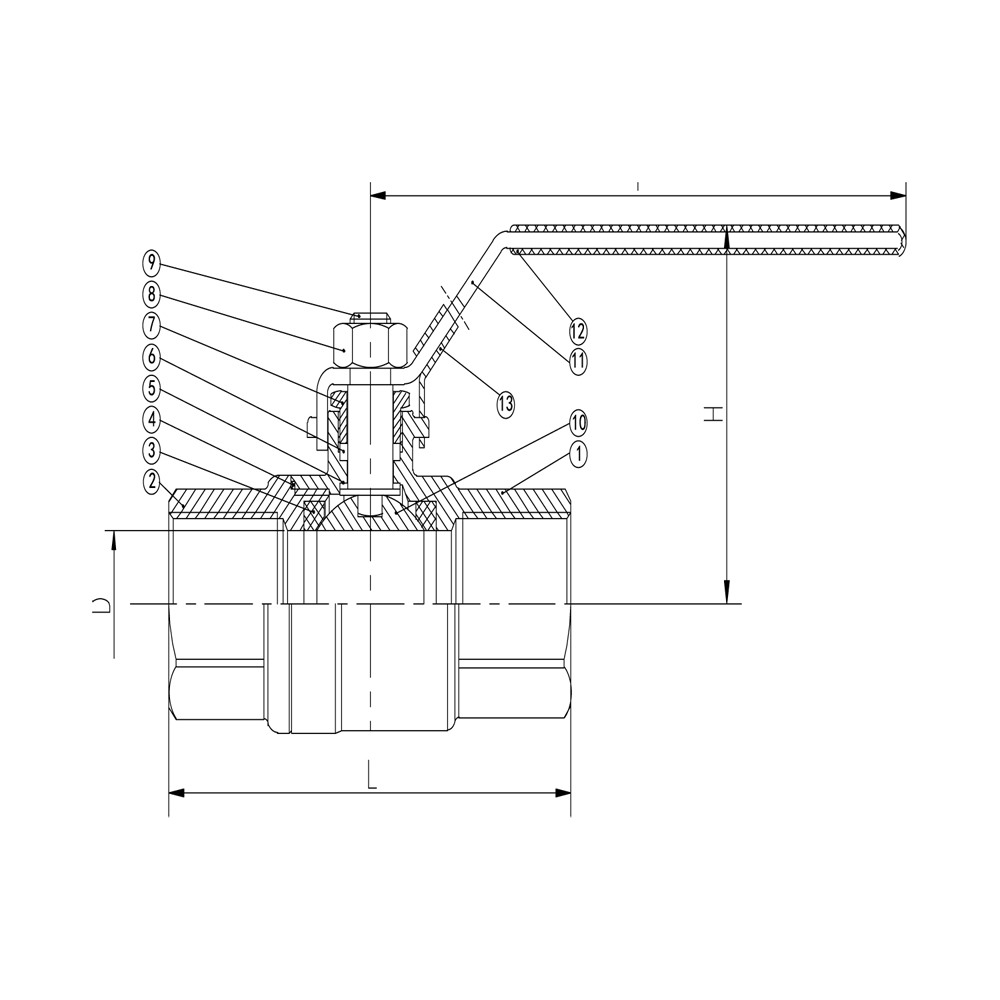

Technical drawings(1 page)
Operating media
Typical applications
- water
- oil and gas
Actuation options
Features
- Two-piece body construction
- BSP threaded end connections
- PTFE seat, gasket, washer, and packing
- Ball and stem available in SS 304 or SS 316
- Body available in CF8 or CF8M
- Lever with PVC cover and integral lock
Description
A two-piece stainless steel ball valve with BSP threaded end connections, rated to 63 bar. Available in sizes DN8 to DN100 with PTFE seats and stainless steel body options in CF8 or CF8M. Suitable for water, oil, and gas applications across a temperature range of -20 to 180°C.
Selection notes
This ball valve is a 2-piece pattern, supplied for threaded installation.
Sizes run DN8 to DN100, in 63 bar.
The body is offered in CF8 and CF8M, so the grade can be matched to the service rather than the other way round.
Seat and trim options are PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, oil and gas.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -20°C to 180°C.
