Bronze Ball Valve - BSP
Specifications
Confirmed at quote- Size Range
- DN8 to DN100
- Pressure Class
- 20 bar
- End connection
- Threaded
- Operating temperature
- max 170°C
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Ball
- Seat
- Stem
- Packing
- Gasket
- Gland Nut
- Lever
- Lever Cover
- Nut
- Retainer
- Stem Gasket

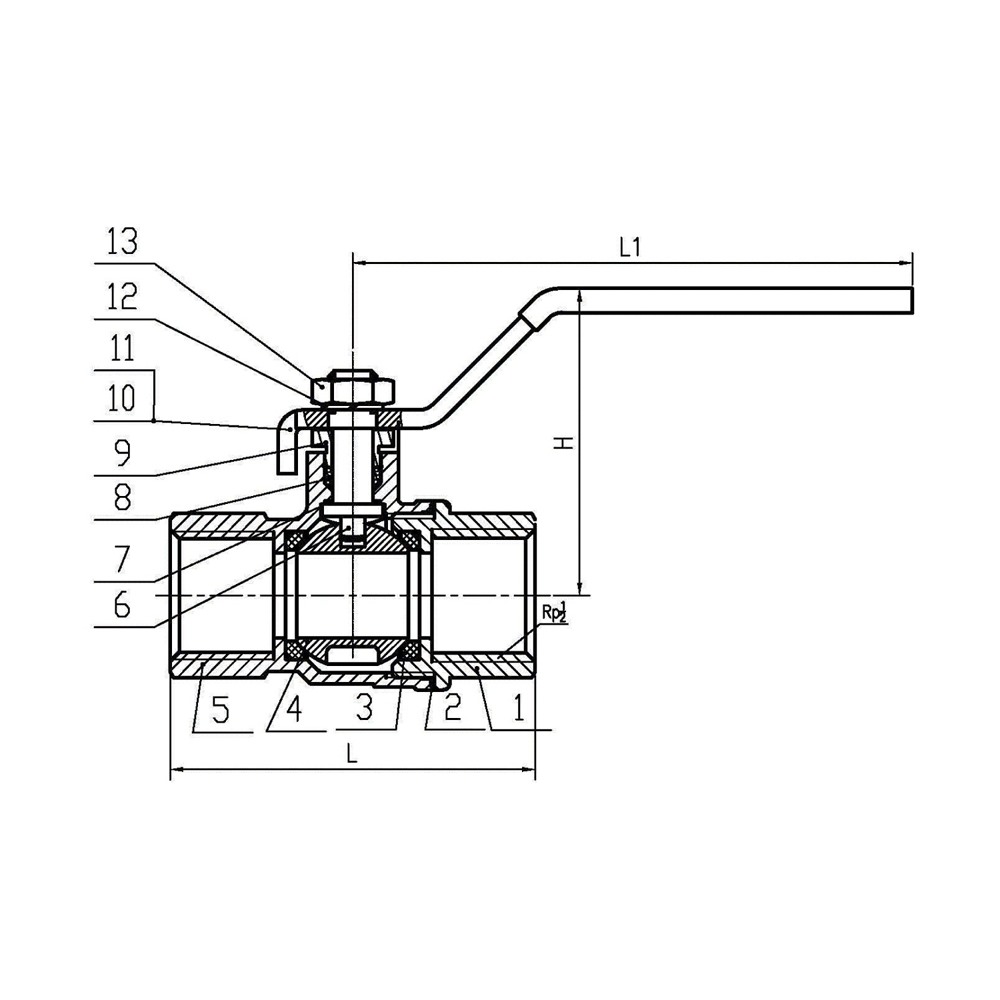

Dimensions per size(11 sizes)
| Size | L (mm) | L1 (mm) | H (mm) | Ø (mm) | Rc | Weight |
|---|---|---|---|---|---|---|
| DN8 | 43 | 70 | 28 | 9.5 | 1/4" | — |
| DN10 | 46 | 70 | 28 | 9.5 | 3/8" | — |
| DN15 | 53 | 95 | 44 | 14 | 1/2" | — |
| DN20 | 61 | 110 | 51 | 19 | 3/4" | — |
| DN25 | 71 | 110 | 55 | 24 | 1" | — |
| DN32 | 85 | 140 | 65 | 31 | 1-1/4" | — |
| DN40 | 92 | 140 | 70 | 38 | 1-1/2" | — |
| DN50 | 114 | 160 | 83 | 49 | 2" | — |
| DN65 | 134 | 220 | 118 | 63 | 2-1/2" | — |
| DN80 | 152 | 270 | 132 | 73 | 3" | — |
| DN100 | 182 | 280 | 150 | 90 | 4" | — |
Operating media
Typical applications
- water
- oil and gas
Actuation options
Description
Bronze threaded ball valve with BSP end connections, rated to 20 bar. Available in sizes DN8 to DN100, suitable for water, oil, and gas applications up to 170°C. Features a PTFE seat and stem gasket with a chrome-plated steel lever and PVC lever cover.
Selection notes
This ball valve is a full bore pattern, supplied for threaded installation.
Sizes run DN8 to DN100, in 20 bar.
The body is Bronze Rg5.
Seat and trim options are PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include water, oil and gas.
It is catalogued for Water & Wastewater, Marine & Offshore, HVAC and Industrial Process.
Working temperature is max 170°C.
