Monoblock Wafer Type Ball Valve

Name: Monoblock Wafer Type Ball Valve
Brand: Euro Flow Control
SKU: EFC-108

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN15 to DN100
Pressure Class: PN10, PN16
End connection: Wafer

Standards

Design & manufacture: ASME B16.34, EN 1092-1, EN 12266, ISO 5211
Face to face: Vis Vana Design

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Ball
Seat
Stem
Packing
Gasket
Gland
Lever
Lock
Nut
Thrust Gasket

Dimensions per size(9 sizes)

Size	L (mm)	d (mm)	H (mm)	C (mm)	OD (mm)	OK (mm)	Og (mm)	b (mm)	f (mm)	n-M	Top flange	SxS	Weight
DN15	42	15	76	110	95	65	45	14	2	4-M12	F03/F04	9 mm	1.4 kg
DN20	44	20	81	110	105	75	58	16	2	4-M12	F03/F04	9 mm	1.9 kg
DN25	50	25	90	160	115	85	68	16	2	4-M12	F04/F05	11 mm	2.4 kg
DN32	60	30	102	160	140	100	78	16	2	4-M16	F04/F05	11 mm	3.6 kg
DN40	65	36	115	185	150	110	88	16	3	4-M16	F05/F07	14 mm	4.4 kg
DN50	80	46	122	185	165	125	102	18	3	4-M16	F05/F07	14 mm	5.5 kg
DN65	110	57	168	305	185	145	122	18	3	4-M16	F07/F10	19 mm	8.6 kg
DN80	120	73	178	305	200	160	138	20	3	8-M16	F07/F10	19 mm	11 kg
DN100	150	90	198	305	220	180	158	20	3	8-M16	F07/F10	19 mm	14 kg

Operating torque(9 sizes)

Size
Size
DN15
DN20
DN25
DN32
DN40
DN50
DN65
DN80
DN100

Wet opening torque, indicative. Size the actuator with margin and confirm at quotation.

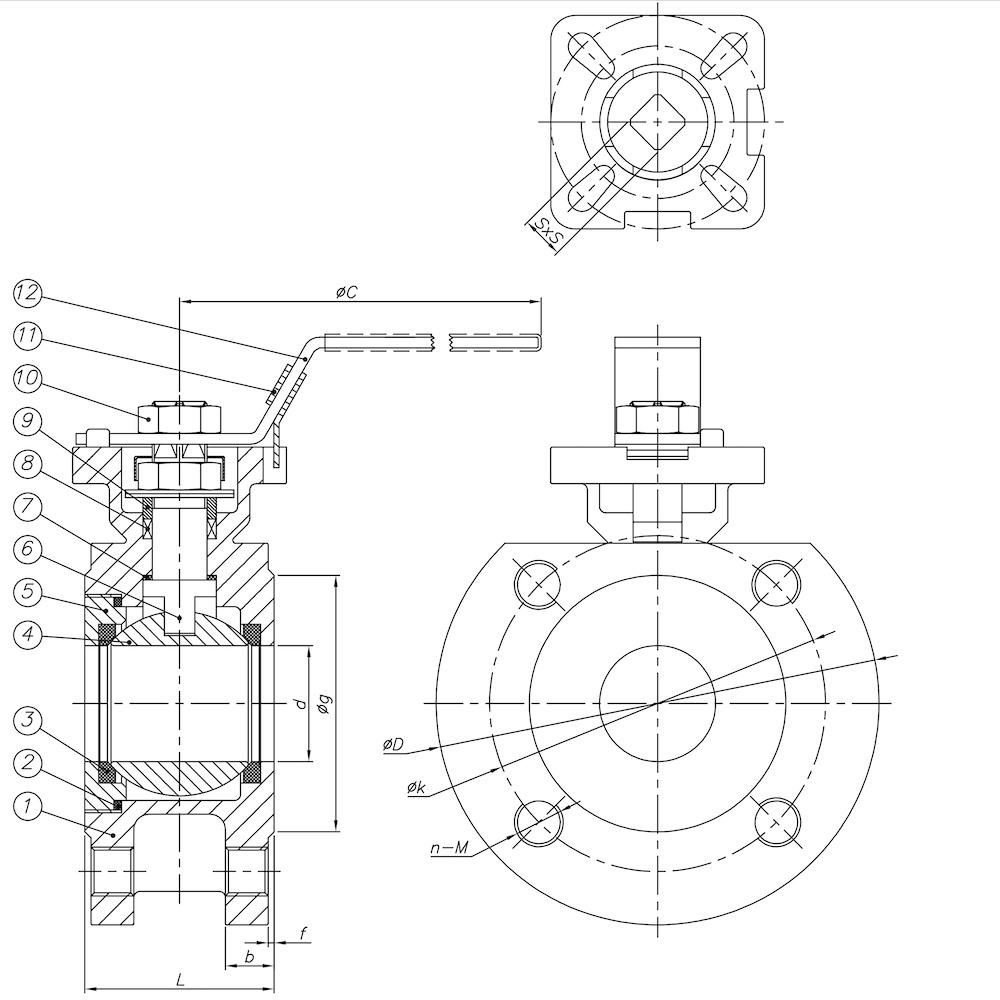

Technical drawings(1 page)

Actuation options

Manual leverPneumatic single-actingElectric 230V AC

Features

Monoblock wafer type body
ISO 5211 top flange mounting
Full bore ball
PTFE seat and packing

Description

A wafer (monoblock) ball valve designed to ASME B16.34, available in sizes DN15 to DN100 at PN16 pressure rating. The valve features a monoblock body construction with flanged ends conforming to EN 1092-1 PN10/PN16. Body and bonnet are available in carbon steel or stainless steel variants, with PTFE seats and a lever actuator as standard.

Selection notes

This ball valve is a wafer type and monoblock pattern, supplied for wafer installation.

Sizes run DN15 to DN100, in PN10, PN16.

The body is offered in WCB, SS 304 and SS 316, so the grade can be matched to the service rather than the other way round.

Seat and trim options are PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Industrial Process.

Built to ASME B16.34, EN 1092-1, EN 12266, ISO 5211 and Vis Vana Design.
