3 Pcs Design Ball Valve Full Bore
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN150
- Pressure Class
- PN16, PN25, PN40
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3357-2, EN 558 Serie 1, DIN 3202 F1, EN 1092, EN 12266, API 598
- Face to face
- EN 558 Serie 1, DIN 3202 F1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Ball
- Seat
- Stem
- Flange
- Gasket Body
- Gasket Gland
- Gland Bush
- Lever
- Nut Flange
- Nut Stem
- Stopper
- Stud
- Washer Body
- Washer Flange
Dimensions per size(11 sizes)
| Size | L (mm) | G_max (mm) | H_max (mm) | PN16 D (mm) | PN16 k (mm) | PN25 D (mm) | PN25 k (mm) | PN40 D (mm) | PN40 k (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 130 | 160 | 95 | 95 | 65 | 95 | 65 | 95 | 65 | 2.3 kg |
| DN20 | 150 | 180 | 110 | 105 | 75 | 105 | 75 | 105 | 75 | 3.8 kg |
| DN25 | 160 | 180 | 115 | 115 | 85 | 115 | 85 | 115 | 85 | 4 kg |
| DN32 | 180 | 250 | 130 | 140 | 100 | 140 | 100 | 140 | 100 | 6.5 kg |
| DN40 | 200 | 300 | 135 | 150 | 110 | 150 | 110 | 150 | 110 | 8.55 kg |
| DN50 | 230 | 320 | 145 | 165 | 125 | 165 | 125 | 165 | 125 | 13.55 kg |
| DN65 | 290 | 350 | 155 | 185 | 145 | 185 | 145 | 185 | 145 | 20.15 kg |
| DN80 | 310 | 450 | 195 | 200 | 160 | 200 | 160 | 200 | 160 | 29.5 kg |
| DN100 | 350 | 500 | 220 | 220 | 180 | 235 | 190 | 235 | 190 | 40.3 kg |
| DN125 | 400 | 700 | 265 | 250 | 210 | 270 | 220 | 270 | 220 | 68 kg |
| DN150 | 350 | 700 | 300 | 285 | 240 | 300 | 250 | 300 | 250 | 86 kg |

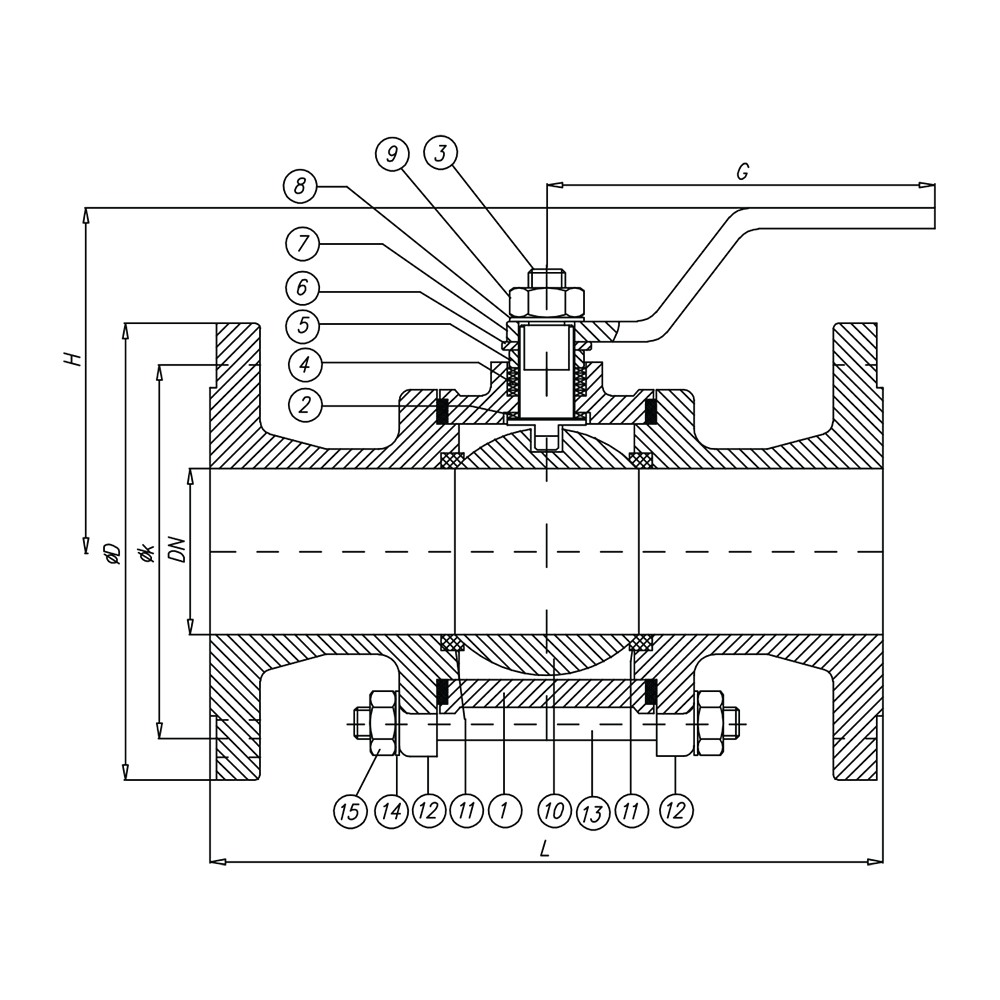

Technical drawings(1 page)
Actuation options
Features
- 3-piece body construction
- Full bore design allowing unobstructed flow
- Flanged end connections per EN 1092
- PTFE seat and body gaskets
- Available in multiple body materials including cast iron, cast steel, and bronze
- Ball available in stainless steel (AISI 304/316) or bronze
- Lever-operated manual actuation as standard
Description
A 3-piece full bore flanged ball valve designed to DIN 3357-2, available in pressure ratings PN16, PN25, and PN40. The valve covers sizes DN15 to DN150 with flanged end connections per EN 1092. Face-to-face dimensions conform to EN 558 Serie 1 and DIN 3202 F1.
Selection notes
This ball valve is a full bore and 3-piece design pattern, supplied for flanged installation.
Sizes run DN15 to DN150, in PN16, PN25, PN40.
The body is offered in GG 25, GGG-40 SS, GS-C 25 and Bronze, so the grade can be matched to the service rather than the other way round.
Seat and trim options are PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to DIN 3357-2, EN 558 Serie 1, DIN 3202 F1, EN 1092 and EN 12266.
Available pressure classes
Pressure classes this product is rated to.
