Ball Valve Reduced Bore
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN20 to DN250
- Pressure Class
- PN16
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3357, TS 3148/19, EN 558 Serie 1, DIN 3202 F1, EN 1092, TS 810 / DIN 2501, EN 12266, API 598
- Face to face
- EN 558 Serie 1, DIN 3202 F1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Ball
- Stem
- Bolt Items 21 29
- Flange
- Gasket Alt Teflonu Item 2
- Gasket Item 25
- Gasket Teflon Ring Item 4
- Gland Bush
- Lever
- Lever Adaptor
- Nut Item 15
- Nut Item 9
- O Ring Items 17 18 19 22
- Pin
- Safety Wire
- Spring Seal
- Stem Bush
- Stopper
- Stud
- Support Ring
- Washer Item 14
- Washer Item 28
- Washer Item 8
Dimensions per size(12 sizes)
| Size | L (mm) | G_max (mm) | H_max (mm) | D (mm) | k (mm) | Weight |
|---|---|---|---|---|---|---|
| DN20 | 150 | 160 | 95 | 105 | 75 | 2.7 kg |
| DN25 | 160 | 180 | 110 | 115 | 85 | 3.5 kg |
| DN32 | 180 | 180 | 115 | 140 | 100 | 5.4 kg |
| DN40 | 200 | 250 | 130 | 150 | 110 | 6.8 kg |
| DN50 | 230 | 300 | 135 | 165 | 125 | 9.55 kg |
| DN65 | 290 | 320 | 145 | 185 | 145 | 15.15 kg |
| DN80 | 310 | 350 | 155 | 200 | 160 | 21.6 kg |
| DN100 | 350 | 450 | 195 | 220 | 180 | 30.2 kg |
| DN125 | 400 | 500 | 220 | 250 | 210 | 44.8 kg |
| DN150 | 450 | 700 | 265 | 285 | 240 | 72.2 kg |
| DN200 | 400 | 700 | 300 | 340 | 295 | 100 kg |
| DN250 | 450 | 1000 | 380 | 405 | 355 | 141 kg |

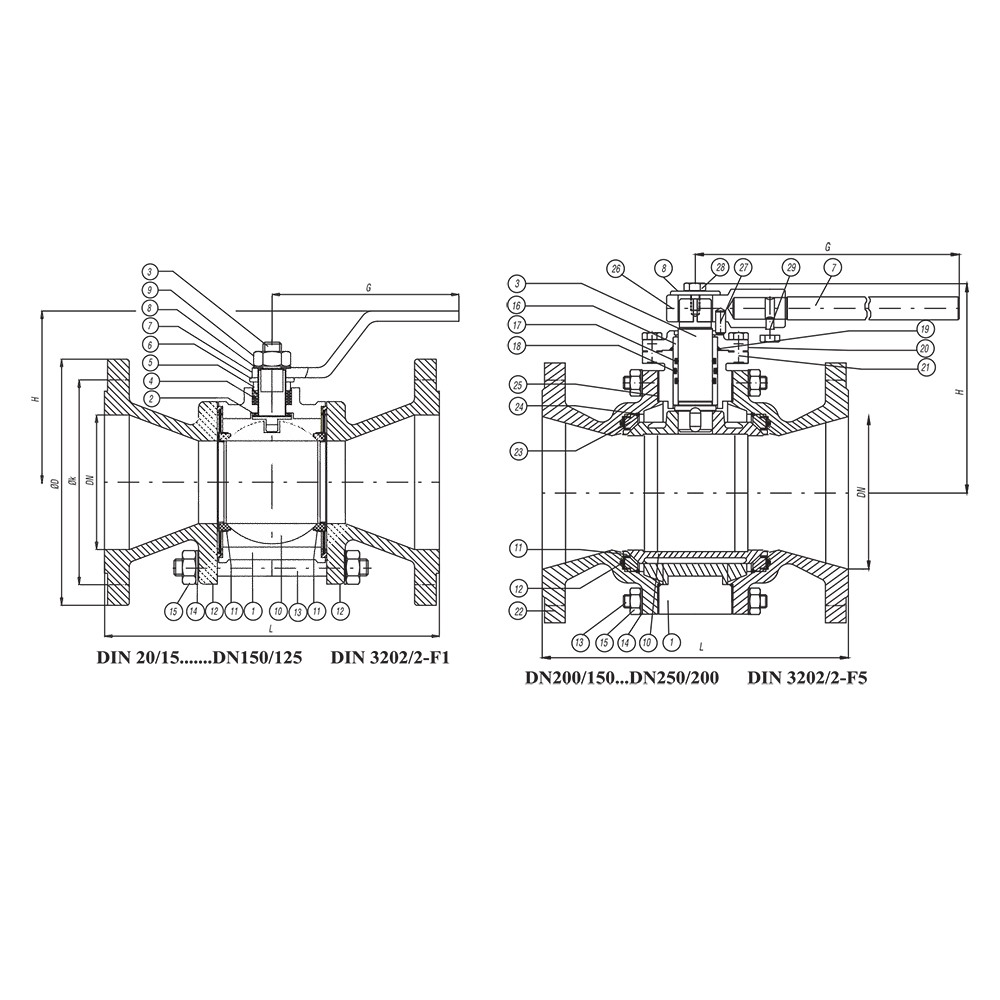

Technical drawings(1 page)
Actuation options
Description
Reduced bore flanged ball valve rated to PN16, available in sizes DN20 to DN250. Designed to DIN 3357 and TS 3148/19 with cast iron or ductile iron body and PTFE/AISI 304 internal components. Face-to-face dimensions per EN 558 Series 1 and DIN 3202 F1; flange ends to EN 1092 and TS 810/DIN 2501 PN16; tested to EN 12266 and API 598.
Selection notes
This ball valve is a reduced bore pattern, supplied for flanged installation.
Sizes run DN20 to DN250, in PN16.
The body is offered in GG 25 and GGG-40-50, so the grade can be matched to the service rather than the other way round.
It is catalogued for Water & Wastewater and Industrial Process.
Built to DIN 3357, TS 3148/19, EN 558 Serie 1, DIN 3202 F1 and EN 1092.
