Stainless Steel Ball Valve Full Bore
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN150
- Pressure Class
- PN10, PN16, PN25, PN40
- End connection
- Flanged
Standards
- Design & manufacture
- DIN 3357-2, TS 3148/17, EN 558 Serie 1, DIN 3202 F1, EN 1092, EN 12266, API 598
- Face to face
- EN 558 Serie 1, DIN 3202 F1
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Ball
- Seat
- Stem
- Flange
- Gasket Alt Teflonu
- Gasket Teflon Ring
- Gland Bush
- Lever
- Nut Body
- Nut Flange
- Stopper
- Stud
- Washer Body
- Washer Flange
Dimensions per size(11 sizes)
| Size | L (mm) | G max (mm) | H max (mm) | PN10/16 D (mm) | PN10/16 k (mm) | PN25 D (mm) | PN25 k (mm) | PN40 D (mm) | PN40 k (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| DN15 | 130 | 160 | 90 | 95 | 65 | 95 | 65 | 95 | 65 | 2.3 kg |
| DN20 | 150 | 180 | 110 | 105 | 75 | 105 | 75 | 105 | 75 | 3.8 kg |
| DN25 | 160 | 180 | 115 | 115 | 85 | 115 | 85 | 115 | 85 | 4 kg |
| DN32 | 180 | 250 | 130 | 140 | 100 | 140 | 100 | 140 | 100 | 6.5 kg |
| DN40 | 200 | 300 | 135 | 150 | 110 | 150 | 110 | 150 | 110 | 8.55 kg |
| DN50 | 230 | 320 | 155 | 165 | 125 | 165 | 125 | 165 | 125 | 13.55 kg |
| DN65 | 290 | 350 | 195 | 185 | 145 | 185 | 145 | 185 | 145 | 20.15 kg |
| DN80 | 310 | 450 | 220 | 200 | 160 | 200 | 160 | 200 | 160 | 29.5 kg |
| DN100 | 350 | 500 | 265 | 220 | 180 | 235 | 190 | 235 | 190 | 40.3 kg |
| DN125 | 400 | 700 | 265 | 250 | 210 | 270 | 220 | 270 | 220 | 68 kg |
| DN150 | 480 | 700 | 300 | 285 | 240 | 300 | 250 | 300 | 250 | 86 kg |

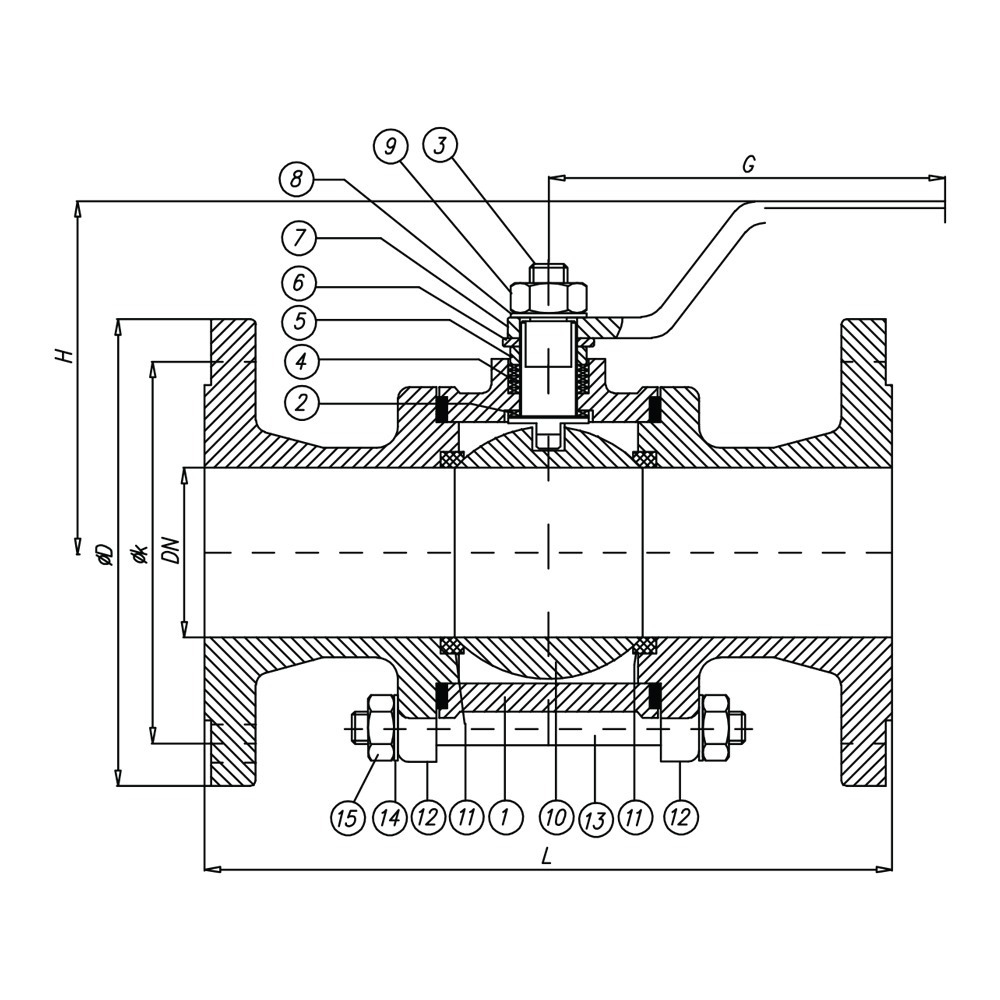

Technical drawings(1 page)
Actuation options
Features
- Full bore design
- Three-piece flanged ball valve
Description
A full bore stainless steel ball valve designed to DIN 3357-2 and TS 3148/17. Available in sizes DN15 to DN150 with pressure ratings PN10, PN16, PN25, and PN40. Features flanged end connections per EN 1092 with face-to-face dimensions per EN 558 Series 1 and DIN 3202 F1.
Selection notes
This ball valve is a full bore pattern, supplied for flanged installation.
Sizes run DN15 to DN150, in PN10, PN16, PN25, PN40.
The body is offered in AISI 304 and AISI 316, so the grade can be matched to the service rather than the other way round.
Seat and trim options are PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
It is catalogued for Industrial Process.
Built to DIN 3357-2, TS 3148/17, EN 558 Serie 1, DIN 3202 F1 and EN 1092.
