Ball Valve, Full Bore (Marine)
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN15 to DN250
- Pressure Class
- PN6, PN10, PN16
- End connection
- Flanged
Standards
- Face to face
- DIN 3202-F4, DIN 3202-F5
- Flange & end dimension
- EN 1092
- Mounting
- ISO 5211
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Bonnet
- Ball
- Seat
- Stem
- Packing
- Gasket
- O-Ring
- Gland
- Lever
- Lock
- Nut
- Screw
- Screw Nut
- Spring Washer
- Thrust Gasket
Dimensions per size(13 sizes)
| Size | L (mm) | Weight |
|---|---|---|
| DN15 | 115 | 2.7 kg |
| DN20 | 120 | 3.4 kg |
| DN25 | 125 | 4.3 kg |
| DN32 | 130 | 6 kg |
| DN40 | 140 | 7 kg |
| DN50 | 150 | 9.2 kg |
| DN65 | 170 | 13 kg |
| DN80 | 180 | 15.9 kg |
| DN100 | 190 | 19 kg |
| DN125 | 325 | 35.9 kg |
| DN150 | 350 | 47 kg |
| DN200 | 400 | 77.6 kg |
| DN250 | 450 | 174.3 kg |

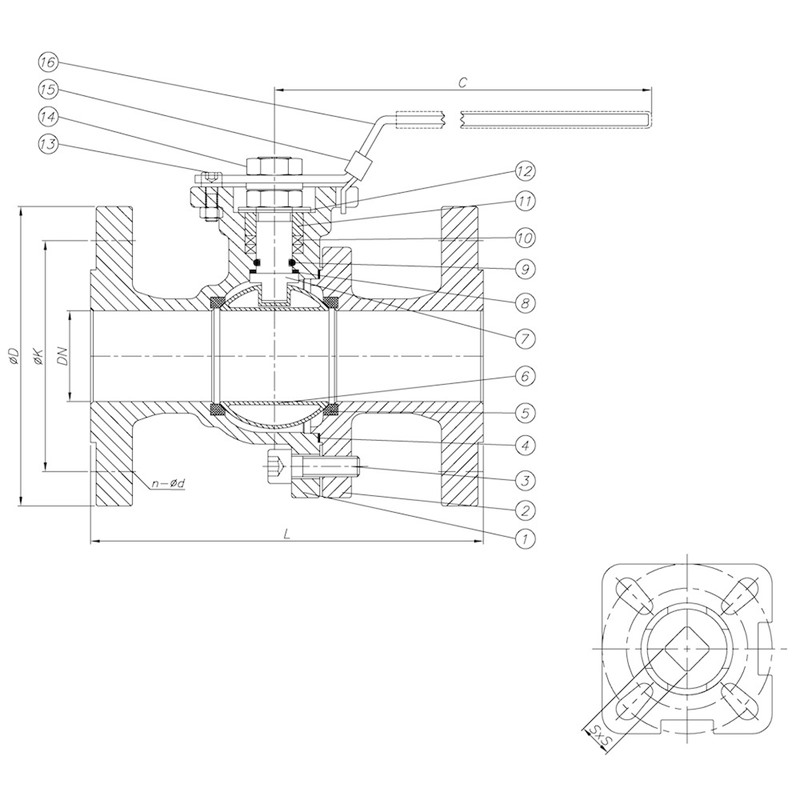

Technical drawings(1 page)
Operating media
Actuation options
Features
- Full bore design
- Bronze Rg5 / CuSn10 / C95800 body and bonnet
- PTFE seats and packing
- FKM O-ring
- SS 316 or Bronze ball options
- ISO 5211 top flange for actuator mounting
- Lever with integrated lock
Description
Full bore flanged ball valve constructed from bronze Rg5 (CuSn10 / C95800) body and bonnet. Designed for marine applications with a stainless steel or bronze ball, PTFE seats and packing, and a lever actuator. Available in DN15 to DN250 with PN6, PN10, and PN16 flange connections per EN 1092.
Selection notes
This ball valve is a full bore and marine pattern, supplied for flanged installation.
Sizes run DN15 to DN250, in PN6, PN10, PN16.
The body is offered in Bronze Rg5, CuSn10 and C95800, so the grade can be matched to the service rather than the other way round.
Seat and trim options are PTFE. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.
Stated service media include marine applications.
It is catalogued for Industrial Process.
Built to DIN 3202-F4, DIN 3202-F5, ISO 5211 and EN 1092.
