Swing type female thread check valve9 of 53 check valvesWafer Check Valve
Check Valve

Swing Check Valve

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote
Size Range
DN40 to DN1200
Pressure Class
PN10, PN16, PN25, PN40
End connection
Flanged
Operating temperature
-10°C to 120°C

Standards

Design & manufacture
DIN 3202/2-F6
Inspection & test
EN 12266, API 598
Face to face
EN 558 Serie 48, DIN 3202 F6, TS 457/1, DIN EN 558-1/48
Flange & end dimension
DIN EN 1092-1-2 PN 10, DIN EN 1092-1-2 PN 16, DIN EN 1092-1-2 PN 25, DIN EN 1092-1-2 PN 40

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Disc
Seat
Stem
Gasket
Bolt
Disc Arm
Disc Seat
Lever
Pin
Weight
Dimensions per size(80 sizes)
SizeD (mm)k (mm)L (mm)H (mm)B (mm)a (mm)OeWeight
DN40 (PN10)150110180100112200O15
—
DN40 (PN16)150110180100112200O15
—
DN40 (PN25)150110180100112200O15
—
DN40 (PN40)150110180100112200O15
—
DN50 (PN10)165125200110112200O15
—
DN50 (PN16)165125200110112200O15
—
DN50 (PN25)165125200110112200O15
—
DN50 (PN40)165125200110112200O15
—
DN65 (PN10)185145240130152300O15
—
DN65 (PN16)185145240130152300O15
—
DN65 (PN25)185145240130152300O15
—
DN65 (PN40)185145240130152300O15
—
DN80 (PN10)200160260145158300O15
—
DN80 (PN16)200160260145158300O15
—
DN80 (PN25)200160260145158300O15
—
DN80 (PN40)200160260145158300O15
—
DN100 (PN10)220180300170240300O15
—
DN100 (PN16)220180300170240300O15
—
DN100 (PN25)235190300170240300O15
—
DN100 (PN40)235190300170240300O15
—
DN125 (PN10)250210350195275400O25
—
DN125 (PN16)250210350195275400O25
—
DN125 (PN25)270220350195275400O25
—
DN125 (PN40)270220350195275400O25
—
DN150 (PN10)285240400205336400O25
—
DN150 (PN16)285240400205336400O25
—
DN150 (PN25)300250400205336400O25
—
DN150 (PN40)300250400205336400O25
—
DN200 (PN10)340295500260400400O25
—
DN200 (PN16)340295500260400400O25
—
DN200 (PN25)360310500260400400O25
—
DN200 (PN40)375320500260400400O25
—
DN250 (PN10)395350600340450600O25
—
DN250 (PN16)405355600340450600O25
—
DN250 (PN25)425370600340450600O25
—
DN250 (PN40)450385600340450600O25
—
DN300 (PN10)445400700370500600O40
—
DN300 (PN16)460410700370500600O40
—
DN300 (PN25)485430700370500600O40
—
DN300 (PN40)515450700370500600O40
—
DN350 (PN10)505460800400550600O40
—
DN350 (PN16)520470800400550600O40
—
DN350 (PN25)555490800400550600O40
—
DN350 (PN40)580510800400550600O40
—
DN400 (PN10)565515900450600800O50
—
DN400 (PN16)580525900450600800O50
—
DN400 (PN25)620550900450600800O50
—
DN400 (PN40)660585900450600800O50
—
DN450 (PN10)6155651000500740800O50
—
DN450 (PN16)6405851000500740800O50
—
DN450 (PN25)6706001000500740800O50
—
DN450 (PN40)6856101000500740800O50
—
DN500 (PN10)6706201100630820800O65
—
DN500 (PN16)7156501100630820800O65
—
DN500 (PN25)7306601100630820800O65
—
DN500 (PN40)7556701100630820800O65
—
DN600 (PN10)78072513007001000800O65
—
DN600 (PN16)84077013007001000800O65
—
DN600 (PN25)84577013007001000800O65
—
DN600 (PN40)89079513007001000800O65
—
DN700 (PN10)895840150080011001100O80
—
DN700 (PN16)910840150080011001100O80
—
DN700 (PN25)960875150080011001100O80
—
DN700 (PN40)995900150080011001100O80
—
DN800 (PN10)1015950170090012001200O100
—
DN800 (PN16)1025950170090012001200O100
—
DN800 (PN25)1085990170090012001200O100
—
DN800 (PN40)11401030170090012001200O100
—
DN900 (PN10)111510501900100014001200O100
—
DN900 (PN16)112510501900100014001200O100
—
DN900 (PN25)118510901900100014001200O100
—
DN900 (PN40)125011401900100014001200O100
—
DN1000 (PN10)123011602100110016501200O125
—
DN1000 (PN16)125511702100110016501200O125
—
DN1000 (PN25)132012102100110016501200O125
—
DN1000 (PN40)136012502100110016501200O125
—
DN1200 (PN10)145513802500130016501200O125
—
DN1200 (PN16)148513902500130016501200O125
—
DN1200 (PN25)153014202500130016501200O125
—
DN1200 (PN40)157514602500130016501200O125
—

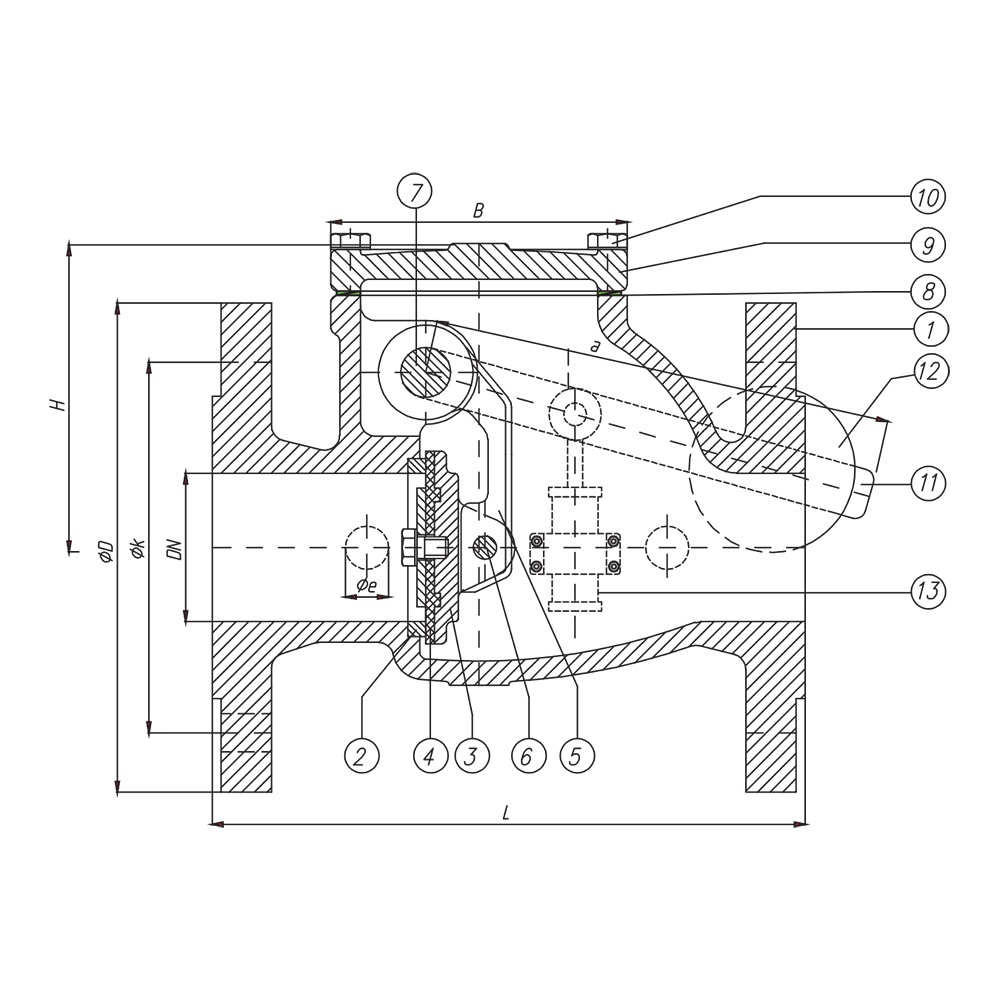

Technical drawings(1 page)

Features

  • Swing disc design with pivoting disc arm
  • Counter weight optional
  • Hydraulic damper optional
  • By-pass connection available (sizes DN40 - DN1200 depending on pressure class)

Description

A swing check valve with flanged ends available in pressure ratings from PN10 to PN40 and sizes DN15 to DN1200. The disc swings on an arm with optional counter weight and hydraulic damper. Face-to-face dimensions conform to EN 558 Serie 48 / DIN 3202 F6.

Selection notes

This check valve is a swing pattern, supplied for flanged installation.

Sizes run DN40 to DN1200, in PN10, PN16, PN25, PN40.

The body is offered in GG 25, GGG-40 and GS-C 25, so the grade can be matched to the service rather than the other way round.

Seat and trim options are Ms 58, SS and Bronze. The seat, not the body, usually sets the temperature and medium limit, so confirm it against the service before ordering.

It is catalogued for Industrial Process.

Working temperature is -10°C to 120°C.

Built to DIN 3202/2-F6, EN 558 Serie 48, DIN 3202 F6, TS 457/1 and DIN EN 558-1/48.

Available pressure classes

Pressure classes this product is rated to.

PN10PN16PN25PN40

Used in

Industrial Process
