API Gate Valve
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- NPS 2 to NPS 16
- Pressure Class
- Class 1500, Class 2500
- End connection
- Flanged (RF, RTJ) · Butt weld
Standards
- Face to face
- ASME B16.10
- Other standards
- API Gate Valve
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Dimensions per size(20 sizes)
| Size | L_RF (mm) | L_RTJ (mm) | L_BW_BB (mm) | L_BW_PSB (mm) | d (mm) | H (mm) | W (mm) | H1 (mm) | W1 (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| Class 1500 NPS 2 / DN50 | 368 | 371 | 368 | 216 | 47 | 430 | 280 | - | - | 70 kg |
| Class 1500 NPS 2 1/2 / DN65 | 419 | 422 | 419 | 254 | 57 | 490 | 300 | - | - | 110 kg |
| Class 1500 NPS 3 / DN80 | 470 | 473 | 470 | 305 | 69 | 540 | 350 | 680 | 310 | 175 kg |
| Class 1500 NPS 4 / DN100 | 546 | 549 | 546 | 406 | 92 | 650 | 400 | 810 | 310 | 270 kg |
| Class 1500 NPS 5 / DN125 | 673 | 676 | 673 | 483 | 125 | 780 | 450 | 920 | 310 | 378 kg |
| Class 1500 NPS 6 / DN150 | 705 | 711 | 705 | 559 | 136 | 835 | 500 | 1035 | 460 | 520 kg |
| Class 1500 NPS 8 / DN200 | 832 | 841 | 832 | 711 | 177 | 925 | 750 | 1180 | 530 | 820 kg |
| Class 1500 NPS 10 / DN250 | 991 | 1000 | 991 | 864 | 222 | 1230 | 900 | 1525 | 600 | 1560 kg |
| Class 1500 NPS 12 / DN300 | 1130 | 1146 | 1130 | 991 | 263 | - | - | 1620 | 600 | 2120 kg |
| Class 1500 NPS 14 / DN350 | 1257 | 1276 | 1257 | 1067 | 288 | - | - | 1905 | 600 | 3306 kg |
| Class 1500 NPS 16 / DN400 | 1384 | 1407 | 1384 | 1194 | 330 | - | - | 2050 | 600 | 3450 kg |
| Class 2500 NPS 2 / DN50 | 451 | 454 | 451 | 279 | 38 | 490 | 280 | 580 | 310 | 100 kg |
| Class 2500 NPS 2 1/2 / DN65 | 508 | 514 | 508 | 330 | 47 | 580 | 300 | 630 | 310 | 150 kg |
| Class 2500 NPS 3 / DN80 | 578 | 584 | 578 | 368 | 57 | 630 | 350 | 765 | 310 | 245 kg |
| Class 2500 NPS 4 / DN100 | 673 | 683 | 673 | 457 | 72 | 725 | 400 | 850 | 310 | 390 kg |
| Class 2500 NPS 5 / DN125 | 794 | 807 | 794 | 533 | 96 | 900 | 500 | 960 | 460 | 550 kg |
| Class 2500 NPS 6 / DN150 | 914 | 927 | 914 | 610 | 111 | 1040 | 600 | 1100 | 530 | 780 kg |
| Class 2500 NPS 8 / DN200 | 1022 | 1038 | 1022 | 762 | 146 | 1150 | 750 | 1150 | 460 | 1260 kg |
| Class 2500 NPS 10 / DN250 | 1270 | 1292 | 1270 | 914 | 184 | 1400 | 900 | 1460 | 600 | 2380 kg |
| Class 2500 NPS 12 / DN300 | 1422 | 1445 | 1422 | 1041 | 218 | - | - | 1660 | 600 | 3250 kg |

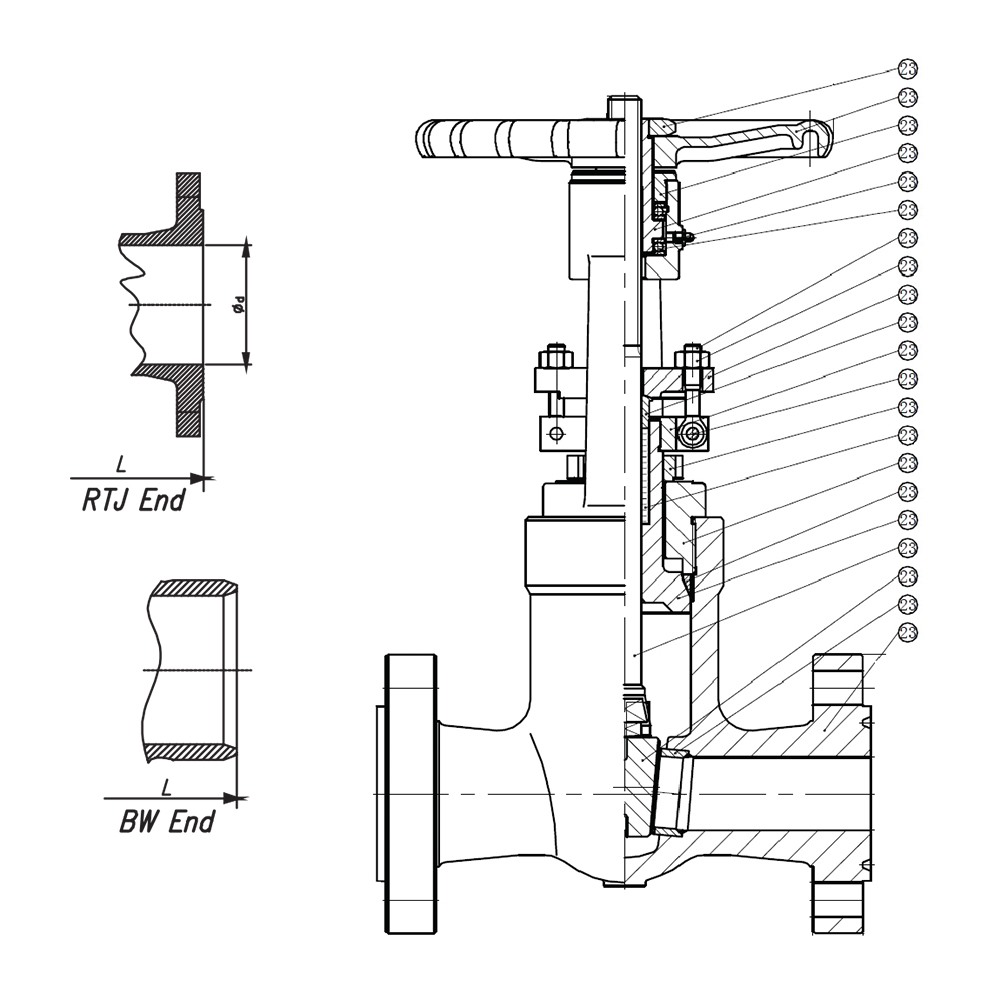

Technical drawings(1 page)
Actuation options
Approvals
Features
- Available in Class 1500 and Class 2500 pressure ratings
- Multiple end connection options: Raised Face (RF), Ring Type Joint (RTJ), Butt Weld Bolted Bonnet (BW BB), and Butt Weld Pressure Seal Bonnet (BW PSB)
- Size range NPS 2 to NPS 16 for Class 1500; NPS 2 to NPS 12 for Class 2500
- Compatible with multiple actuator types including pneumatic, electric, and hydraulic
Description
API gate valves in Class 1500 and Class 2500 pressure ratings. Class 1500 covers NPS 2 to NPS 16 (DN50 to DN400); Class 2500 covers NPS 2 to NPS 12 (DN50 to DN300). End connections: Raised Face (RF), Ring Type Joint (RTJ), Butt Weld Bolted Bonnet (BW BB), and Butt Weld Pressure Seal Bonnet (BW PSB). Optional actuator types available on request.
Selection notes
This gate valve is a api and high pressure pattern, supplied for flanged and butt weld installation.
Sizes run NPS 2 to NPS 16, in Class 1500, Class 2500.
It is catalogued for Industrial Process.
Built to API Gate Valve and ASME B16.10.
Supplier remarks
- We may provide other different actuators according to the customer's request, such as pneumatich, electric, hydraulic actuators, the details of them according to the actual valve working condition.
