Gate Valve

DIN Cast Steel Gate Valve

Name: DIN Cast Steel Gate Valve
Brand: Euro Flow Control
SKU: EFC-434

Datasheet

Download datasheet (PDF)

Specifications are indicative. Final specification is confirmed at quotation.

Specifications

Confirmed at quote

Size Range: DN50 to DN1200
Pressure Class: PN10, PN16, PN25, PN40, PN63, PN100, PN160
End connection: Flanged

Standards

Design & manufacture: DIN 3352
Inspection & test: DIN 3230, API 598
Face to face: DIN 3202-F4, DIN 3202-F5, DIN 3202-F7
Flange & end dimension: DIN 2543, DIN 2544, DIN 2545, DIN 2546
Materials: DIN 17245, DIN 17445, ASTM A182, ASTM A193, ASTM A194, ASTM A351
Other standards: BSEN1092-1

Configure your variant(manually adjust box on the right if you require a different spec)

Size
Pressure
End connection

Materials

Material grade

Offered in complete material setups. Pick one to set every part to the matched set, or choose parts individually below.

All available material options per part. Click a pill to set it in the configurator.

Body
Bonnet
Wedge
Stem
Gasket
Bolt
Eye Bolt
Gland
Gland Flange
Hand Wheel
Nut
Stem Nut
Packing

Dimensions per size(56 sizes)

Size	D (mm)	D1 (mm)	D2 (mm)	b (mm)	f (mm)	n-ød	L (mm)	H (mm)	W (mm)	Weight
DN50 (PN16)	165	125	102	20	3	4-ø18	250	360	200	—
DN65 (PN16)	185	145	122	18	3	4-ø18	270	380	220	—
DN80 (PN16)	200	160	138	20	3	8-ø18	280	418	250	—
DN100 (PN16)	220	180	158	20	3	8-ø18	300	488	280	—
DN125 (PN16)	250	210	188	22	3	8-ø18	325	531	300	—
DN150 (PN16)	285	240	212	22	3	8-ø22	350	638	300	—
DN200 (PN16)	340	295	268	24	3	12-ø22	400	758	350	—
DN250 (PN16)	405	355	320	26	3	12-ø26	450	906	400	—
DN300 (PN16)	460	410	378	28	4	12-ø26	500	1058	450	—
DN350 (PN16)	520	470	438	30	4	16-ø26	550	1215	500	—
DN400 (PN16)	580	525	490	32	4	16-ø30	600	1392	500	—
DN500 (PN16)	715	650	610	36	4	20-ø33	700	1676	680	—
DN50 (PN25)	165	125	102	20	3	4-ø18	250	362	200	—
DN65 (PN25)	185	145	122	22	3	8-ø18	270	383	220	—
DN80 (PN25)	200	160	138	24	3	8-ø18	280	418	250	—
DN100 (PN25)	235	190	162	24	3	8-ø22	300	496	280	—
DN125 (PN25)	270	220	188	24	3	8-ø26	325	606	300	—
DN150 (PN25)	300	250	218	28	3	8-ø26	350	674	300	—
DN200 (PN25)	360	310	278	30	3	12-ø26	400	766	350	—
DN250 (PN25)	425	370	335	32	3	12-ø30	450	911	400	—
DN300 (PN25)	485	430	395	34	4	16-ø30	500	1067	450	—
DN350 (PN25)	555	490	450	36	4	16-ø33	550	1223	500	—
DN400 (PN25)	620	550	505	40	4	16-ø36	600	1400	500	—
DN500 (PN25)	730	660	615	40	4	20-ø36	700	1676	600	—
DN50 (PN40)	165	125	102	20	3	4-ø18	250	364	200	—
DN65 (PN40)	185	145	122	22	3	8-ø18	290	389	220	—
DN80 (PN40)	200	160	138	24	3	8-ø18	310	418	250	—
DN100 (PN40)	235	190	162	24	3	8-ø22	350	489	280	—
DN125 (PN40)	270	220	188	24	3	8-ø26	400	541	300	—
DN150 (PN40)	300	250	218	28	3	8-ø26	450	657	350	—
DN200 (PN40)	375	320	285	30	3	12-ø30	550	824	400	—
DN250 (PN40)	450	385	345	32	3	12-ø33	650	985	450	—
DN300 (PN40)	515	450	410	34	4	16-ø33	750	1183	500	—
DN350 (PN40)	580	510	465	38	4	16-ø36	850	1312	600	—
DN400 (PN40)	660	585	535	50	4	16-ø39	950	1458	600	—
DN500 (PN40)	755	670	615	52	4	20-ø42	1150	1658	650	—
DN50 (PN63)	180	135	102	26	3	4-ø22	250	364	200	—
DN65 (PN63)	205	160	122	26	3	8-ø22	290	389	250	—
DN80 (PN63)	215	170	138	28	3	8-ø22	310	418	250	—
DN100 (PN63)	250	200	162	30	3	8-ø26	350	489	300	—
DN125 (PN63)	295	240	188	34	3	8-ø30	400	514	300	—
DN150 (PN63)	345	280	218	36	3	8-ø33	450	657	350	—
DN200 (PN63)	415	345	285	42	3	12-ø36	550	824	400	—
DN250 (PN63)	470	400	345	46	3	12-ø36	650	985	450	—
DN300 (PN63)	530	460	410	52	4	16-ø36	750	1183	500	—
DN350 (PN63)	600	525	465	56	4	16-ø39	850	1312	600	—
DN400 (PN63)	670	585	535	60	4	16-ø42	950	1458	600	—
DN50 (PN100)	195	145	102	30	3	8-ø26	250	490	250	—
DN65 (PN100)	220	170	122	34	3	8-ø26	290	540	250	—
DN80 (PN100)	230	180	138	36	3	8-ø26	310	573	280	—
DN100 (PN100)	265	210	162	40	3	8-ø30	350	675	300	—
DN125 (PN100)	315	250	188	40	3	8-ø33	400	744	350	—
DN150 (PN100)	355	290	218	44	3	12-ø33	450	800	450	—
DN200 (PN100)	430	360	285	52	3	12-ø36	550	900	500	—
DN250 (PN100)	505	430	345	60	3	12-ø39	650	1050	650	—
DN300 (PN100)	585	500	410	68	4	16-ø42	750	1208	700	—

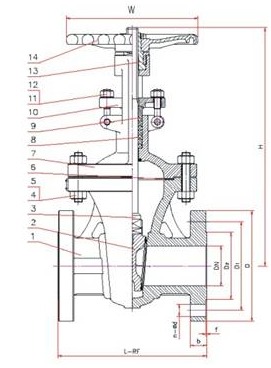

Technical drawings(1 page)

Actuation options

Manual handwheel

Features

Wedge gate design
Rising stem configuration
Multiple trim material options including carbon steel and stainless steel
Graphite or PTFE packing options for stainless steel variants
Graphite spiral wound gasket with stainless steel winding

Description

Cast steel gate valve manufactured to DIN standards, available in sizes DN15 to DN1200 and pressure ratings PN10 to PN160. Suitable for multiple trim configurations including carbon steel and stainless steel variants. Flange dimensions conform to BSEN1092-1 and DIN standards; face-to-face dimensions per DIN 3202.

Selection notes

This gate valve is a cast steel and wedge pattern, supplied for flanged installation.

Sizes run DN50 to DN1200, in PN10, PN16, PN25, PN40, PN63, PN100, PN160.

The body is offered in GS-C25+13CR, GS-C25+STL, GS-C25 and 1.0619 (WCB), so the grade can be matched to the service rather than the other way round.

It is catalogued for Industrial Process.

Built to DIN 3352, DIN 3202-F4, DIN 3202-F5, DIN 3202-F7 and DIN 3230.

Available pressure classes

Pressure classes this product is rated to.

PN10 PN16 PN25 PN40 PN63 PN100 PN160

Used in

Industrial Process
