IHPG - Hydraulic Power Generator
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN100 to DN1000
- Pressure Class
- PN10, PN16, PN25
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Materials
- AS 1831
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection
Materials
All available material options per part. Click a pill to set it in the configurator.
- Ancillary Parts
- Bolts Nuts Washers
- Generator Bearings
- Generator Body
- Generator Control Pilot
- Generator Rotor Shaft
- Valve Body
- Valve Top
Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |
| PN25 | 25 bar | -10°C | 80°C |
Typical applications
- Remote telemetry
- SCADA power supply
- Pressure transmitters
- Flow metering
- Rural water mains
Coatings
Approvals
Features

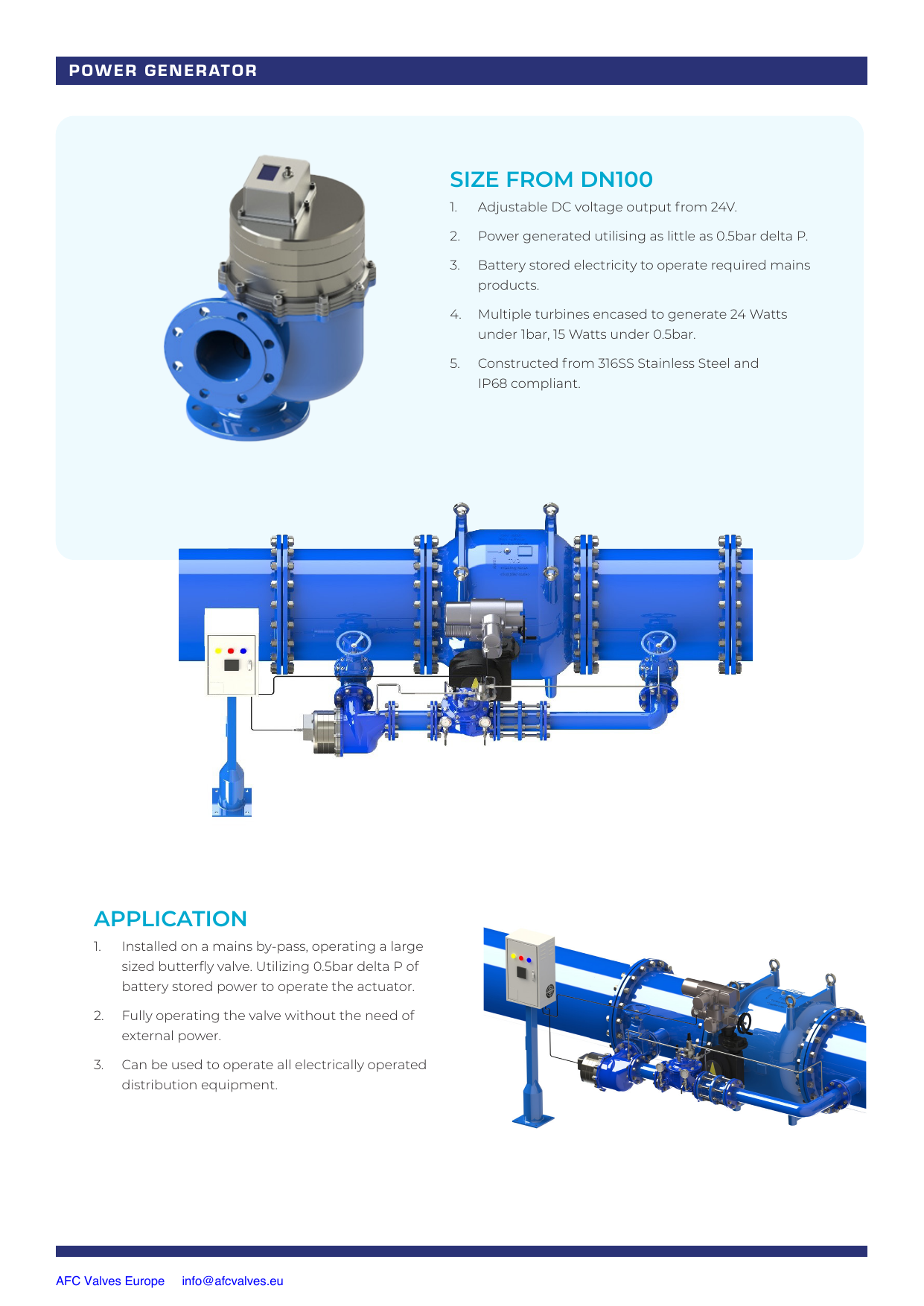

- The IHPG in-line hydraulic power generator is installed directly in the pipeline and converts flow energy into electrical power
- The generated DC output (adjustable from 24V, supporting 12V - 24V DC charging) powers remote telemetry units, pressure transmitters, flow meters and SCADA equipment at locations where mains power is unavailable or uneconomic to install
- Fully self-contained with IP68 protection
- Available from DN100; valve size range DN50 - DN1000
- Pressure ratings PN10, PN16 and PN25 per EN 1092-2
Description
The IHPG in-line hydraulic power generator is installed directly in the pipeline and converts flow energy into electrical power. The generated DC output (adjustable from 24V, 12V - 24V DC charging) powers remote telemetry units, pressure transmitters, flow meters and SCADA equipment at locations where mains power is unavailable or uneconomic to install. Fully self-contained with IP68 protection.
Selection notes
This hydraulic power generator is supplied for flanged installation.
Sizes run DN100 to DN1000, in PN10, PN16, PN25.
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -10°C to 80°C.
Built to AS 1831 and EN 1092-2.
Available pressure classes
Pressure classes this product is rated to.
