MHPG - Hydraulic Power Generator
Datasheet
Download datasheet (PDF)Specifications are indicative. Final specification is confirmed at quotation.
Specifications
Confirmed at quote- Size Range
- DN25 to DN1000
- Pressure Class
- PN10, PN16, PN25
- End connection
- Flanged
- Operating temperature
- -10°C to 80°C
Standards
- Inspection & test
- Body: 1.5 MPa (PN10), 2.4 MPa (PN16), 3.75 MPa (PN25), Seat: 1.1 MPa (PN10), 1.76 MPa (PN16), 2.75 MPa (PN25)
- Flange & end dimension
- EN 1092-2 PN10/16/25
- Materials
- AS 1831
Configure your variant(manually adjust box on the right if you require a different spec)
- Size
- Pressure
- End connection

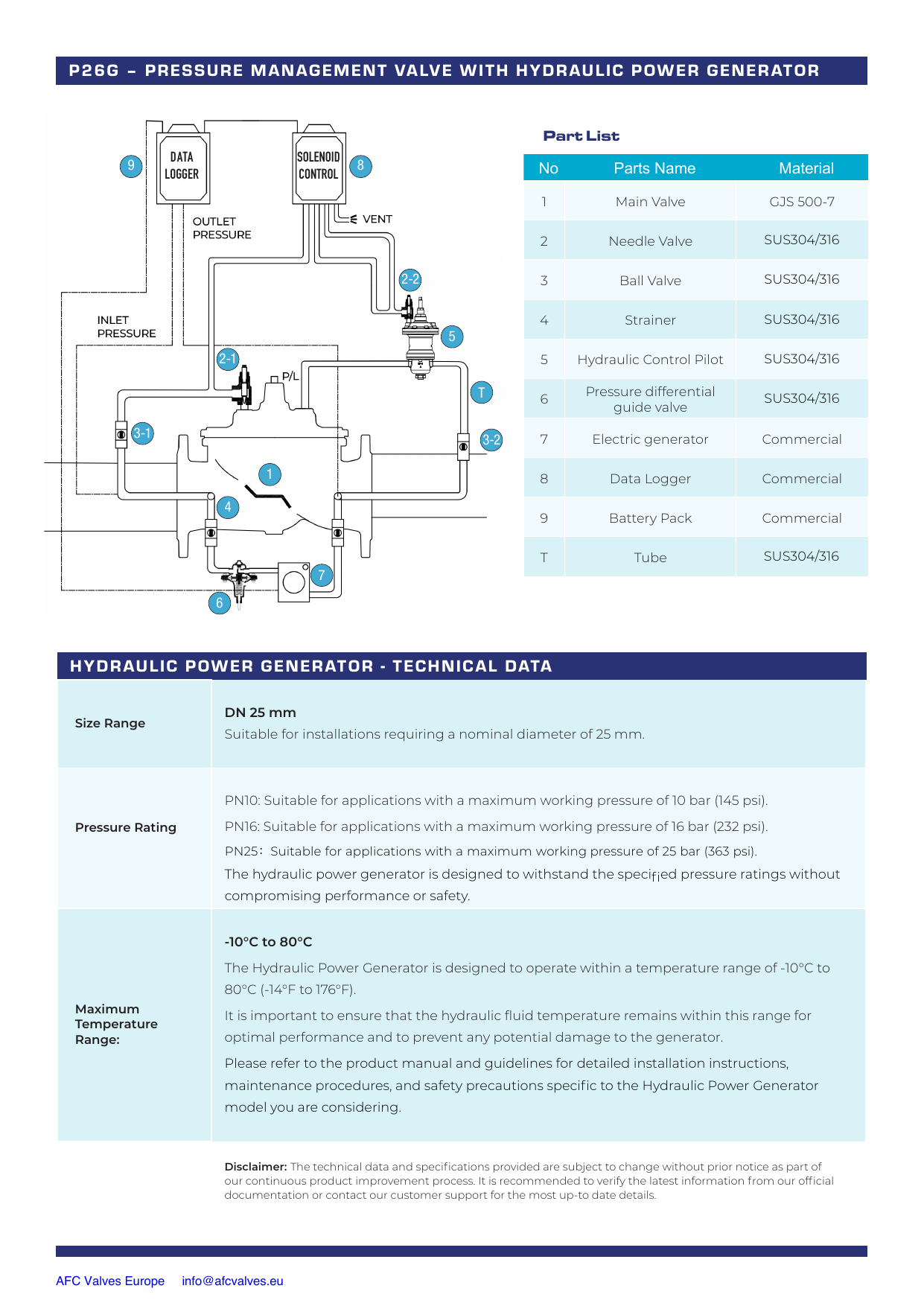

Materials
All available material options per part. Click a pill to set it in the configurator.
- Body
- Ball Valve
- Bearings
- Bolting
- Control Pilot
- Hydraulic Control Pilot
- Needle Valve
- Power Generator Body
- Pressure Differential Guide Valve
- Rotor Shaft
- Strainer
- Top
- Tube

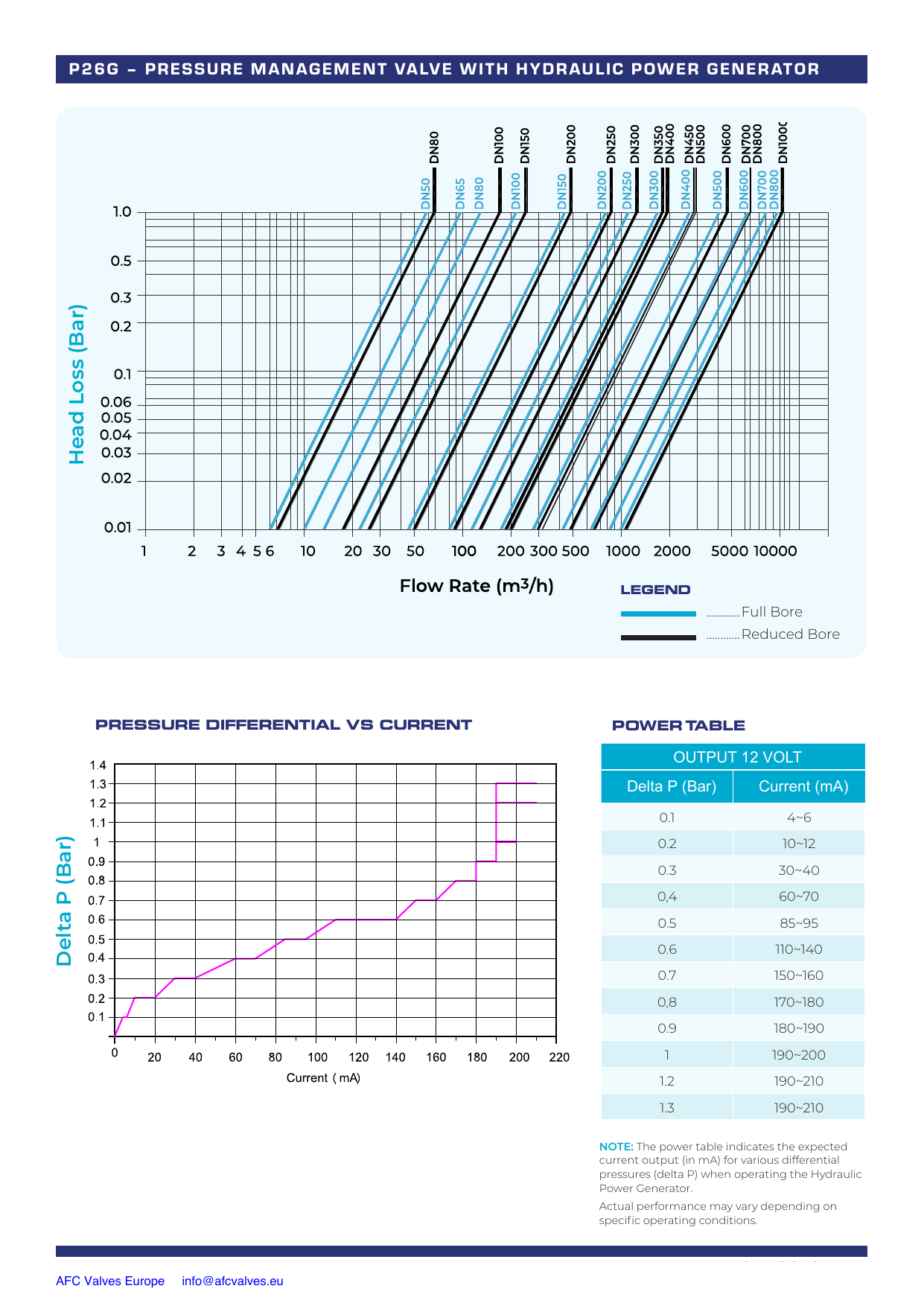

Pressure-temperature rating
Maximum working pressure at each temperature, per pressure class.
| Class | Pressure | Min temp | Max temp |
|---|---|---|---|
| PN10 | 10 bar | -10°C | 80°C |
| PN16 | 16 bar | -10°C | 80°C |
| PN25 | 25 bar | -10°C | 80°C |
Typical applications
- SCADA integration
- Data loggers
- Pipeline monitoring
- Smart water networks
Coatings
Approvals
Features
- The MHPG modular hydraulic power generator provides a configurable DC output for SCADA and telemetry integration
- The modular design allows output voltage and power conditioning to be matched to the connected equipment
- Suitable for data loggers, pressure and flow transmitters and radio telemetry units in remote pipeline locations
Description
The MHPG modular hydraulic power generator provides a configurable DC output for SCADA and telemetry integration. The modular design allows output voltage and power conditioning to be matched to the connected equipment. Suitable for data loggers, pressure and flow transmitters and radio telemetry units in remote pipeline locations.
Selection notes
This hydraulic power generator is supplied for flanged installation.
Sizes run DN25 to DN1000, in PN10, PN16, PN25.
The body is EN-GJS-500-7 (AS 1831).
It is catalogued for Water & Wastewater and Industrial Process.
Working temperature is -10°C to 80°C.
Built to Body: 1.5 MPa (PN10), 2.4 MPa (PN16), 3.75 MPa (PN25), Seat: 1.1 MPa (PN10), 1.76 MPa (PN16), 2.75 MPa (PN25), AS 1831, EN 1092-2 PN10/16/25 and EN 1092-2.
Available pressure classes
Pressure classes this product is rated to.
